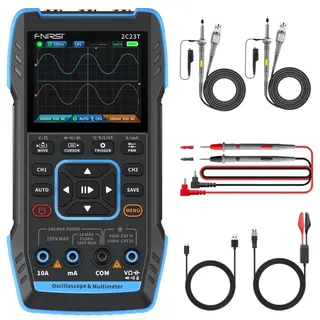

Handheld 3-in-1 oscilloscope multimeter signal generator with 2.8-inch LCD screen

WUQ

WUQ FNIRSI-2C23T 3-in-1 Oscilloscope Multimeter Signal Generator

SKU CH-0FXM-WBFBN

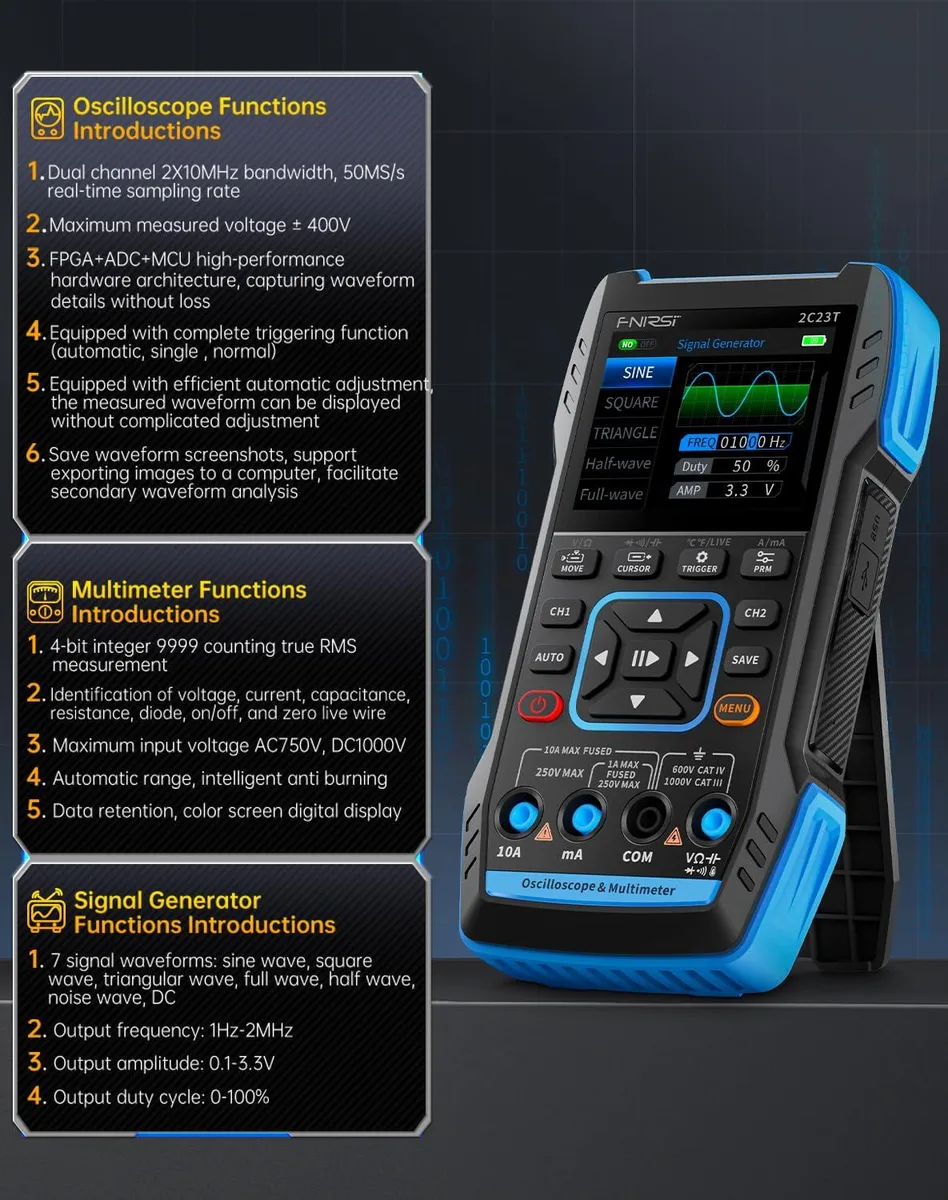

Handheld 3-in-1 tool combines a 2-channel 10 MHz oscilloscope, 10 000-count multimeter and 2 MHz signal generator with a 2.8-inch display and 3000 mAh battery

  • TypeTest Equipment
  • Combines oscilloscope, multimeter and signal generator in one handheld tool

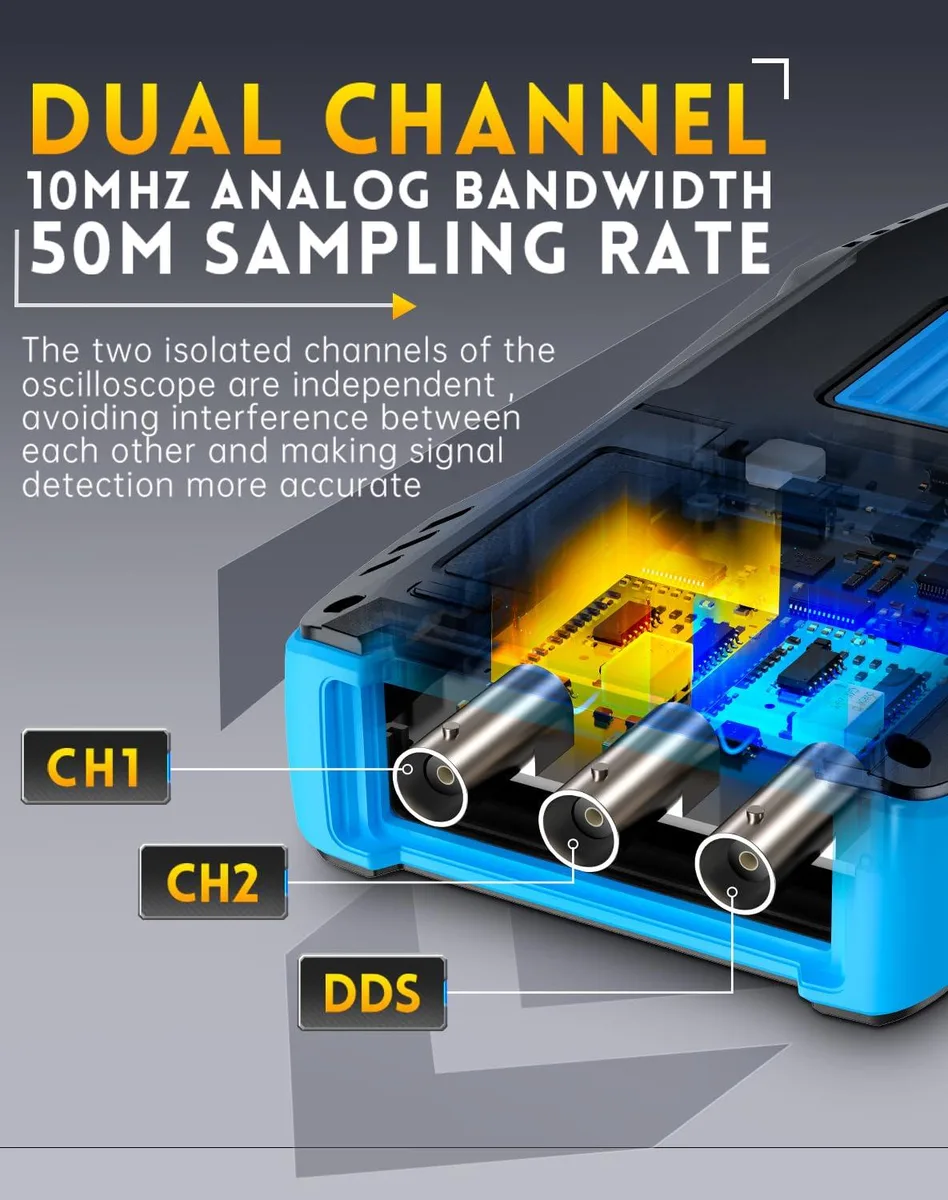

  • Dual-channel oscilloscope with 10 MHz bandwidth and 50 MSa/s real-time sampling
  • 10 000-count multimeter measuring voltage, current, resistance, capacitance and temperature
  • Signal generator outputs seven waveforms up to 2 MHz with adjustable parameters
  • 8-inch 320×240 LCD, 3 000 mAh battery giving 6-hour standby

All-in-One Test Instrument

The WUQ FNIRSI-2C23T combines a dual-channel oscilloscope, a digital multimeter and a DDS signal generator in one handheld unit. It targets engineers, technicians, educators and hobbyists who need portable measurement capability across multiple domains without carrying separate devices. The integrated design reduces bench clutter and simplifies field work.

Replaces Separate Bench Tools

This instrument consolidates three distinct pieces of test equipment into a single package. The jump is worth it when workspace is limited, when moving between sites, or when rapid switching between waveform capture, precision voltage or current reading, and stimulus generation is required. It eliminates the need to synchronize separate instruments during mixed-signal debugging.

Battery-Powered Handheld Platform

The unit runs on a built-in 3000 mAh rechargeable cell charged via USB Type-C at 5 V 1 A, providing roughly six hours of standby operation. A 2.8 inch 320 by 240 LCD presents waveforms and readings, while an FPGA plus MCU plus ADC architecture handles acquisition and protection up to 400 V. The handheld form factor frees bench space and enables on-site diagnostics without mains power.

Highlights

  • Combines oscilloscope, multimeter and signal generator in one handheld tool
  • Dual-channel oscilloscope with 10 MHz bandwidth and 50 MSa/s real-time sampling
  • 10 000-count multimeter measuring voltage, current, resistance, capacitance and temperature
  • Signal generator outputs seven waveforms up to 2 MHz with adjustable parameters
  • 8-inch 320×240 LCD, 3 000 mAh battery giving 6-hour standby

Specifications

TypeTest Equipment

Questions about this item

What is the display size and resolution of the FNIRSI-2C23T?

The unit has a 2.8-inch LCD with a 320 by 240 pixel resolution.

How is the internal battery charged and what power input does it require?

Connect the supplied Type-C cable to a 5V 1A adapter; the 3000mAh cell recharges in the device.

What consumable items will need periodic replacement on this instrument?

The test leads and probes wear with use; the rechargeable battery will eventually hold less charge and require replacement.
