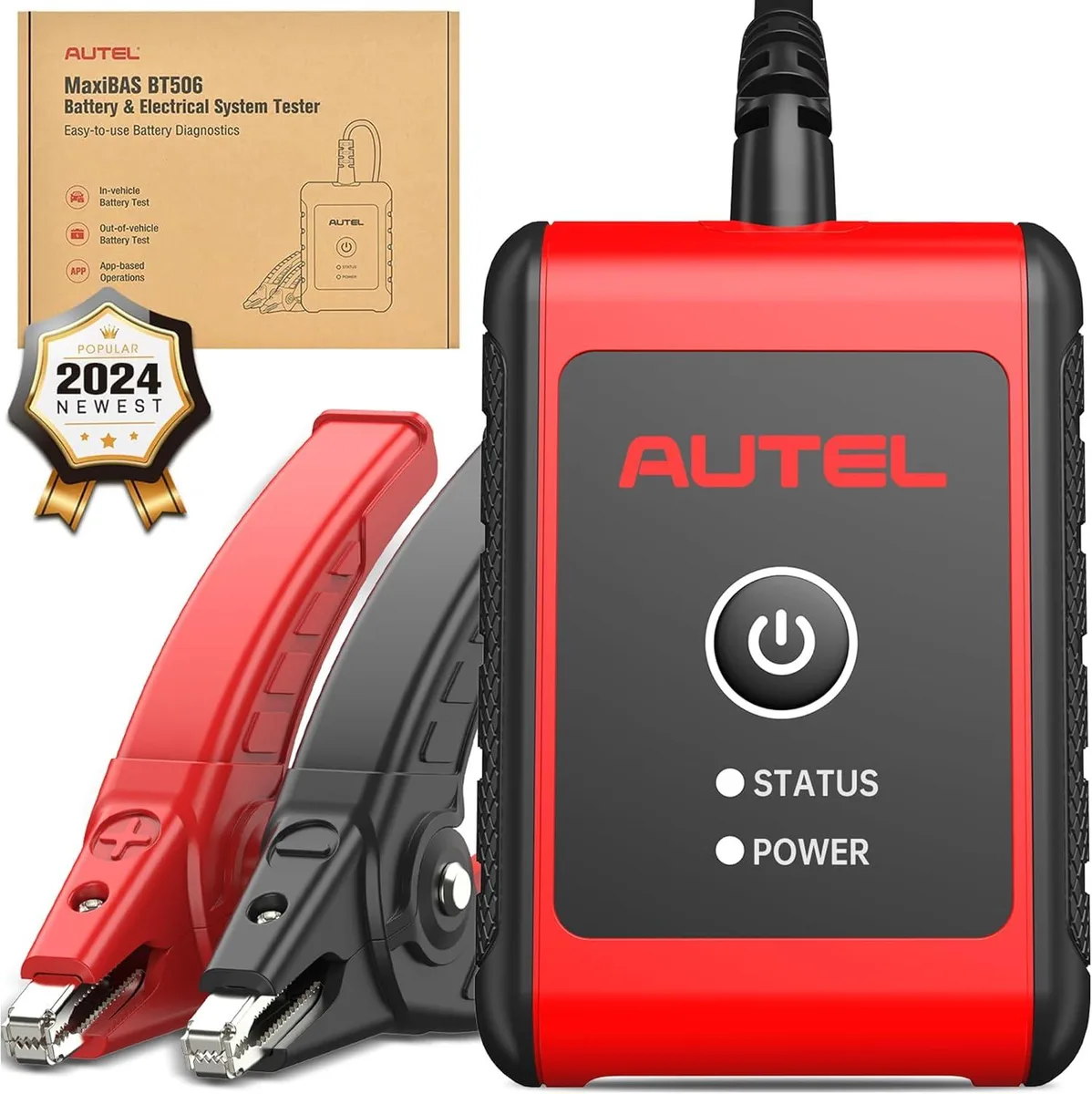

Handheld car battery tester with screen and clamps

WUQ

WUQ BT506 Car Battery Tester car electronics accessory

SKU CH-6Y27-5925S

Tests 6V and 12V batteries from 100 to 2000 CCA, plus 12V and 24V cranking and charging systems, with adaptive conductance and 99% Autel scanner compatibility

  • TypeCar Charger
  • Tests 6V and 12V batteries from 100 to 2000 CCA
  • Cranking test shows true starting system condition via voltage and run-up time
  • Charging test judges battery health through current, voltage and ripple data
  • Adaptive conductance detects low-capacity and discharged batteries with fewer retests
  • Works with 99% of Autel wireless scanners including MS906 and Ultra series

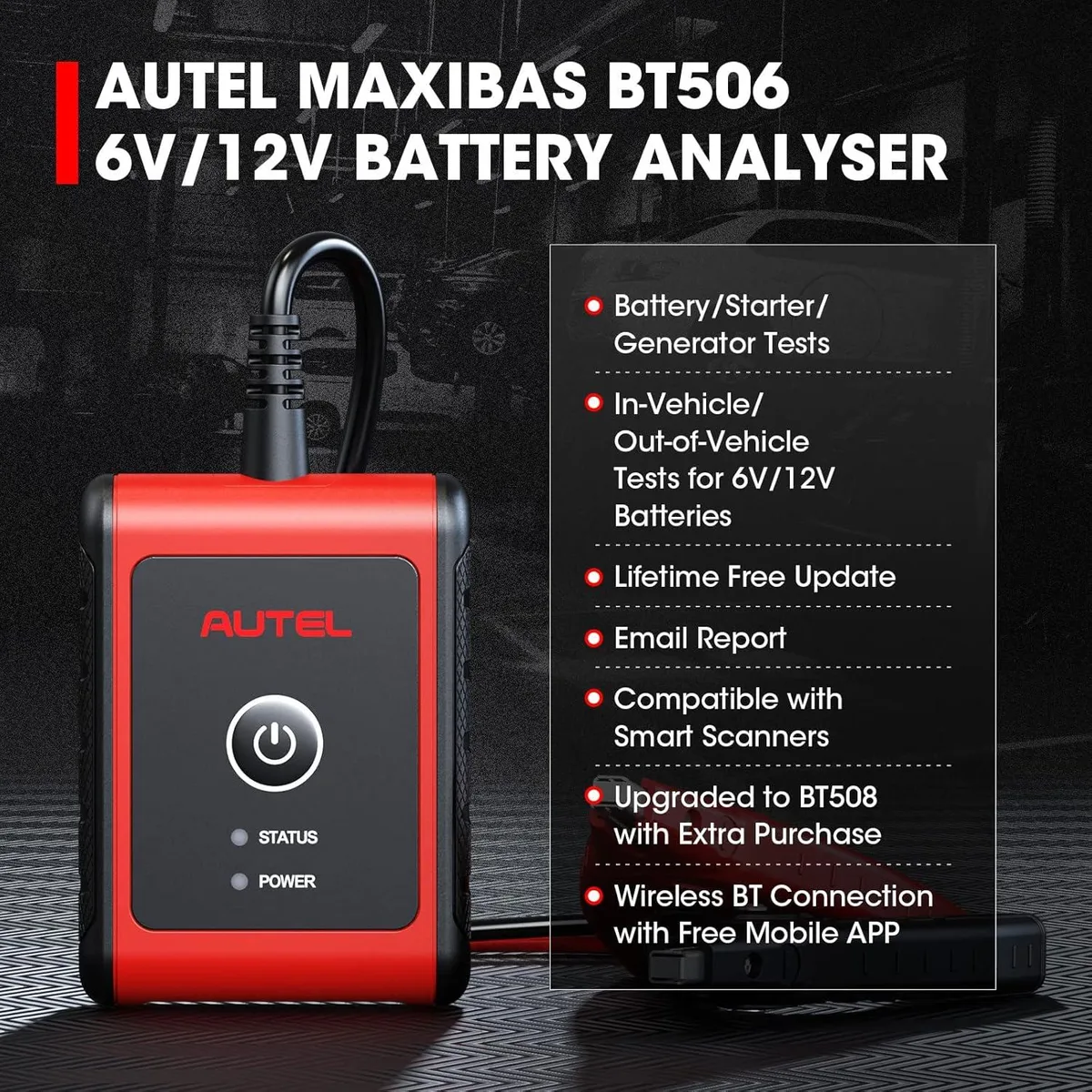

6V/12V Battery Analyser with Adaptive Conductance

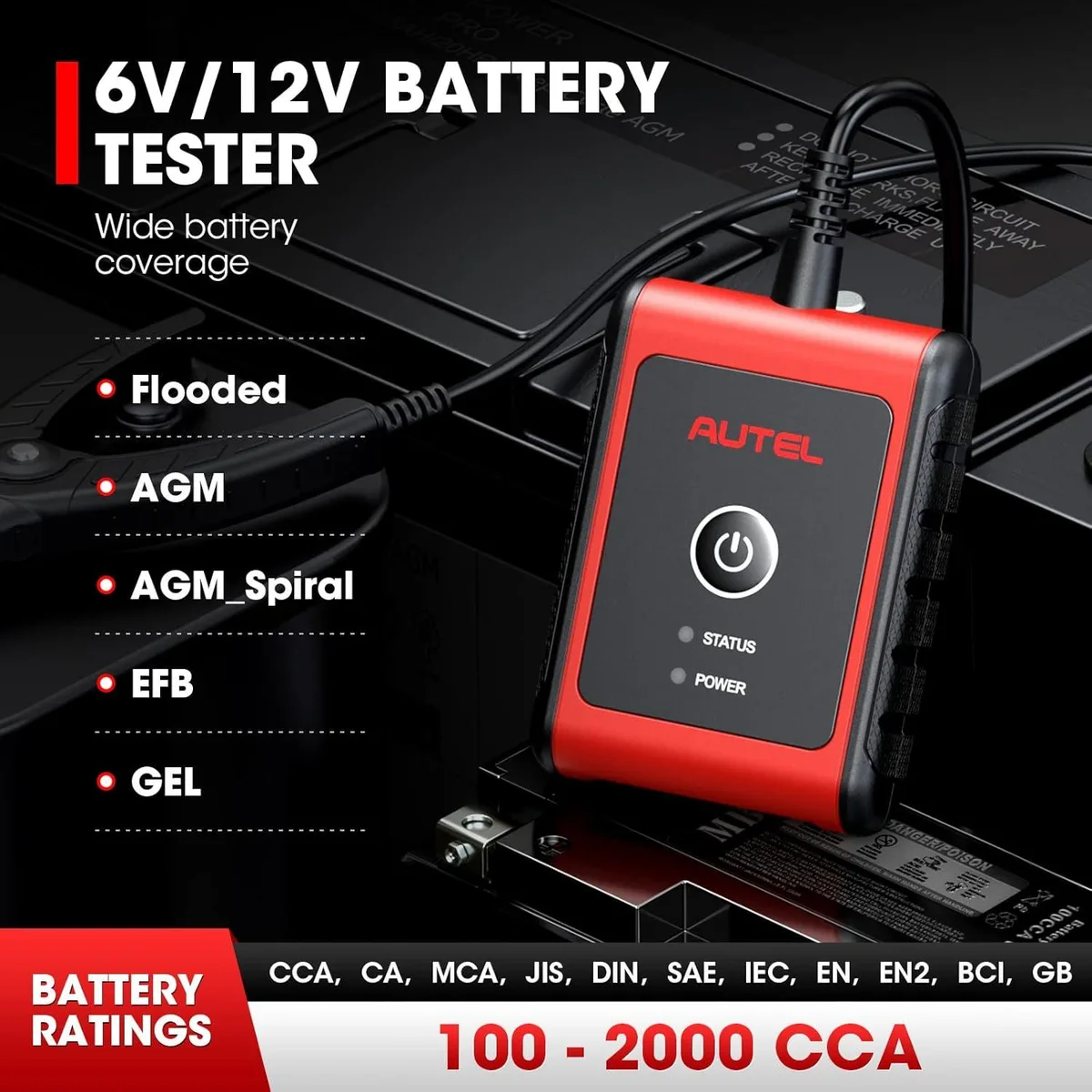

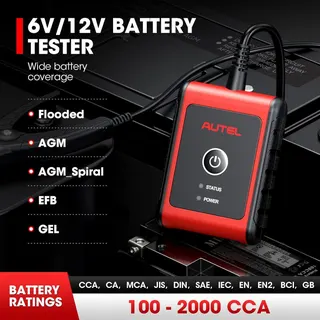

The WUQ BT506 is a 2024 battery analyser that tests 6V and 12V lead-acid batteries rated from 100 to 2000 CCA. It covers flooded, AGM, AGM spiral, EFB and GEL types while following CCA, SAE, CA, EN, IEC, DIN, JIS and MCA rating standards. Advanced adaptive conductance technology examines cell condition and delivers accurate results in seconds.

Professional Technicians

This analyser suits mechanics and battery specialists who already own one of the supported Autel wireless scanners such as the MK808BT PRO, MS906BT, MS909 or Ultra series. It integrates with 99 percent of those tools for shared reporting and workflow. It will not function with Autel wired scanners or key programming devices, so owners of that hardware must look elsewhere.

Cranking and Charging System Diagnostics Up to 24V

The unit performs cranking tests on 12V starting systems and charging tests on both 12V and 24V vehicle electrical systems, measuring voltage, current, ripple and run-up data. It handles batteries up to 2000 CCA, so very large commercial or industrial batteries beyond that rating fall outside its range. Reports can be viewed, shared and printed for customer records.

Highlights

  • Tests 6V and 12V batteries from 100 to 2000 CCA
  • Cranking test shows true starting system condition via voltage and run-up time
  • Charging test judges battery health through current, voltage and ripple data
  • Adaptive conductance detects low-capacity and discharged batteries with fewer retests
  • Works with 99% of Autel wireless scanners including MS906 and Ultra series

Specifications

TypeCar Charger

Questions about this item

Which battery types and CCA range does the BT506 support?

It tests 6V and 12V batteries from 100 to 2000 CCA, covering flooded, AGM, AGM spiral, EFB and gel chemistries.

Can the BT506 connect to my existing Autel scanner?

Yes, it works with 99% of Autel wireless scanners including the MK808BT PRO, MS906BT, MS909, Ultra and Ultra EV series.

What readings confirm the BT506 is analysing the battery correctly after setup?

A healthy test shows cold cranking amps, state of health, state of charge, plus cranking voltage, charging ripple voltage and system voltage for 12V or 24V systems.
