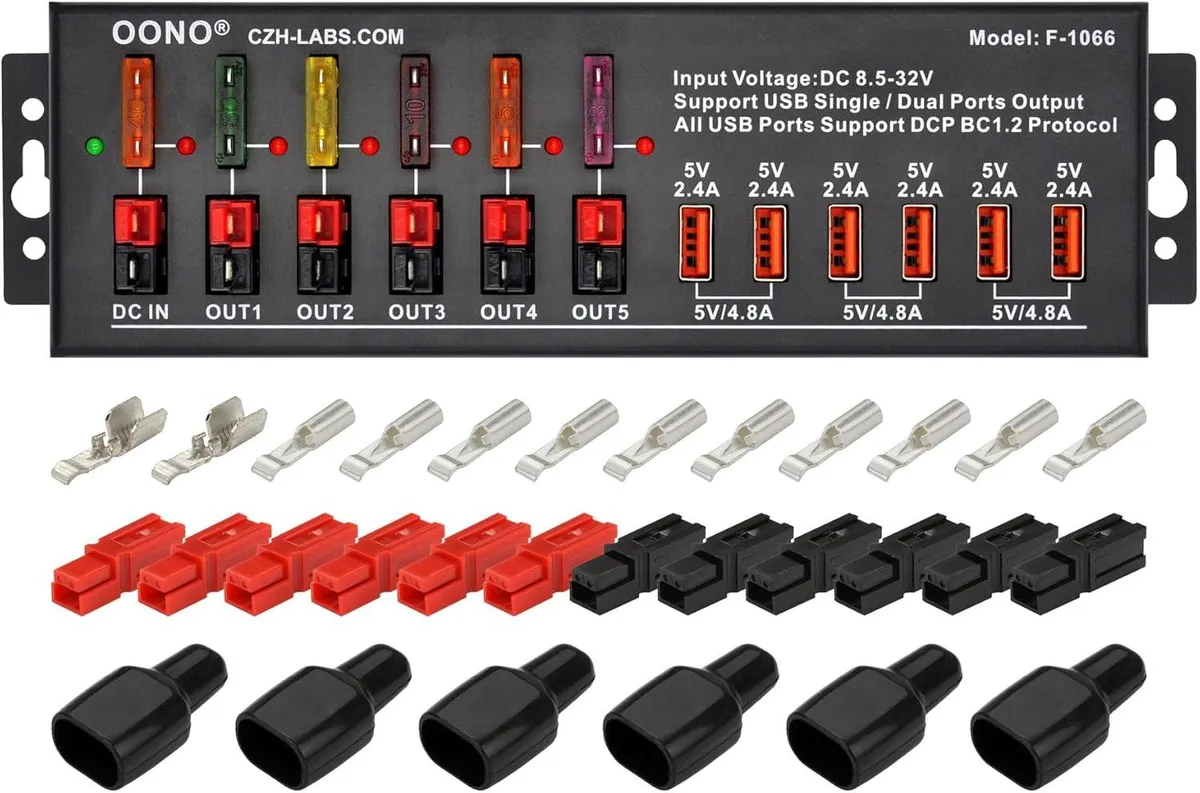

Aluminium enclosure with five Powerpole and six USB ports

WUQ

WUQ 40A DC Power Splitter Distribution Module 5 Power Pole 6 USB Ports

SKU CH-H5TY-VMHVA

Distributes 8.5 to 32 VDC across five fused Powerpole outputs and six USB ports with 2.4 A each

  • TypeTest Instrument & Gauge Parts
  • Wide 8.5–32 VDC input fits many DC systems
  • 40 A total capacity with five fused Powerpole outputs up to 30 A each
  • Six USB ports deliver 5 V at 2.4 A each, dual-port parallel to 4.8 A
  • Internal conversion above 90 % efficiency keeps heat low
  • Rugged 1.5 mm aluminium enclosure supports screw, wall, desktop or DIN-rail mounting

Input voltage and mounting options

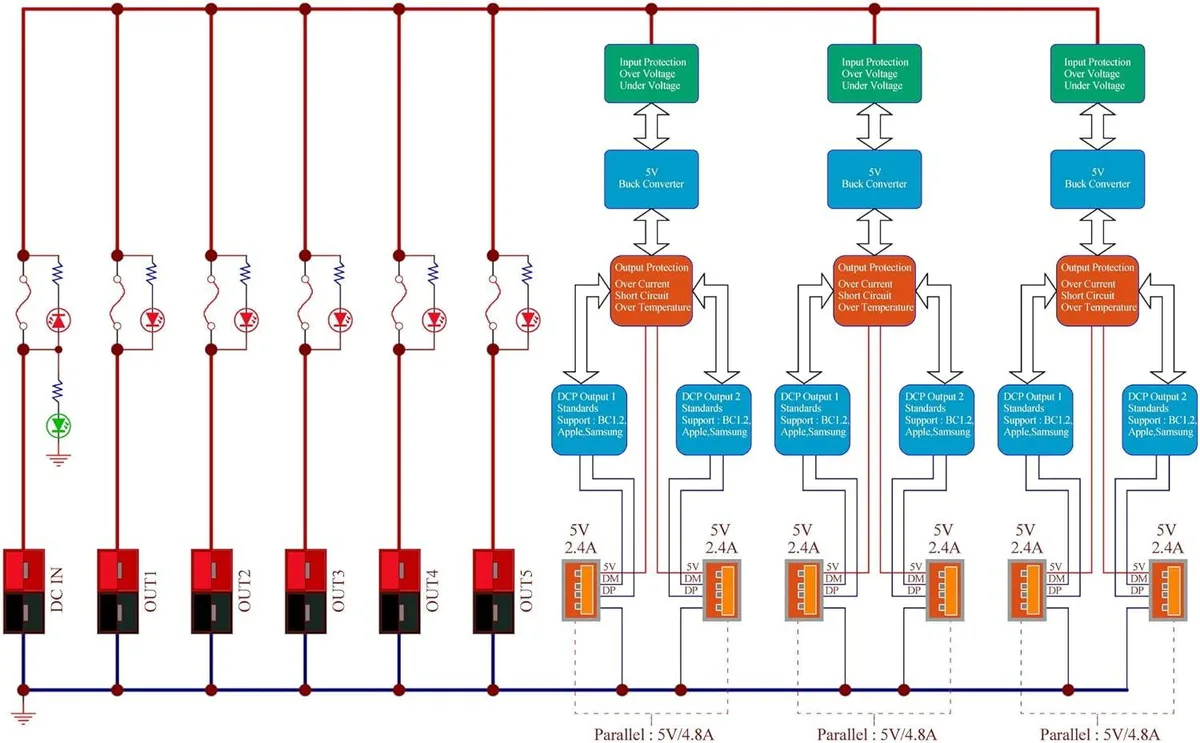

This DC power splitter operates from 8.5 to 32 VDC and delivers up to 40 Amp through five Power Pole ports fused at 30, 20, 10, 5 and 3 Amp. Six USB ports supply 5 VDC at 2.4 Amp each, with dual-port parallel output reaching 4.8 Amp and support for USB DCP BC1.2, Apple and Samsung protocols. The aluminium enclosure measures 1.5 mm thick and offers screw, wall or desktop mounting, plus 35, 32 or 15 mm DIN rail mounting with an optional adapter bracket.

Installers needing fused distribution

Suits vehicle, marine or off-grid installers who want a single block that distributes up to 40 Amp across individually fused Power Pole outputs while also charging phones, tablets or USB gear. Not for buyers who require AC outlets, higher than 40 Amp total throughput, or USB Power Delivery at voltages above 5 V.

Total 40 Amp current limit

The hard ceiling is 40 Amp combined across all five Power Pole ports, so the sum of connected loads must stay at or below that figure regardless of individual fuse ratings.

Highlights

  • Wide 8.5–32 VDC input fits many DC systems
  • 40 A total capacity with five fused Powerpole outputs up to 30 A each
  • Six USB ports deliver 5 V at 2.4 A each, dual-port parallel to 4.8 A
  • Internal conversion above 90 % efficiency keeps heat low
  • Rugged 1.5 mm aluminium enclosure supports screw, wall, desktop or DIN-rail mounting

Specifications

TypeTest Instrument & Gauge Parts

Questions about this item

What screw spacing does the 1.5 mm aluminum enclosure need for wall mounting?

The enclosure supports screw and wall mounting directly; adding the CASE-015 bracket enables 15 mm, 32 mm or 35 mm DIN rail mounting.

How do you replace a blown fuse on the 30 A power pole output without opening the case?

High-quality external fuse holders let you pull and swap any ATC/ATO fuse from the outside; each port has its own fault LED.

Which fuse values are available for the five power pole ports rated 30 A, 20 A, 10 A, 5 A and 3 A?

ATC/ATO auto fuses are available in 10 values from 1 A to 40 A, so you can match each port's rating exactly.
