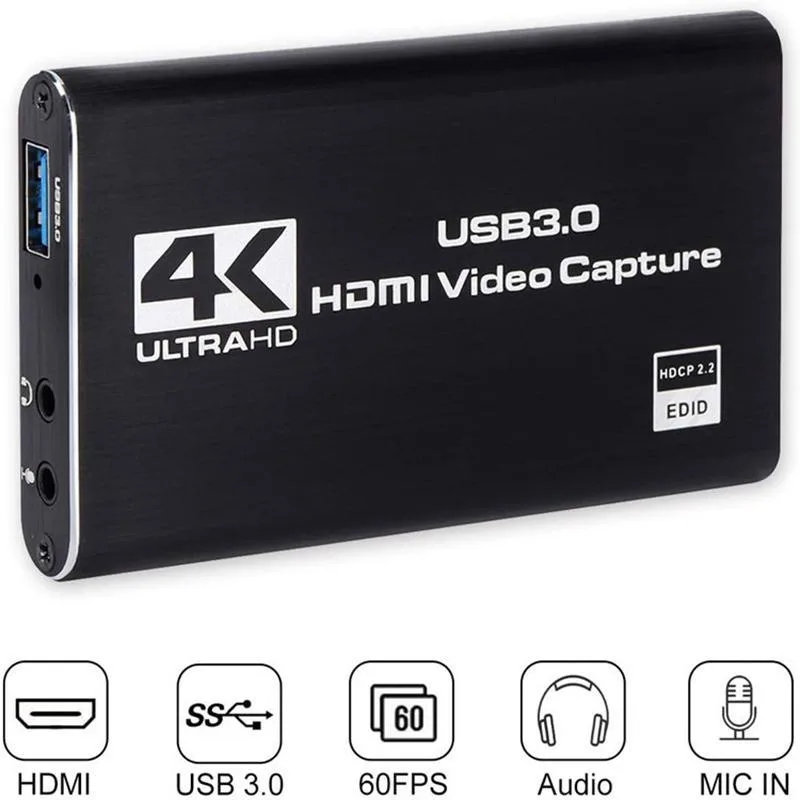

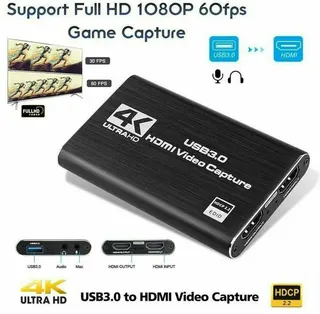

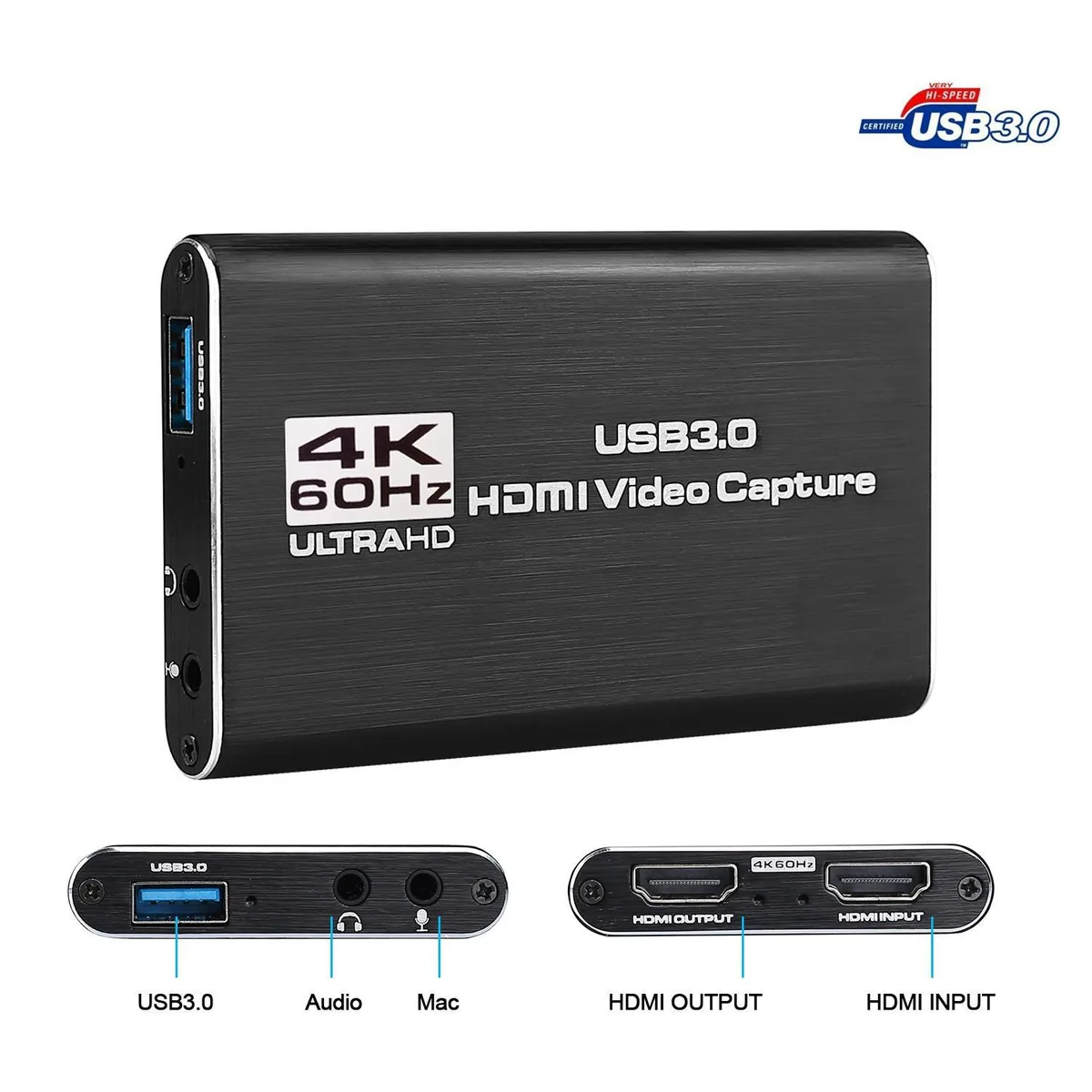

Compact black video capture box with HDMI ports and USB 3.0 connector

WRIARICH

WRIARICH YCY-2353 USB 3.0 1080P Video Capturing Device

SKU CH-1KDS-9KQTS

Captures 1080p 60 Hz video from HDMI sources with 4K 30 Hz loop-out and records to multiple formats via USB 3.0

  • InterfaceUSB 3.0
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Capture 1080p at 60 Hz for smooth recordings
  • Pass-through 4K at 30 Hz to your monitor while recording
  • USB 3.0 delivers 300–350 MB/s throughput for low latency
  • Works on Windows, macOS, Linux and Android without drivers
  • Draws under 2.5 W so no external power needed

USB 3.0 HDMI capture for creators

The WRIARICH YCY-2353 is a USB 3.0 video capturing device built for streamers, educators and conference users who need to record or broadcast an HDMI source. It accepts 4K input at 30 Hz and captures up to 1080p at 60 Hz, delivering footage through a single USB 3.0 link without an external power adapter.

Loop-out and UVC support change the workflow

An HDMI loop-out port passes the source signal to a monitor, projector or TV while the capture runs, so the operator sees the same image live. The device implements UVC and UAC standards, letting it work with generic recording or streaming software on Windows, macOS, Linux and Android without proprietary drivers. Audio is captured at 48 KHz PCM.

USB 3.0 bandwidth and 1080p ceiling define limits

The USB 3.0 interface provides 300 to 350 MB/s throughput, which is sufficient for the supported 1080p60 capture but prevents higher resolutions or frame rates. Input signals above 4K 30 Hz are not supported, and the capture resolution caps at 1080p even when a 4K source is connected. Backward compatibility with USB 2.0 will reduce available bandwidth further.

Highlights

  • Capture 1080p at 60 Hz for smooth recordings
  • Pass-through 4K at 30 Hz to your monitor while recording
  • USB 3.0 delivers 300–350 MB/s throughput for low latency
  • Works on Windows, macOS, Linux and Android without drivers
  • Draws under 2.5 W so no external power needed

Specifications

BrandWRIARICH
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
USB Port1
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power Consumption<= 2.5W
Power SupplyNO need external power supply
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect t
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;

Questions about this item

Does the USB 3.0 capture device need any external power supply or cooling maintenance over time?

No external power supply is required and the unit draws 2.5 W or less, so there is no fan or power brick to service.

What throughput ceiling limits sustained capture on the USB 3.0 link?

The interface provides 300 to 350 MB/s, which caps the maximum continuous data rate.

How much heat or noise does the capture card produce when recording all day?

Power draw stays at or below 2.5 W with no fan, so heat output is minimal and operation is silent.
