WRIARICH

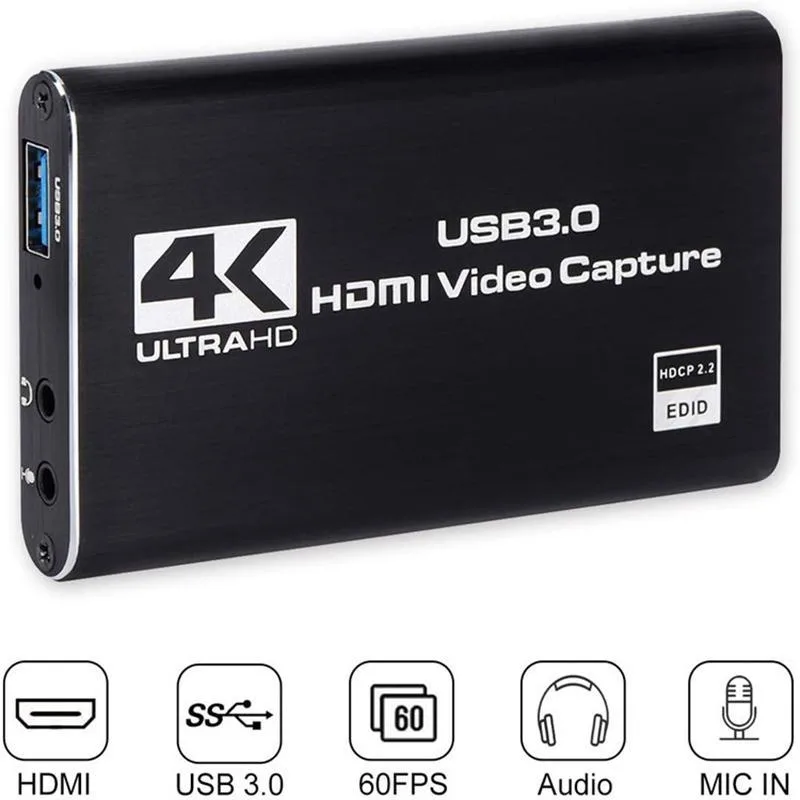

WRIARICH YCY-2353 USB 3.0 1080p 60Hz video capturing device
Captures HDMI video at up to 1080p 60Hz and passes 4K 30Hz through to a display, recording via USB 3.0 without external power
- InterfaceUSB 3.0
- FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
- Resolution Support1080P
- Camera ResolutionUp to 1080p Video
- ColorBlack
- VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
- Capture 1080p at 60Hz for smooth recordings
- Pass-through 4K at 30Hz to your display
- USB 3.0 delivers 300–350 MB/s throughput
- Works on Windows, macOS, Linux and Android
- Records 48 kHz PCM audio with HDMI sound
What this capture device does
The WRIARICH YCY-2353 captures a single HDMI video signal at up to 1080p 60Hz and passes the same signal through its HDMI output for a local display. It records in formats such as mp4, mov and mkv while sampling audio at 48 KHz PCM. The unit draws no more than 2.5 W and needs no external power adapter. Streamers, educators and conference users get a compact recorder that works with Windows, macOS, Linux and Android.
Installing and common issues
Plug the HDMI source into the input, connect the USB 3.0 cable to the host and the device appears as a UVC and UAC camera without extra drivers. Backward compatibility with USB 2.0 is supported but throughput drops to the older bus limit. Some laptops only provide USB 2.0 ports, which prevents 1080p 60 capture; verify the port type before relying on the higher frame rates. The LED indicator confirms link status and helps diagnose connection problems.
Limits of the USB 3.0 interface
HDMI input accepts 4K 30Hz yet the capture path tops out at 1080p 60Hz, so 4K sources are downscaled before recording. USB 3.0 bandwidth of 300 to 350 MB/s is sufficient for the supported resolutions but leaves no headroom for higher bit-depth or multi-channel captures. The device cannot capture multiple HDMI inputs simultaneously and does not support HDR passthrough. Buyers who want 4K 60 recording or multi-source switching will need a different class of hardware.
Highlights
- Capture 1080p at 60Hz for smooth recordings
- Pass-through 4K at 30Hz to your display
- USB 3.0 delivers 300–350 MB/s throughput
- Works on Windows, macOS, Linux and Android
- Records 48 kHz PCM audio with HDMI sound
Specifications
| Brand | ESTONE |
|---|---|
| Series | YCY-2353 |
| Model | YCY-2353 |
| Interface | USB 3.0 |
| Format | Output Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more |
| Resolution Support | 1080P |
| Camera Resolution | Up to 1080p Video |
| Color | Black |
| Video | The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; |
| Audio | support 48 KHz PCM audio sampling rate |
| HDMI | 1 Input/1 Output |
| USB Port | 1 |
| LED Indicator | Yes |
| Display | HDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically. |
| Compatibility | The HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok. |
| System Requirements | Windows / Android / MacOS/ Linux ect. |
| Power Consumption | <= 2.5W |
| Power Supply | NO need external power supply |
| Specification | 1. Input interface: 1 HDMI interface; 2. Output interface: USB3.0, 300 ~ 350MB / s throughput; 3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480 4. HDMI sound input: LPCM sound signal; 5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color; 6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10 |
| Feature | 1. It can capture single HD HDMI video signal; 2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz; 3. Support MJPEG and YUY2; 4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate; 5. Some win7 need to install the driver; 6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems; 7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth); 8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate; 9. Can automatically detect t |
| Dimensions | 4.88 x 4.65 x 2.52 inches |
| Weight | 0.035 ounces |
| Package Content | 1 x4K USB3.0 HDMI Audio Video Capture Card; 1 x HDMI Cable; 1xUSB 3.0 Cable; 1 x User Manual; |
Questions about this item
How do I confirm the YCY-2353 is capturing at 1080p 60Hz after setup?
Open your capture software and check the active video format; it should report 1080p at 60Hz with 48 KHz PCM audio, and the LED indicator on the device will be lit.
What comes in the box with the YCY-2353 and what must I provide separately?
The unit includes the capture card with one HDMI input, one HDMI output and a USB 3.0 connection; you must supply an HDMI cable for the source, a second HDMI cable for pass-through display, and a USB 3.0 cable to the host.
Should I choose the USB 3.0 or USB 2.0 mode for 1080p 60Hz recording?
Use the USB 3.0 connection; it delivers 300–350 MB/s throughput required for 1080p 60Hz, while USB 2.0 bandwidth is insufficient for that frame rate.
