WRIARICH SW623 8K 2-Port DP KVM Switch

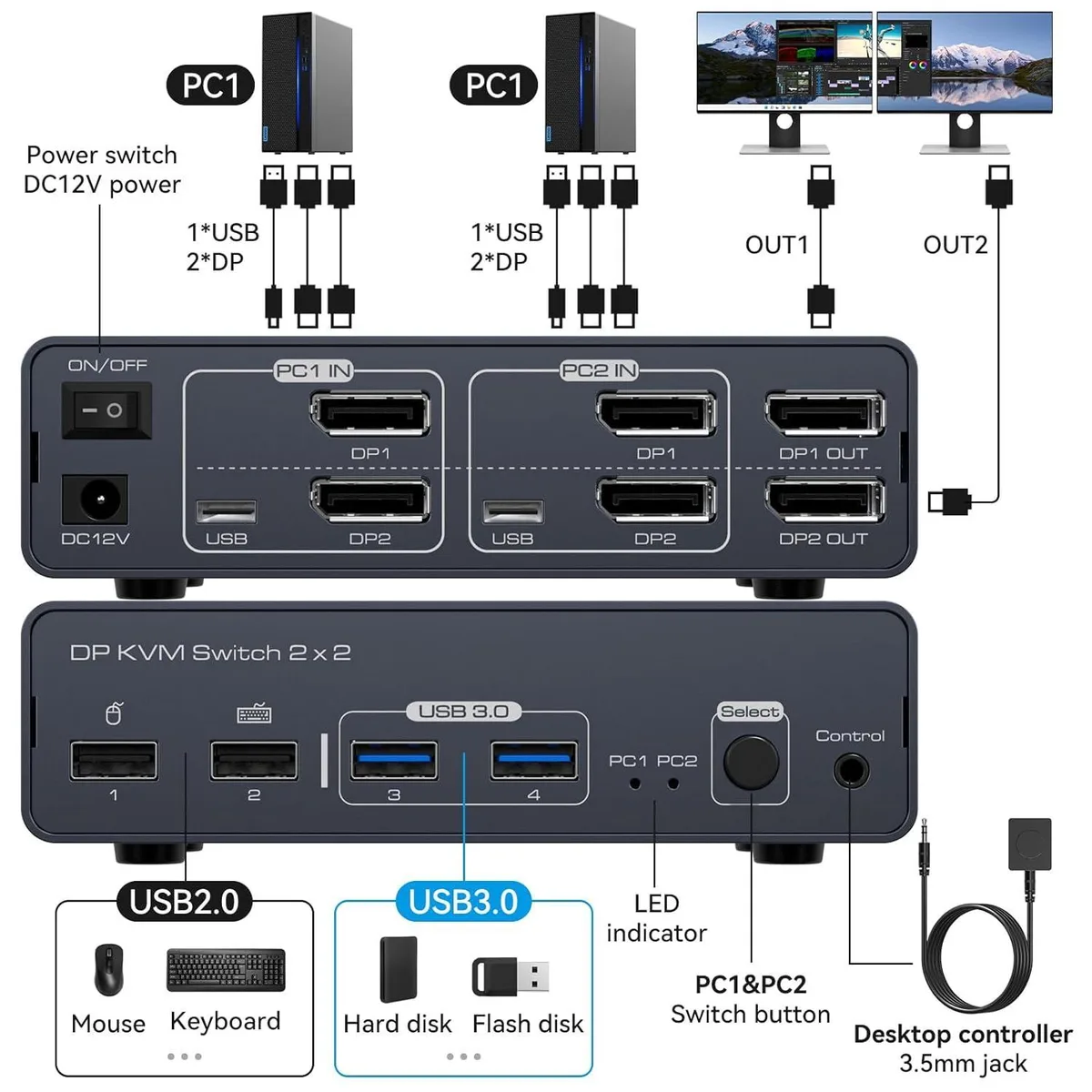

A dual-monitor KVM switch lets two computers share two DisplayPort displays and four USB peripherals at up to 8K 60 Hz or 4K 120 Hz with push-button or wired remote switching
- TypeDisplayPort, USB
- PC ConnectorsDisplayport
- Computer ConnectionsDisplayport USB
- Monitor Connections2 Ports
- Video ResolutionThe display port kvm supports stunning resolutions up to 8K@
- PC SelectionPush Buttons and Wired Remote
- Share two PCs across dual monitors at 8K 60 Hz
- Switch instantly with front buttons or wired remote
- Connect four USB devices via two 3.0 and two 2.0 ports

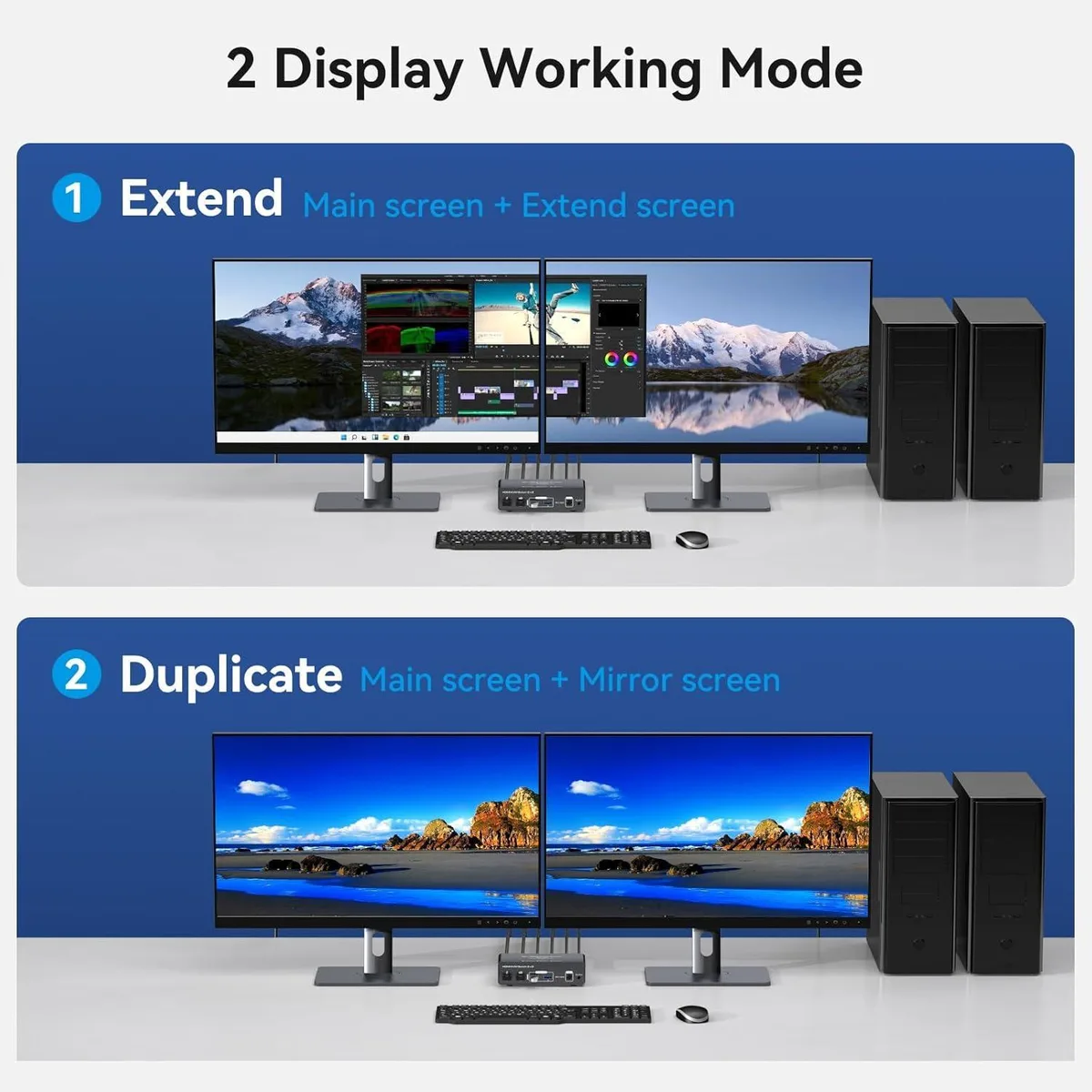

- Extend or duplicate displays across both screens
- Compact aluminum unit powered by 12 V DC
Dual-PC 8K DisplayPort KVM Switch
The WRIARICH SW623 lets two computers share two DisplayPort monitors and four USB peripherals. It supports resolutions up to 8K at 60 Hz and 4K at 120 Hz, with backward compatibility down to 720p. Extended and Duplicate display modes give flexibility for multitasking or mirroring. A wired remote and front push buttons provide instant source switching.
Sustained 8K60 and 4K120 Operation
The switch maintains 8K at 60 Hz and 4K at 120 Hz continuously through its dual DisplayPort channels without dropping frames. HDCP 2.3 compliance ensures protected content plays without interruption during long sessions. The 12 V DC power supply delivers stable current so video and USB 3.0 data remain reliable under full load. Aluminium housing aids passive heat dissipation for consistent performance.
DisplayPort 1.4 Bandwidth and USB 3.0 Limits
Dual 8K60 signals approach the practical bandwidth ceiling of the DisplayPort interface used, so cable quality and length become critical for signal integrity. USB 3.0 ports operate at 5 Gbps, which caps external SSD throughput below the drive’s native speed. The two USB 2.0 ports handle keyboards and mice but are not suited for high-bandwidth storage. Hot-plugging many devices simultaneously may exceed the hub’s current budget.
Highlights
- Share two PCs across dual monitors at 8K 60 Hz
- Switch instantly with front buttons or wired remote
- Connect four USB devices via two 3.0 and two 2.0 ports
- Extend or duplicate displays across both screens
- Compact aluminum unit powered by 12 V DC
Specifications
| Model | SW623 KVM Switch DP |
|---|---|
| Type | DisplayPort, USB |
| PC Connectors | Displayport |
| Computer Connections | Displayport USB |
| Monitor Connections | 2 Ports |
| Video Resolution | The display port kvm supports stunning resolutions up to 8K@60Hz and 4K@120Hz for superior image and video quality. It is also backward compatible with popular resolutions such as 4K@60Hz, 1080P and 720P. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Power Features | 12V DC power supply |
| USB Features | with USB support |
| Application | The KVM switch allows 2 computers to share 2 monitors and 4 USB ports, including support for devices such as mice, keyboards, printers and external hard drives. It offers Extended Mode (which allows you to move application windows from the main screen to the secondary screen to increase work efficiency) and Duplicate Mode (which allows you to mirror images on both monitors). |
| Features | 8K@60Hz HD Resolution; 2 Switching Modes; with 4 USB ports; Plug and Play. |
| Dimensions | 5.55 x 2.68 x 1.5 inches |
| Weight | 260g |
| Package Contents | Machine *1 USB3.0 to Type-c cable *2 Power supply *1 Wire control *1 Manual *1 |
Questions about this item
Does the 12 V DC supply and USB 3.0 hub generate noticeable heat or noise when the SW623 runs all day?
The unit is passively cooled with no fan, so it stays silent; the 12 V DC adapter and aluminium chassis dissipate the modest power draw without audible noise or uncomfortable surface temperatures during continuous use.
Which cables and ports must my two computers already provide to connect to the SW623?
Each computer needs one DisplayPort video output and one USB Type-C port that carries USB 3.0 data; the box includes two USB 3.0-to-Type-C cables for those links.
Will my older 1080P or 720P monitors work with the SW623 alongside newer 4K displays?
Yes — the switch is backward compatible with 1080P, 720P and other common resolutions, so legacy monitors can share the same two-computer setup as 4K or 8K screens.
