WRIARICH
WRIARICH SW232 KVM Switch 3 Monitors 2 Computers
Share three monitors and four USB 3.0 peripherals between two computers with 8K 60 Hz and 4K 120 Hz support
- TypeHDMI + 2 Displayport
- PC ConnectorsHDMI, DP, DP, USB 3.0
- Computer ConnectionsHDMI + 2 Displayport
- Monitor Connections3 Ports ( HDMI + 2 Displayport)
- Video ResolutionThe HDMI 2.1 and DP 1.4 KVM Switcher supports resolution up
- PC SelectionPush Buttons and Wired Controller
- Control two computers and three monitors with one keyboard and mouse
- Share four USB 3.0 peripherals between both systems at 5 Gbps
- Switch instantly via push buttons or wired remote controller
- Supports 8K 60 Hz and 4K 120 Hz over HDMI 2.1 and DP 1.4

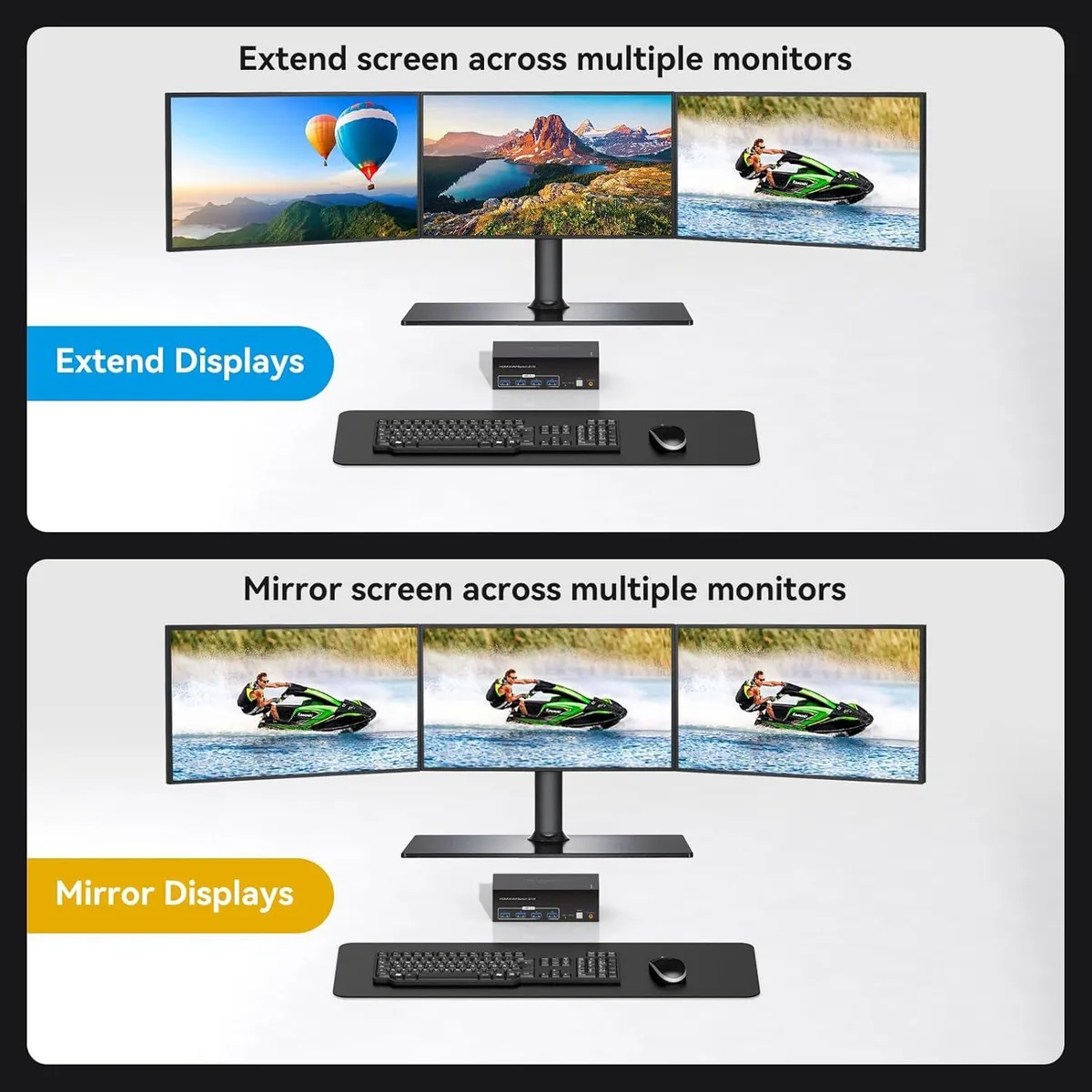

- Choose duplicate or extended desktop modes across all three displays
Triple-Monitor KVM for Two PCs

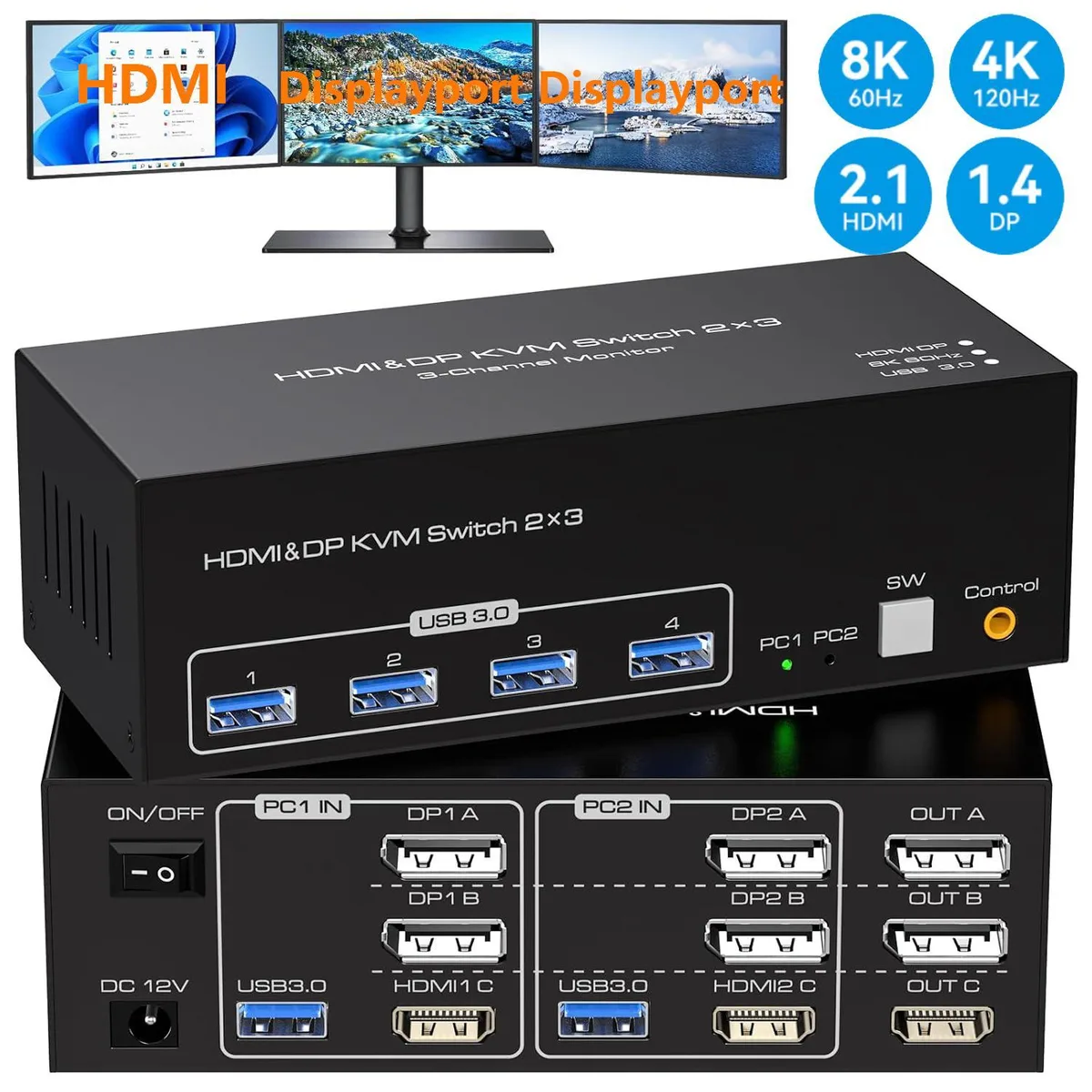

The WRIARICH SW232 lets two desktops or laptops share three displays and four USB 3.0 peripherals from a single keyboard and mouse. Each computer connects through one HDMI and two DisplayPort inputs, while the three monitor outputs mirror that same HDMI plus dual DisplayPort layout. A wired remote and front push buttons provide instant PC switching.
Suits dual-system workstations needing triple-head
This unit fits users who run two computers and want unified control across three screens with extended or duplicate desktop modes. It is not for setups that require audio switching, more than two host systems, or computers lacking two DisplayPort and one HDMI video outputs. Buyers needing additional USB ports beyond four should look elsewhere.
Handles 8K 60 Hz and 4K 120 Hz across three heads
Video bandwidth supports resolutions up to 8K at 60 Hz and 4K at 120 Hz, with backward compatibility for lower timings. Four USB 3.0 ports deliver 5 Gbps data rates for keyboards, mice, printers, drives and scanners. The included 12 V power adapter maintains stable operation when high-draw peripherals are attached.
Highlights
- Control two computers and three monitors with one keyboard and mouse
- Share four USB 3.0 peripherals between both systems at 5 Gbps
- Switch instantly via push buttons or wired remote controller
- Supports 8K 60 Hz and 4K 120 Hz over HDMI 2.1 and DP 1.4
- Choose duplicate or extended desktop modes across all three displays
Specifications
| Model | SW232 |
|---|---|
| Type | HDMI + 2 Displayport |
| PC Connectors | HDMI, DP, DP, USB 3.0 |
| Computer Connections | HDMI + 2 Displayport |
| Monitor Connections | 3 Ports ( HDMI + 2 Displayport) |
| Video Resolution | The HDMI 2.1 and DP 1.4 KVM Switcher supports resolution up to 8K60Hz 4K120Hz and downwards. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Come with DC12V Power Adapter |
| USB Features | The USB KVM Switch Display Port and HDMI has 4 USB 3.0 ports, USB 3.0 offers data transfer speeds of up to 5Gbps, can recognize usb device, such as KVM Switch keyboard mouse, printer, u disk, printer, scaner, etc. |
| Application | This KVM Switch 2 DP+1 HDMI connects 2 desktops or laptops, sharing 3 monitors and 4 USB 3.0 ports. You only need one set of keyboard and mouse to control all monitors, and it also supports expanding and duplicating monitors. |
| Features | It is possible to control two computers and three monitors directly with one set of keyboard and mouse. Three monitors can support two modes:duplicate and extend. Supports resolutions up to 8K 60Hz and backward compatible. Equipped with four USB 3.0 ports, allowing you to connect scanners, hard drives, and other USB devices. Equipped with a 12V/1A power supply, ensuring stable work even when high-power devices are connected. Compatible with Windows/Vista/XP, Mac OS, Linux, and Unix, plug-and-play. |
| Dimensions | 5.85 x 2.5 x 1.9 inches |
| Weight | 1.39 Pounds |
| Package Contents | 1 x Triple Monitor KVM Switch, 2 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item

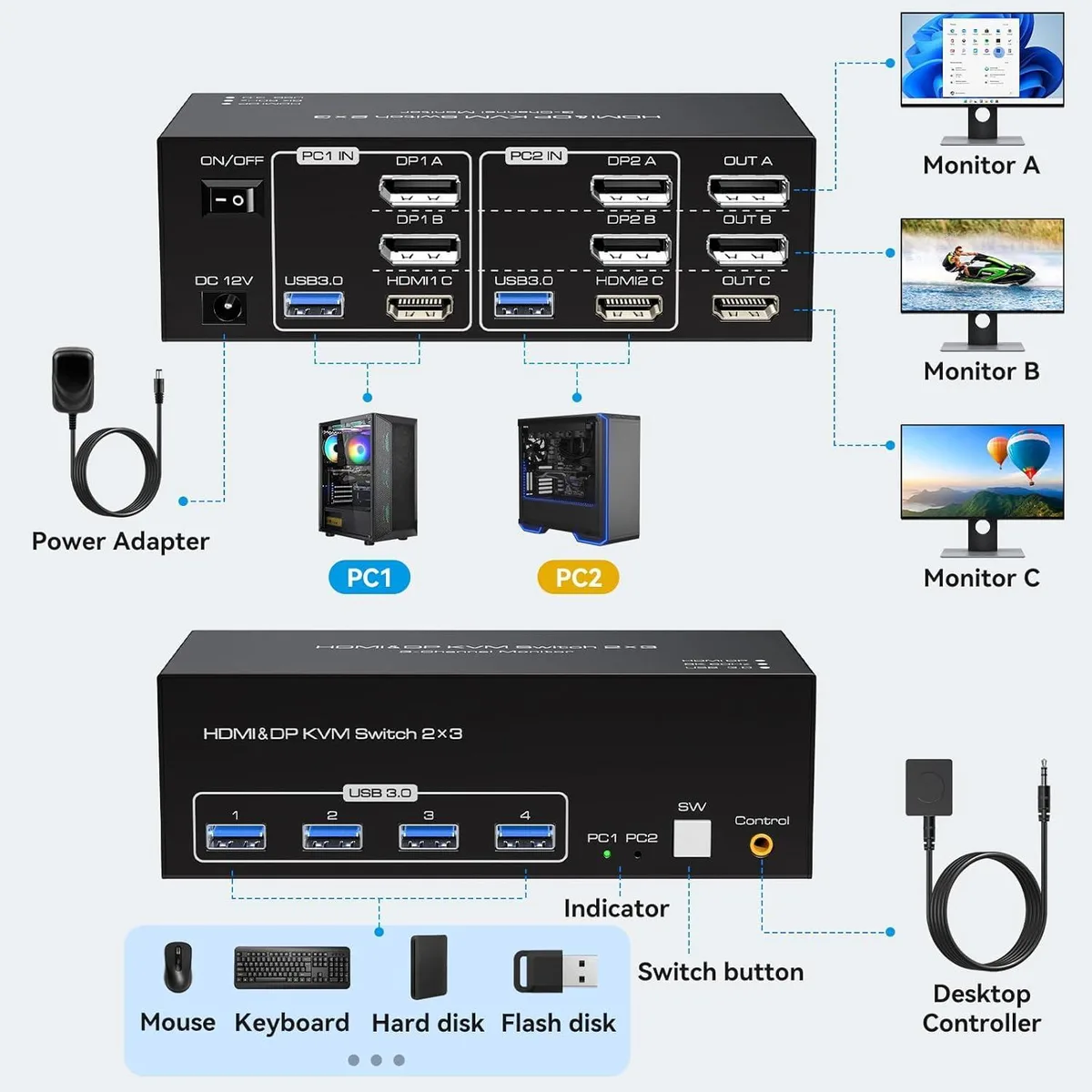

What cables do I need to connect each computer to the SW232?
Each computer requires one USB 3.0 cable, one HDMI cable and two DisplayPort cables to reach the KVM switch.
Will my existing 4K 60 Hz monitors work with the 8K 60 Hz and 4K 120 Hz capability?
Yes, the switch is backward compatible, so 4K 60 Hz displays will operate normally.
How can I confirm the SW232 is switching video and USB correctly after setup?
Press the push buttons or wired remote; the LED indicators will show the active port and all three monitors plus USB devices should follow the selected computer.
