WRIARICH

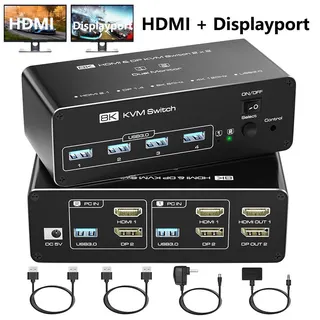

WRIARICH KVM504B KVM Switch 2 Monitors 2 Computers 8K@60Hz HDMI DP 4K@120Hz 4 USB 3.0 Desktop Controller
A dual-monitor KVM switch lets two computers share two displays and four USB 3.0 peripherals at up to 8K 60 Hz or 4K 120 Hz with push-button or wired-remote switching
- TypeHDMI+Displayport KVM Switch 2 Monitors 2 Computer
- PC ConnectorsHDMI, Displayport
- Monitor Connections2 Ports
- Video ResolutionSupport up to 8K@60Hz, Backward compatible with 4K@120Hz, 4K
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedHDMI, Displayport
- Control two computers with one keyboard and mouse
- Share two monitors in copy or extension mode
- Switch PCs via push buttons or wired remote
- Four USB 3.0 ports transfer data at 5 Gbps
- Supports 8K at 60 Hz and 4K at 120 Hz
Dual-monitor KVM for two computers
The WRIARICH KVM504B lets you operate two PCs from one keyboard and mouse while driving two displays. Each computer connects through one HDMI and one DisplayPort input, and each monitor connects through one HDMI and one DisplayPort output. The switch handles resolutions up to 8K at 60 Hz and 4K at 120 Hz, with backward compatibility down to 720p. A wired remote and front push-buttons give instant PC selection.
Desktop controller and USB 3.0 hub

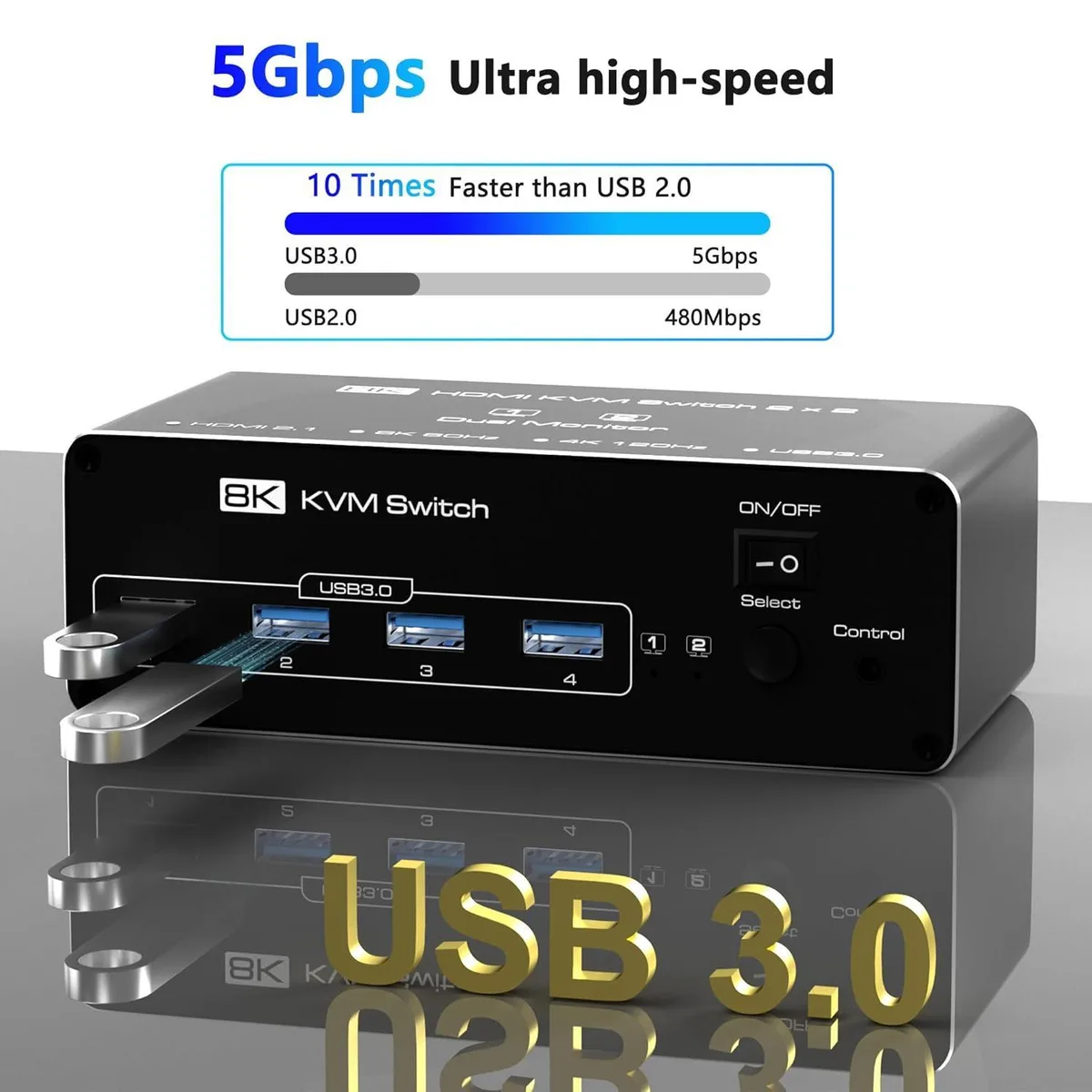

The included wired remote sits on the desk for one-touch switching without reaching the main unit. Four USB 3.0 ports on the switch share peripherals such as printers, cameras, scanners and flash drives between the two computers at 5 Gbps. A 5 V 2 A power adapter supplies stable power for the video and USB circuits. LED indicators show the active port at a glance.
HDMI 2.1 and DisplayPort 1.4 bandwidth limits
The 8K 60 Hz and 4K 120 Hz capabilities rely on the HDMI 2.1 and DisplayPort 1.4 interfaces built into the switch. If a connected computer or monitor only supports an older version of either standard, the maximum resolution or refresh rate will drop to the highest common mode. Extended and mirrored display modes require the host computer to support multi-display output; otherwise only a single cloned image is possible.
Highlights
- Control two computers with one keyboard and mouse
- Share two monitors in copy or extension mode
- Switch PCs via push buttons or wired remote
- Four USB 3.0 ports transfer data at 5 Gbps
- Supports 8K at 60 Hz and 4K at 120 Hz
Specifications
| Model | KVM504B |
|---|---|
| Type | HDMI+Displayport KVM Switch 2 Monitors 2 Computer |
| PC Connectors | HDMI, Displayport |
| Monitor Connections | 2 Ports |
| Video Resolution | Support up to 8K@60Hz, Backward compatible with 4K@120Hz, 4K@60Hz, 3D, 1080P, and 720P for versatile use. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Stable Power Supply with 5V/2A Adapter |
| USB Features | This 2-port KVM switch comes with 4 USB 3.0 ports, offering data transfer rates up to 5Gbps (10 times faster than USB 2.0). Effortlessly share printers, cameras, scanners, and USB flash drives between two computers. |
| Application | KVM switch 2 monitors 2 computers allows you to control 2 computers with just one set of keyboard and mouse, and sharing 2 monitors. KVM Switch Dual Monitor support copy mode and extension mode |
| Features | HDMI2.1 + DP1.4 8K KVM Switch; Easy Switching with Dual Methods |
| Dimensions | 5.63 x 2.6 x 1.85 inches |
| Weight | 1.15 Pounds |
| Package Contents | 1 x KVM Switch, 2 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
What resolution does the HDMI 2.1 and DisplayPort 1.4 interface actually deliver on this KVM504B?
The HDMI 2.1 and DisplayPort 1.4 interface supports up to 8K at 60 Hz and is backward compatible with 4K at 120 Hz, 4K at 60 Hz, 1080P and 720P.
What cables and space are needed to fit the KVM504B on a desk?
The unit measures 5.63 by 2.6 by 1.85 inches and weighs 1.15 pounds; the box includes two USB 3.0 cables, a wired remote and a 5V 2A power adapter.
How is the KVM504B installed and which step do users often miss?
Connect each computer with its HDMI and DisplayPort video cables plus the supplied USB 3.0 cables, attach both monitors, plug in the 5V power adapter, then use the push buttons or wired remote to switch — forgetting the external power adapter is the common mistake.
