WRIARICH
WRIARICH KVM302DP KVM Switch 3 Computers 2 Monitors 8K@30Hz
Shares two DisplayPort monitors and four USB 3.0 peripherals across three computers with 8K at 30 Hz and 4K at 144 Hz switching via buttons or wired remote
- TypeDisplayport KVM Switch 2 Monitors 3 Computers
- PC ConnectorsDP1.4, USB 3.0
- Computer Connections3 Ports
- Monitor Connections2 Ports
- Video Resolutionsupport high resolution of 8K@30Hz, 4K@144Hz
- PC SelectionPush Buttons and Wired Remote
- Control 3 computers with one keyboard and mouse
- Share 2 DisplayPort monitors at up to 8K@30Hz resolution
- Switch instantly via front buttons or wired remote
- Transfer data at USB 3.0 5Gbps through 4 integrated ports
- Compact metal chassis measuring 6.3 x 2.56 x 1.18 inches
3-Computer 2-Monitor DP Switch

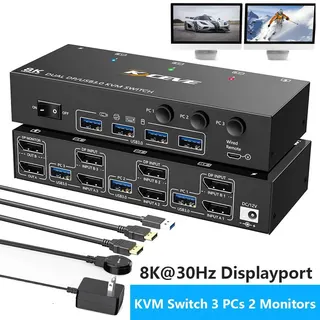

This DisplayPort KVM switch lets you control three computers from one keyboard, mouse and dual-monitor setup. It accepts three DP 1.4 inputs and drives two DP outputs at up to 8K@30Hz or 4K@144Hz. Four integrated USB 3.0 ports share peripherals such as keyboards, mice, printers or scanners across all connected systems. A wired remote and front push buttons both provide instant PC selection.
Thermals, Noise and Power Draw
The unit draws power from an included 12 V adapter, eliminating any load on the host computers’ USB ports. Its metal shell acts as a passive heatsink, so the switch runs silently with no fan noise during normal operation. Power consumption stays low because only signal switching and USB hub logic are active. No thermal throttling or audible noise occurs in typical desktop use.
Build Integration and Requirements
Each computer needs two DisplayPort cables and one USB 3.0 cable to connect, all supplied in the box. The switch supports USB-C to DP converters and USB-C docking stations for broader laptop compatibility. Two switching modes — copy and extend — let you mirror the primary display or span a desktop across both monitors. Hotkey switching is not supported, so control relies on the buttons or remote.
Highlights
- Control 3 computers with one keyboard and mouse
- Share 2 DisplayPort monitors at up to 8K@30Hz resolution
- Switch instantly via front buttons or wired remote
- Transfer data at USB 3.0 5Gbps through 4 integrated ports
- Compact metal chassis measuring 6.3 x 2.56 x 1.18 inches
Specifications
| Model | KVM302DP KVM Switch |
|---|---|
| Type | Displayport KVM Switch 2 Monitors 3 Computers |
| PC Connectors | DP1.4, USB 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | support high resolution of 8K@30Hz, 4K@144Hz |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | 12V Power Adapter Included |
| USB Features | Dual monitor DP USB switch with 4 integrated USB 3.0 ports,supports ultra-fast USB 3.0 data transfer speeds up to 5Gbps,which can recognize keyboard,mouse,printer, scaner, etc. |
| Application | This is a perfect KVM switch for DP ports device to share keyboard mouse and monitor. In copy mode the main screen can be copied to the second output screen. In extend mode, the window from the main screen can be dragged to the second output screen. |
| Features | Ultra HD 8K@30Hz; with 4 USB 3.0 Ports; Great Compatibility & 2 Switching Mode |
| Dimensions | 6.3 x 2.56 x 1.18 inches |
| Weight | 15.87 ounces |
| Package Contents | 1 x DP KVM Switch, 3 x USB 3.0 Cable, 2 x DP Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
How do I connect three computers and two monitors to this KVM302DP switch?

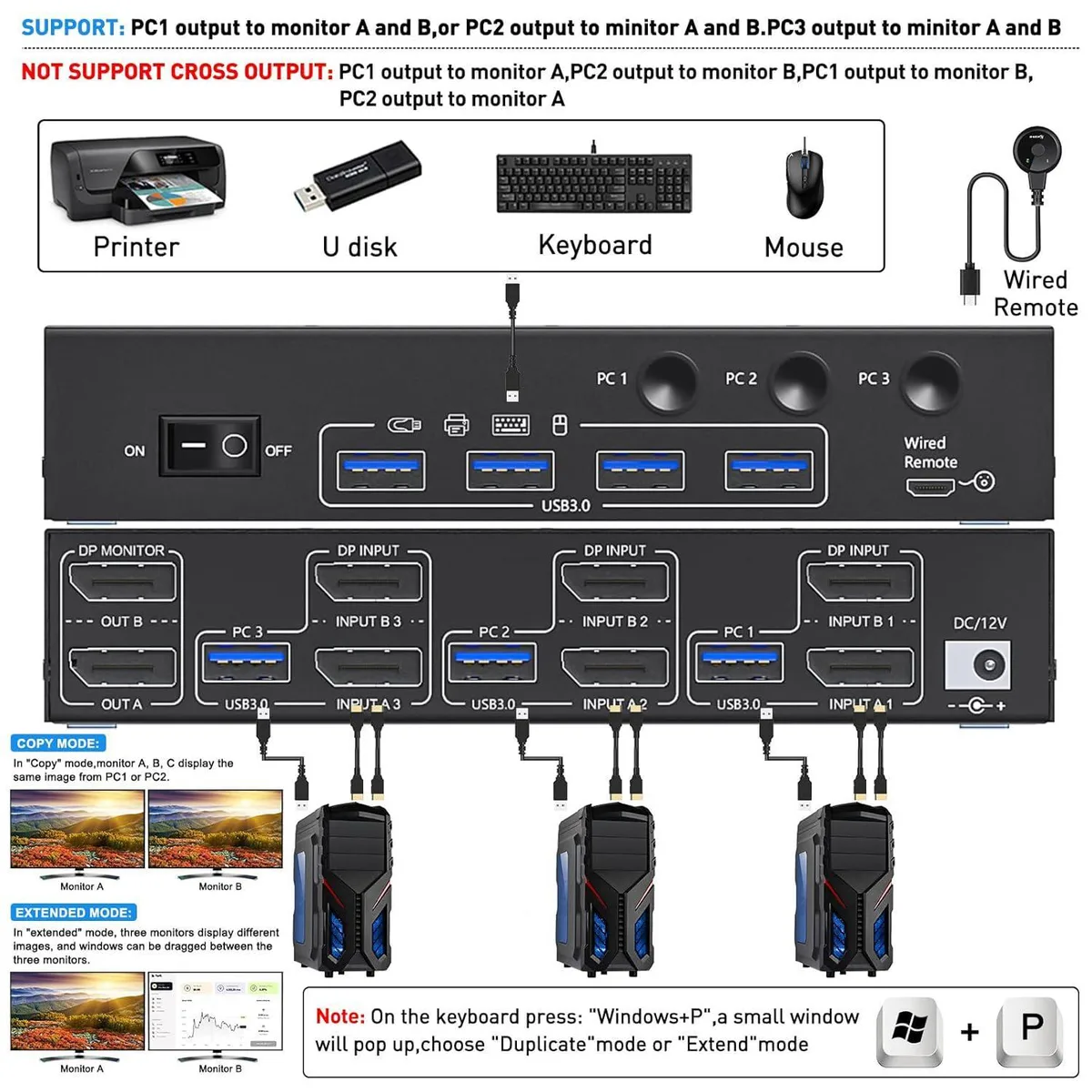

Connect each computer using two DisplayPort 1.4 cables and one USB 3.0 cable to the corresponding input ports; then connect your two monitors to the OUT A and OUT B DisplayPort outputs. Plug in the included 12V power adapter before switching.
What ongoing maintenance will the KVM302DP require?
The unit has no user-serviceable parts or filters. Keep the metal shell vents clear of dust and ensure the 12V power adapter remains firmly seated; the four USB 3.0 ports and wired remote need no scheduled service.
What is the first limit I will hit when running both monitors at high refresh rates for long periods?
The DisplayPort 1.4 link caps total bandwidth at 8K@30Hz or 4K@144Hz per output; pushing both ports to 4K@144Hz simultaneously will saturate the switch’s video path before thermal limits become an issue.
