WRIARICH KVM Switch 2 PC 3 Mon 8K 60 4K 144 DP HDMI USB 3.0 Wired Remote
Controls two computers across three monitors at up to 8K 60 Hz or 4K 144 Hz with four 5 Gbps USB 3.0 ports and wired remote switching
- Type2 Port HDMI + 1 Port Displayport
- PC ConnectorsHDMI, HDMI, Displayport, USB
- Monitor Connections3 Ports
- Video ResolutionKVM switch DisplayPort: supports resolutions up to 8K@30Hz/4
- PC SelectionPush Buttons and Wired Controller
- Monitors SupportedHDMI, HDMI, Displayport
- Controls 2 computers with one keyboard and mouse
- 8K@60Hz on HDMI and 4K@144Hz on DisplayPort
- Four USB 3.0 ports at 5Gbps for fast peripherals
- Switch via front buttons or 1.5m wired remote
- Includes 12V power adapter and all required cables
Triple-monitor KVM for two PCs

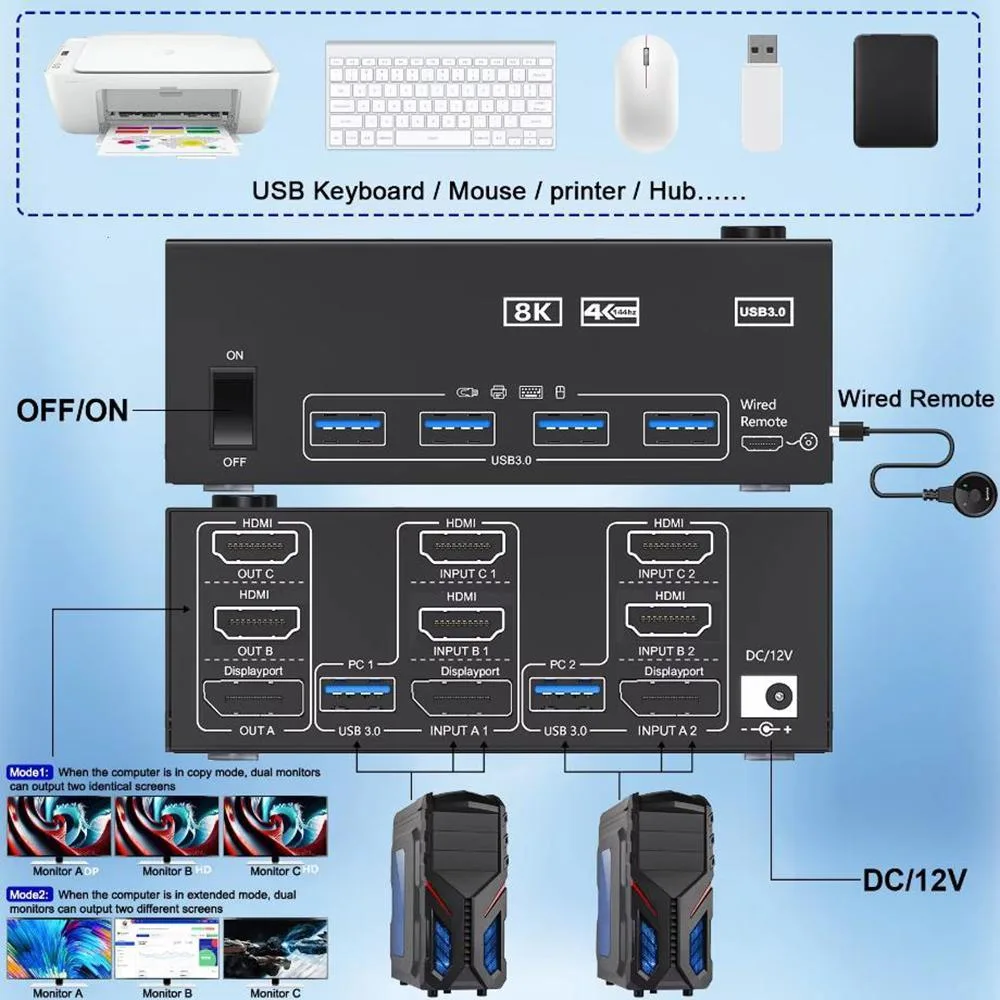

This KVM switch lets one keyboard, mouse and three monitors control two computers or laptops. Four USB 3.0 ports share peripherals such as keyboards, mice, printers, drives and webcams across both systems. Front-panel buttons and a 1.5 metre wired remote give instant switching without reaching behind the desk. The unit ships with two HDMI cables, three USB 3.0 cables, a 12 V power adapter and a manual.
Video limits at 8K and 4K
DisplayPort output reaches 8K at 30 Hz or 4K at 144 Hz, while each HDMI output reaches 8K at 60 Hz or 4K at 144 Hz. Achieving these modes requires DP 1.4 and HDMI 2.1 cables; lesser cables will reduce resolution or produce no signal. The switch passes 5 Gbps USB 3.0 data and remains backward compatible with USB 2.0 and 1.1 devices.
Capacity and headroom
Three monitor ports and four USB 3.0 ports handle a typical triple-screen workstation with multiple high-speed peripherals. Only two upstream PCs are supported, so environments needing three or more computers cannot use this switch. USB bandwidth tops out at 5 Gbps, limiting aggregate throughput when several fast drives operate simultaneously. Buyers who need more than two PC inputs or higher USB speeds should look elsewhere.
Highlights
- Controls 2 computers with one keyboard and mouse
- 8K@60Hz on HDMI and 4K@144Hz on DisplayPort
- Four USB 3.0 ports at 5Gbps for fast peripherals
- Switch via front buttons or 1.5m wired remote
- Includes 12V power adapter and all required cables
Specifications
| Type | 2 Port HDMI + 1 Port Displayport |
|---|---|
| PC Connectors | HDMI, HDMI, Displayport, USB |
| Monitor Connections | 3 Ports |
| Video Resolution | KVM switch DisplayPort: supports resolutions up to 8K@30Hz/4K@144Hz; KVM switch HDMI: supports resolutions up to 8K@60Hz/4K@144Hz |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | with 12V DC Power Adapter |
| USB Features | with 4 USB 3.0 ports, supports ultra-fast 5Gbps data transfer, 10 times faster than USB 2.0, for connecting RGB keyboard, mouse, printers, hard drives, webcams etc. backwards compatible with USB 2.0/1.1 devices. |
| Application | this USB & 2HDMI + DisplayPort KVM switches can control 2 computers or laptops with 1 independent set of keyboard and mouse, share 3 monitors and 4 USB 3.0 hubs. It is the best KVM switch to improve your productivity and make your workspace tidier |
| Features | Support 8K visual HD experience; with 4 USB 3.0 ports, supports ultra-fast 5Gbps data transfer, 10 times faster than USB 2.0; KVM switch 2 PC 3 monitors has two switching options, you can use panel button or wired remote control to switch freely between two computers; Plug and play, drive free for Windows/Vista/XP/Mac OS/Linux/Uni and most other common systems. |
| Dimensions | 12 x 6.5 x 4.5 cm |
| Weight | 950g |
| Package Contents | Triple monitor KVM Switch*1+HD-MI Cable*2+USB 3.0 Cable*3+Wired Controller*1(1.5m/4.92ft)+DC12V Power Adapter*1+Manual*1 |
Questions about this item
Should I use the DisplayPort or the two HDMI ports for my three monitors?
Connect each PC with one DisplayPort 1.4 cable and two HDMI 2.1 cables to reach 8K@60Hz or 4K@144Hz on all three displays.
What does the 8K@60Hz rating mean when I actually plug in my monitors?
The HDMI ports deliver 8K at 60 Hz; the DisplayPort delivers 8K at 30 Hz or 4K at 144 Hz, provided you use DP 1.4 and HDMI 2.1 cables.
How fast are the four USB 3.0 ports for peripherals like drives and webcams?
They run at 5 Gbps, ten times faster than USB 2.0, and remain backwards compatible with USB 2.0 and 1.1 devices.
