WRIARICH
WRIARICH KVM switch 2 monitors 2 computers 8K HDMI DP USB 3.0 desktop controller
Controls two computers across dual monitors with one keyboard, mouse and four USB 3.0 ports, supporting 8K 60 Hz HDMI and 4K 120 Hz DisplayPort
- TypeUSB
- PC ConnectorsPlug In
- Console ConnectorsPlug In
- Computer ConnectionsUSB 2.0
- Monitor Connections4 Ports
- PC SelectionPush Buttons
- Control two PCs with one keyboard, mouse and dual monitors (HDMI + DisplayPort)
- Enjoy 8K@60Hz via HDMI 2.1 or 4K@120Hz via DisplayPort 1.4 for sharp visuals
- Share peripherals across both computers through four USB 3.0 ports at 5Gbps
- Switch instantly using front-panel buttons or the 1.5m desktop controller with LED status
- Works with Windows, macOS, Linux and Unix — no drivers or hotkeys required

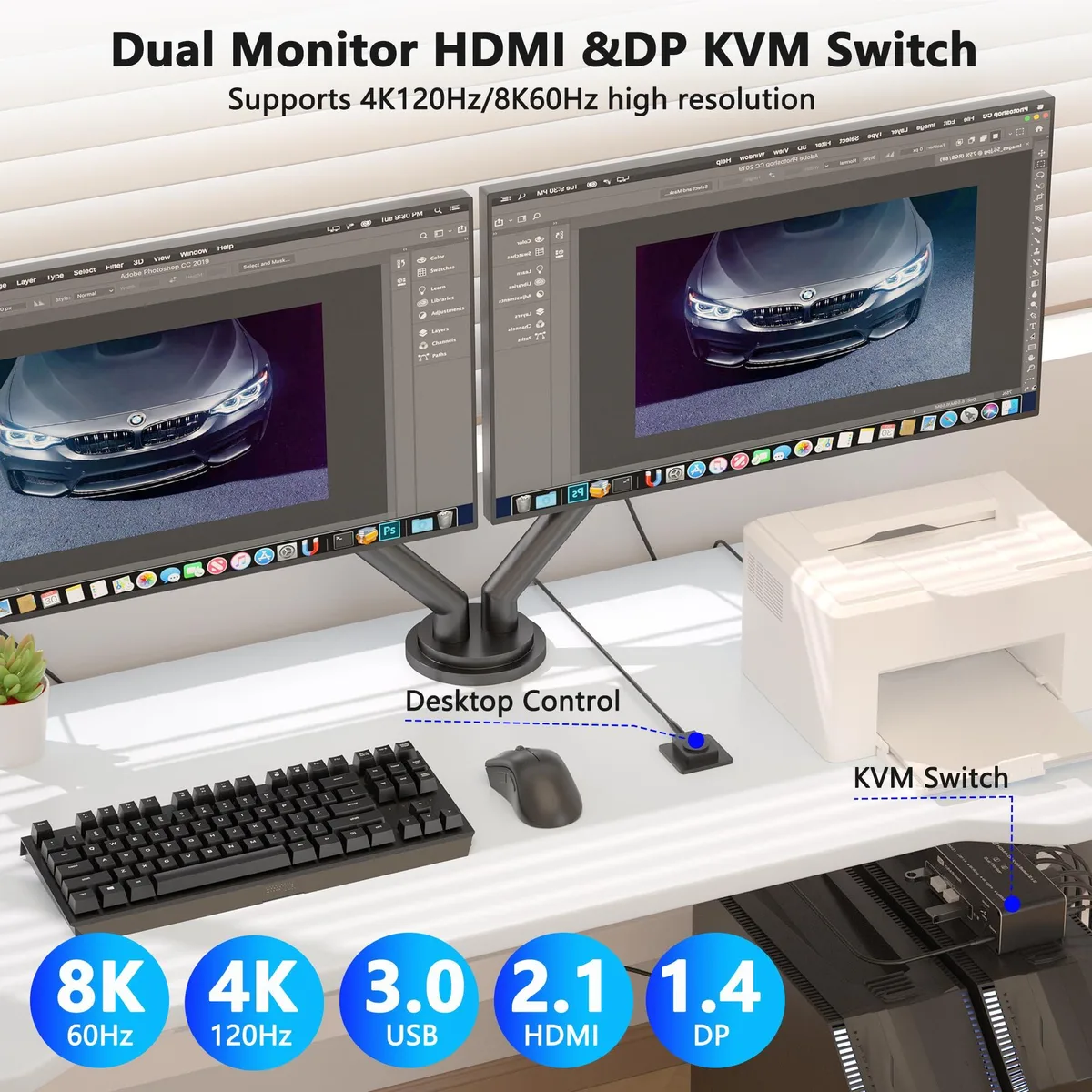

Dual-Monitor KVM for Two Computers

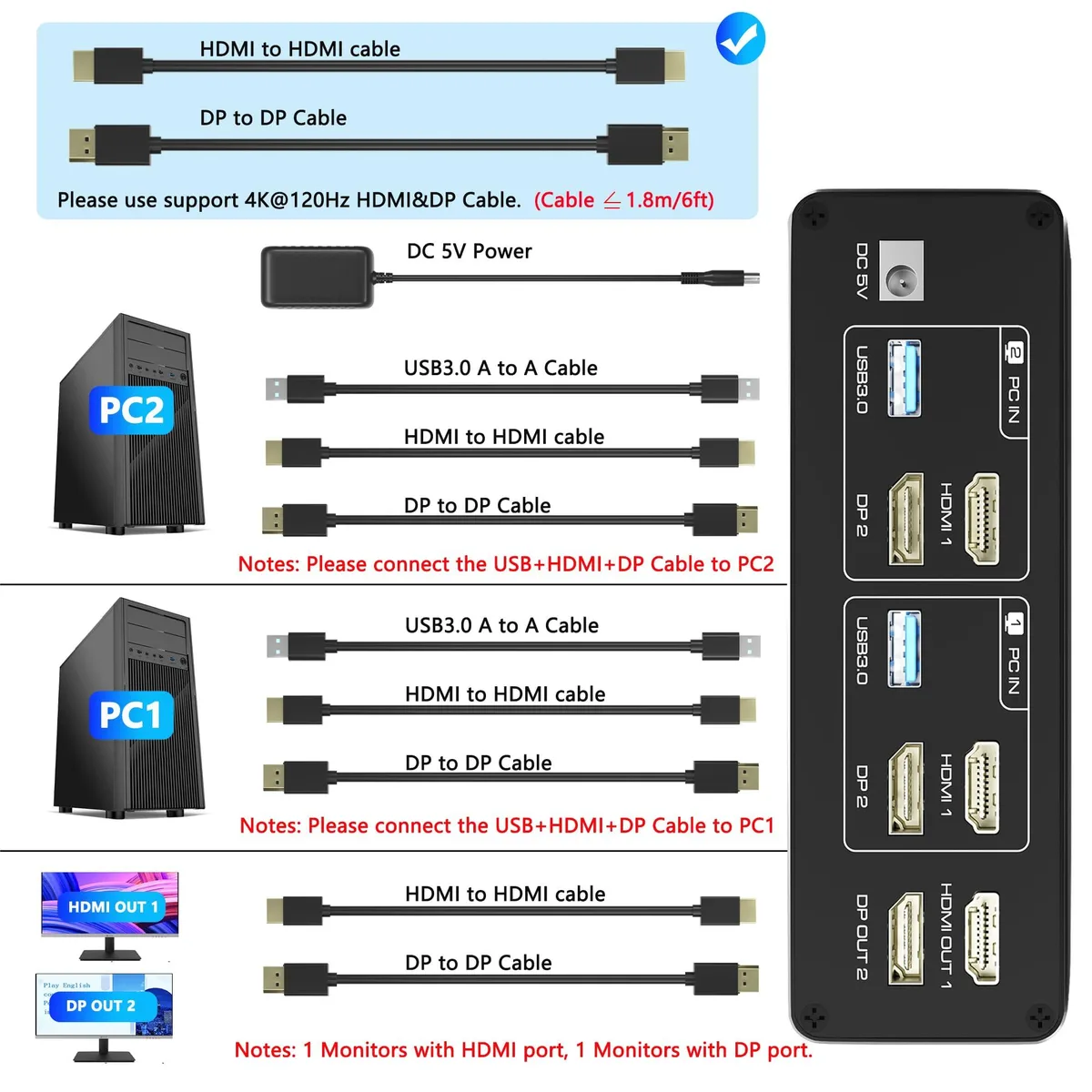

This KVM switch lets one keyboard, mouse and dual-display setup control two PCs. Each computer must provide both an HDMI and a DisplayPort output; the switch does not convert signals between them. It suits users who need extended or mirrored desktop modes across two screens without software drivers.
USB 3.0 Hub and Desktop Controller
Four front-panel USB 3.0 ports share peripherals such as keyboards, mice, printers and flash drives between the connected PCs at 5 Gbps. A wired desktop controller with LED indicators provides physical switching; there are no keyboard hotkeys. The package includes the controller, two 1 m USB 3.0 cables and a 5 V power adapter.
8K60 HDMI and 4K120 DisplayPort Capacity
Video bandwidth supports up to 8K at 60 Hz over HDMI 2.1 and 4K at 120 Hz over DisplayPort 1.4, provided the source, monitor and cables all meet those specifications. If a required HDMI or DisplayPort link is missing on a computer, the corresponding monitor will stay dark. The unit does not support adapters or single-cable laptop docking.
Highlights
- Control two PCs with one keyboard, mouse and dual monitors (HDMI + DisplayPort)
- Enjoy 8K@60Hz via HDMI 2.1 or 4K@120Hz via DisplayPort 1.4 for sharp visuals
- Share peripherals across both computers through four USB 3.0 ports at 5Gbps
- Switch instantly using front-panel buttons or the 1.5m desktop controller with LED status
- Works with Windows, macOS, Linux and Unix — no drivers or hotkeys required
Specifications
| Brand | TRENDnet |
|---|---|
| Model | KVM-504B |
| Part Number | KVM-504B |
| Type | USB |
| PC Connectors | Plug In |
| Console Connectors | Plug In |
| Computer Connections | USB 2.0 |
| Monitor Connections | 4 Ports |
| PC Selection | Push Buttons |
| Monitors Supported | VGA DDC, DDC2, DDC2B |
| Audio Features | Offers audio and microphone switching |
| USB Features | with USB support |
| SplitterOnly | VGA Monitor Splitter only |
| Application | Plug In, HDMI, DisplayPort, touch |
| Features | Plug In, HDMI, DisplayPort, touch, 13, IP00 |
| Dimensions | 14.33in W x 12.83in H x 9.06in D |
| Package Contents | with Built-in Cables |
Questions about this item
Will the 5 V/2 A power adapter need replacing after a few years of daily use?
The unit ships with a 5 V/2 A external supply; if it ever fails you can swap it for any 5 V/2 A adapter with the same barrel plug.
At 4K@120 Hz or 8K@60 Hz, will the DisplayPort 1.4 or HDMI 2.1 bandwidth limit appear first during long sessions?
The switch passes DisplayPort 1.4 for 4K@120 Hz and HDMI 2.1 for 8K@60 Hz without compression, so the cable and GPU become the bottleneck before the switch does.
Does the box get hot or noisy when left on all day with two monitors and four USB 3.0 devices?
It has no fan and draws only the 5 V/2 A supplied power, so it stays cool and silent during continuous operation.
