WRIARICH
WRIARICH KM-DP201A 8K@60Hz DP KVM Switch 2PC 1Mon 4 USB 3.0
Connects two computers to one DisplayPort monitor at up to 8K@60Hz with four USB 3.0 ports and push-button or wired remote switching
- TypeDisplayPort, USB
- PC ConnectorsDisplayport, USB
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video ResolutionKVM switch supports resolutions up to 8K@60Hz and is backwar
- PC SelectionPush Buttons and Desktop Controller
- Share two computers on one 8K@60Hz monitor
- Switch instantly via push button or wired controller
- Connect keyboard, mouse and drives through four USB 3.0 ports
- Compact 5.6 x 0.7 x 2.6 inch design fits any desk
- Backward compatible with 4K@120Hz, 1440p@144Hz and 1080p@165Hz

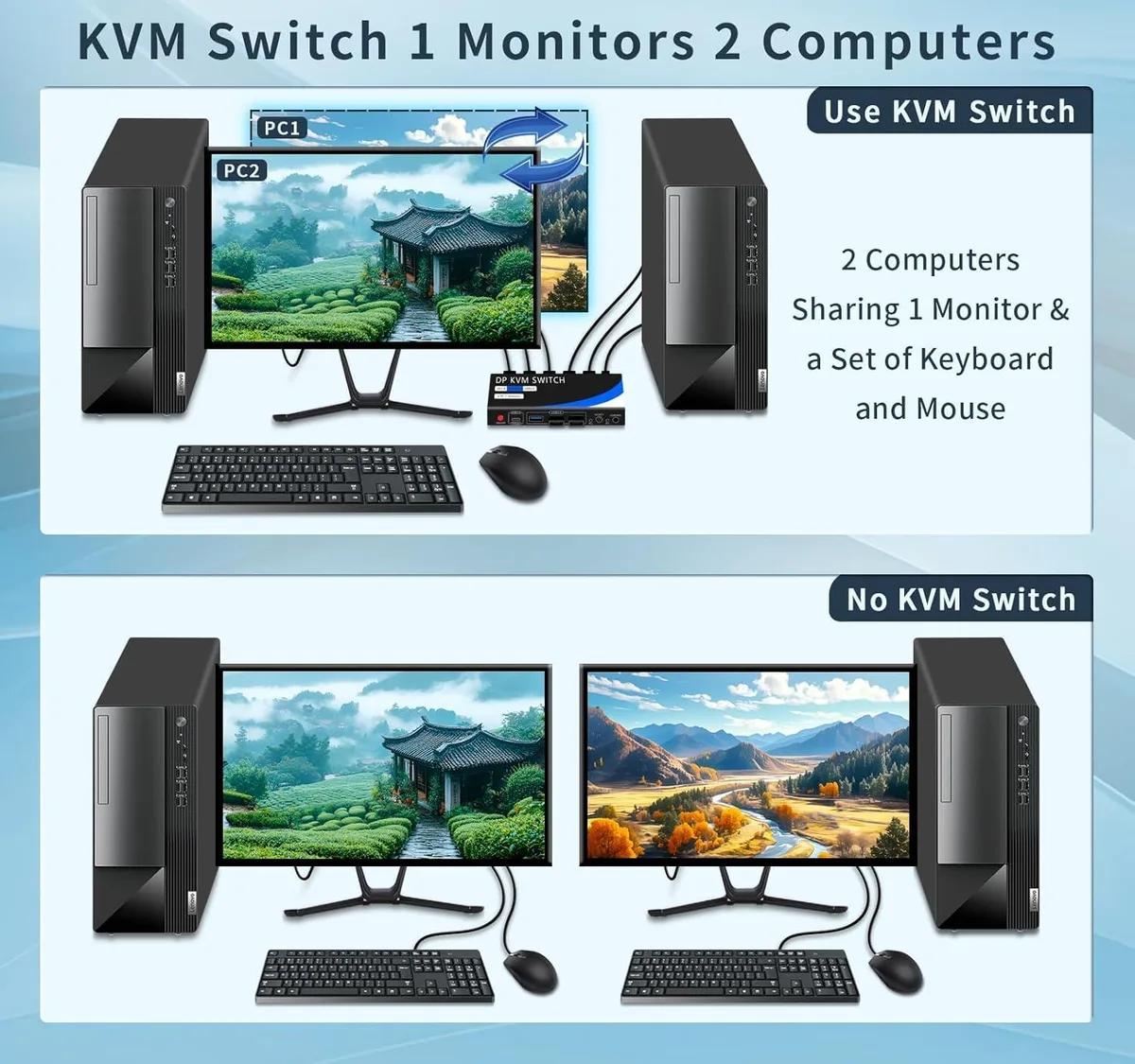

Two-PC DisplayPort KVM for one monitor
The WRIARICH KM-DP201A lets two computers share a single DisplayPort monitor, keyboard, mouse and up to four USB 3.0 peripherals. It handles video up to 8K at 60 Hz and works with Windows, Linux and Mac without extra drivers.
Ideal for dual-system desks, not for hotkey users
Suits anyone who needs to toggle between two DisplayPort-equipped PCs on one screen using the front push buttons or the wired desktop controller. Buyers who want hotkey switching, HDMI or USB-C native inputs, or support for more than one monitor should look elsewhere.
8K 60 Hz DisplayPort switching

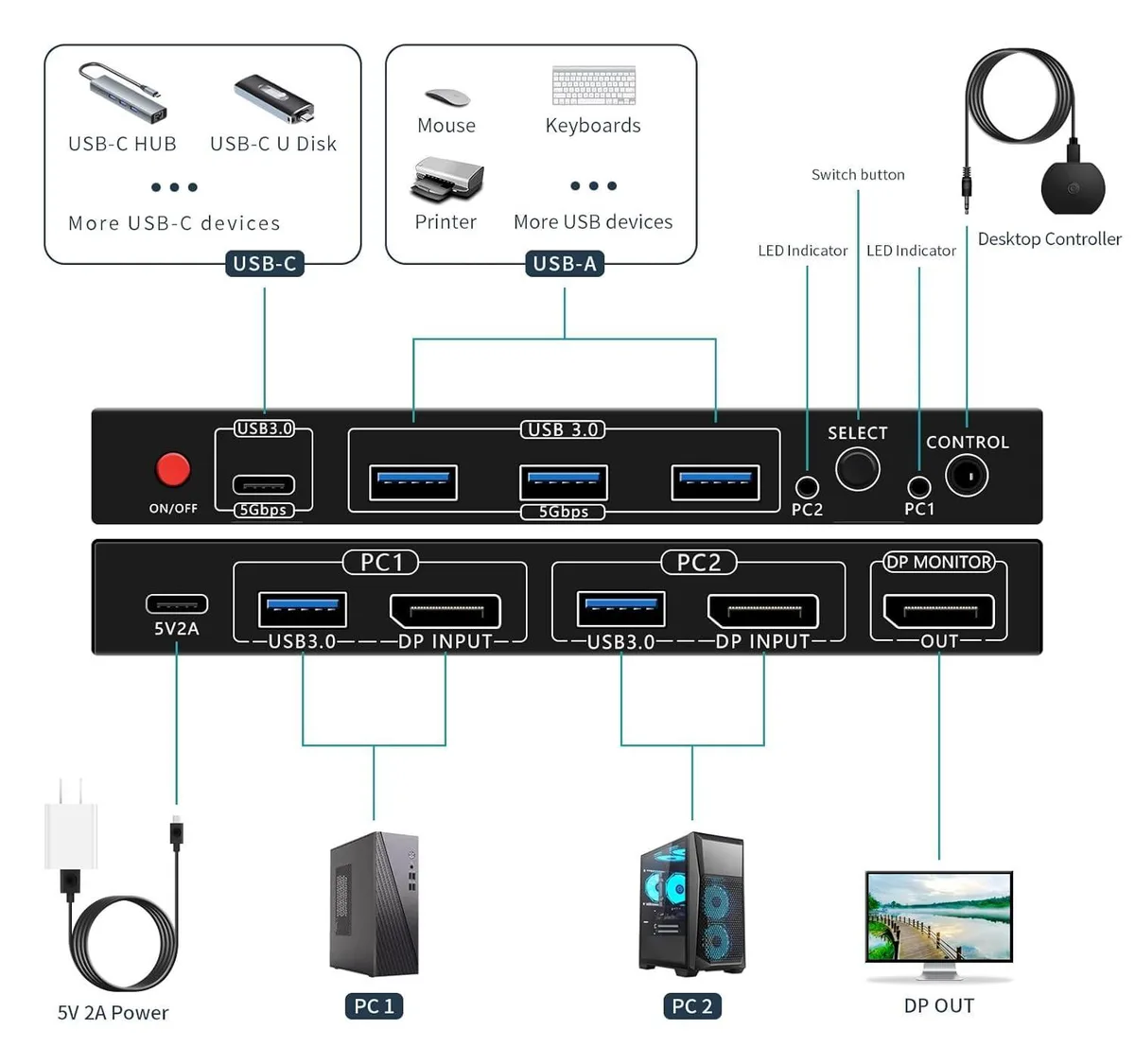

The single specification that decides fit is the maximum video bandwidth: 8K at 60 Hz, plus backward compatibility with 4K at 120 Hz, 2560×1440 at 144 Hz and 1920×1080 at 165 Hz over DisplayPort. Three DisplayPort cables are required and are not included.
Highlights
- Share two computers on one 8K@60Hz monitor
- Switch instantly via push button or wired controller
- Connect keyboard, mouse and drives through four USB 3.0 ports
- Compact 5.6 x 0.7 x 2.6 inch design fits any desk
- Backward compatible with 4K@120Hz, 1440p@144Hz and 1080p@165Hz
Specifications
| Model | KM-DP201A |
|---|---|
| Type | DisplayPort, USB |
| PC Connectors | Displayport, USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | KVM switch supports resolutions up to 8K@60Hz and is backward compatible with 4K@120Hz, 2560*1440@144Hz, and 1920*1080@165Hz. |
| PC Selection | Push Buttons and Desktop Controller |
| Monitors Supported | Displayport |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | 4 USB 3.0 Ports(3*USB-A& USB-C) |
| Application | The 8K USB3.0 displayport KVM switch has 2 displayport input ports and 1 output port, allowing 2 computers to share 1 monitor as well as a keyboard and mouse for switching. |
| Features | 4 USB 3.0 Ports(3*USB-A& USB-C); High Resolution 8K@60Hz; Two Switching Methods |
| Dimensions | 5.6 x 0.7 x 2.6 inches |
| Weight | 250g |
| Package Contents | 1* displayport KVM switch, 2* USB 3.0 cables, 1* wired controller, 1* charger and power cord, user manual |
Questions about this item
What DisplayPort cables do I need to connect two computers and one monitor to this KM-DP201A switch?
You must supply three DisplayPort cables — one from each computer to the two input ports and one from the single output port to your monitor.
Will my older 1920x1080@165Hz gaming monitor work with this 8K@60Hz KVM?
Yes, the switch is backward compatible with 1920x1080@165Hz, 2560x1440@144Hz and 4K@120Hz signals.
How can I confirm the switch is passing the correct video signal after I connect everything?
Press the push button or wired controller to change ports, watch the front LED move to the active computer, then check your OS display settings show the expected resolution and refresh rate.
