WRIARICH

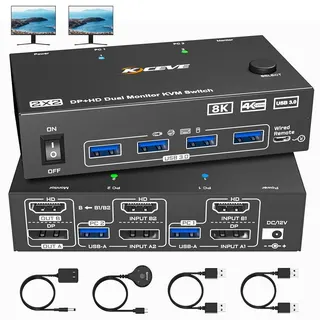

WRIARICH KC8202DH 2-Port HDMI DP KVM Switch 8K60 4K144
Controls two computers with one keyboard and mouse across dual monitors at up to 8K 60 Hz or 4K 144 Hz, plus four USB 3.0 ports, with push-button and wired remote switching
- TypeHDMI + Displayport KVM Switch 2 Computers 2 Monitors
- PC ConnectorsHDMI, Displayport, USB 3.0
- Computer ConnectionsHDMI 2.1, Displayport 1.4
- Monitor Connections2 Ports
- Video ResolutionHDMI 2.1 Displayport 1.4 Dual monitor KVM switch supports up
- PC SelectionPush Buttons and Wired Remote
- Control two computers with one keyboard and mouse using dual HDMI and DisplayPort outputs
- Enjoy crisp 8K at 60 Hz or 4K at 144 Hz visuals with HDMI 2.1 and DP 1.4
- Transfer files quickly through four USB 3.0 ports running at 5 Gbps
- Switch instantly via front push buttons or the included 1.5 m wired remote
- Works driver-free on Windows, Mac, Linux and Chrome OS with LED status indication
Dual-monitor KVM for two computers

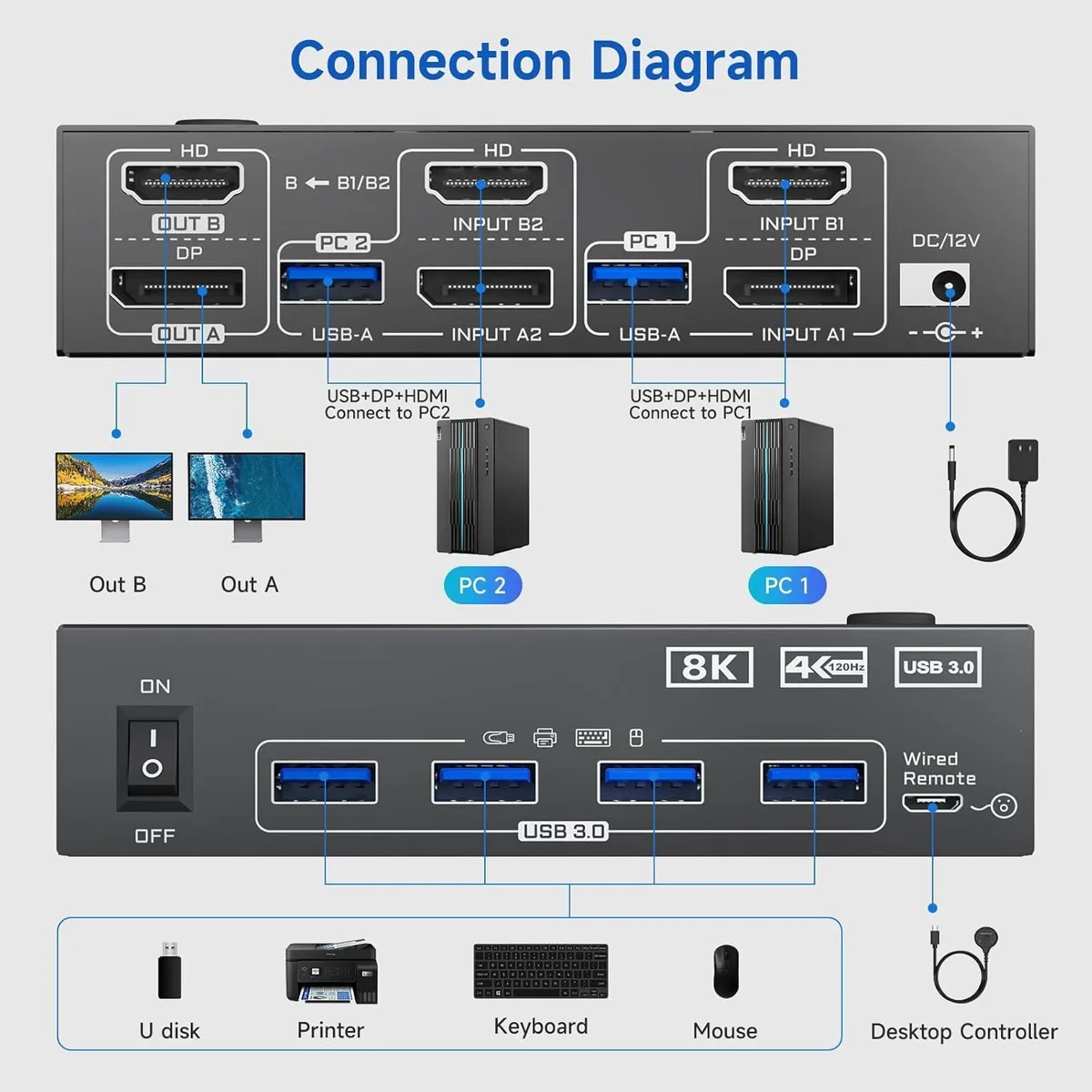

The WRIARICH KC8202DH lets a single keyboard, mouse and two displays control two PCs or laptops. It accepts both HDMI and DisplayPort sources on each system and drives two monitors in extended or mirrored layouts. Four USB 3.0 ports share peripherals such as printers, drives or gamepads across the connected machines. No drivers are required for Windows, Mac OS, Linux or Chrome OS.
Replaces separate cables and manual switching
Instead of unplugging video and USB leads every time you change systems, this switch handles both signals with a front-panel button or the included wired remote. The jump is worthwhile when you run a work laptop and a desktop side by side, or when a single workstation must serve two users who need independent monitor layouts. It also removes the clutter of duplicate keyboards and mice on the desk.
Limited by HDMI 2.1 and DisplayPort 1.4 bandwidth
The 8K60 and 4K144 figures are only achievable when the graphics card, monitor and cables all support those standards. Older GPUs or cables will fall back to 4K60, 1080p or lower resolutions. The USB 3.0 ports run at 5 Gbps, so high-speed storage will not reach its peak throughput through the switch. HDCP-protected content may require compliant displays on both outputs.
Highlights
- Control two computers with one keyboard and mouse using dual HDMI and DisplayPort outputs
- Enjoy crisp 8K at 60 Hz or 4K at 144 Hz visuals with HDMI 2.1 and DP 1.4
- Transfer files quickly through four USB 3.0 ports running at 5 Gbps
- Switch instantly via front push buttons or the included 1.5 m wired remote
- Works driver-free on Windows, Mac, Linux and Chrome OS with LED status indication
Specifications
| Model | KC8202DH |
|---|---|
| Type | HDMI + Displayport KVM Switch 2 Computers 2 Monitors |
| PC Connectors | HDMI, Displayport, USB 3.0 |
| Computer Connections | HDMI 2.1, Displayport 1.4 |
| Monitor Connections | 2 Ports |
| Video Resolution | HDMI 2.1 Displayport 1.4 Dual monitor KVM switch supports up to 8K@60Hz, 4K@144Hz resolutions, and is backward compatible with 4K@60hz, 1080P, 720P etc. providing an incredible viewing experience with realistic images and vibrant colors. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | with USB support |
| Application | This KVM switch 2 monitors 2 computers can control 2 computers or laptops with 1 independent set of keyboard and mouse, share 2 monitors and 4 USB 3.0 ports, such as mouse, keyboard, printer U disk or game pad, etc.Supports multiple display modes (Extended Mode and Mirror Mode). |
| Features | Wide Compatibility & 2 Switching Method |
| Dimensions | 12 x 6.6 x 3 Centimetres |
| Weight | 300g |
| Package Contents | 1* HDMI & DP KVM switch; 2*USB 3.0 Cable(1.5M); 1*Wired Remote(1.5M); 1*12V Power adapter and 1*User Manual. |
Questions about this item
What video cables and ports are required to connect two computers and two monitors to this KVM switch?
Each computer needs one HDMI 2.1 cable and one DisplayPort 1.4 cable; each monitor needs either an HDMI or DisplayPort input. The switch provides two monitor output ports.
Which step do users often miss when setting up the KC8202DH for the first time?
Connect the included 12 V power adapter before linking any video or USB cables; the switch will not pass video signals without external power.
How many USB 3.0 peripherals can stay attached, and what speed do they run at?
Four USB 3.0 devices share the 5 Gbps bandwidth; keyboards, mice, printers or drives remain connected while you switch between the two computers.
