WRIARICH

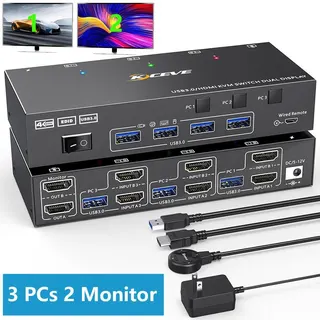

WRIARICH HDMI KVM Switch 3 PCs 2 Monitors 4K@60Hz 4 USB 3.0
Shares two monitors, keyboard and mouse across three computers at 4K 60 Hz with EDID emulation, four USB 3.0 ports, wired remote and five cables included
- TypeHDMI, USB
- PC Connectors3 PCs
- Computer Connections3 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons
- Control 3 computers with one keyboard and mouse using dual monitors
- Switch instantly via front panel buttons or wired remote control
- View dual 4K displays at 60 Hz with downward compatibility to 144 Hz
- EDID emulation preserves window layout when switching between computers
- Four USB 3.0 ports let three PCs share peripherals without extra hubs
Dual-monitor KVM for three computers

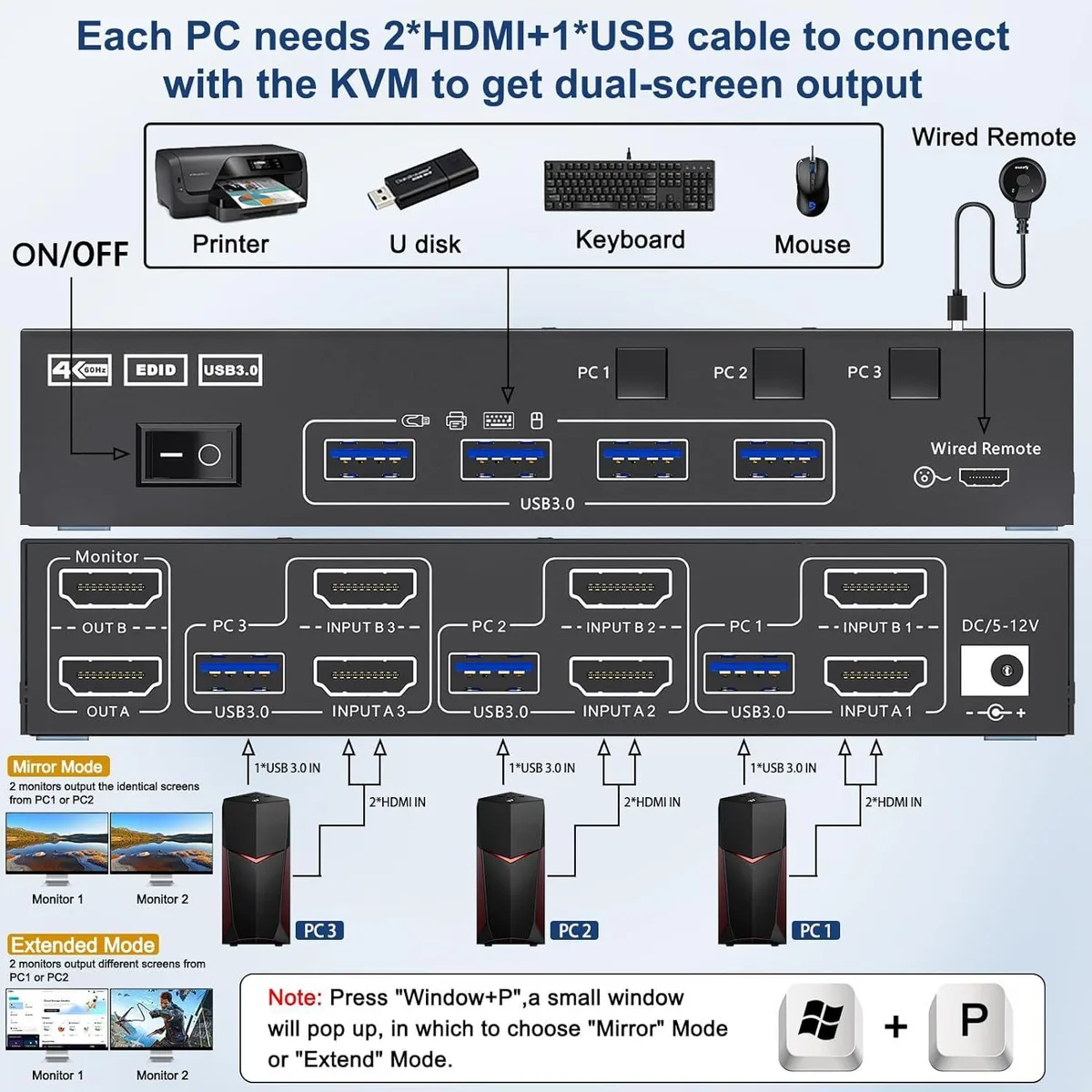

This HDMI KVM switch lets one keyboard, one mouse and two monitors control three PCs or laptops. It supports extend and duplicate display modes so each screen can show different content or mirror the same image. The unit is plug-and-play and includes a wired remote for switching without reaching the box.
HDMI 2.0 bandwidth limits resolution and refresh
Video runs over HDMI 2.0, so the maximum signal is 3840 x 2160 at 60 Hz. Lower resolutions such as 2560 x 1440 can reach 144 Hz, and 1920 x 1080 also supports 144 Hz. The switch cannot pass higher refresh rates at 4K or any format that exceeds the HDMI 2.0 link.

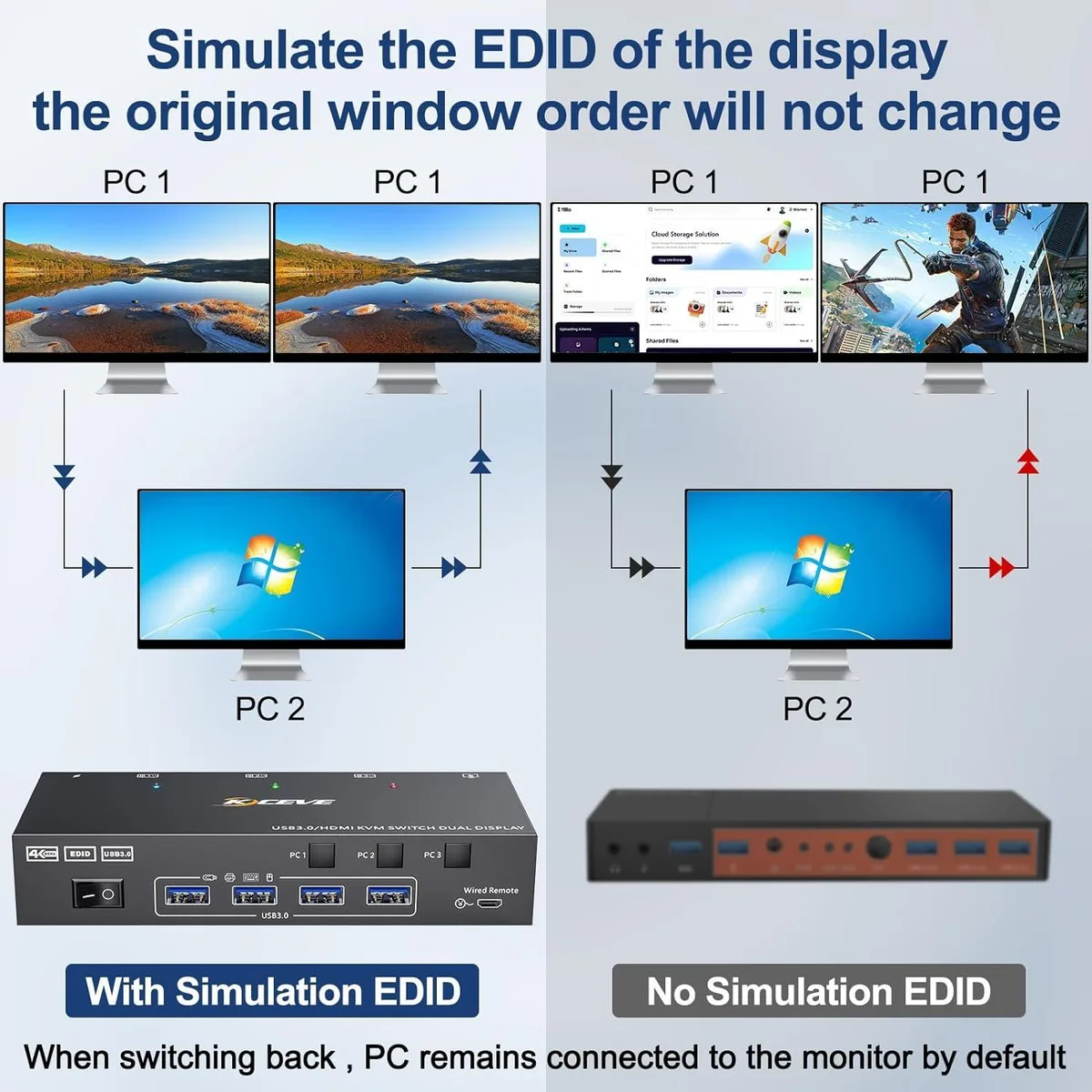

EDID emulation keeps window layout intact
An integrated EDID emulator stores each monitor’s resolution and refresh rate so the active computer always sees the same display identity. When switching between the three connected systems, application windows stay in place and do not rearrange. This behaviour is the deciding factor for multi-computer workflows that rely on consistent screen geometry.
Highlights
- Control 3 computers with one keyboard and mouse using dual monitors
- Switch instantly via front panel buttons or wired remote control
- View dual 4K displays at 60 Hz with downward compatibility to 144 Hz
- EDID emulation preserves window layout when switching between computers
- Four USB 3.0 ports let three PCs share peripherals without extra hubs
Specifications
| Type | HDMI, USB |
|---|---|
| PC Connectors | 3 PCs |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons |
| Monitors Supported | Dual Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This Dual Monitor KVM HDMI Switch allows to control 3 computers/latops by 1 set of keyboard & mouse and 2 monitors(Extend display mode or Duplicate display mode) |
| Features | It is plug and play,3 computers share one set of wired/wireless keyboard, mouse and 2 monitors. With just a click of the panel button or wired remote, you can easily switch between two PC sources. Cross support most major OS including Windows, Linux, Mac With 4 USB 3.0 ports,the two PCs can share up to four USB peripherals. Support max up resolution 4K@60Hz,2560×1440@120Hz,@144Hz,1920x1080P@120Hz,@144Hz,downward compatible. Support EDID emulation, USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original wind |
| Dimensions | 160mm x 30mm x65mm/ 3.94’’ x 1.18’’ x 2.56’’ |
| Weight | 0.32kg/0.70lbs |
| Package Contents | 1 x HDMI KVM Switch, 2 x HD-MI2.0 Cable, 2 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
Should I choose the 3-PC dual-monitor model or a single-monitor version?
This model connects three computers to two monitors with four USB 3.0 ports and a wired remote; a single-monitor version would only drive one display.
What does 4K@60Hz mean when I have two monitors connected?
Each monitor can run at 3840 x 2160 at 60 Hz, and the switch also supports 2560 x 1440 at 144 Hz or 1920 x 1080 at 144 Hz on both screens.
Does the HDMI 2.0 interface limit the refresh rate at 4K?
HDMI 2.0 caps 4K at 60 Hz, so 4K@120 Hz or 144 Hz is not possible; higher refresh rates are only available at 1440p or 1080p.
