WRIARICH
WRIARICH HDMI + 2 DisplayPort KVM Switch 3 Monitors 4 Computers 8K@60Hz 4K@144Hz
A triple-monitor KVM switch that shares three displays and four USB 3.0 ports across four computers with 8K@60Hz and 4K@144Hz support
- TypeHDMI + 2 Displayport
- PC ConnectorsHDMI 2.1, DP 1.4
- Computer ConnectionsHDMI + 2 Displayport
- Monitor Connections3 Ports
- Video ResolutionThis HDMI Displayport KVM switch 3 port supports Ultra HD re
- PC SelectionPush Buttons and Wired Remote
- Control 4 computers with one keyboard and mouse via 3 monitors
- Switch instantly using front buttons or wired remote with LED status
- Transfer files at up to 5 Gbps through 4 USB 3.0 ports
- Drive three displays at up to 8K 60 Hz, 4K 144 Hz or 1080p 240 Hz
- Includes DC 12 V adapter, 4 USB cables, remote and manual
Triple-monitor KVM for four systems
This WRIARICH switch lets one keyboard, mouse and three displays control four computers. Each PC connects through one HDMI and two DisplayPort cables plus a USB link, so the host graphics cards must provide those outputs. The box includes four USB 3.0 cables, a wired remote and a 12 V power adapter.
Passive cooling with external 12 V supply
The unit runs without internal fans, so it adds no audible noise to the desk. Power comes from the bundled DC adapter, keeping the chassis cool during continuous operation. LED indicators show the active computer without drawing noticeable current.
Compact metal chassis and fixed cable layout
At 8.27 by 3.07 by 1.77 inches and 8.82 ounces the switch fits between monitors or under a stand. Three video outputs — two DisplayPort and one HDMI — plus four USB 3.0 ports face the rear, so cable routing stays tidy. The wired remote lets you toggle systems without reaching the back panel.
Highlights
- Control 4 computers with one keyboard and mouse via 3 monitors
- Switch instantly using front buttons or wired remote with LED status
- Transfer files at up to 5 Gbps through 4 USB 3.0 ports
- Drive three displays at up to 8K 60 Hz, 4K 144 Hz or 1080p 240 Hz
- Includes DC 12 V adapter, 4 USB cables, remote and manual
Specifications
| Type | HDMI + 2 Displayport |
|---|---|
| PC Connectors | HDMI 2.1, DP 1.4 |
| Computer Connections | HDMI + 2 Displayport |
| Monitor Connections | 3 Ports |
| Video Resolution | This HDMI Displayport KVM switch 3 port supports Ultra HD resolutions up to 8K@60Hz, with backward compatibility for 4K@144Hz, 4K@120Hz, and 1080P@240H |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | The 3 monitor KVM Switch with 4 USB3.0 ports for peripheral USB devices such as keyboard, mouse, printer, etc. |
| Application | This KVM Switch 4 Computers 3 Monitors can control 4 computers or laptops with 1 independent set of keyboard and mouse, share 3 monitors and 4 USB 3.0 hub.(supports extended and mirrored display modes) Please note: Your computer’s graphics card must have 2 DP ports and 1 HDMI port to properly connect 3 monitors) |
| Features | USB 3.0 KVM switch 4 computers 3 monitors transfer files in Seconds. KVM switch 4 computers 3 monitors support resolution up to 3840*2160@60Hz/4K@144Hz and backward compatible. Two Output Modes are Available |
| Dimensions | 8.27 x 3.07 x 1.77 inches |
| Weight | 8.82 ounces |
| Package Contents | 1* Triple Monitor KVM Switch, 4* USB 3.0 Cable, 1* Power Adapter, 1* Wired Remote, 1* User's Manual |
Questions about this item

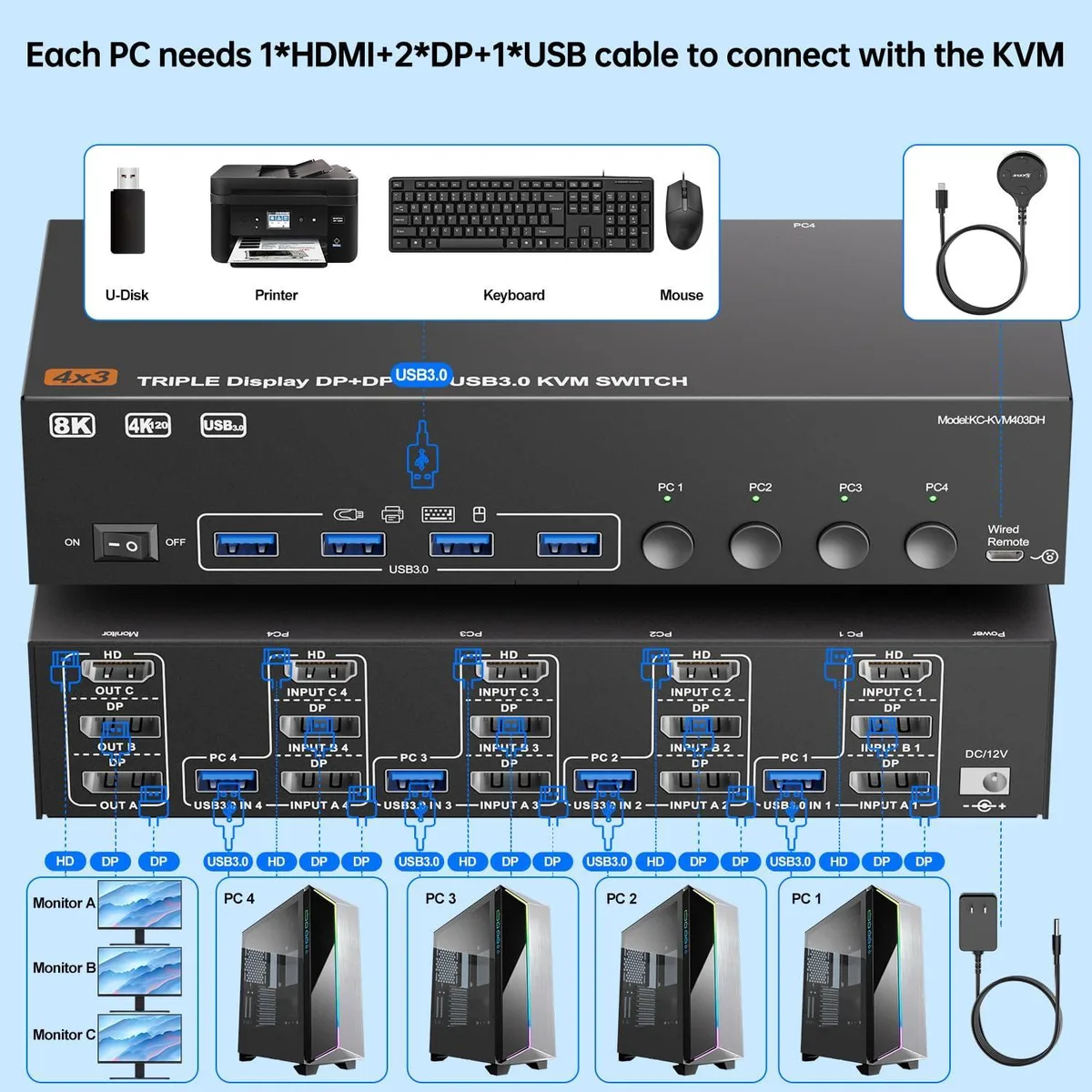

How do I connect four computers to get triple-monitor output on this KVM switch?
Each computer requires one HDMI 2.1 cable, two DisplayPort 1.4 cables, and one USB 3.0 cable connected to the switch; all four sets plug into the rear ports before you power the unit with the included 12 V adapter.
What cable-quality issue causes flickering on the three monitors?
The supplier notes that poor-quality HDMI or DisplayPort cables will cause screen flicker or instability, so certified 8K-ready HDMI 2.1 and DisplayPort 1.4 cables rated for the full bandwidth are essential.
At what refresh rate does the HDMI output cap out when running 4K resolution?
The HDMI 2.1 ports support 4K at 60 Hz maximum; they do not support 4K at 120 Hz or 144 Hz, so sustained 4K gaming above 60 Hz must use the DisplayPort 1.4 outputs instead.
