WRIARICH 4×2 DisplayPort KVM Switch 8K@60Hz 4K@144Hz
Lets four computers share two monitors at up to 8K@60Hz or 4K@144Hz with three USB 3.0 ports and audio output
- TypeDisplayPort, USB
- PC Connectors4 PCs
- Computer Connections4 Ports
- Monitor Connections2 Ports
- Video Resolutionup to 8K@60Hz 4K@144Hz
- PC SelectionPush Buttons
- Share four computers across two monitors with 8K@60Hz and 4K@144Hz support
- Switch instantly via front buttons or wired remote without installing drivers
- Connect three USB 3.0 peripherals and separate audio microphone output
- Supports splicing, copy and extend display modes for flexible layouts
- Compact 23.5×17×5.6 cm unit weighs 886 g and needs no extra power supply

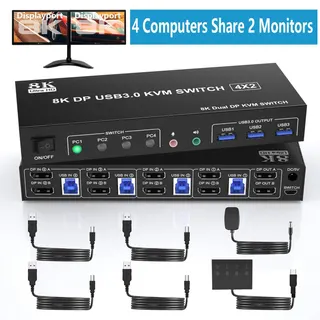

4×2 DisplayPort KVM for four PCs

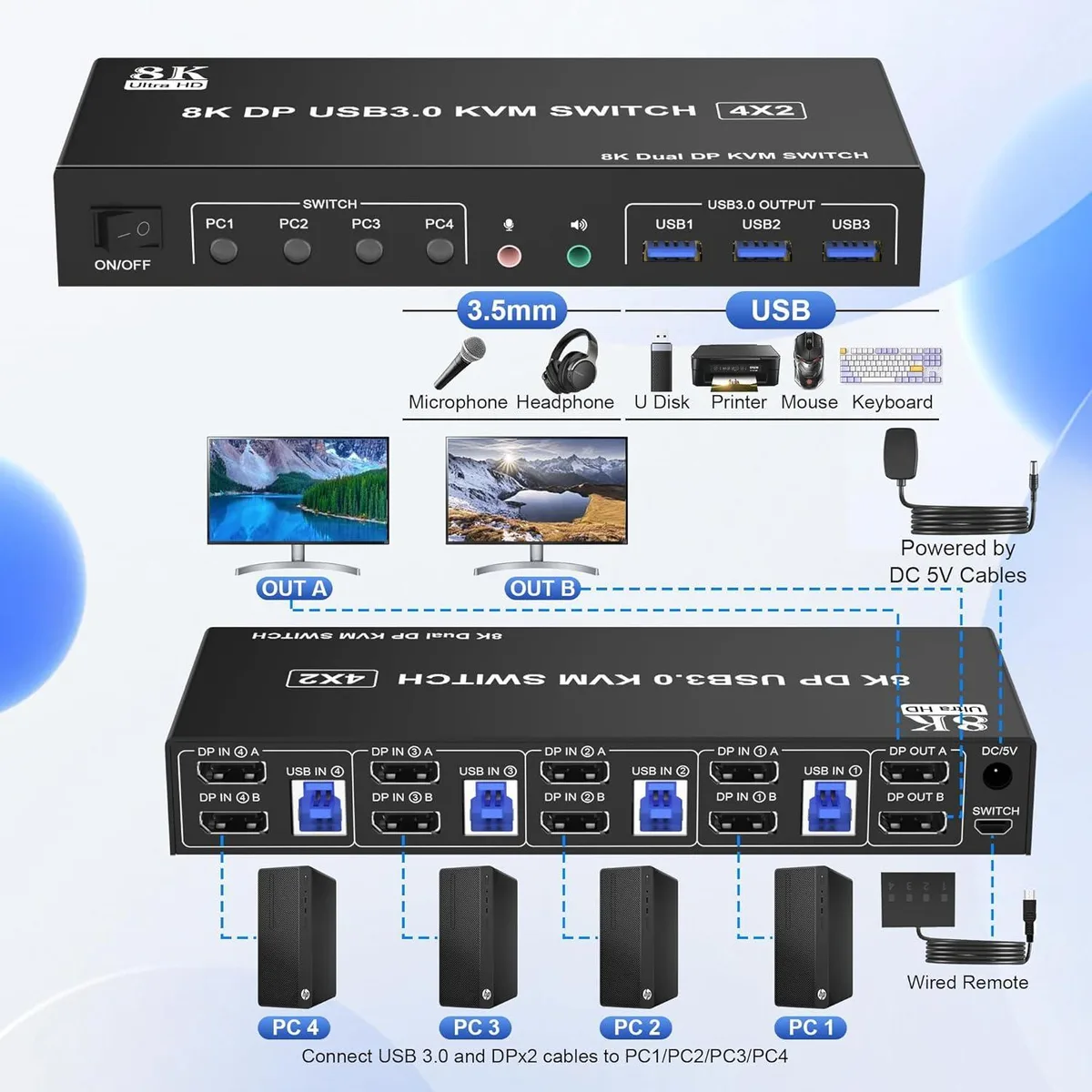

This KVM switch lets four computers share two DisplayPort monitors, three USB 3.0 peripherals and a microphone output. It supports video up to 8K at 60 Hz or 4K at 144 Hz with HDR 10 and Dolby Vision pass-through. Switching is driver-free via front buttons or the wired remote. The unit needs no extra power supply and keeps cables hidden behind the chassis.
Ideal for multi-system workstations
Suits users who need instant access to four towers or laptops on a single dual-monitor desk without unplugging cables. Not for setups that require more than two displays or need a single-monitor KVM with fewer ports. Buyers who only run one computer or who need HDMI or USB-C video inputs should look elsewhere.
8K@60 Hz and 4K@144 Hz over DP 1.4
The switch uses DisplayPort 1.4 bandwidth of 32.4 Gbps to deliver the stated resolutions and refresh rates. Both connected PCs and monitors must support DP 1.4 and the target timing for the full 8K or high-refresh 4K image to appear.
Highlights
- Share four computers across two monitors with 8K@60Hz and 4K@144Hz support
- Switch instantly via front buttons or wired remote without installing drivers
- Connect three USB 3.0 peripherals and separate audio microphone output
- Supports splicing, copy and extend display modes for flexible layouts
- Compact 23.5×17×5.6 cm unit weighs 886 g and needs no extra power supply
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | 4 PCs |
| Computer Connections | 4 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | up to 8K@60Hz 4K@144Hz |
| PC Selection | Push Buttons |
| Monitors Supported | Dual Monitor |
| LED Indicators | Yes |
| Audio Features | with Audio Microphone Output |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This Dual Monitor DP 1.4 KVM switch 4 computers 2 monitors allow 4 computers or other signal source to share two HD monitors, audio microphone output and 3 USB 3.0 ports, such as mouse, keyboard, printer U disk or gamepad, etc. |
| Features | 1. 8K DisplayPort KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 2 monitors (DisplayPort+ DisplayPort) 2. Dual monitors output support up to 8K@60Hz/4K@120Hz, Ultra HD, HDR 10, Dolby vision, 3D effect. 3. Support DP 1.4 , transfer rates up to 32.4Gbps, backwards compatible with DP 1.2 4. 2 Switching modes: Button switch and wired remote. 5. With extra 3 USB 3.0 ports and independent audio microphone output. 6. Plug and play, compatible with Windows/Vista/XP and Mac Os, Linux and Unix |
| Dimensions | 23.5 x 17 x 5.6 cm |
| Weight | 886 Grams |
| Package Contents | 1 x DP KVM Switch, 4 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User manual |
Questions about this item
Does the WRIARICH 4×2 KVM generate noticeable heat or fan noise when all four computers are running continuously?
The unit requires no additional power supply beyond the included adapter and has no fan, so it runs silently with minimal heat during all-day use.
Which cables and ports must my four computers already have to connect to this KVM?
Each computer needs a DisplayPort 1.4 or 1.2 output and a USB 3.0 or 2.0 port; the box supplies four USB 3.0 cables for those links.
Will my older monitors that only support DisplayPort 1.2 at 4K 60 Hz work correctly through this switch?
Yes, the KVM is backwards compatible with DP 1.2, so 4K 60 Hz displays will function normally alongside the 8K@60 Hz and 4K@144 Hz capabilities.
