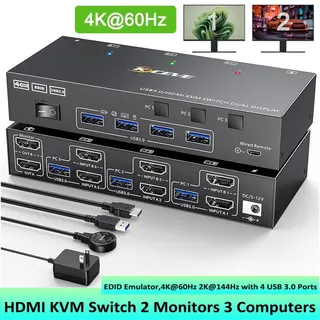

WRIARICH 302AS 3×2 HDMI KVM Switch 4K@60Hz 4 USB 3.0 Wired Remote
Controls three computers with one keyboard, mouse and two monitors at up to 4K 60 Hz, includes wired remote and four USB 3.0 ports
- TypeHDMI KVM Switch 3 in 2 Out
- PC ConnectorsHDMI, USB 3.0
- Computer Connections3 Ports
- Monitor Connections2 Ports HDMI
- Video ResolutionUltra HD 4K@60Hz/2K@144Hz
- PC SelectionPush Buttons and Wired Remote
- Control 3 PCs with one keyboard, mouse and dual monitors
- Switch sources via front buttons or wired remote
- 4K 60 Hz and 1440p 144 Hz video support
- Four USB 3.0 ports share peripherals at 5 Gbps

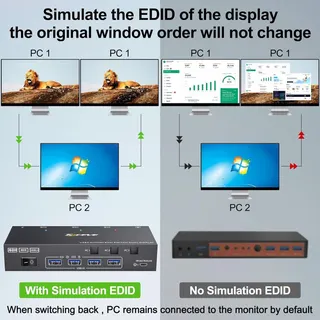

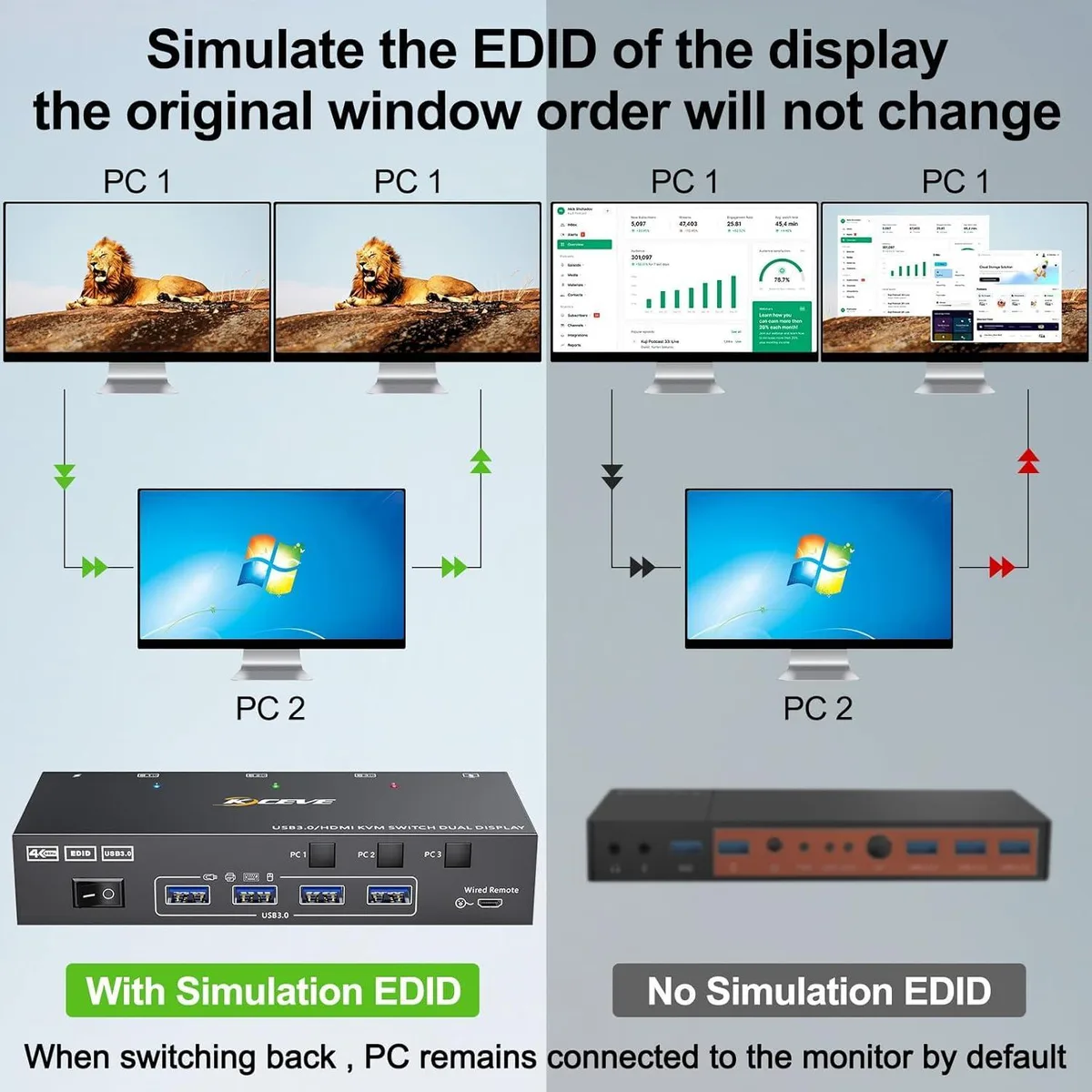

- EDID emulation keeps window layout when switching
Dual-Monitor KVM for Three Computers
This HDMI KVM switch lets one keyboard, mouse and two monitors control three PCs or laptops. It supports extend and copy display modes and works with Windows, Linux and macOS without extra drivers. Four USB 3.0 ports share peripherals such as printers or scanners across all connected systems.
USB 3.0 Peripheral Sharing and Wired Remote
Four USB 3.0 ports deliver up to 5 Gbps data transfer for shared devices. A wired remote and front-panel buttons give instant PC switching. EDID emulation keeps window layouts intact when changing sources. The included 12 V power adapter ensures stable operation and the power-switch feature re-identifies signals after a five-second cycle.
Check Video Outputs and Cabling Before Ordering

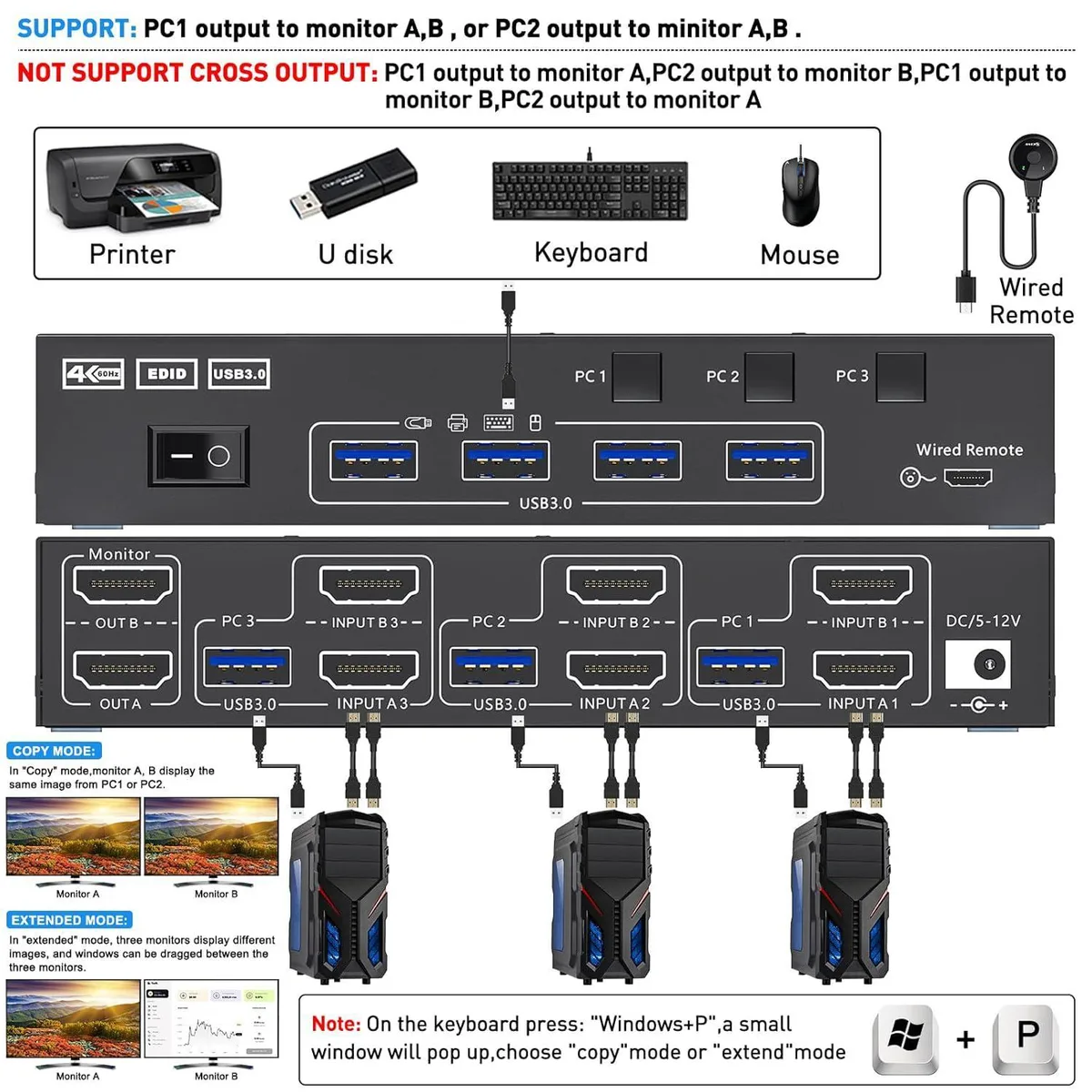

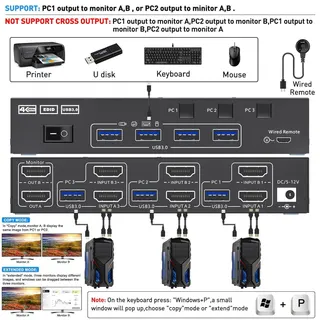

Each computer must provide one HDMI output for the switch input. Two monitors with HDMI inputs are required for dual-display use. The package supplies two HDMI 2.0 cables and three USB 3.0 cables; verify cable lengths suit your desk layout. The unit measures about 6.3 x 2.56 x 1.18 inch and weighs 320 g.
Highlights
- Control 3 PCs with one keyboard, mouse and dual monitors
- Switch sources via front buttons or wired remote
- 4K 60 Hz and 1440p 144 Hz video support
- Four USB 3.0 ports share peripherals at 5 Gbps
- EDID emulation keeps window layout when switching
Specifications
| Model | 302AS |
|---|---|
| Type | HDMI KVM Switch 3 in 2 Out |
| PC Connectors | HDMI, USB 3.0 |
| Computer Connections | 3 Ports |
| Monitor Connections | 2 Ports HDMI |
| Video Resolution | Ultra HD 4K@60Hz/2K@144Hz |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI Dual Monitor |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | 12V Power Adapter |
| USB Features | Dual monitor HDMI USB switch with 4 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps. |
| Application | This Dual Monitor KVM HDMI Switch allows to control 3 computers/latops by 1 set of keyboard & mouse and 2 monitors(Extend display mode or Copy display mode) Note:Press "Window+P",a small window will pop up, in which to choose "Duplicate" Mode or "Extend" Mode. |
| Features | 1.Power Switch The signal can be re-identified after powering off for 5 seconds and then turned on again. No need to unplug or plug in. 2.12V Power Port A 12V power adapter is included in the package, which solves the problem of insufficient power supply. 3. 3 Color Indicator Light Three color indicator lights can clearly show which computer you are currently switching to. 4. 4 USB3.0 Ports USB3.0 is compatible with USB3.0, and the data transmission speed can reach 5Gbps, while the data transmission speed of USB2.0 is only 480Mbps |
| Dimensions | About 6.3 x 2.56 x 1.18 inch |
| Weight | 320g |
| Package Contents | 1*Dual Monitor KVM Switch 1*User manual 1*DC12V Power adapter, 1*wired remote, 2*HDMI2.0 cable, 3*USB3.0 cable |
Questions about this item
What does the HDMI 2.0 interface cap at for video output?
The HDMI 2.0 ports support up to 4K resolution at 60 Hz, with 2K at 144 Hz and 1080p at 144 Hz also available.
How much desk space does the 302AS unit need?
The switch measures about 6.3 by 2.56 by 1.18 inches and weighs 320 g, so it fits on a small shelf or behind monitors.
Which cables must be connected to each computer for full KVM operation?
Each computer needs one HDMI 2.0 cable and one USB 3.0 cable plugged into the switch; the package includes two HDMI and three USB cables for this purpose.
