WRIARICH
WRIARICH 201DPA KVM Switch 2-Port DP 8K30 4K144 USB 3.0
A two-port DisplayPort KVM switch lets you control two computers with one monitor, keyboard, mouse and up to four USB 3.0 devices at resolutions up to 8K 30 Hz or 4K 144 Hz
- TypeDisplayPort, USB
- PC ConnectorsDP1.4, USB 3.0
- Monitor Connections1 Port
- Video ResolutionThis USB KVM switch displayport support resolution up to 8K@
- PC SelectionPush Buttons and Wired Remote
- Monitors SupportedDisplayport
- Control 2 PCs on one screen with push-button or wired remote switching
- Enjoy 8K 30 Hz and 4K 144 Hz video plus ultrawide support
- Share keyboard mouse printer and drives through four USB 3.0 ports at 5 Gbps
- Works instantly on Windows Mac Linux Chrome OS with no drivers needed
- Compact 3.94 x 2.56 x 0.71 inch unit powered from the USB bus
Two-Port DP KVM Switch

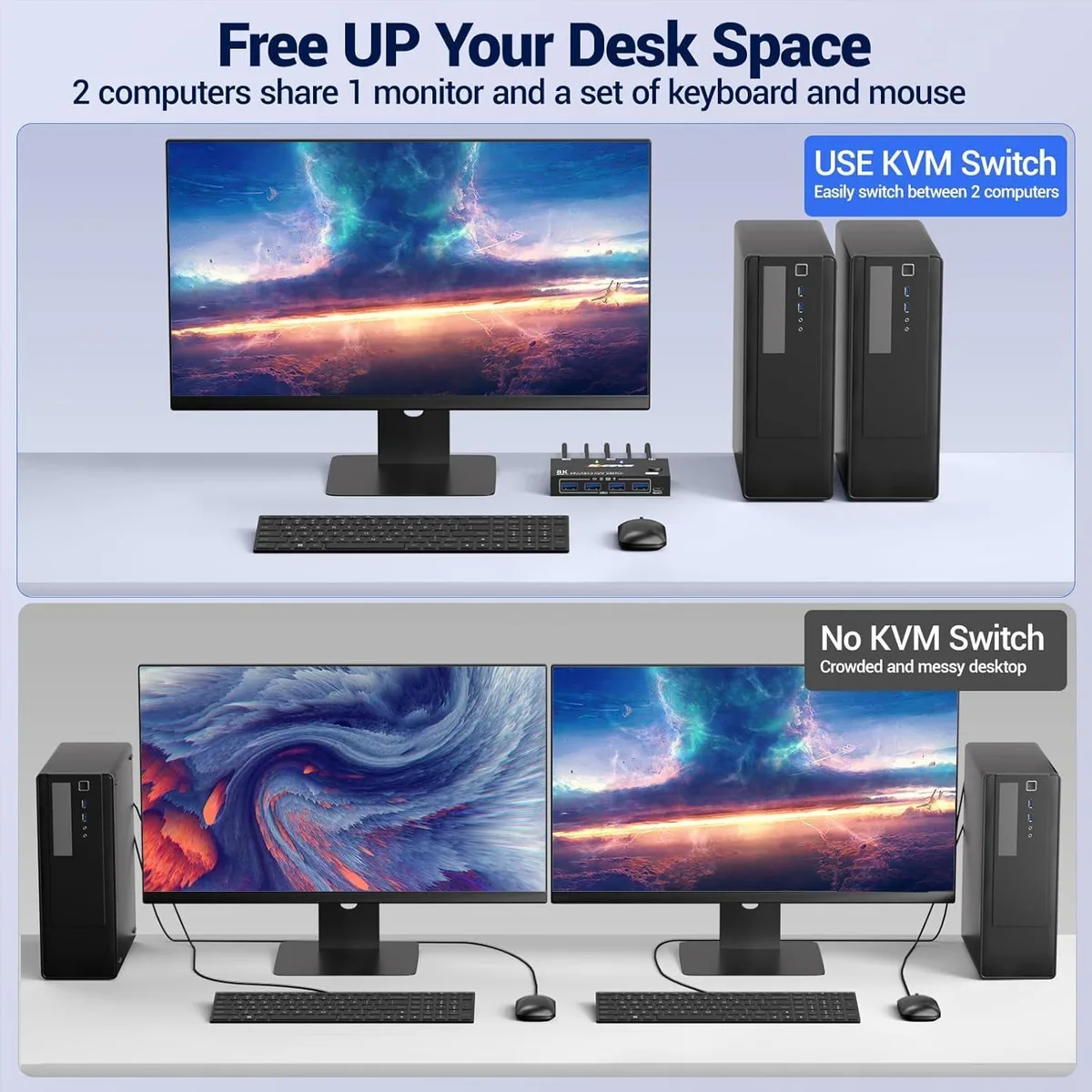

The WRIARICH 201DPA lets two computers share one DisplayPort monitor and four USB 3.0 peripherals. It supports resolutions up to 8K at 30 Hz and 4K at 144 Hz, plus 2560×1440 at 120 Hz. Driver-free operation works with Windows, Mac OS, Linux and Chrome OS. Ultrawide monitors are also supported.
Simple Plug-and-Play Setup

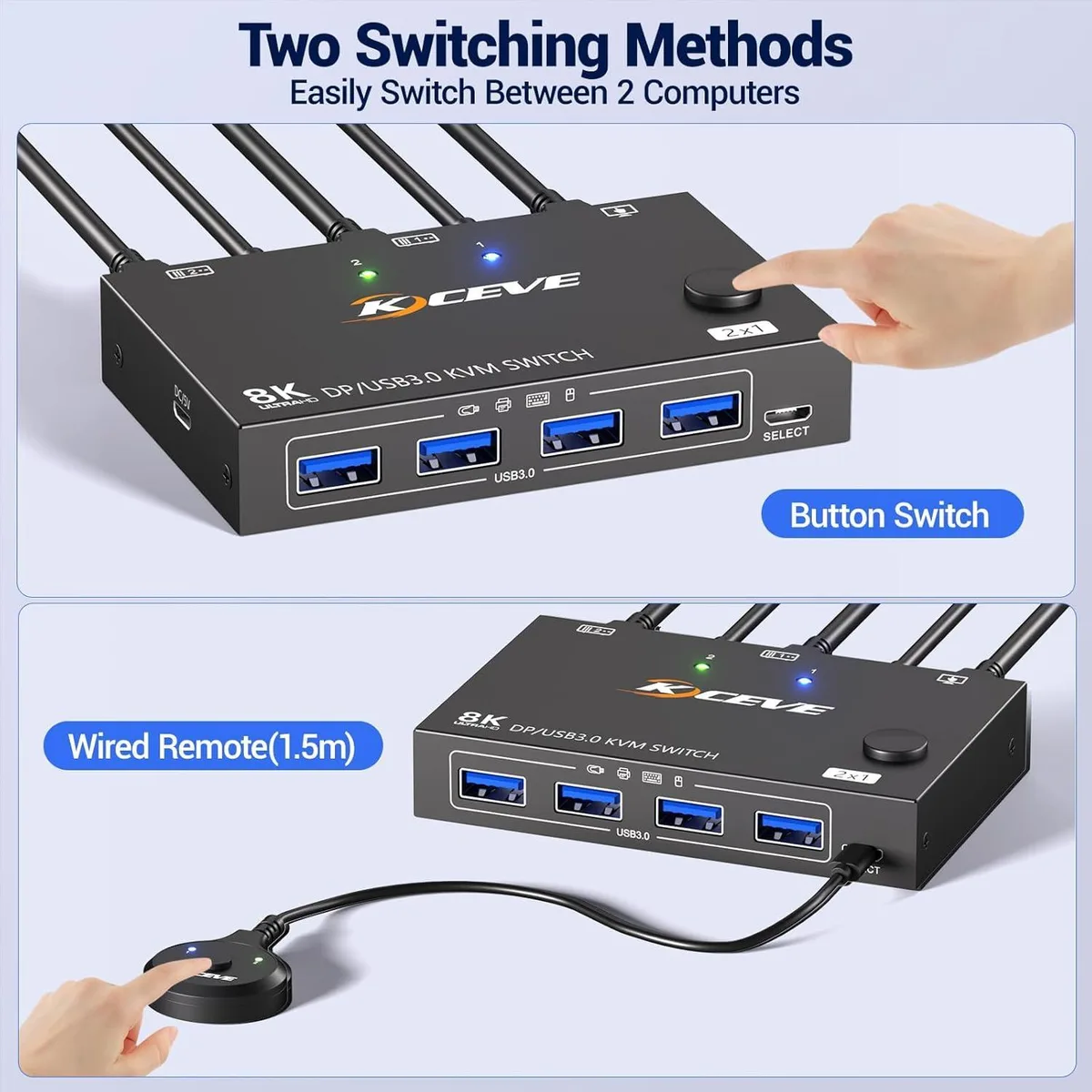

No external power supply is required; the unit draws power from the connected systems. Two 1.5 m USB cables and a wired remote are included for immediate use. Switch between computers using the front-panel push buttons or the remote. LED indicators show the active port. The only common issue is forgetting to connect both USB cables for full peripheral sharing.
8K30 and 4K144 Over DisplayPort 1.4
The single specification that decides fit is the video bandwidth: DP 1.4 carries 8K at 30 Hz and 4K at 144 Hz. If your workflow needs 8K at 60 Hz or higher refresh rates at 4K, this switch will not deliver them. Buyers who need more than two computer ports or dual-monitor output should look elsewhere.
Highlights
- Control 2 PCs on one screen with push-button or wired remote switching
- Enjoy 8K 30 Hz and 4K 144 Hz video plus ultrawide support
- Share keyboard mouse printer and drives through four USB 3.0 ports at 5 Gbps
- Works instantly on Windows Mac Linux Chrome OS with no drivers needed
- Compact 3.94 x 2.56 x 0.71 inch unit powered from the USB bus
Specifications
| Model | 201DPA KVm Switches |
|---|---|
| Type | DisplayPort, USB |
| PC Connectors | DP1.4, USB 3.0 |
| Monitor Connections | 1 Port |
| Video Resolution | This USB KVM switch displayport support resolution up to 8K@30Hz 4K@144Hz and backward compatible 4K@60Hz, 2560*1440@120Hz. The 8K KVM Switches also work with ultrawide monitors. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with 4 USB 3.0 ports for sharing keybaord, mouse, printer, U disk and more other USB devices.Supports ultra-fast USB 3.0 data transfer up to 5Gbps,make work and life more convenient. |
| Application | This monitor switch can control 2 computers to share 1 monitor with 1 set of Wired or Wireless keyboard mouse. You can easily switch via panel button or wired remote between two computers on 1 monitor and share 4 USB devices |
| Features | Support Multi Devices such as desktop, laptop, Mini box. Driver-free for Windows, Mac OS, Linux and Chrome OS, simply plug and play. 4 USB ports use for USB devices such as keyboard, mouse, printer, U Disk, etc |
| Dimensions | 3.94 x 2.56 x 0.71 inches |
| Weight | 5.29 ounces |
| Package Contents | 1*USB KVM switch; 2*USB Cable(1.5M),Wired remote,USB power card and User Manual. |
Questions about this item
How can I confirm the 201DPA is switching correctly after connecting two PCs and one DisplayPort monitor?
The front panel LEDs show which computer is active, and the wired remote lets you toggle between them while the single monitor displays the selected PC's output up to 8K at 30 Hz or 4K at 144 Hz.
Which cables and accessories are included versus what I must supply for a two-computer setup?
The box contains the KVM unit, two 1.5 m USB cables, a wired remote, a USB power card and a manual; you provide two DisplayPort cables and your keyboard, mouse and other USB peripherals.
Should I choose this 201DPA model if my monitor runs 2560 by 1440 at 120 Hz or 4K at 60 Hz?
Yes — the switch supports 8K at 30 Hz, 4K at 144 Hz and is backward compatible with 4K at 60 Hz and 2560 by 1440 at 120 Hz, covering those resolutions and refresh rates.
