WRIARICH 2×2 HDMI 2.1 DP 1.4 KVM Switch 8K60 4K120 4 USB 3.0
A dual-monitor KVM switch linking two computers to two displays at up to 8K 60 Hz or 4K 120 Hz with four USB 3.0 ports for shared peripherals
- TypeHDMI + Displayport
- PC ConnectorsDisplayport, HDMI, USB 3.0
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionsupports up to 8K@60Hz/ 4K@144Hz and is backward compatible
- PC SelectionPush Buttons + Remote Controller
- Share two PCs across dual monitors with HDMI 2.1 and DP 1.4
- Switch instantly via front button or IR remote control
- Four USB 3.0 ports let you share keyboard, mouse and drives
- Supports 8K at 60 Hz and 4K at 120 Hz for high-refresh gaming
- Aluminium alloy chassis resists interference and runs plug-and-play

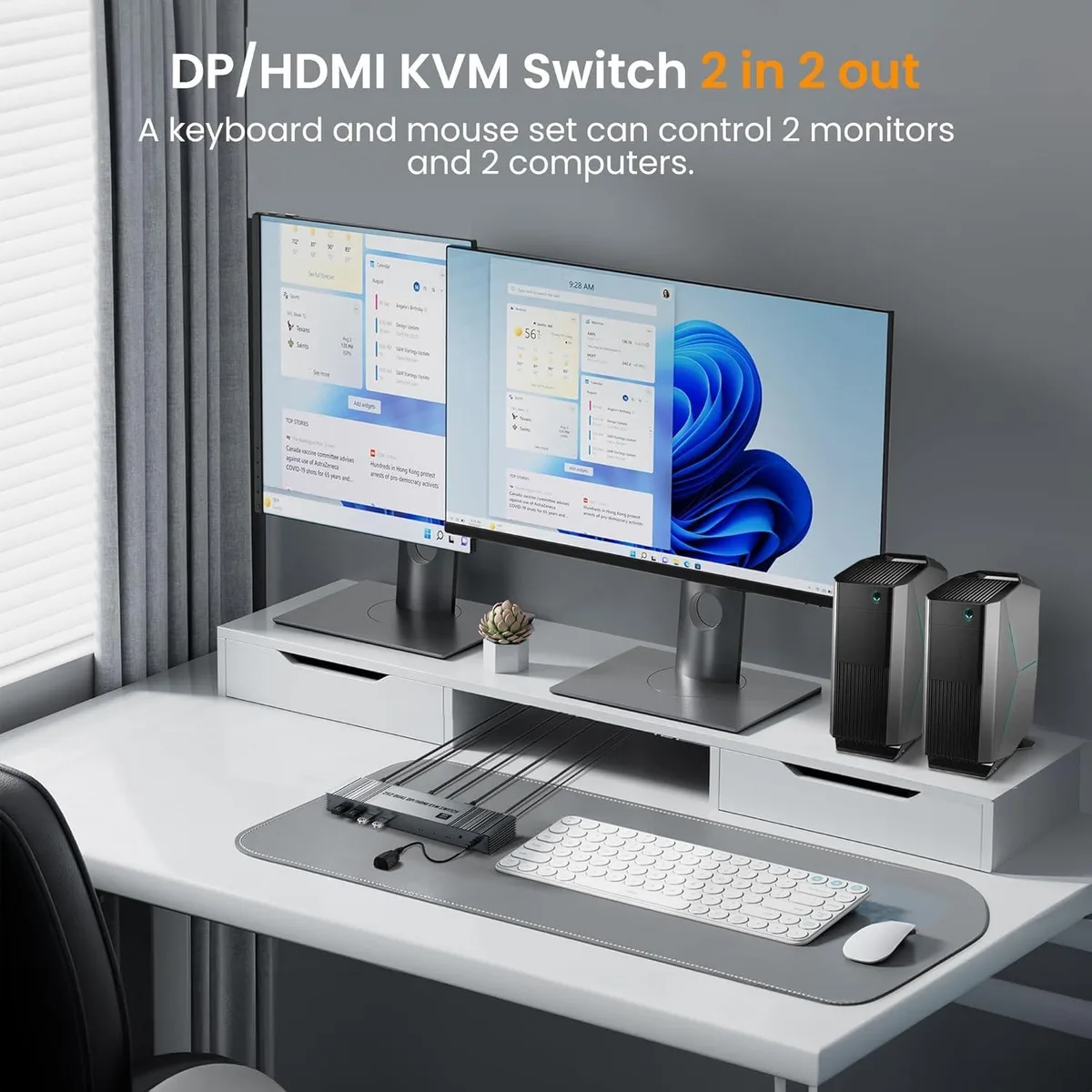

Dual 2-in-2-out KVM switch

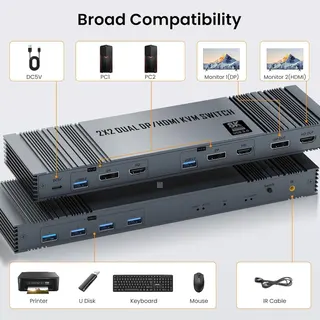

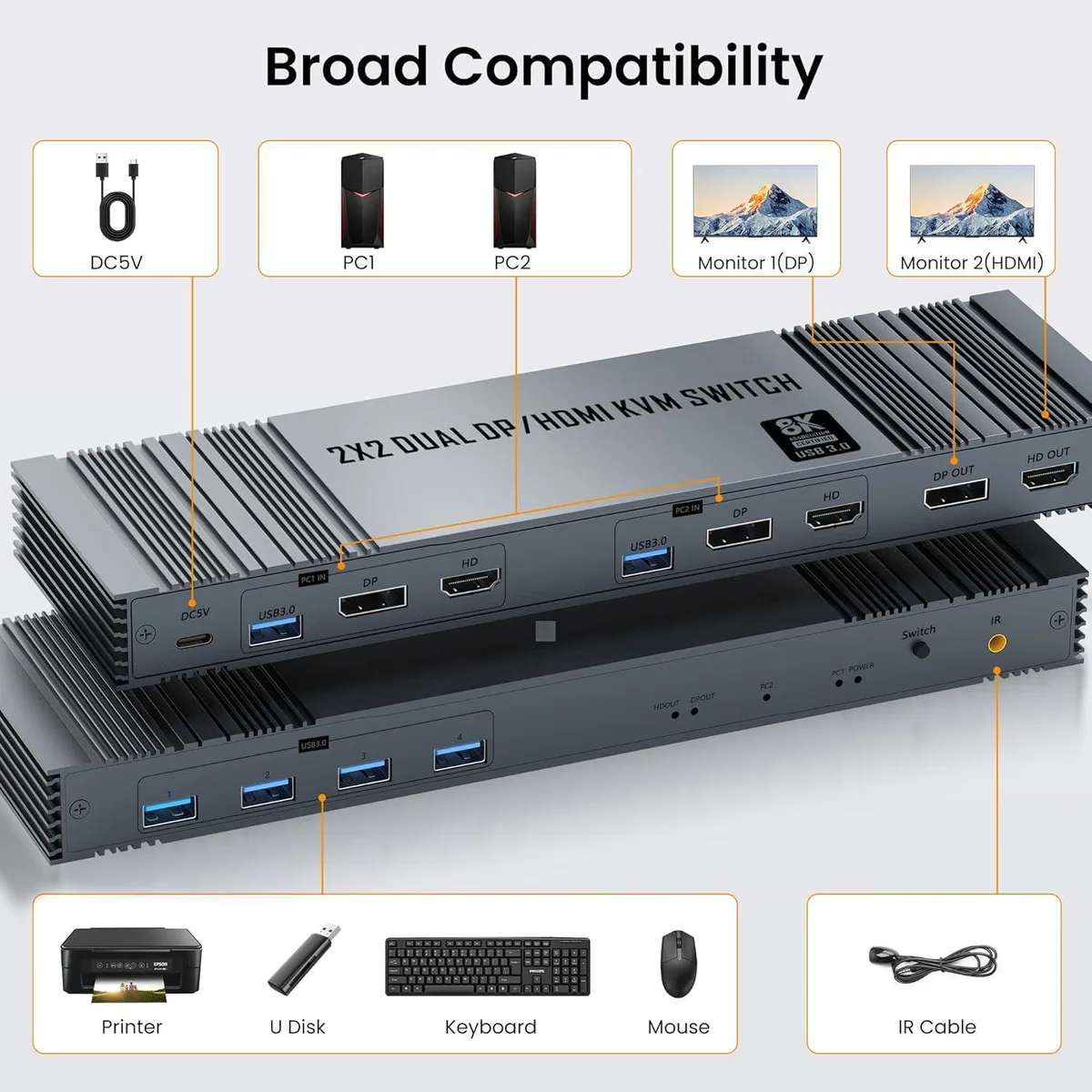

The WRIARICH unit connects two computers to two monitors using HDMI 2.1 and DisplayPort 1.4 inputs. It provides four USB 3.0 ports for sharing keyboards, mice, printers or flash drives between both systems. Switching is handled by a front-panel button or the included IR remote. The aluminium-alloy chassis measures 260x78x35mm and ships with two 1.2 m USB 3.0 cables, a 5 V power adapter and a user manual.
Bandwidth limits of HDMI 2.1 and DP 1.4
The HDMI 2.1 and DisplayPort 1.4 interfaces cap the maximum uncompressed video bandwidth. At 8K the refresh rate is limited to 60 Hz. At 4K the switch supports up to 120 Hz, while 1080p signals can reach 240 Hz. HDCP 2.3 encryption is supported on the HDMI path. Extended and copy display modes are available, but the total throughput cannot exceed the physical link speeds of the two standards.
8K60 via HDMI 2.1 decides suitability
The single specification that determines whether this KVM fits a build is the 8K at 60 Hz ceiling on the HDMI 2.1 outputs. Systems or monitors that require 8K at higher refresh rates, or 4K beyond 120 Hz, will not run at their native performance. Buyers needing 8K120 or 4K144 on both screens simultaneously should look for a device with a higher-bandwidth interconnect.
Highlights
- Share two PCs across dual monitors with HDMI 2.1 and DP 1.4
- Switch instantly via front button or IR remote control
- Four USB 3.0 ports let you share keyboard, mouse and drives
- Supports 8K at 60 Hz and 4K at 120 Hz for high-refresh gaming
- Aluminium alloy chassis resists interference and runs plug-and-play
Specifications
| Type | HDMI + Displayport |
|---|---|
| PC Connectors | Displayport, HDMI, USB 3.0 |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | supports up to 8K@60Hz/ 4K@144Hz and is backward compatible with 4K@120Hz, 2K@144Hz, 1080P@240Hz, 720P, etc. |
| PC Selection | Push Buttons + Remote Controller |
| Monitors Supported | HDMI + Displayport 2 Monitors |
| LED Indicators | Yes |
| Power Features | with 5V Power Adapter |
| USB Features | with USB support |
| Application | 8K@60Hz KVM Switch 2 monitors for 2 computers with DP 1.4 and HDMI 2.1 port devices with 4 USB 3.0 ports to share USB devices such as keyboard, mouse printer, USB flash drive, etc. The 2x2 DP HDMI KVM switcher supports extended and Copy modes. |
| Features | - Support HDMI 2.1 HDCP 2.3 / Displayport 1.4 - Resolution: Support 1080P/1080@144/165/240Hz, 2K@120/144Hz, 4K@60/120Hz,8K@60Hz resolution, adaptive screen resolution - Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems - Supports high current hard disk devices - Two Switching Method. |
| Dimensions | 260x78x35mm |
| Package Contents | 1 x HDMI DP KVM USB Switch 2x2 2 x USB 3.0 data cable 1 x DC power adapter 1 x IR Remote Control 1 x User Manual |
Questions about this item
Should I use the HDMI 2.1 or DisplayPort 1.4 inputs for my 4K 120 Hz monitors?
Both inputs support 4K 120 Hz RGB 4:4:4; choose HDMI 2.1 for consoles or GPUs with HDMI 2.1 outputs, and DisplayPort 1.4 for PCs with DP 1.4 outputs.
Will 8K 60 Hz actually work through this switch on my PC?
Yes, the switch passes 8K 60 Hz signals from a compatible GPU over HDMI 2.1 or DP 1.4 to a single 8K 60 Hz monitor; dual-monitor mode is limited to 4K 120 Hz per screen.
Does the USB 3.0 hub run at full 5 Gbps when I switch computers?
The four USB 3.0 ports share a 5 Gbps upstream link to the active PC, so keyboards, mice and flash drives run at full speed; high-current hard drives are also supported.
