Black metal box with twelve HDMI output ports

WRIARICH

WRIARICH 1214-HS30 HDMI Distribution 1x12 4K@30Hz

SKU CH-5WDQ-4FP6M

Distributes one HDMI source to twelve displays at 4K resolution and 30 Hz with cable runs up to 25 metres

  • Wireless SupportHDMI
  • Max Source SupportHDMI 1x12
  • Max Output Support12, HDMI 1x12
  • FormatHDMI 1x12, HDMI
  • VideoHDMI
  • AudioHDMI

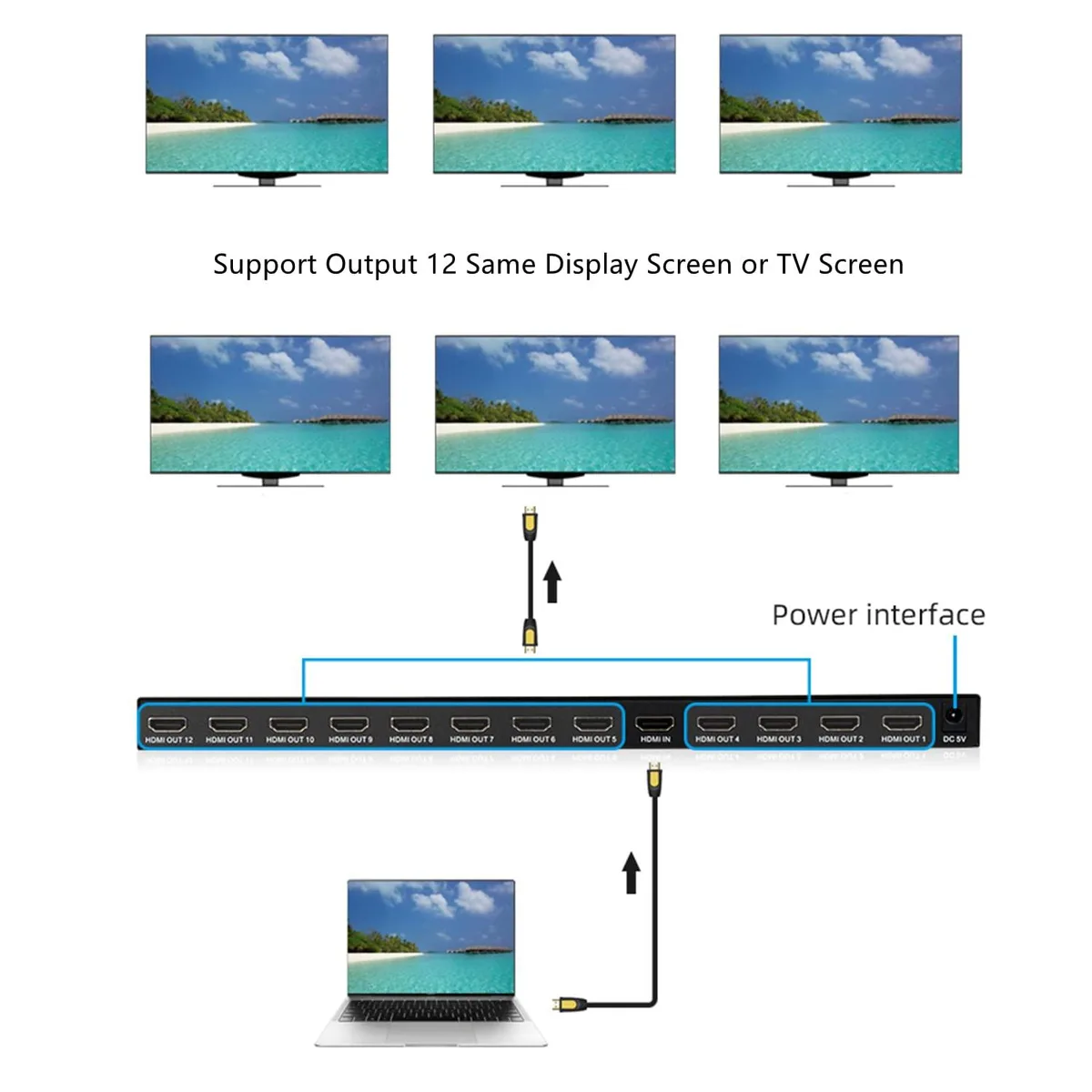

  • Mirror one HDMI source to 12 displays simultaneously
  • 4K resolution at 30 Hz with 3D and multi-channel audio support
  • Input cables up to 10 m and output cables up to 15 m for 25 m total reach
  • Metal enclosure absorbs and dissipates heat for stable operation
  • Suitable for sports venues, trade shows, classrooms and retail displays

What this splitter does

The WRIARICH 1214-HS30 takes one HDMI source and mirrors it across twelve HDMI displays simultaneously. It supports a maximum resolution of 3840x2160 at 30 Hz and passes 3D Blu-ray signals. Audio formats include DTS-HD, Dolby TrueHD and 12-channel LPCM at 24 bit/192 kHz. The unit is built with a metal enclosure for heat dissipation and physical durability.

Cable length limits

Stable operation requires standard 19+1 AWG26 HDMI cables. The input cable run must not exceed 10 m (32.8 ft) and each output cable must not exceed 15 m (49.2 ft). The total end-to-end transmission distance is capped at 25 m (82 ft). Cables are not supplied with the splitter.

Check your installation first

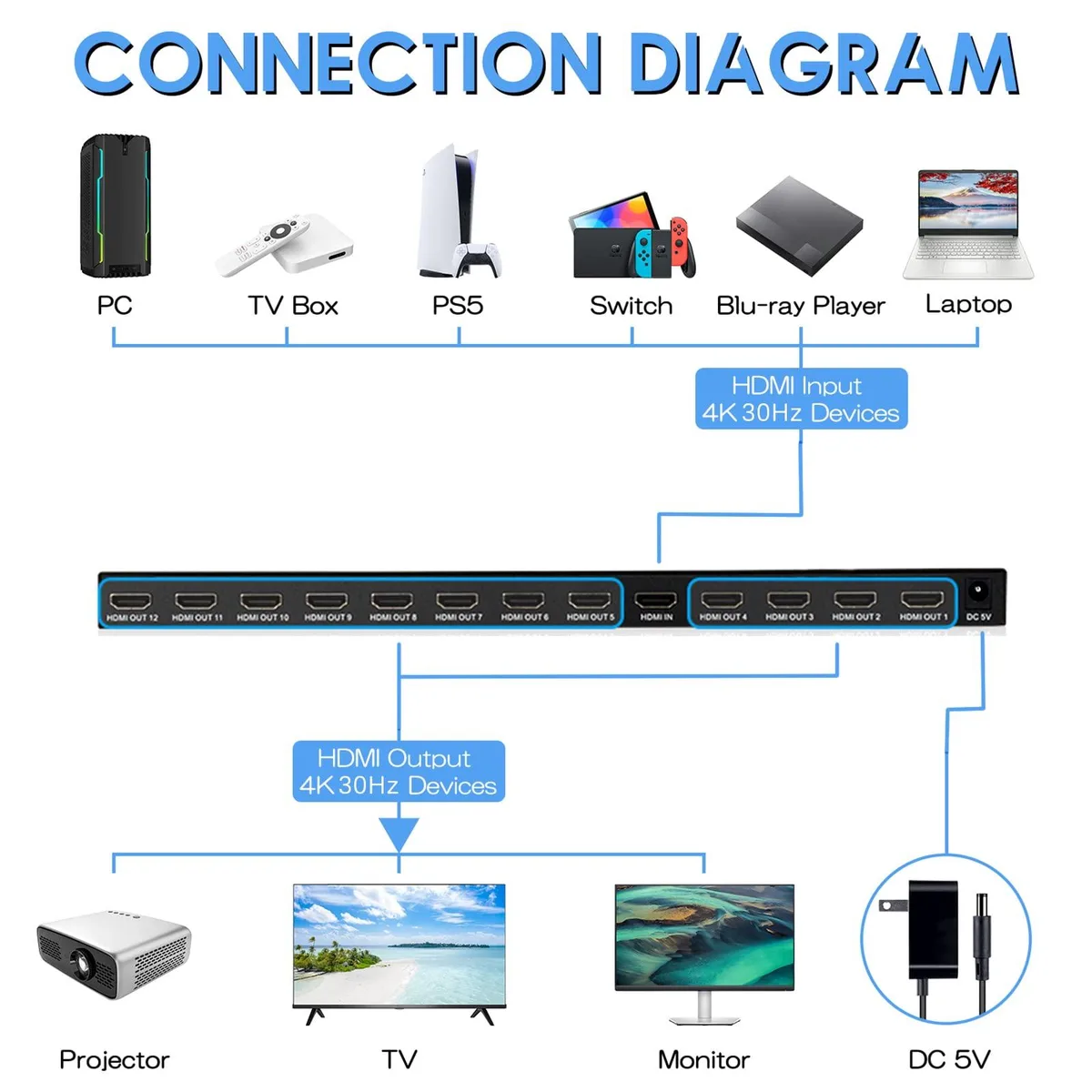

Verify that your source device outputs a single HDMI signal compatible with mirroring only; this unit does not support extended desktop modes. Confirm that all twelve displays accept the same resolution and refresh rate, because every screen will show an identical picture. Ensure you have a suitable power source for the splitter and enough cable length within the stated distance limits for your layout.

Highlights

  • Mirror one HDMI source to 12 displays simultaneously
  • 4K resolution at 30 Hz with 3D and multi-channel audio support
  • Input cables up to 10 m and output cables up to 15 m for 25 m total reach
  • Metal enclosure absorbs and dissipates heat for stable operation
  • Suitable for sports venues, trade shows, classrooms and retail displays

Specifications

BrandAVer
Series1214-HS30
Model1214-HS30
Part Number1214-HS30
Wireless SupportHDMI
Max Source SupportHDMI 1x12
Max Output Support12, HDMI 1x12
FormatHDMI 1x12, HDMI
VideoHDMI
AudioHDMI
HDMI2 In
SDI4 HD-SDI Out
Serial InterfaceHDMI
Network InterfaceHDMI
USB Port1
DVI1 In
VGA1 Out
Component3 Input/3 Output
Composite2 In
Digital AduioHDMI
Analog AduioHDMI
Other ConnectorHDMI
DisplayGaming Console, Blu-Ray Player
CompatibilityGaming Console, Blu-Ray Player
System RequirementsGaming Console, Blu-Ray Player
Power Consumptionfalse
Power Supplyfalse
Specification33 L x 8 W x 2.2 H centimeters
FeatureHDMI, 12, HDMI 1x12, 1 year, Gaming Console, Blu-Ray Player
Mount SizeHDMI 1x12
Dimensions72"
Weight0.771 kilograms
Package Content1, TCNEWCL, 1214-HS30, HDMI

Questions about this item

Should I pick the 1x12 version or a smaller splitter for my twelve displays?

The 1x12 model mirrors one HDMI source to twelve identical outputs, so choose it when every screen must show the same 4K@30Hz picture.

What does 4K@30Hz actually deliver on my 4K TVs?

It sends a 3840x2160 image at 30 frames per second with support for 3D Blu-ray, DTS-HD and Dolby-TrueHD audio across all twelve ports.

How far can I run HDMI cables from this unit without signal loss?

With standard 19+1 AWG26 cables the splitter handles up to 10 m input and 15 m output runs, giving a total path of 25 m.
