Black metal camera mount with red NATO thumbscrew and 15 mm tube clamp, tool-less design, safety pin, includes screws

Wooden Camera, Inc.

Wooden Camera, Inc. WC-157100 UVF Mount v2 camcorder accessory

SKU CH-KNF1-QECF6 MPN WC-157100

A universal EVF and LCD mount with three-axis adjustment, tool-less sled release and NATO-rail compatibility

  • Specifications8.10" x 6.30" x 2.40" (H x W x D) 0.7 lb. Includes: (4) 1/4-
  • CompatibilityAlphatron Cineroid RED SmallHD Zacuto And more
  • FeaturesUVF Mount v2 accepts most EVFs and LCDs. Three points of adj
  • Accepts most EVFs and LCDs for flexible monitoring
  • Three adjustment points: 15 mm tube clamp, NATO thumbscrew, tension thumbscrew
  • Tool-less design enables quick UVF v2 Sled installation and removal
  • Safety pin prevents accidental sled detachment
  • Compatible with Alphatron, Cineroid, RED, SmallHD, Zacuto and more

Universal EVF and LCD Mount

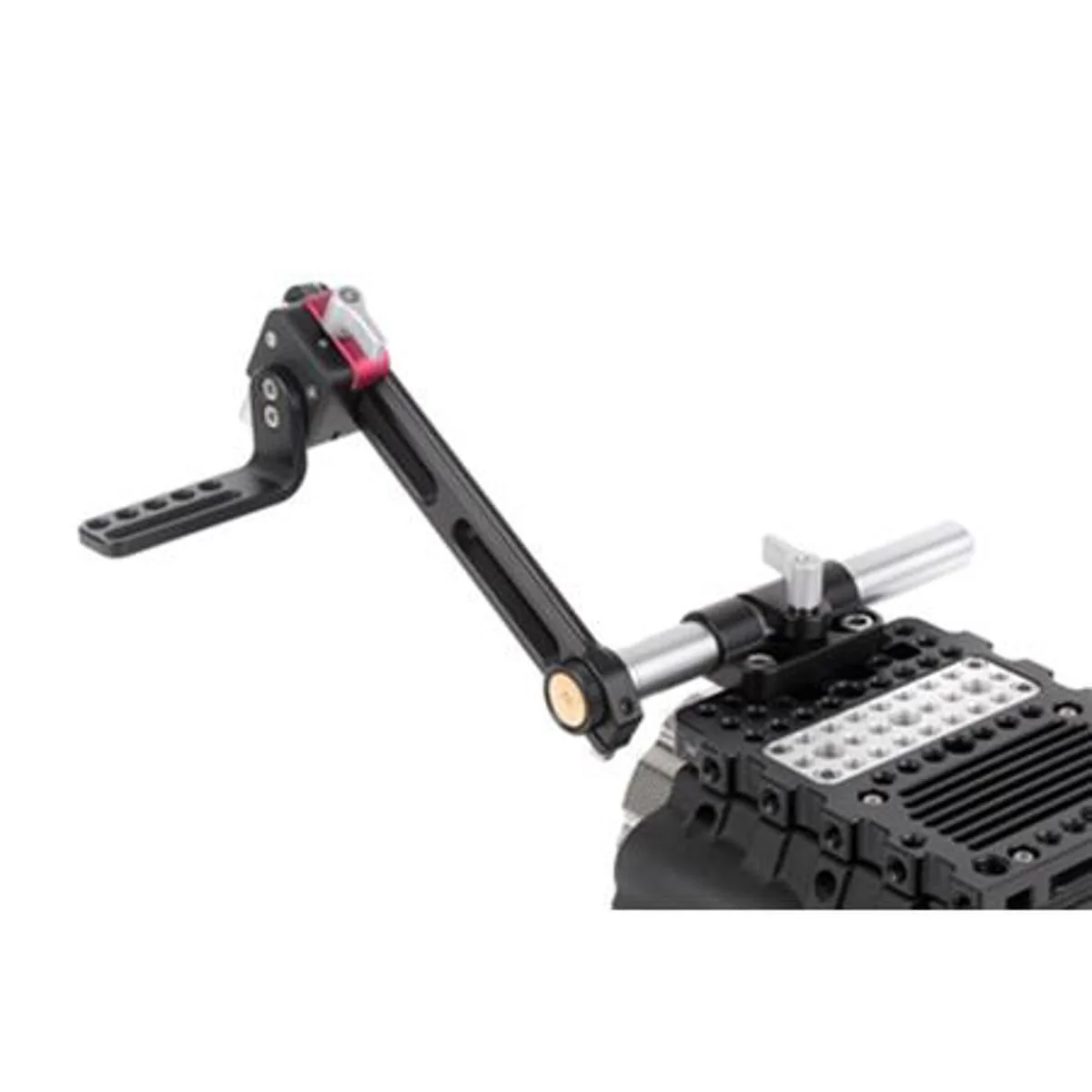

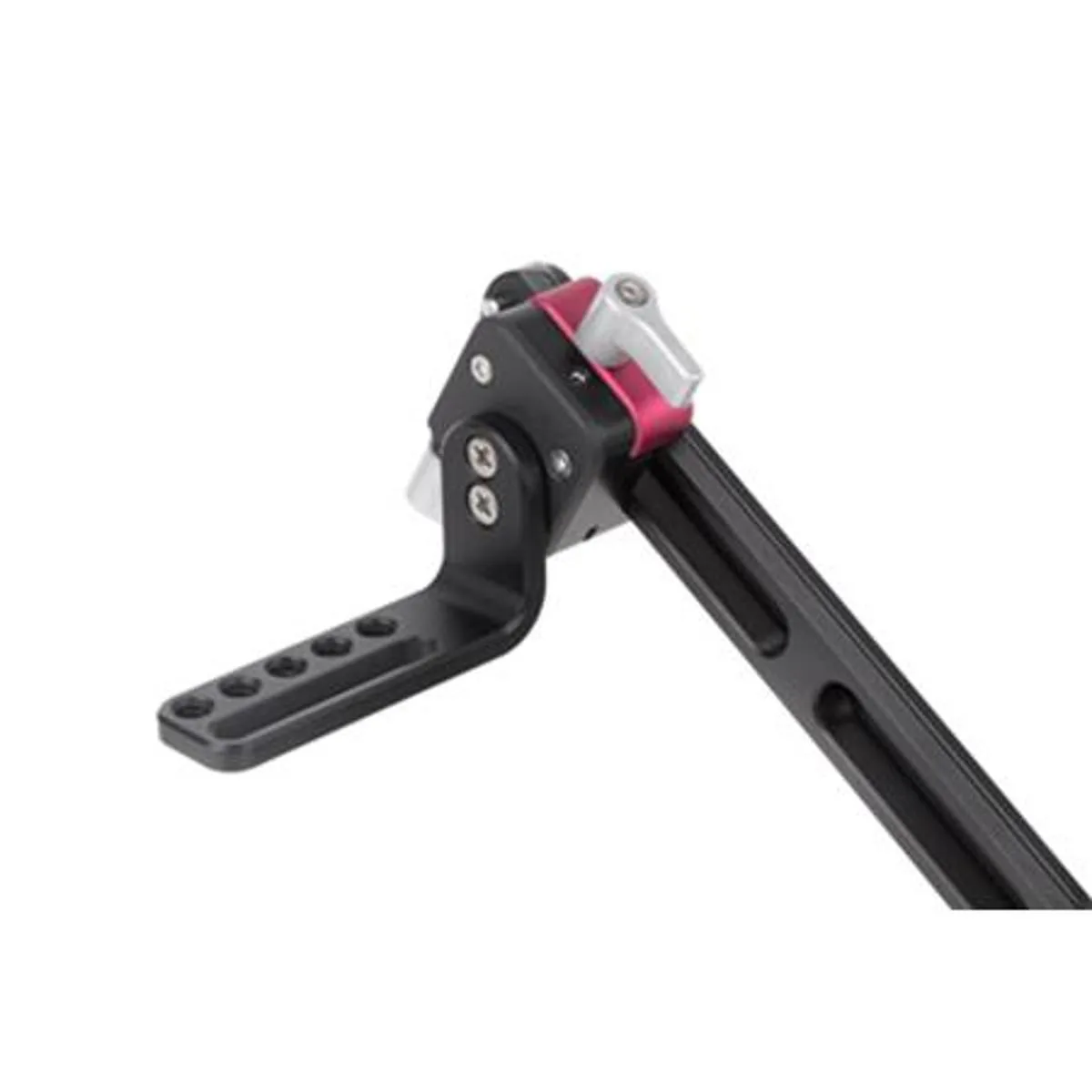

The Wooden Camera UVF Mount v2 accepts most electronic viewfinders and LCD monitors for professional camcorder rigs. It connects via a 15 mm tube clamp and a NATO thumbscrew identified by a red component. A tension thumbscrew adjusts the tilt angle of the attached EVF. The tool-less design allows quick installation and removal of the UVF v2 Sled.

Three-Point Adjustment System

The mount provides tilt and distance control through the 15 mm tube clamp, lateral positioning on a NATO rail via the thumbscrew, and independent tilt tension for the EVF. A safety pin prevents accidental release of the sled during operation. The UVF v2 Sled can attach directly to any NATO-style rail without additional hardware.

Compatibility with Alphatron, Cineroid, RED.

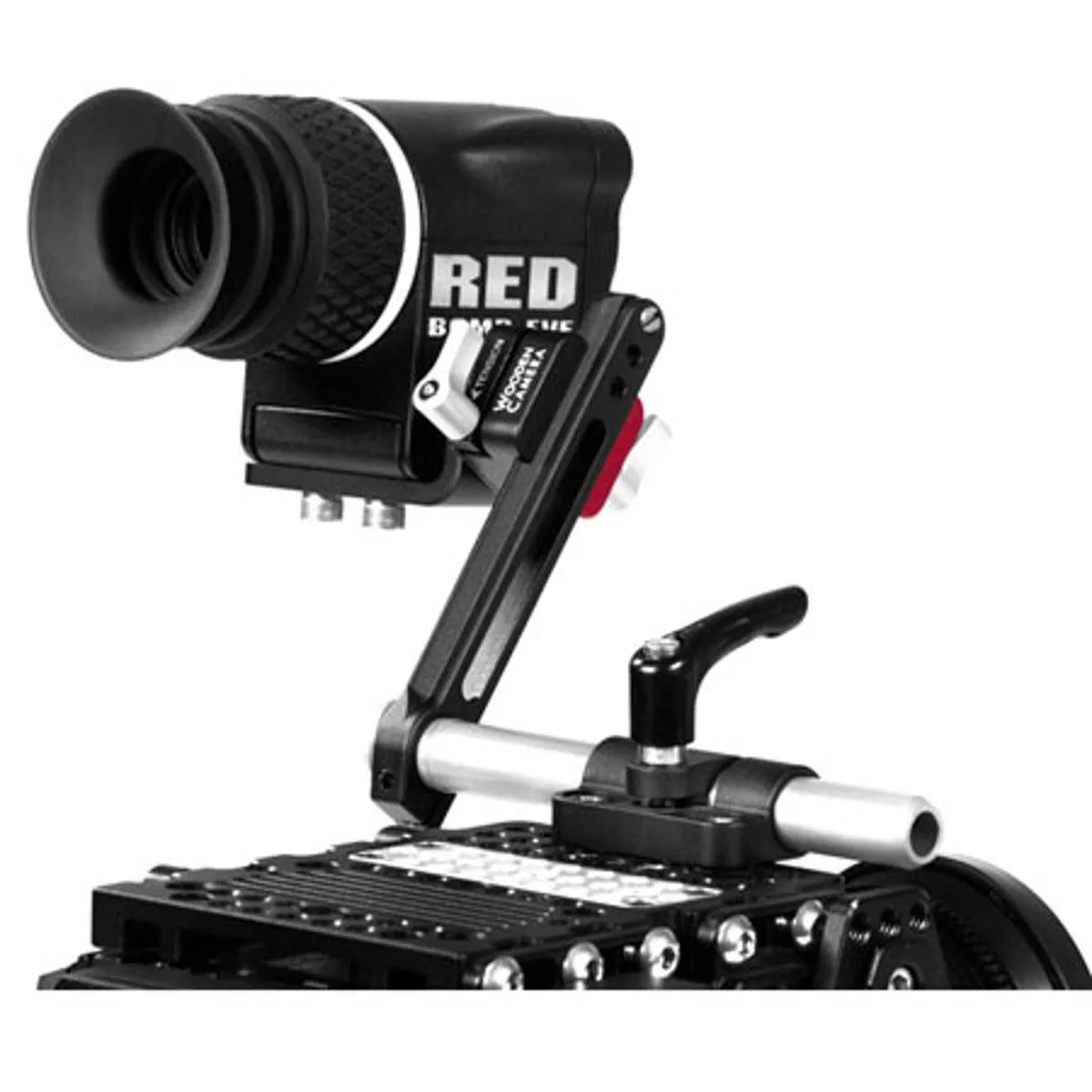

This accessory is designed for operators using monitors or viewfinders from Alphatron, Cineroid, RED, SmallHD, Zacuto and other brands that match the UVF v2 interface. It includes four 1/4-20 x 3/8 inch screws and one 1/4-20 x 1/4 inch screw for mounting. Builders whose EVF uses a different sled standard will need a separate adapter.

Highlights

  • Accepts most EVFs and LCDs for flexible monitoring
  • Three adjustment points: 15 mm tube clamp, NATO thumbscrew, tension thumbscrew
  • Tool-less design enables quick UVF v2 Sled installation and removal
  • Safety pin prevents accidental sled detachment
  • Compatible with Alphatron, Cineroid, RED, SmallHD, Zacuto and more

Specifications

BrandWooden Camera
Model157100
Specifications8.10" x 6.30" x 2.40" (H x W x D)
0.7 lb.
Includes:
(4) 1/4-20 x 3/8" screws
(1) 1/4-20 x 1/4" screws
CompatibilityAlphatron
Cineroid
RED
SmallHD
Zacuto
And more
FeaturesUVF Mount v2 accepts most EVFs and LCDs. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail.
NATO Arm length approximately 4"
Includes adapter for using SmallHD and Alphatron viewfinders.
Bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm center to cent
Shipping weight0.45 kg
Package size203 × 152 × 127 mm

Questions about this item

Which version of the UVF Mount should I choose for my setup?

The WC-157100 UVF Mount v2 is a single version that accepts most EVFs and LCDs, offering three adjustment points including a 15 mm tube clamp and NATO thumbscrew.

How do the 8.10 x 6.30 x 2.40 inch dimensions affect mounting on my rig?

At .7 lb, the compact mount adds minimal bulk while the 15 mm tube clamp sets tilt and distance, and the NATO thumbscrew locks position on any NATO-style rail.

What does the NATO thumbscrew with the red component actually secure?

The red-identified NATO thumbscrew fastens the mount to any NATO-style rail, while the tension thumbscrew independently adjusts the EVF tilt angle.
