30-metre 5-core 22 AWG cable with ten connectors

Wire Cap Connectors 22AWG 5-pin 30m with 10 connectors

SKU CH-9EKN-0GK5N

A 30 metre 22AWG five-core cable with ten connectors for low-voltage RGBW LED strips and other 12V or 24V wiring tasks

  • Color22 Gauge RGBW wire
  • 5-core 22AWG cable handles 12 V and 24 V LED strips
  • 10 ready-to-use connectors speed up RGBW installations
  • 99 % copper conductors give low resistance and high conductivity
  • PVC jacket rated –30 °C to 80 °C protects wiring in harsh environments
  • 30 m reel with flame-retardant insulation suits long low-voltage runs

30 m 5-core RGBW extension wire

The 30 metre, 22 AWG cable carries five colour-coded conductors for RGBW LED strips such as 3528, 5050, 3014 and 2535 types. It is built from 17-strand tinned copper with a PVC jacket rated from minus 30 to 80 degrees Celsius. Ten matching connectors are included for quick splicing. The wire suits 12 V and 24 V DC lighting runs as well as other low-voltage projects under 200 W.

22 AWG capacity with 300 V insulation headroom

At 22 AWG the conductors handle typical LED strip currents with low resistance thanks to 99.99 per cent copper purity. The PVC sheath is rated to 300 V, giving ample insulation margin for 5 V, 12 V and 24 V systems. Continuous loads should stay below 200 W to keep temperature within the 80 degree limit. Beyond that power level or above 24 V the wire is not recommended.

Replaces loose multi-colour hook-up wire

Installers who currently cut separate solid-core leads and hand-crimp each joint gain a single pre-striped, colour-coded reel with ready-to-use connectors. The upgrade is worth it when wiring runs exceed a few metres or when repeated rework would fatigue thinner insulation. Builders needing more than five conductors or voltages above 300 V should look elsewhere.

Highlights

  • 5-core 22AWG cable handles 12 V and 24 V LED strips
  • 10 ready-to-use connectors speed up RGBW installations
  • 99 % copper conductors give low resistance and high conductivity
  • PVC jacket rated –30 °C to 80 °C protects wiring in harsh environments
  • 30 m reel with flame-retardant insulation suits long low-voltage runs

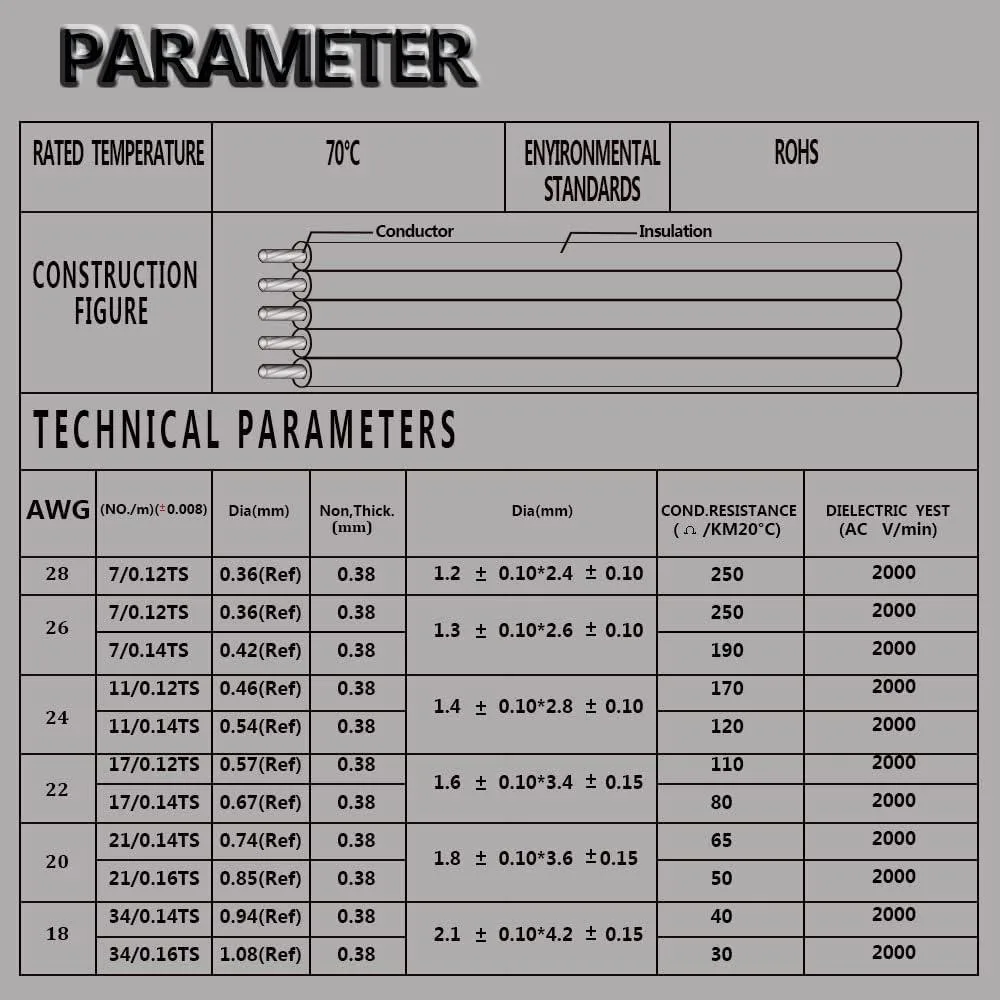

Specifications

Color22 Gauge RGBW wire

Questions about this item

Will this 22AWG cable work with the 12V LED strips I already have installed?

The cable is rated for low-voltage products including 12V LED strips such as 3528 and 5050 RGBW types, with a maximum power draw under 200W.

How can I confirm the 5-pin connectors are making proper contact after installation?

Check that each pin seats fully in the connector housing and verify the LED strip lights all five channels — red, green, blue, white and common — without flicker.

Does the package include the 30-metre wire and ten connectors, or must I buy the connectors separately?

The box contains one 30-metre 5-pin 22AWG wire and ten connectors, so no separate connector purchase is needed.
