Eight gooseneck condenser mics with bases and a rack receiver with four antennas

Winait

Winait UHF 8-Channel Gooseneck Wireless System Frequency A

SKU CH-SX2D-WR1NG

Eight-channel UHF gooseneck wireless microphone set with fixed frequencies, individual volume controls, eight XLR and one 6.3 mm outputs, operating up to 60 metres line-of-sight

  • Clear conference audio with eight UHF channels
  • Stable transmission using PLL phase-locked frequency synthesis
  • Individual volume knobs with red LED pairing indicators
  • Flexible gooseneck mics adjust to any speaker angle
  • Connects to PA via eight XLR and one 6.3 mm output

Professional 8-Channel Gooseneck Wireless System

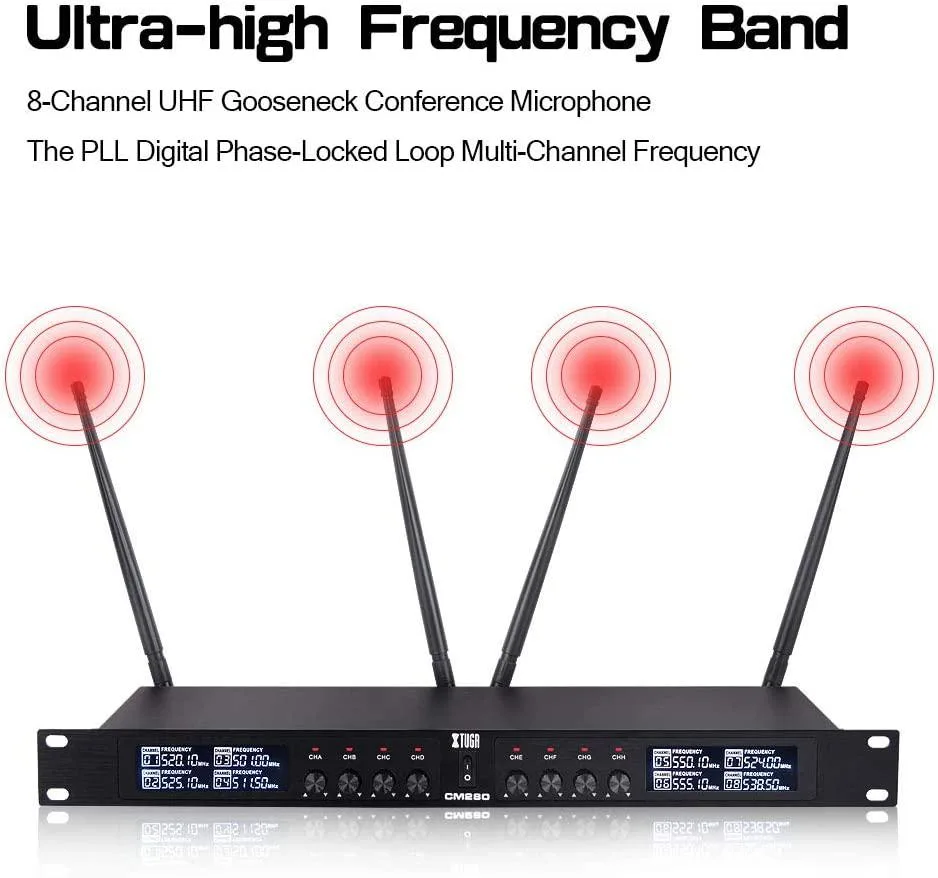

This UHF wireless microphone system delivers eight fixed-frequency channels for large conferences and public speaking events. Each channel pairs a gooseneck condenser microphone with a base transmitter to a single rack-mount receiver. The Frequency A group operates on eight specific UHF frequencies between 501.00 MHz and 555.10 MHz.

Eight XLR Outputs Plus Mixed 6.3 mm Jack

The metal receiver provides eight independent balanced XLR outputs for direct connection to mixer channels or a DSP. A single 6.3 mm unbalanced mixed output sums all channels for simpler amplifier hook-ups. Each channel has its own volume knob with a red LED that confirms transmitter pairing, and the system runs on a 12-15 V DC supply drawing 0.5 A.

PLL Synthesis Holds Frequency Within ±0.005 %

Phase-locked loop frequency synthesis keeps each carrier stable across a 20 MHz band with ±25 kHz sensitivity and ±95 dB maximum deviation at 1 kHz. The integrated signal-to-noise ratio reaches 80 dB with a low-frequency attenuation filter below 100 Hz. Line-of-sight range extends to 60 metres, making the system suitable for fixed installations where frequency agility is not required.

Highlights

  • Clear conference audio with eight UHF channels
  • Stable transmission using PLL phase-locked frequency synthesis
  • Individual volume knobs with red LED pairing indicators
  • Flexible gooseneck mics adjust to any speaker angle
  • Connects to PA via eight XLR and one 6.3 mm output

Specifications

No published specifications for this item yet.

Questions about this item

How far can I place the gooseneck microphones from the receiver before the signal drops?

The system operates up to 200 feet (60 metres) in clear line of sight, so the first practical limit is that distance.

Does the receiver run hot or draw much power when all eight channels run continuously?

It needs a 12-15 V DC supply rated at 0.5 A, which is a modest draw and keeps heat low during all-day use.

What audio inputs must my mixer or amplifier already have to connect this system?

The receiver provides eight XLR balanced outputs and one 6.3 mm unbalanced mixed output, so your PA gear needs matching XLR or 1/4-inch inputs.
