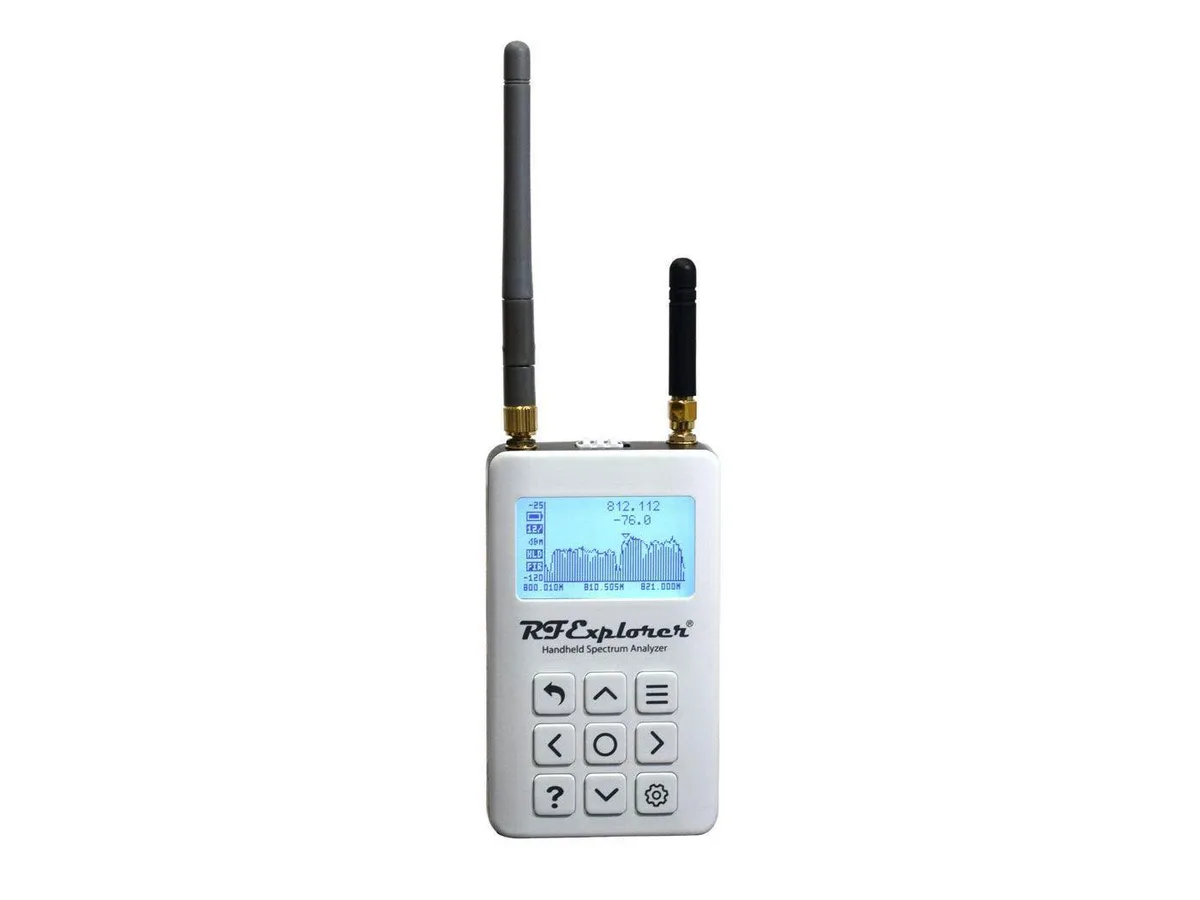

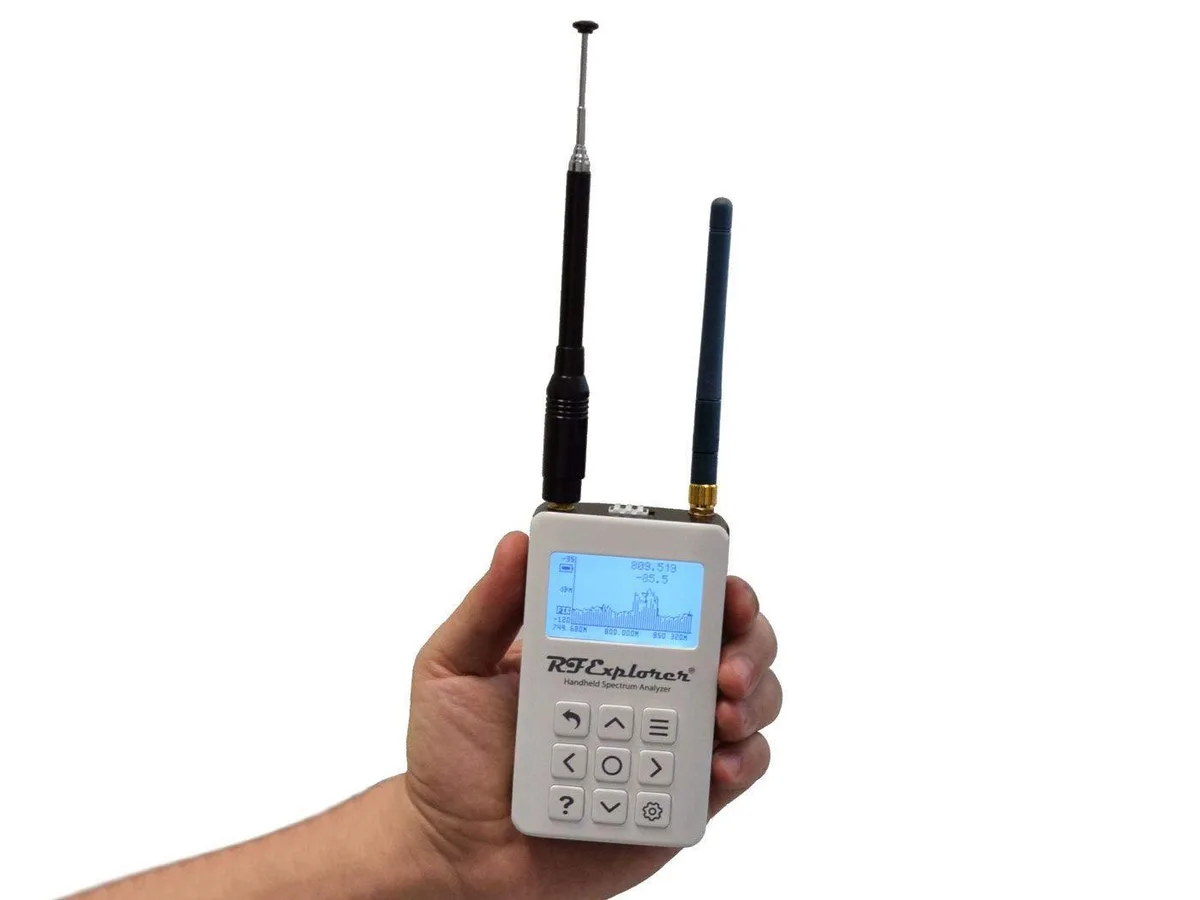

Slim handheld spectrum analyzer in solid metal case with varnished paint, LCD screen, SMA connectors, and included antennas

Winait

Winait RF Explorer 6G Combo Plus Slim Spectrum Analyzer

SKU CH-T2A5-446TN

Handheld spectrum analyser covering 50 kHz to 6.1 GHz with internal LNA, selectable attenuators and dual-band Wi-Fi analysis

  • TypeSurface & Hardness Testing
  • Continuous coverage from 50 kHz to 6.1 GHz with no gaps
  • Internal 25 dB LNA and selectable 30/60 dB attenuators extend measurable power range
  • Dual Wi-Fi band analyser for 2.4 GHz and 5 GHz networks
  • 128×64 pixel LCD with backlight remains readable indoors and outdoors
  • 1800 mAh rechargeable battery powers pocket-sized metal-cased unit

Handheld Spectrum Analyzer 50 kHz – 6.1 GHz

The Winait RF Explorer 6G Combo Plus Slim is a pocket-sized spectrum analyzer that covers a continuous range from 50 kHz to 6.1 GHz across two SMA ports. It includes an internal selectable LNA with 25 dB gain, selectable attenuators of 30 dB and 60 dB, and a 128 × 64 pixel graphics LCD with backlight for indoor and outdoor visibility. A rechargeable 1800 mAh lithium-ion battery powers the unit, and Windows, Linux and macOS host software is supported.

RF Engineers, HAM Operators and Wi-Fi Installers

Technicians who need a portable tool for field surveys of LF, MF, HF, VHF, UHF, 2.4 GHz and 5 GHz bands will appreciate the wide frequency coverage, included dual-band telescopic, rubber-duck and 2.4/5 GHz antennas, and preset configurations selectable in two clicks. Users who require real-time bandwidth wider than the single-sweep span or amplitude accuracy tighter than the specified tolerance should consider bench-top instruments.

Single-Sweep Span 960 MHz

The analyzer captures a maximum of 960 MHz in one sweep on the low-frequency port and 2 960 MHz on the high-frequency port, so the chosen span determines whether a signal of interest fits in a single acquisition or must be stitched from multiple sweeps.

Highlights

  • Continuous coverage from 50 kHz to 6.1 GHz with no gaps
  • Internal 25 dB LNA and selectable 30/60 dB attenuators extend measurable power range
  • Dual Wi-Fi band analyser for 2.4 GHz and 5 GHz networks
  • 128×64 pixel LCD with backlight remains readable indoors and outdoors
  • 1800 mAh rechargeable battery powers pocket-sized metal-cased unit

Specifications

TypeSurface & Hardness Testing

Questions about this item

Which frequency version should I choose between the 0.05–960 MHz left connector and the 240–6100 MHz right connector?

The left connector covers LF through UHF starting at 50 KHz up to 960 MHz, while the right connector spans 240 MHz to 6.1 GHz, so together they give continuous coverage from 50 KHz to 6.1 GHz with no gaps.

What does the 6.1 GHz maximum frequency mean when I am scanning signals?

It lets you capture Wi-Fi at 2.4 GHz and 5 GHz, cellular bands, ISM, IoT and all amateur allocations up to 6.1 GHz in a single instrument.

What does the SMA 50-ohm interface cap in practice?

The standard SMA 50-ohm connectors accept the included 144/433 MHz telescopic, 400–900 MHz rubber duck and 2.4/5 GHz dual-band antennas, and the absolute maximum input power is +30 dBm.
