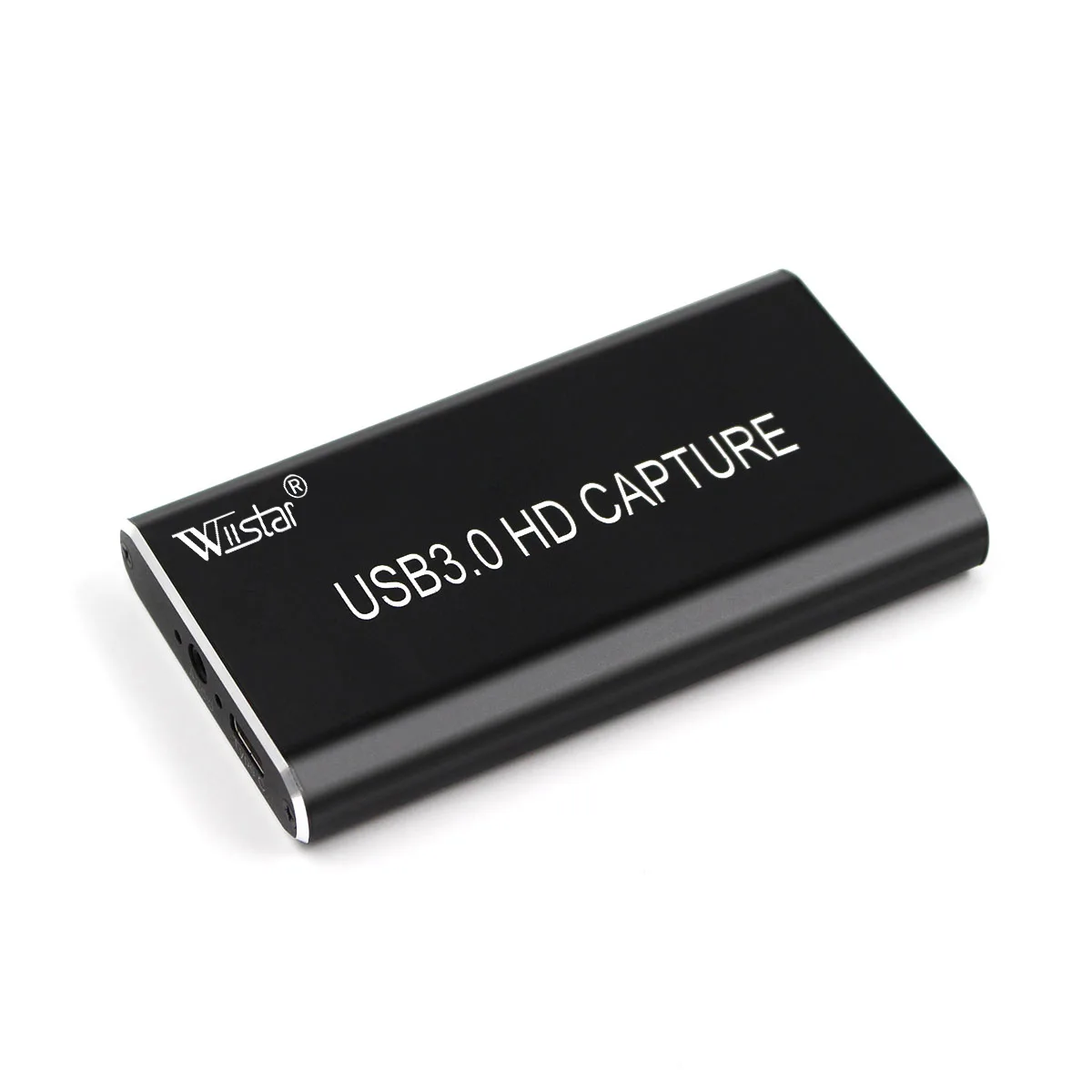

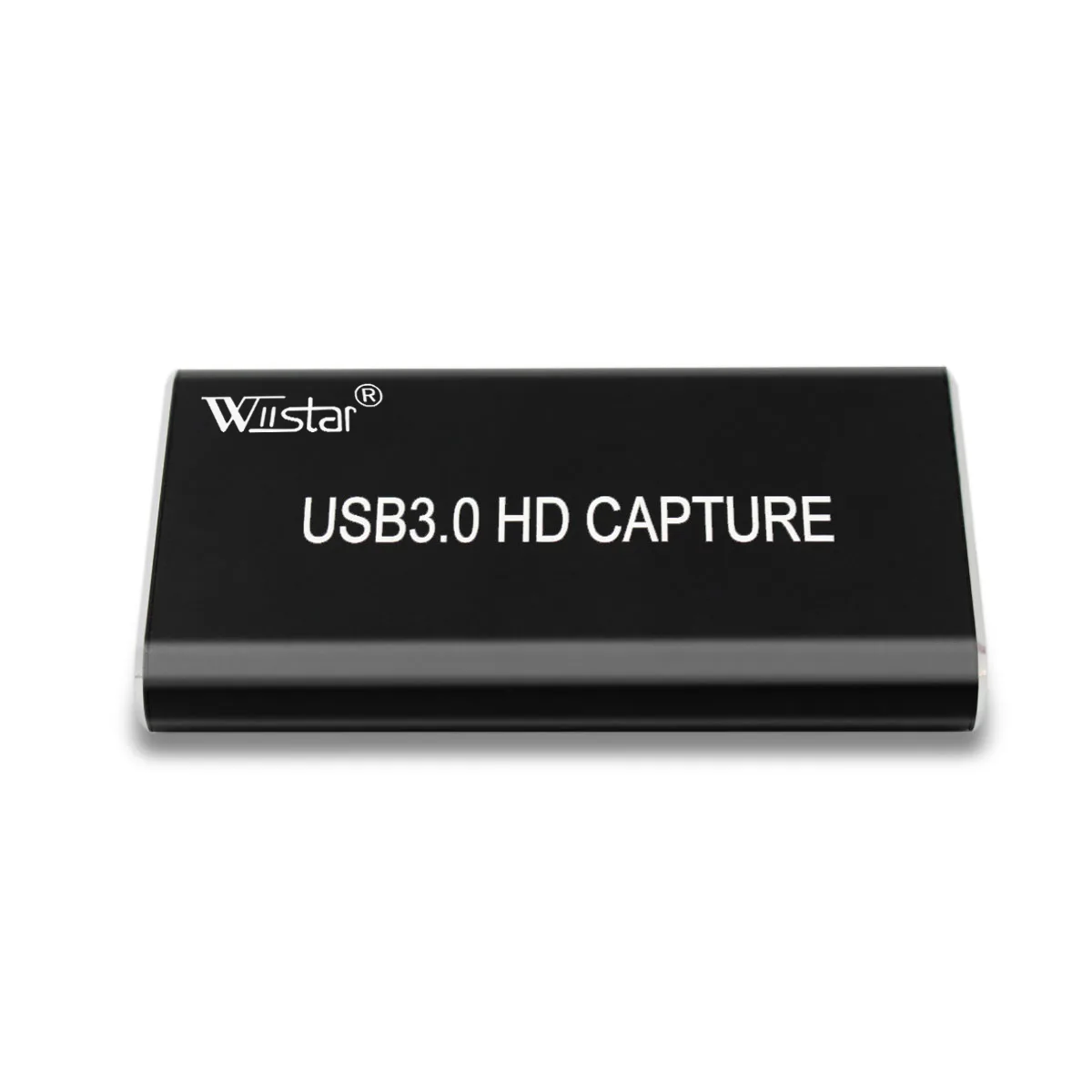

Small black rectangular capture device with HDMI ports and USB-C connector

Wiistar

Wiistar USB Video Capture Card 1080p 60fps HDMI Loop Out USB 3.0 Type-C Black

SKU CH-80T1-4QNR7

Capture 1080p 60fps HDMI video to a computer via USB 3.0 or USB-C with an HDMI loop-out for simultaneous display

  • InterfaceUSB 3.0
  • Resolution Support1080P
  • Camera ResolutionUp to 1080p Video
  • ColorBlack
  • Video1*HDMI
  • Audio1* 3.5mm jack
  • Plug-and-play operation with no driver installation required
  • Captures 1080p video at 60 frames per second
  • HDMI loop output passes the signal to a display
  • Dedicated processing avoids using host CPU memory
  • 5 mm audio output port for streaming sound

1080p 60fps HDMI capture for USB 3.0 and USB-C

The Wiistar USB Video Capture Card accepts a single HDMI input up to 1080p at 60 Hz and passes the signal through an HDMI loop output. It connects to a host via USB 3.0 Type-C and includes a 3.5 mm audio output jack. No external power supply is required and the device operates driver-free on Windows, Linux and OS X.

USB 3.0 bandwidth caps sustained throughput

The USB 3.0 interface limits total data rate to the bus specification, so extended captures at the maximum 1080p 60fps setting depend on available host controller bandwidth. The HDMI loop output mirrors the incoming signal without scaling, but the capture path cannot exceed the resolution and frame-rate ceiling stated in the specifications. Audio is routed through the 3.5 mm port rather than the USB stream.

Check host port type and streaming software

Verify that the computer provides a USB 3.0 Type-C or USB 3.0 Type-A port; USB 2.0 will not deliver sufficient throughput for 1080p 60fps capture. Confirm that the intended streaming or recording application — such as OBS, Potplayer or VLC — recognises a UVC-compliant video device on the target operating system. The package includes a USB 3.0 cable and a Type-C to Type-A adapter for connection flexibility.

Highlights

  • Plug-and-play operation with no driver installation required
  • Captures 1080p video at 60 frames per second
  • HDMI loop output passes the signal to a display
  • Dedicated processing avoids using host CPU memory
  • 5 mm audio output port for streaming sound

Specifications

SeriesUSB Video Capture Card
InterfaceUSB 3.0
Resolution Support1080P
Camera ResolutionUp to 1080p Video
ColorBlack
Video1*HDMI
Audio1* 3.5mm jack
HDMI1 Input/1 Output
Serial InterfaceHDMI
Network InterfaceUSB3.0/USB C
USB PortUSB3.0/USB C
Digital Aduio3.5mm jack Audio out
Other ConnectorHDMI loop out
SoftwareOBS/AMcap/Potplayer, etc.
Power SupplyNO power
Dimensions98*54*12(mm)
Weight150
Package Content1*Video capture card,1*CD*,1*USB USB3.0 cable*,1*USB USB3.0 adapter
OptionHD60

Questions about this item

Which capture option should I pick — the HD60 variant or the standard model?

The listing only specifies the HD60 option; no other version or capacity is described.

What does the 1080p 60fps rating mean when the card is connected to a PC?

It indicates the maximum input and output signal the device can handle — up to 1080p resolution at 60 Hz — so gameplay or camera feeds appear at that frame rate in OBS or other software.

How does the USB 3.0 Type-C interface affect capture performance?

The USB 3.0 / USB-C connection provides the high-speed path that lets the card deliver 1080p 60fps video without driver installation on Windows, Linux or OS X.
