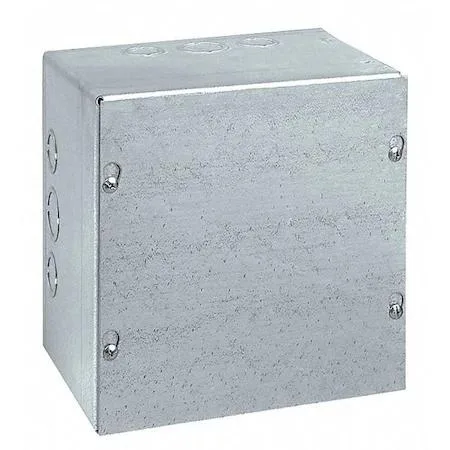

Galvanised steel enclosure, 12 by 15 by 4 inches, silver finish, screw-on cover

Wiegmann

Wiegmann SC121504GNK enclosure 12×15×4 in galvanised steel

SKU CH-FTKQ-TWRZM

A galvanised-steel wall-mount enclosure measuring 12 by 15 by 4 inches with screw-on solid cover, 16-gauge construction and CSA, cULus and UL certifications

  • Galvanised steel construction resists corrosion in industrial settings
  • NEMA 1 rating protects components from dust and light water ingress
  • 16 ga thickness provides rigid mounting surface for breakers
  • Embossed mounting holes simplify wall installation without extra hardware
  • Captive plated screws secure the cover and prevent lost fasteners

Wiegmann SC-G Enclosure 12×15×4

The Wiegmann SC121504GNK is a NEMA 1 rated electrical enclosure fabricated from 16 gauge galvanised steel. It measures 12 inches wide by 15 inches high by 4 inches deep with a usable opening depth of 3.88 inches. The solid cover secures with plated steel captive screws and includes self-tapping screws for mounting. It carries CSA, cULus and UL Listed certifications.

Indoor Electrical Protection Use

This enclosure suits installers housing circuit breakers, terminal blocks or control components in dry indoor environments. The embossed mounting holes simplify wall mounting on flat surfaces. Buyers requiring protection against water ingress, dust or corrosion should look at higher NEMA rated alternatives. It is not intended for hazardous locations or outdoor exposure without additional shelter.

16 Gauge Galvanised Steel Construction

The 16 gauge galvanised steel body and finish provide structural rigidity and a silver corrosion resistant surface for standard indoor service. Plated steel captive screws fasten the solid cover without loose hardware. This metal thickness determines the enclosure mechanical strength and grounding path continuity for the installed devices.

Highlights

  • Galvanised steel construction resists corrosion in industrial settings
  • NEMA 1 rating protects components from dust and light water ingress
  • 16 ga thickness provides rigid mounting surface for breakers
  • Embossed mounting holes simplify wall installation without extra hardware
  • Captive plated screws secure the cover and prevent lost fasteners

Specifications

BrandWIEGMANN

Questions about this item

Does the 16 ga galvanised steel and 4 in depth allow heat to dissipate when the enclosure runs continuously?

The 16 ga galvanised steel construction with a 4 in depth provides a solid metal surface area that passively radiates heat during all-day operation.

What mounting hardware must I already have to install the SC121504GNK on a wall?

The enclosure includes self-tapping screws and features embossed mounting holes, so only basic tools such as a drill and driver are needed for wall mounting.

Will the 12 in by 15 in usable opening with 3.88 in depth accept my existing DIN-rail breakers and terminal blocks?

The 12 in width, 15 in height and 3.88 in usable depth match common DIN-rail component footprints, allowing most standard breakers and terminal blocks to fit inside.
