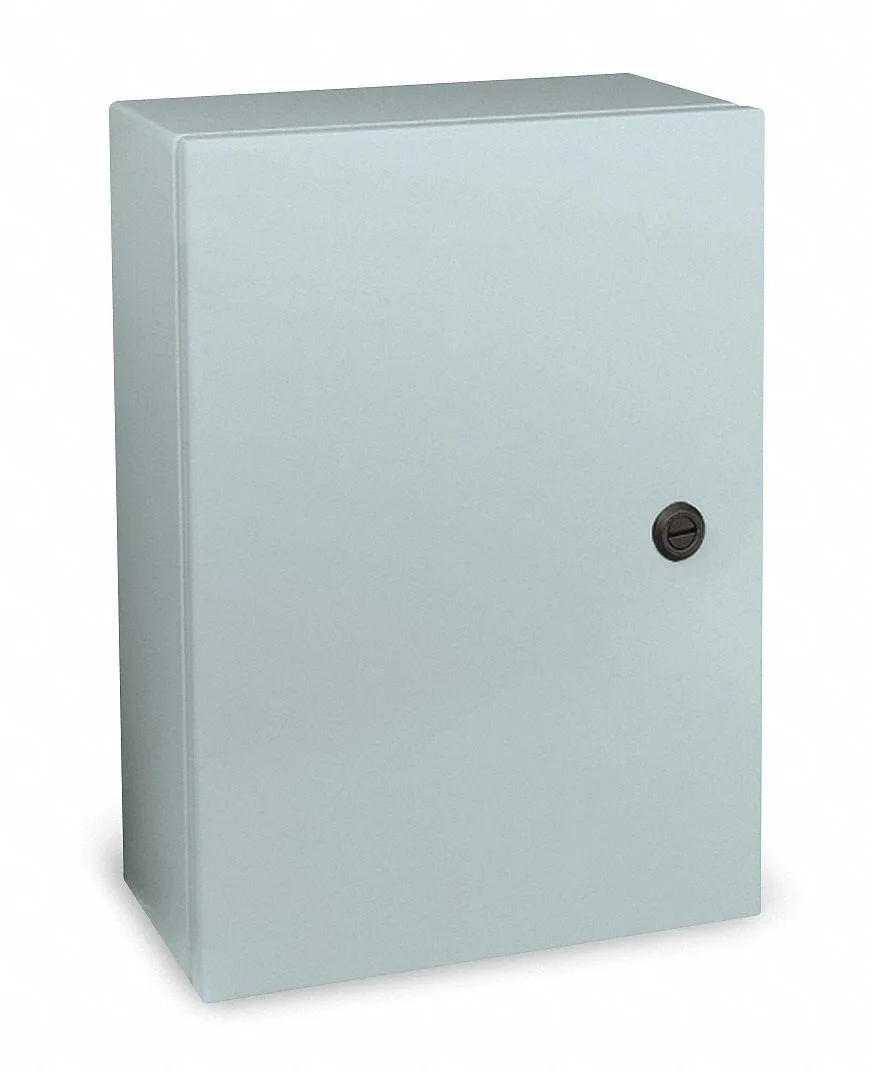

Gray painted carbon steel wall-mount enclosure with hinged solid cover and quarter-turn latch

Wiegmann

Wiegmann N412162008C electrical box 16 in H 20 in W 8 in D

SKU CH-9ZQZ-3479R

Wall-mount carbon-steel enclosure with 1/4-turn latch, IP66 and NEMA 12/3R/4 ratings, 16 in high, 20 in wide, 8 in deep

  • TypeElectrical Enclosures, Wireways & Covers
  • NEMA 12, 3R, 4 and IP66 ratings protect against dust and water
  • Carbon steel body with polyurethane gasket seals out contaminants
  • 1/4-turn semiflush latches allow quick tool-free access
  • Wall-mount design with pre-drilled holes simplifies installation
  • CSA, cULus, IEC and UL listings confirm code compliance

Carbon-steel enclosure for wall-mount wiring

This NEMA 12, 3R and 4 rated box protects indoor and outdoor circuits in industrial and commercial settings. The 14 gauge carbon-steel body with a poured polyurethane gasket meets IP66 and carries cULus, CSA and IEC listings. Gray painted finish resists corrosion in damp or wash-down areas.

Hinged cover with quarter-turn latch

The door swings on a continuous hinge and secures with a semi-flush 1/4-turn latch that opens with a screwdriver or gloved hand. Pre-drilled mounting holes on the back simplify wall attachment without field drilling. Installers must supply their own fasteners and ensure the mounting surface is flat to maintain the gasket seal.

16 by 20 by 8 inch interior with panel mount

The cavity accepts a 2NJ32 interior panel for DIN rail, terminal blocks or small controllers. Depth of 8 inches accommodates contactors, relays and wiring bundles while leaving room for cable bend radius. Builders needing larger cut-outs, multiple doors or stainless-steel construction should specify a different series.

Highlights

  • NEMA 12, 3R, 4 and IP66 ratings protect against dust and water
  • Carbon steel body with polyurethane gasket seals out contaminants
  • 1/4-turn semiflush latches allow quick tool-free access
  • Wall-mount design with pre-drilled holes simplifies installation
  • CSA, cULus, IEC and UL listings confirm code compliance

Specifications

BrandWIEGMANN
TypeElectrical Enclosures, Wireways & Covers

Questions about this item

How do I verify the enclosure meets the NEMA 12, 3R, and 4 ratings after installation?

Confirm the seamless polyurethane gasket is fully seated, all 1/4-turn latches are engaged, and the solid cover closes flush against the 14-gauge carbon-steel body.

What components are included with the N412162008C and what must be sourced separately?

The enclosure ships with the hinged solid cover, 1/4-turn semiflush latches, poured-in-place gasket, mounting holes, and interior panel 2NJ32; mounting hardware and wireway accessories are not included.

Which version of the N412-C series suits a 16-inch height, 20-inch width, and 8-inch depth requirement?

The N412162008C matches those exact dimensions — 16 in H, 20 in W, 8 in D — and carries the NEMA 12, 3R, 4 and IP66 ratings.
