Western Digital

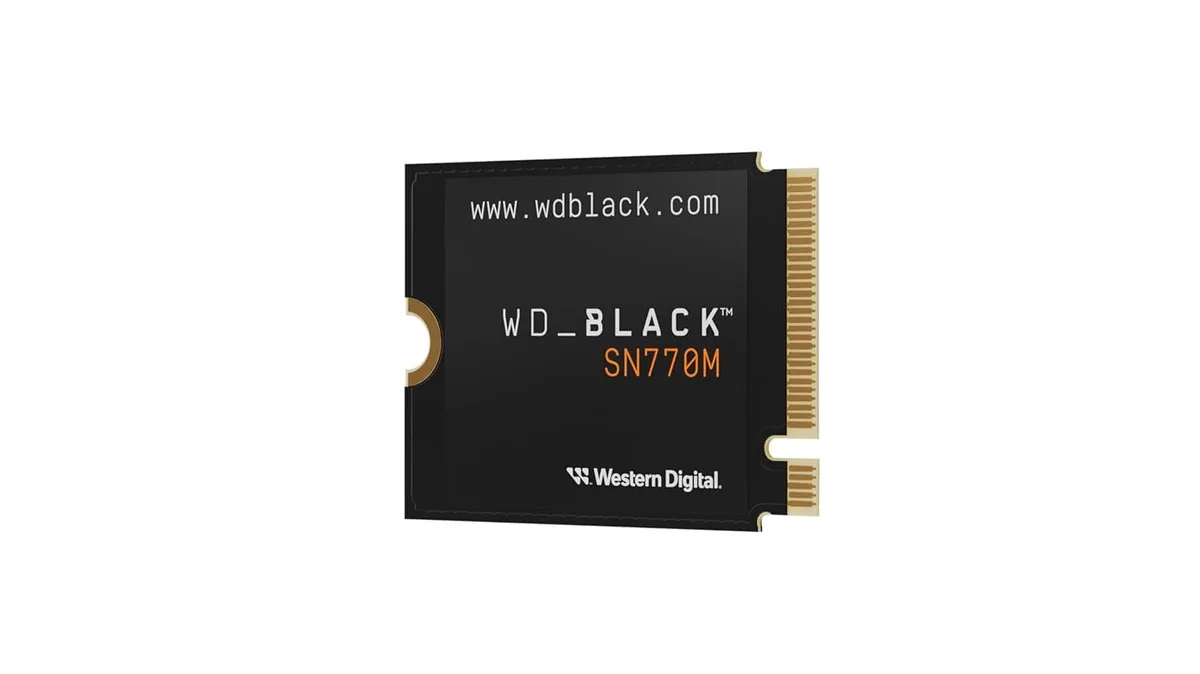

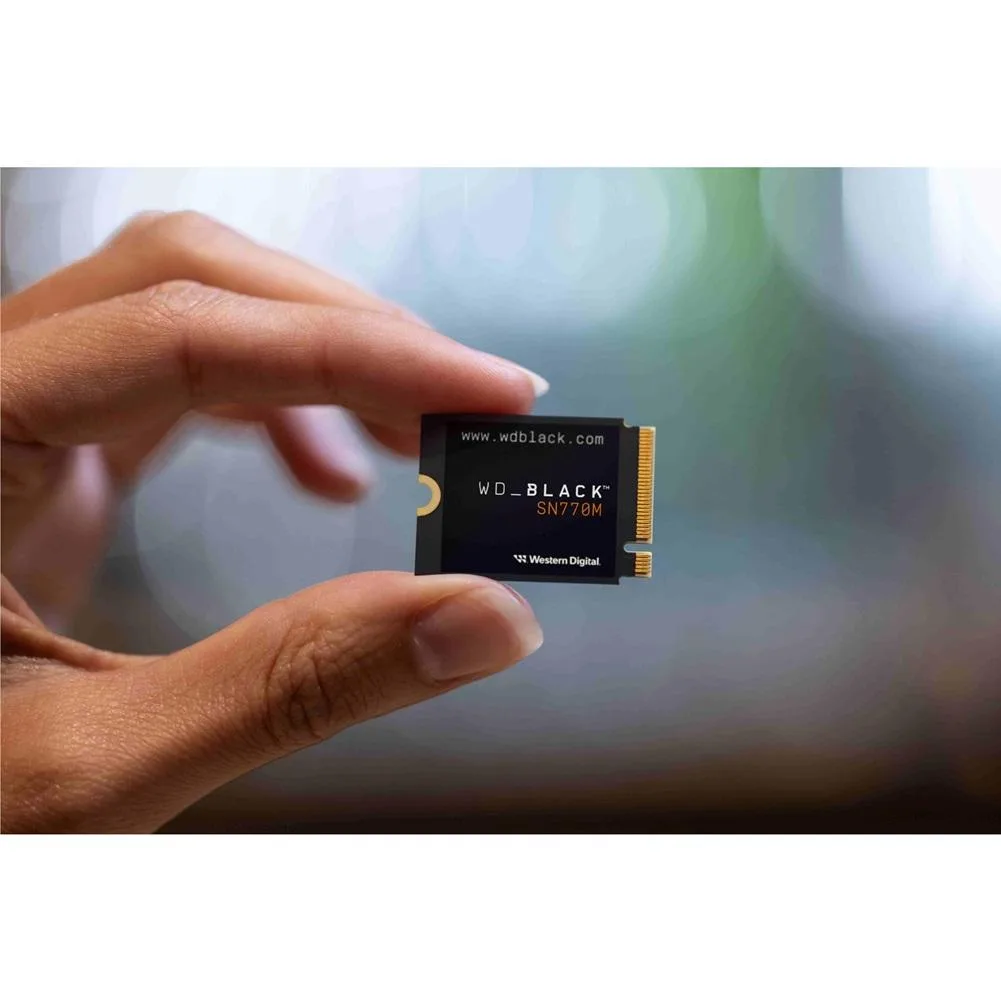

Western Digital SN770M WDS200T3X0G 2 TB internal SSD
M.2 2230 internal SSD delivering 2 TB capacity with sequential speeds up to 5150 MB/s read and 4850 MB/s write for notebooks and gaming consoles
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2230
- Capacity2TB
- InterfacePCI-Express 4.0 x4
- Max Sequential ReadUp to 5150 MBps
- 2 TB capacity stores large game libraries and media projects
- Up to 5150 MB/s sequential read cuts load times for games and apps
- Up to 4850 MB/s sequential write speeds large file saves and transfers
- 650000 random read IOPS and 800000 random write IOPS keep multitasking responsive
- M.2 2230 form factor fits thin notebooks and gaming consoles
Built for tight spaces
The Western Digital SN770M WDS200T3X0G is a 2 TB internal SSD in the M.2 2230 form factor. It targets notebooks and gaming consoles that cannot accommodate longer modules. The PCIe 4.0 x4 interface delivers up to 5150 MB/s read and 4850 MB/s write speeds.
Straightforward drop-in
Installation follows the standard M.2 slot procedure: insert at an angle, press down, and secure with the single screw. The 2230 length fits shallow sockets without modification. The most common issue is a missing standoff or a screw that is too short for the motherboard threading.
PCIe 4.0 x4 ceiling
Sequential throughput caps at 5150 MB/s read and 4850 MB/s write on a PCIe 4.0 x4 link. Random performance reaches 650000 IOPS read and 800000 IOPS write. On a PCIe 3.0 slot the drive will operate at the lower bus limit, reducing maximum transfer rates accordingly.
Highlights
- 2 TB capacity stores large game libraries and media projects
- Up to 5150 MB/s sequential read cuts load times for games and apps
- Up to 4850 MB/s sequential write speeds large file saves and transfers
- 650000 random read IOPS and 800000 random write IOPS keep multitasking responsive
- M.2 2230 form factor fits thin notebooks and gaming consoles
Specifications
| Brand | Western Digital |
|---|---|
| Model | SN770M |
| Part Number | WDS200T3X0G |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2230 |
| Capacity | 2TB |
| Interface | PCI-Express 4.0 x4 |
| Max Sequential Read | Up to 5150 MBps |
| Max Sequential Write | Up to 4850 MBps |
| Shipping weight | 0.05 kg |
| Package size | 135 × 102 × 25 mm |
Questions about this item
How can I confirm the drive is delivering the 5150 MB/s read and 4850 MB/s write speeds after installation?
Run a benchmark tool such as CrystalDiskMark on the NVMe drive and compare the sequential read and write results to the 5150 MB/s and 4850 MB/s figures; matching numbers indicate the PCIe 4.0 x4 link is operating correctly.
What comes in the box with the WDS200T3X0G and what must I source separately?
The package contains the M.2 2230 SSD only; you will need to provide a compatible M.2 slot with PCIe 4.0 x4 support and, if your device requires it, a retaining screw.
Should I choose the 2 TB SN770M or a different capacity for my notebook or gaming console?
The 2 TB model delivers 5150 MB/s read and 4850 MB/s write with 650000 IOPS random read and 800000 IOPS random write; select this capacity if you need that performance tier and the 2 TB space, otherwise pick a lower or higher capacity variant that matches your storage budget.
