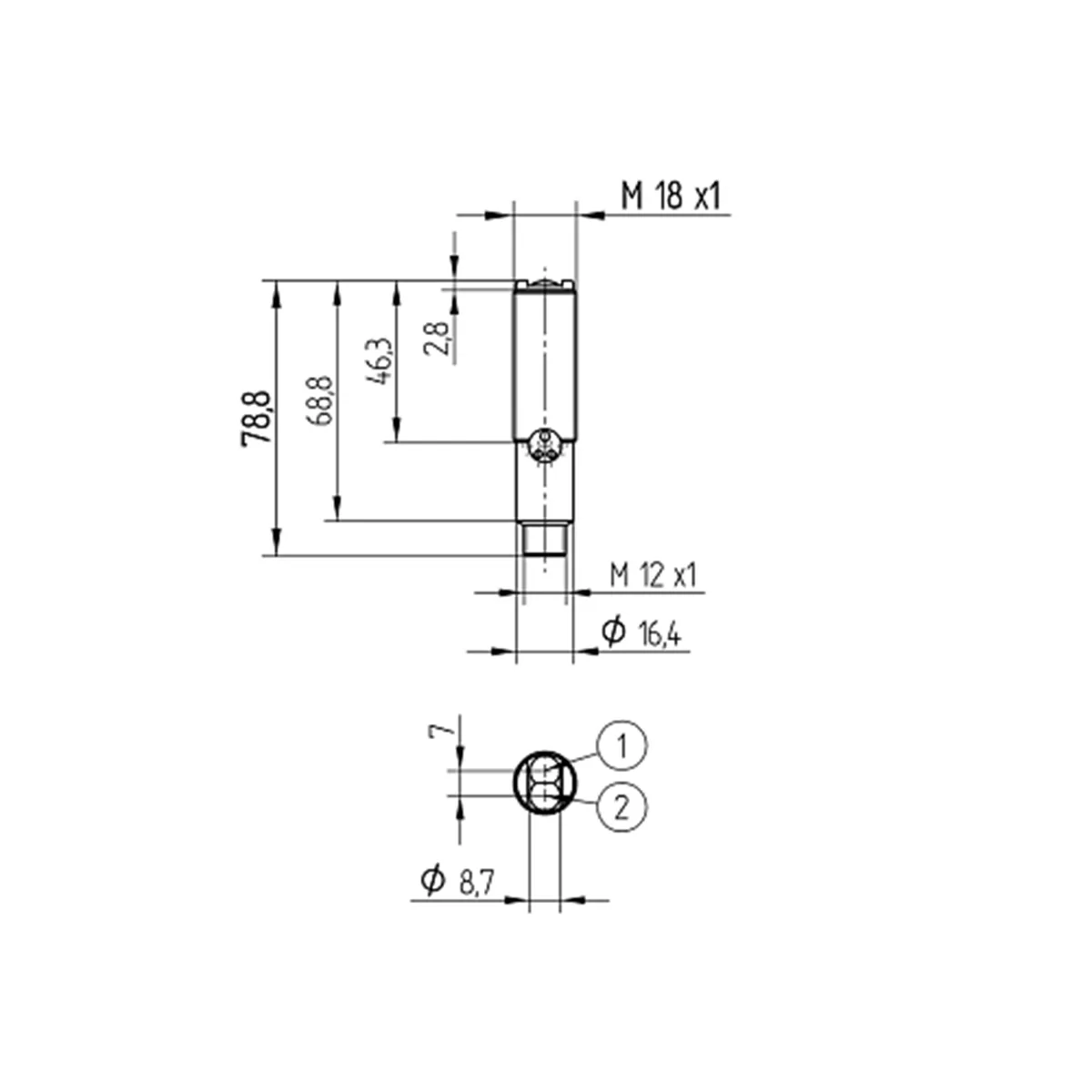

Compact red stainless steel sensor with M12 connector

Wenglor

Wenglor LD86PCT3 retro-reflex sensor PNP 6000 mm range

SKU CH-9FHY-GM9EN MPN LD86PCT3

A retro-reflex sensor with 6000 mm range, PNP output, red light, teach-in setting, IP67 stainless-steel housing and M12 connection

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Detects objects up to 6000 mm distance
  • Red light source with polarisation filter cuts glare
  • Teach-in setting method simplifies configuration
  • IP67 stainless steel housing resists harsh environments
  • PNP output switchable NO/NC with short-circuit protection

Retro-reflex sensor with 6000 mm range

This Wenglor LD86PCT3 retro-reflex sensor detects objects up to 6000 mm using a red light source and polarisation filter. It operates on a 10...30 V DC supply and provides a PNP switching output rated at 200 mA. The stainless steel housing is fully encapsulated to IP67 and connects via an M12 4-pin plug.

Suits long-range presence detection on conveyors

The sensor suits automated lines that need a single-device retro-reflex solution with teach-in setup and RS-232 configuration via an adapter box. It is not for applications requiring through-beam accuracy, background suppression or detection beyond 6000 mm.

6000 mm sensing range with RQ100BA reflector

The decisive specification is the 6000 mm operating range achieved with the specified RQ100BA reflector. If the installation distance exceeds this figure or the reflector type differs, the sensor will not perform as rated.

Highlights

  • Detects objects up to 6000 mm distance
  • Red light source with polarisation filter cuts glare
  • Teach-in setting method simplifies configuration
  • IP67 stainless steel housing resists harsh environments
  • PNP output switchable NO/NC with short-circuit protection

Specifications

BrandWenglor
ModelLD86PCT3
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the LD86PCT3 run hot or draw much power during continuous 24 V operation?

Current consumption stays below 40 mA at 24 V DC, and the housing is rated for -25 to +60 °C ambient temperature.

What power supply and reflector do I need before the LD86PCT3 will operate?

A 10 to 30 V DC supply and the RQ100BA reference reflector or reflector foil are required.

Can the LD86PCT3 connect to an older PLC that only accepts PNP signals through an M12 plug?

Yes, it provides a PNP switching output up to 200 mA via a 4-pin M12 connector, with NO/NC selectable by teach-in.
