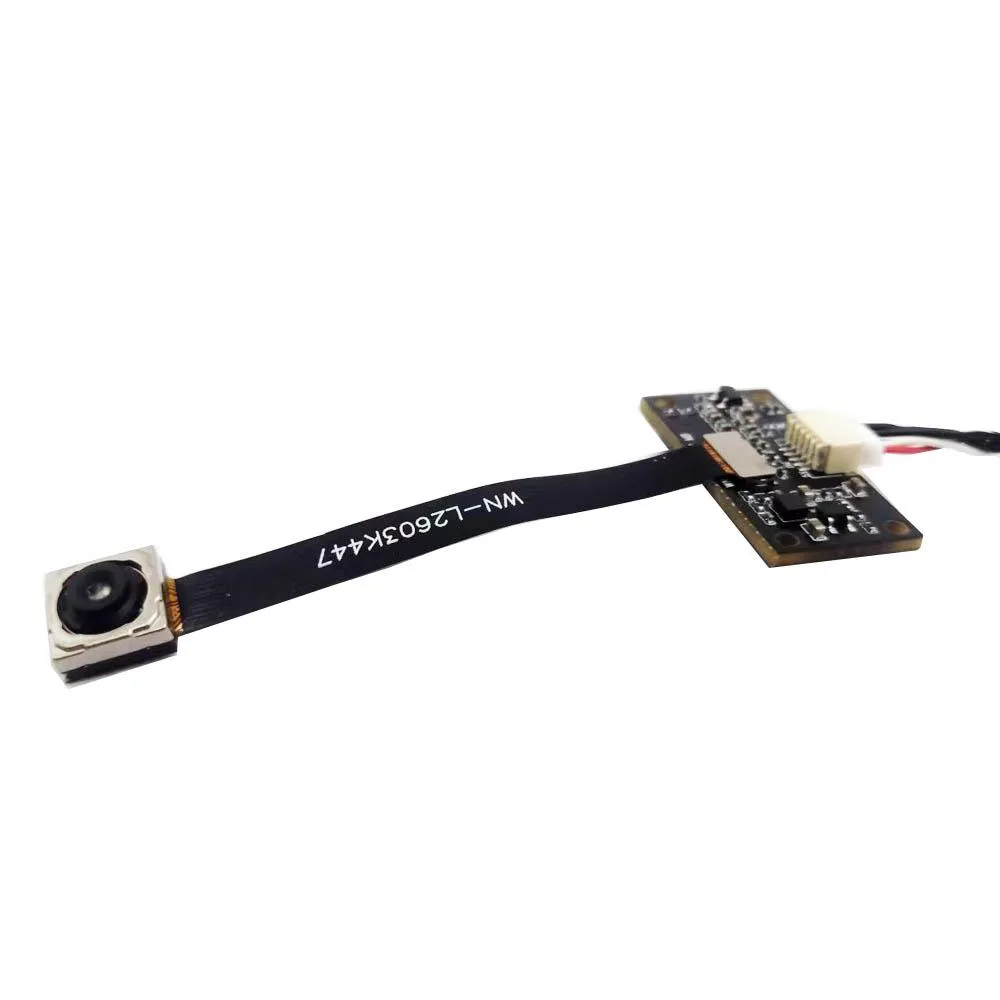

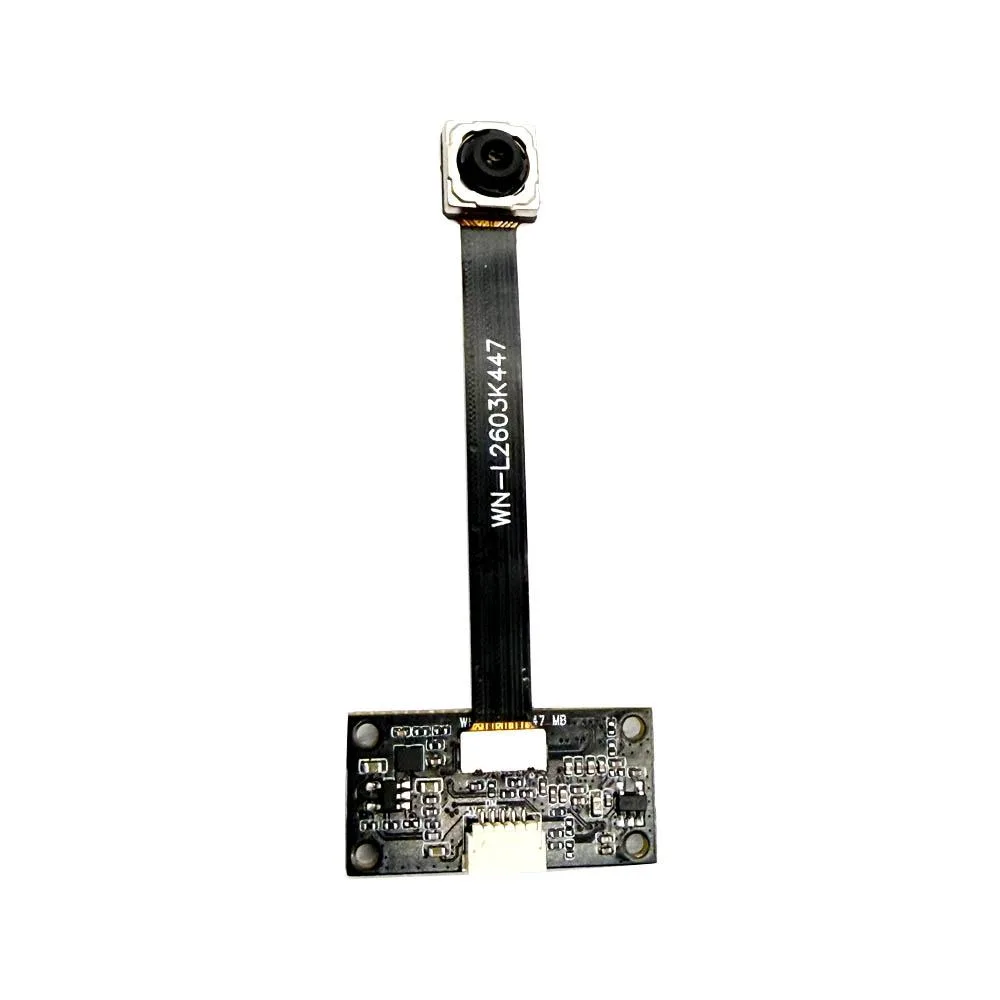

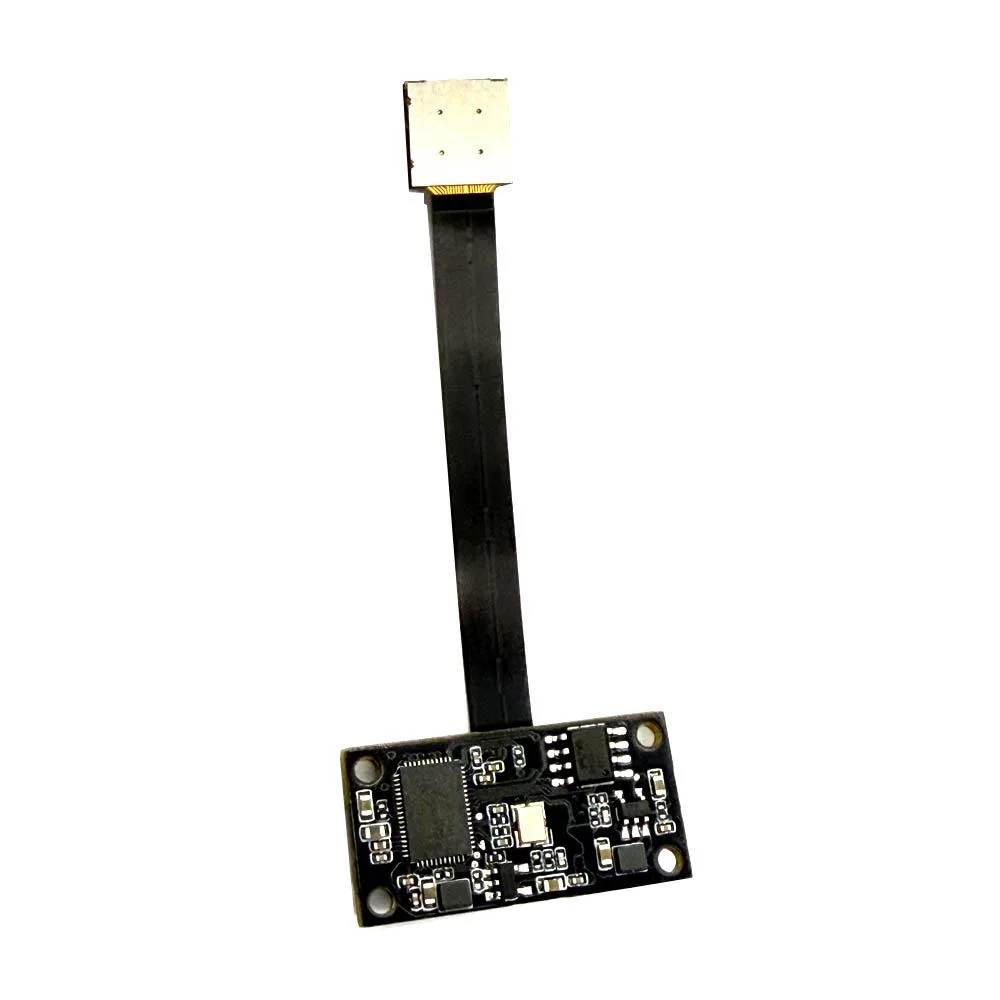

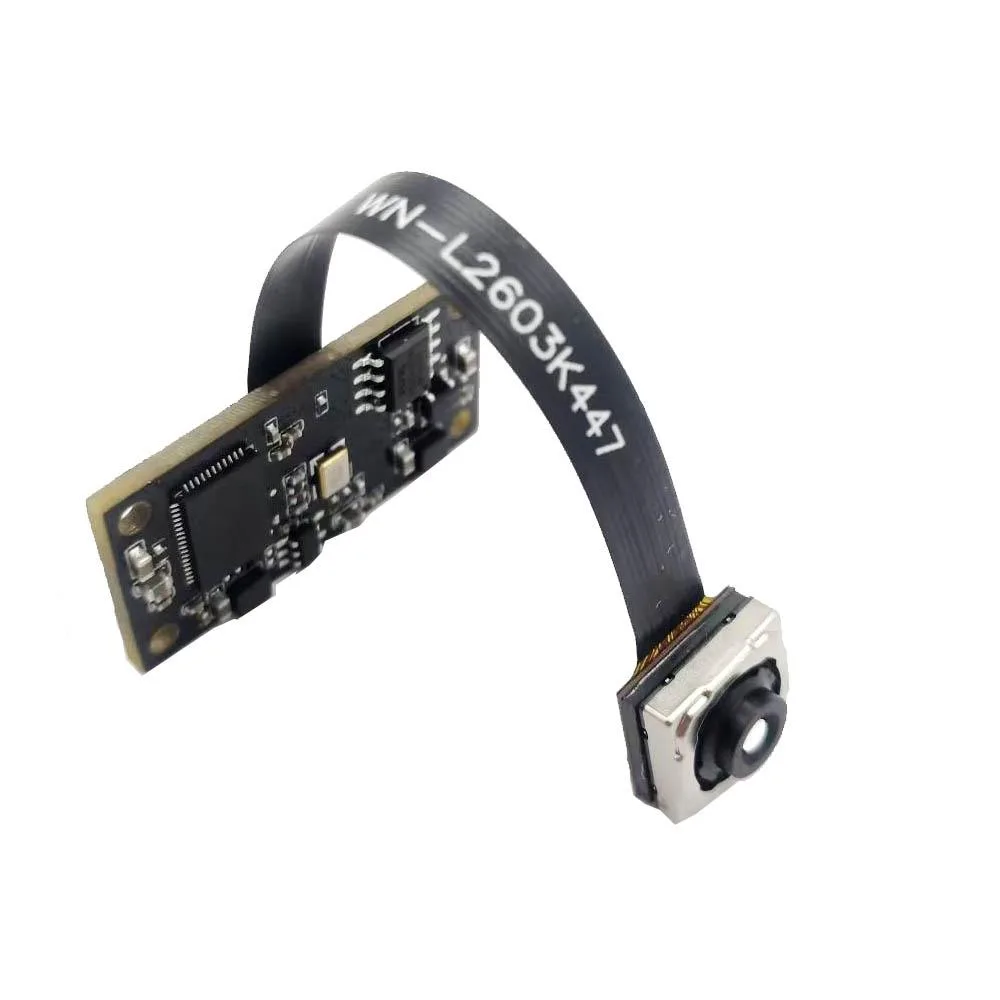

Small black USB camera module with ribbon cable and circuit board

Weinandianzi

Weinandianzi WN-L2603K447 12MP IMX362 USB Camera Module 4000x3000@15fps

SKU CH-FW3R-JV9ZE

12 MP USB camera module with 1/2.55-inch IMX362 sensor, 81.6° field of view, PDAF autofocus, UVC plug-and-play, and 1.0 m cable

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module 4000x3000@15fps
  • Compatibility1/2.55-inch IMX362 CMOS
  • 12 MP Sony IMX362 sensor captures detailed 4000×3000 stills
  • 6° wide field of view fits more scene into every frame
  • Phase-detection autofocus locks on fast-moving subjects in milliseconds
  • UVC compliant for driver-free operation on Windows, Android, Linux and macOS
  • Compact 30×15 mm PCB with 1 m USB cable suits tight enclosures

12MP IMX362 USB Camera Module

The Weinandianzi WN-L2603K447 is a compact 12-megapixel camera module built around a 1/2.55-inch IMX362 CMOS sensor. It delivers still images at 4000x3000 pixels and supports multiple video modes including 3840x2160 at 30 frames per second. The module connects via a high-speed USB 2.0 interface and is UVC-compliant for plug-and-play operation across Windows, Android, Linux and Mac OS.

Check USB 2.0 port and cable length

Verify that your host device provides a standard USB 2.0 Type-A port capable of supplying 5 V power for the module. The included cable is 1.0 metre long, so confirm this reach suits your mounting location. Ensure your operating system supports UVC video class drivers without additional software installation. The module uses a 5-pin 1.0 mm connector on the FPC ribbon side, which is pre-assembled to the USB cable.

FPC ribbon and fixed-focus lens integration

The sensor board measures 30x15 mm with a 64x10 mm flexible printed circuit ribbon, allowing placement in tight enclosures or behind narrow apertures. The fixed-focus lens offers an 81.6-degree field of view with an F/1.8 aperture and 650 nm IR filter, suited to general-purpose imaging. PDAF autofocus provides rapid focus acquisition without moving parts. Controllable parameters such as brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight contrast and exposure are adjustable through standard UVC controls.

Highlights

  • 12 MP Sony IMX362 sensor captures detailed 4000×3000 stills
  • 6° wide field of view fits more scene into every frame
  • Phase-detection autofocus locks on fast-moving subjects in milliseconds
  • UVC compliant for driver-free operation on Windows, Android, Linux and macOS
  • Compact 30×15 mm PCB with 1 m USB cable suits tight enclosures

Specifications

BrandWeinandianzi
ModelWN-L2603K447
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module 4000x3000@15fps
Compatibility1/2.55-inch IMX362 CMOS
FeaturesIMX362 USB Camera Module 4000x3000@15fps

Questions about this item

What comes in the box with the WN-L2603K447 module, and do I need to buy a cable separately?

The module includes a 1.0 metre USB cable with a 5PIN 1.0mm connector; no separate cable purchase is required.

Which resolution and frame-rate combination should I choose for smooth 4K video on this IMX362 sensor?

The sensor reaches 3840x2160 at 30 fps in MJPEG mode; select that setting for fluid 4K capture.

What does the 15 fps figure at 4000x3000 mean when the camera is running on a real USB 2.0 host?

At the full 12 MP resolution the USB 2.0 bandwidth limits output to 15 fps; dropping to 1080p raises the rate to 30 fps.
