Black rectangular USB 3.0 camera module with fixed lens and attached cable

Weinandianzi

Weinandianzi WN-L2512K437 4K 8MP USB3.0 Camera Module IMX274

SKU CH-T4EG-27Z62

4K 8MP USB3.0 camera module with IMX274 sensor, fixed focus, 30fps at 3840x2160, UVC plug-and-play

  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB3.0 Camera Module FF 3840H x 2160V@30FPS MJPEG, YUV2 ,NV1
  • Compatibility1/2.5-Inch IMX274 CMOS
  • Features4K 8MP HD 1/2.5-Inch IMX274 USB3.0 Camera Module
  • 4K 8 MP resolution at 30 fps from the 1/2.5-inch IMX274 sensor
  • Driver-free UVC plug-and-play across Windows, Android, Linux and macOS
  • Multiple output formats including MJPEG, YUV2, NV12, H.264 and H.265
  • High-speed USB 3.0 interface with 1.5 metre cable for flexible mounting
  • Fixed-focus lens with 94.8° diagonal field of view for wide coverage

Weinandianzi 4K 8MP USB3.0 Camera Module

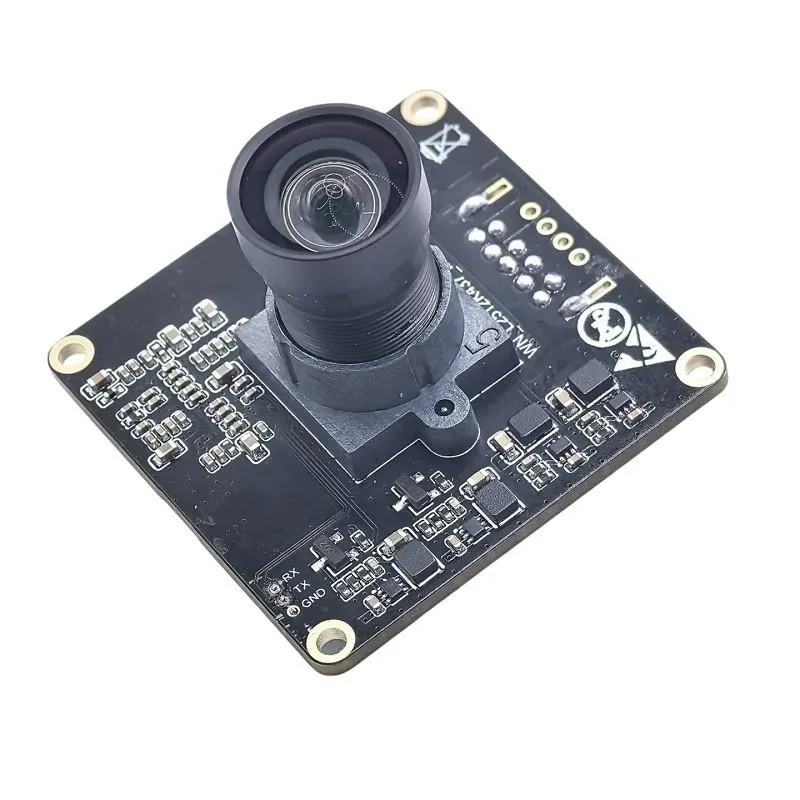

The Weinandianzi WN-L2512K437 is a 4K 8MP camera module built around a 1/2.5-inch IMX274 CMOS sensor. It captures 3840H x 2160V video at up to 30 fps and supports MJPEG, YUV2, NV12, H.264 and H.265 output formats. The fixed-focus lens provides a 94.8° diagonal field of view. It is suited for developers and integrators adding UVC-compliant vision to Windows, Android, Linux or macOS systems.

UVC plug-and-play USB3.0 integration

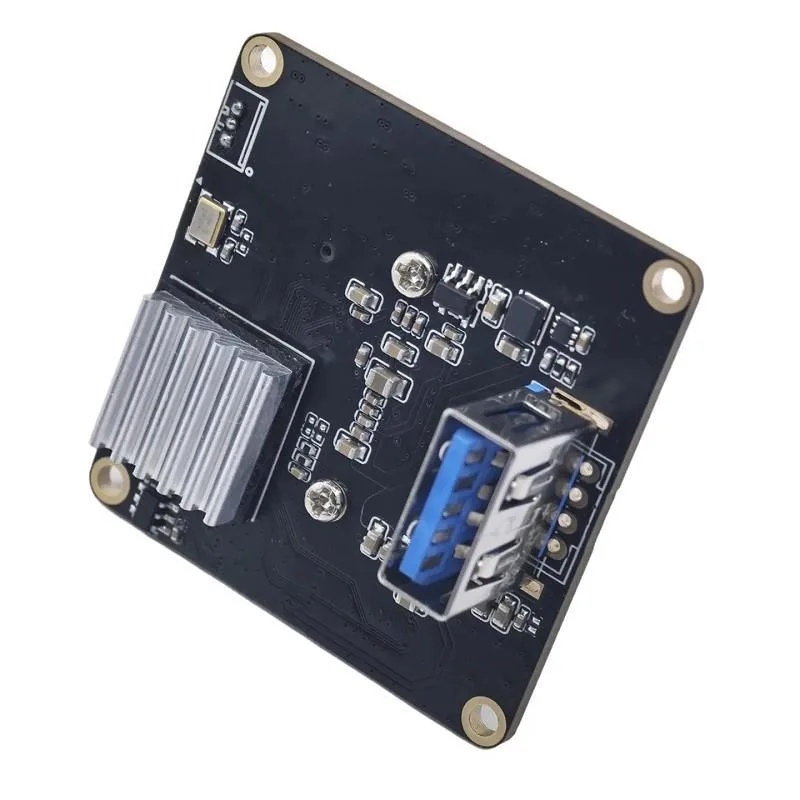

The module connects via a high-speed USB 3.0 interface that supplies both data and power, removing the need for a separate power supply. A 1.5 metre cable is included by default. UVC compliance means the camera works without proprietary drivers on supported operating systems. The compact 38 mm x 38 mm x 37.01 mm board fits tight mechanical envelopes and leaves USB bandwidth headroom for other peripherals.

Low-heat fixed-focus operation

The IMX274 sensor uses an electronic rolling shutter and runs cool during typical 30 fps 4K streaming, so no active cooling is required. Fixed focus eliminates moving parts and motor noise, keeping acoustic output negligible. Power is drawn entirely from the USB 3.0 bus, simplifying thermal budgeting in embedded or mobile deployments.

Highlights

  • 4K 8 MP resolution at 30 fps from the 1/2.5-inch IMX274 sensor
  • Driver-free UVC plug-and-play across Windows, Android, Linux and macOS
  • Multiple output formats including MJPEG, YUV2, NV12, H.264 and H.265
  • High-speed USB 3.0 interface with 1.5 metre cable for flexible mounting
  • Fixed-focus lens with 94.8° diagonal field of view for wide coverage

Specifications

BrandWeinandianzi
ModelWN-L2512K437
ColorBlack
Size13x9x9cm
SpecificationsUSB3.0 Camera Module FF 3840H x 2160V@30FPS MJPEG, YUV2 ,NV12,H.264 ,H.265
Compatibility1/2.5-Inch IMX274 CMOS
Features4K 8MP HD 1/2.5-Inch IMX274 USB3.0 Camera Module

Questions about this item

How long can the IMX274 sensor maintain 30 fps at 3840x2160 before the frame rate drops?

The module is specified for 30 fps at 3840x2160 in MJPEG, H.264 and H.265 formats with no lower sustained rate listed.

How much heat does the 38 mm x 38 mm x 37.01 mm module generate when streaming 4K 30 fps all day?

Power is drawn from the USB 3.0 bus; the fixed-focus design and compact 38 mm x 38 mm body produce minimal heat during continuous operation.

Which host interface and cable are required for the USB 3.0 camera module to work?

A USB 3.0 Type-A port and the included 1.5 metre cable provide both data and power; the module is UVC-compliant for Windows, Android, Linux and macOS.
