Weinandianzi WN-L2501K410 4K V585 USB3.0 camera module

4K USB3.0 Camera Module with IMX585 Sensor

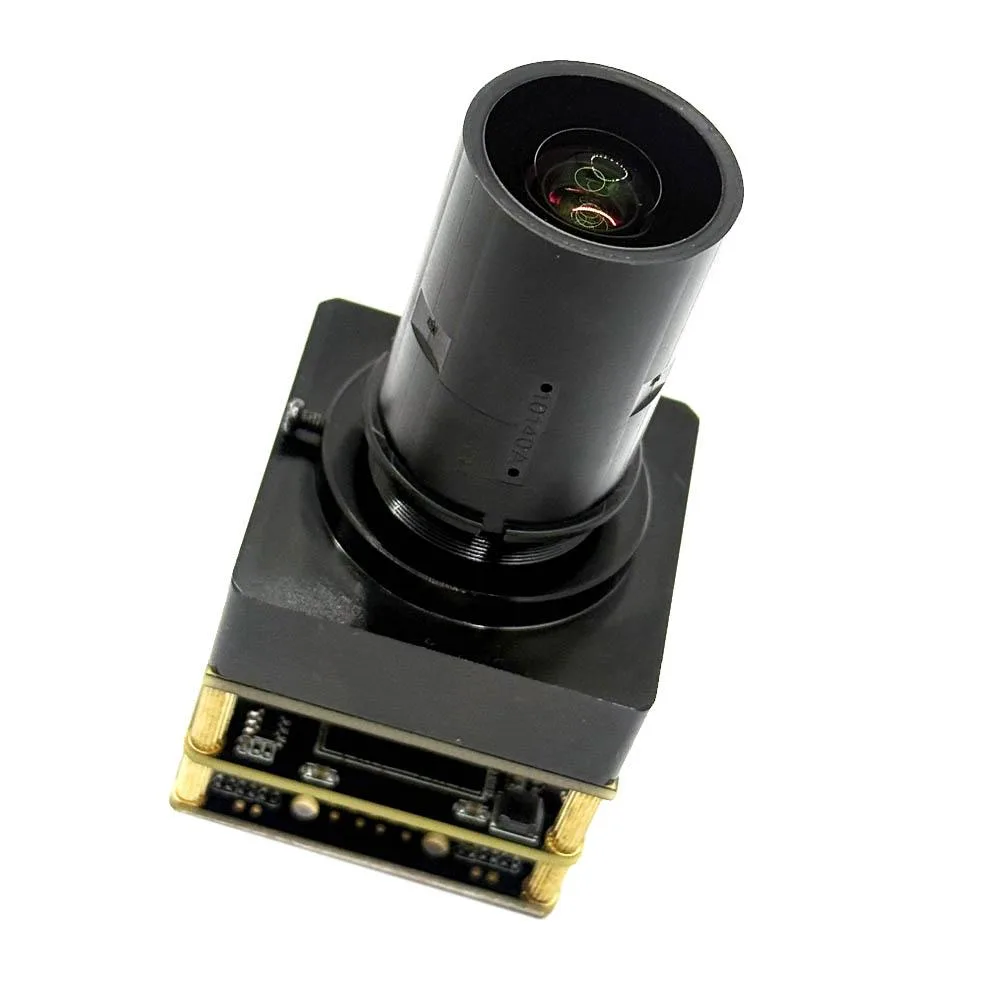

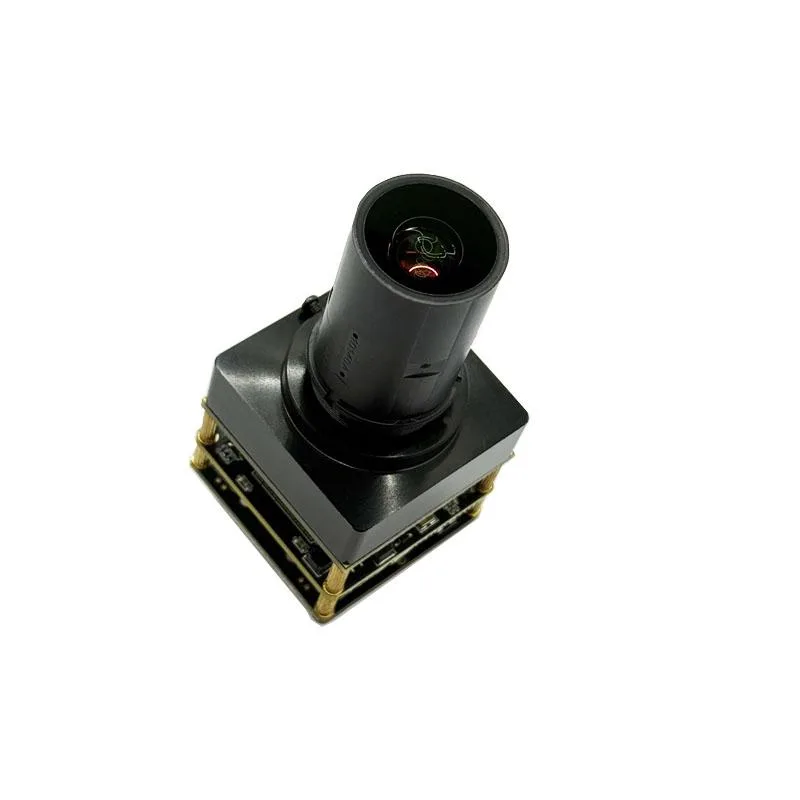

The Weinandianzi WN-L2501K410 4K V585 is a compact USB3.0 camera module built around a 1/1.2-inch IMX585 CMOS sensor. It delivers 3840x2160 resolution at up to 60 frames per second using H.264 or MJPG compression. The fixed-focus lens provides a 125° field of view with an F/1.0 aperture and 6.93mm focal length. It is suited for developers and integrators adding 4K video capture to embedded or PC-based vision systems.

Module Build and USB Type-C Interface

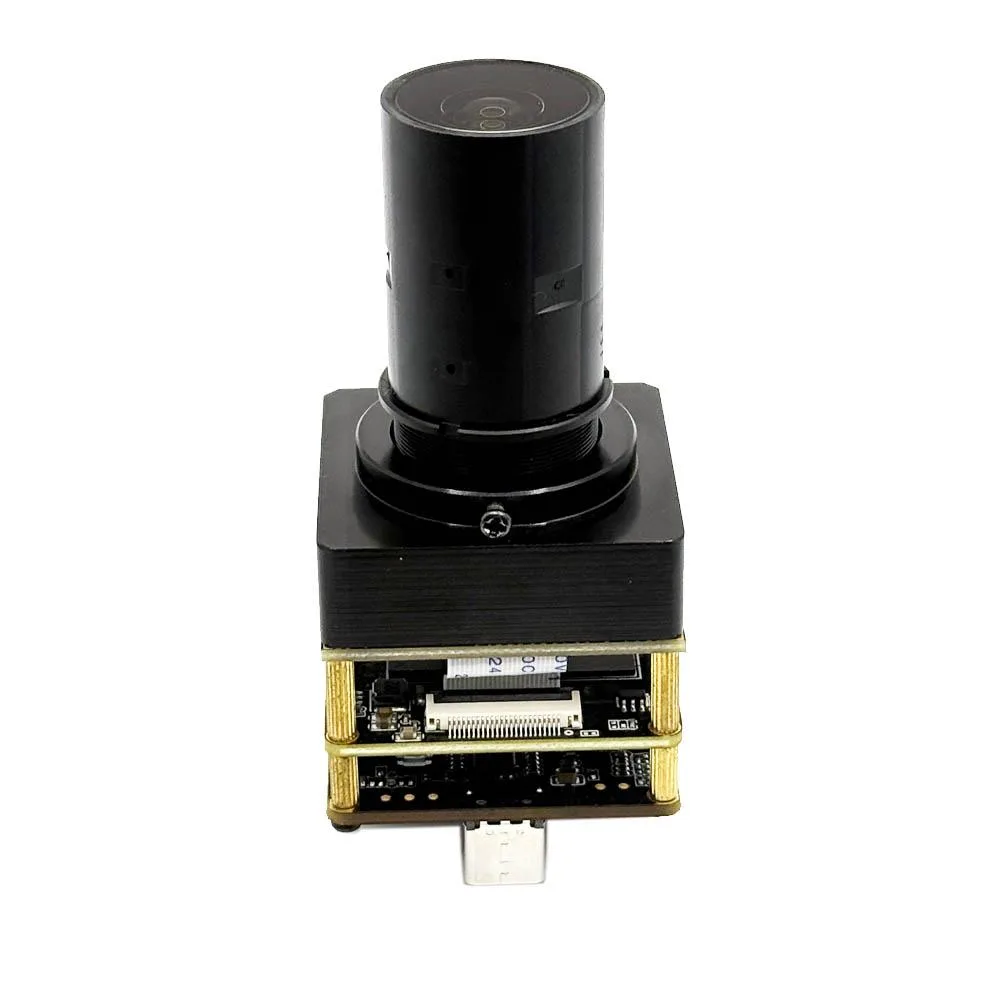

The module measures 38x38x85.8mm and connects via a high-speed USB3.0 Type-C interface for both data and power. Output formats include MJPG, YUY2, NV12, H.264 and H.265, with multiple resolution and frame-rate combinations listed in the specifications. Adaptive 2D and 3D digital noise reduction helps maintain image quality in variable lighting. The IR 650nm lens filter and electronic rolling shutter support consistent capture in mixed-spectrum environments.

Check Host Bandwidth and Mounting Clearance

Verify that the host system provides a genuine USB3.0 port with sufficient bandwidth for 4K 60FPS compressed streams, as lower-speed ports will restrict available frame rates. The fixed-focus design means working distance cannot be adjusted optically, so confirm the 125° field of view suits the intended scene. Ensure mechanical mounting accommodates the 38x38x85.8mm form factor and that the Type-C connector orientation fits the enclosure.
