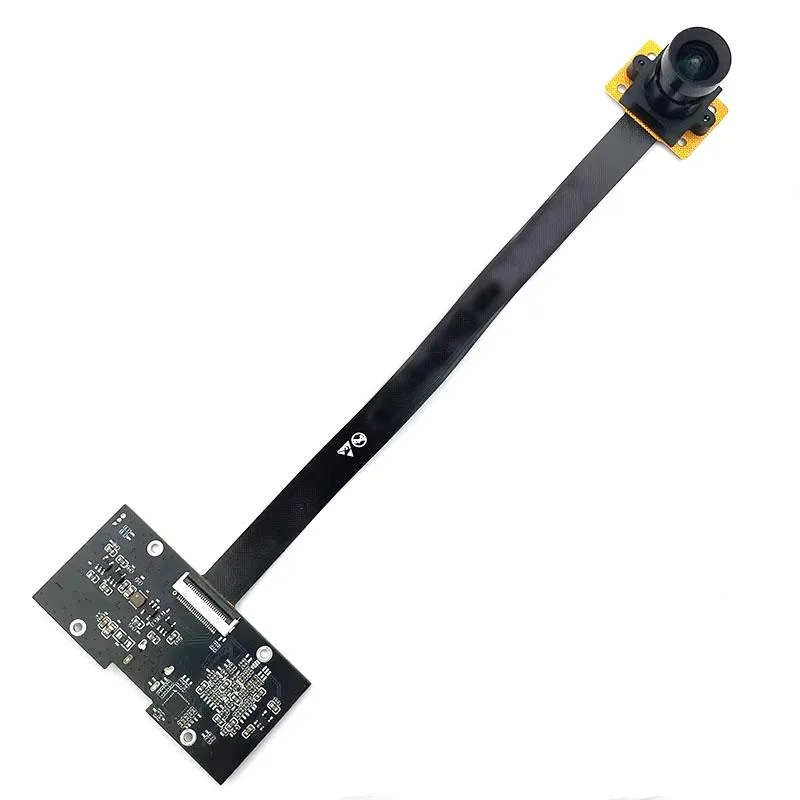

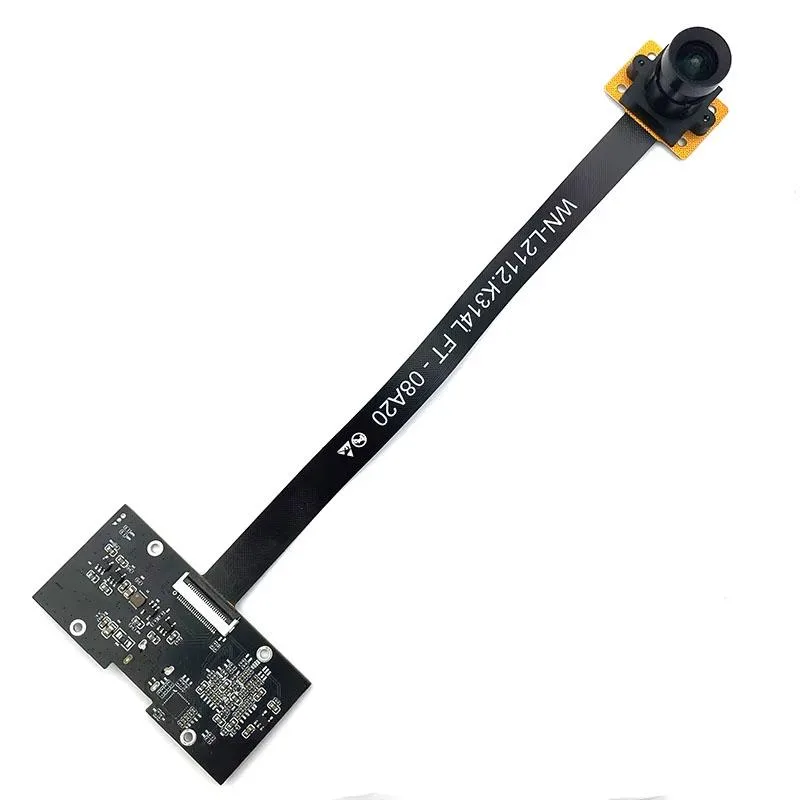

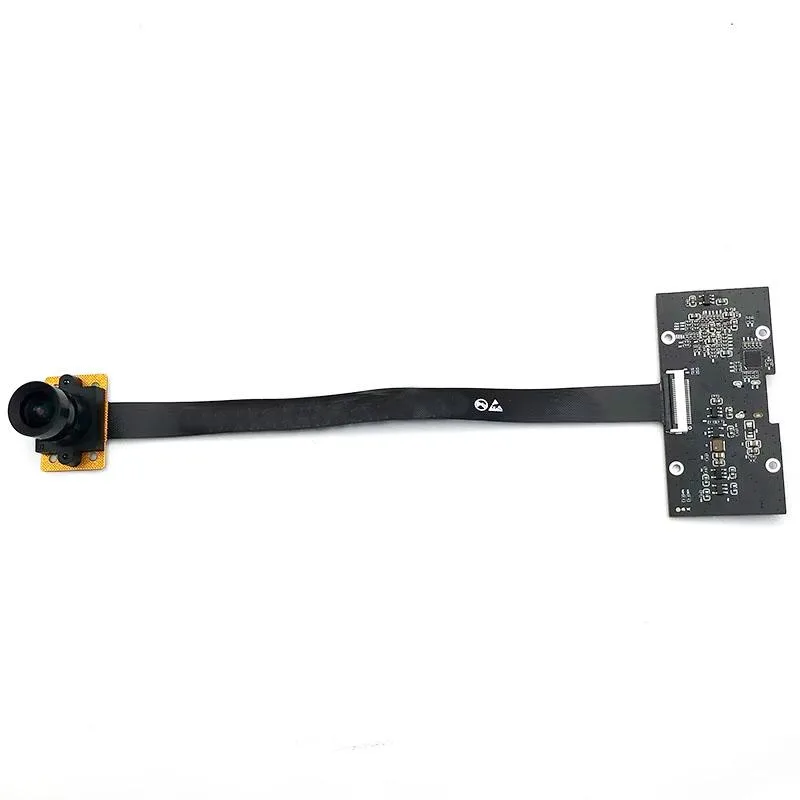

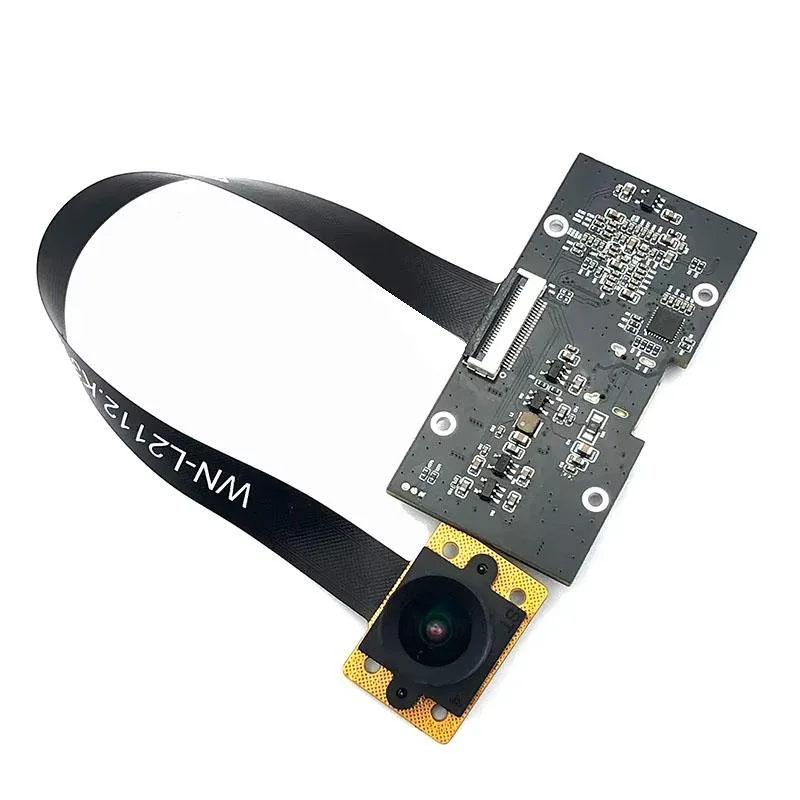

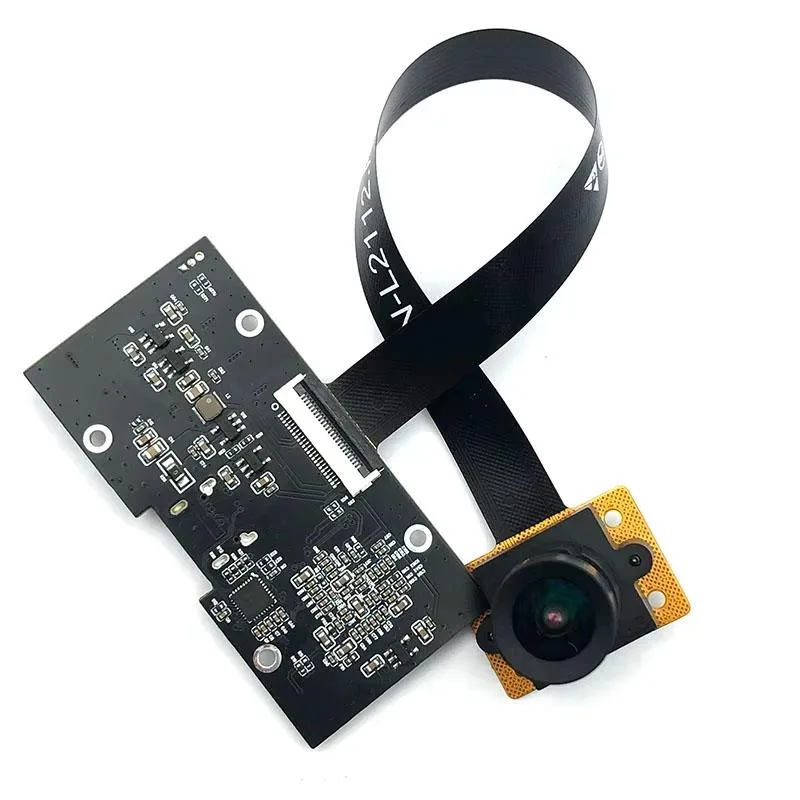

Black rectangular USB3.0 Type-C camera module with 93° lens and 1.5m cable

Weinandianzi

Weinandianzi WN-L2403MB-V1.1 08A10 8MP USB3.0 Type-C Camera Module 93°

SKU CH-CNA6-1ERGX

An 8 MP USB 3.0 Type-C camera module with a 1/2-inch OS08A10 CMOS sensor, 93° field of view and fixed-focus lens for face-recognition and document capture

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB3.0 Camera module TYPE C 93 Degree PCB+FPC plug and play
  • Compatibility1/2-Inch OS08A10 CMOS
  • 8MP 4K resolution at 3840×2160 for detailed imaging
  • 93° field of view covers wide scenes for face recognition
  • USB 3.0 Type-C delivers high-speed video transfer
  • Multiple output formats MJPEG YUV2 NV12 H264 H265 suit varied workflows
  • Fixed-focus lens with 1.5 m cable enables plug-and-play deployment

Fixed-focus 93° module for document capture

The Weinandianzi WN-L2403MB-V1.1 08A10 is an 8MP USB3.0 Type-C camera module built around a 1/2-inch OS08A10 CMOS sensor. It delivers 3840x2160 resolution at 30fps with a fixed-focus lens set at 93° diagonal field of view. The board measures 60x29mm with a 170.5mm FPC tail, and the package includes a 1.5m cable for plug-and-play deployment on Windows, Android, Linux or macOS via UVC.

Upgrade from narrow-angle 1080p units

Replaces older 2MP or 1080p modules that lack the resolution or field of view needed for full-page document capture or multi-face enrolment. The jump is worth it when the application requires 4K output, hardware-encoded H.264 or H.265 streams, or a wider 93° perspective without mechanical focus adjustment. It does not suit buyers who need autofocus, varifocal optics or a sensor larger than 1/2-inch.

4K at 30fps with hardware encode headroom

Comfortably handles face-recognition enrolment, document scanning and fixed-position monitoring where 3840x2160 MJPEG, YUV2, NV12, H.264 or H.265 streams are consumed directly by the host. The fixed-focus design and 0.1 lux minimum illumination limit low-light flexibility and close-up work below the lens' nominal working distance. Bandwidth scales with USB3.0, so sustained 4K encoding remains within the interface ceiling.

Highlights

  • 8MP 4K resolution at 3840×2160 for detailed imaging
  • 93° field of view covers wide scenes for face recognition
  • USB 3.0 Type-C delivers high-speed video transfer
  • Multiple output formats MJPEG YUV2 NV12 H264 H265 suit varied workflows
  • Fixed-focus lens with 1.5 m cable enables plug-and-play deployment

Specifications

ModelWN-L2403MB-V1.1 08A10
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB3.0 Camera module TYPE C 93 Degree PCB+FPC plug and play For shooting documents
Compatibility1/2-Inch OS08A10 CMOS
Features3840x2160 4K 8MP HD 1/2-Inch OS08A10 USB3.0 Camera module

Questions about this item

What are the physical dimensions of the PCB and FPC that must fit inside the enclosure?

The PCB measures 60 by 29 millimetres and the flexible printed circuit is 170.5 millimetres long by 23 millimetres wide.

Which step is often missed when connecting the module to a host device?

The module uses a USB 3.0 Type‑C interface; the 1.5 metre cable must be plugged into a USB 3.0 port, not a USB 2.0 port, to achieve the 30 fps 4K output.

Does the fixed‑focus lens require any periodic adjustment or replacement?

No, the lens is factory‑set with an EFL of 3.24 mm and F/2.7, and the fixed‑focus design has no moving parts to service.
