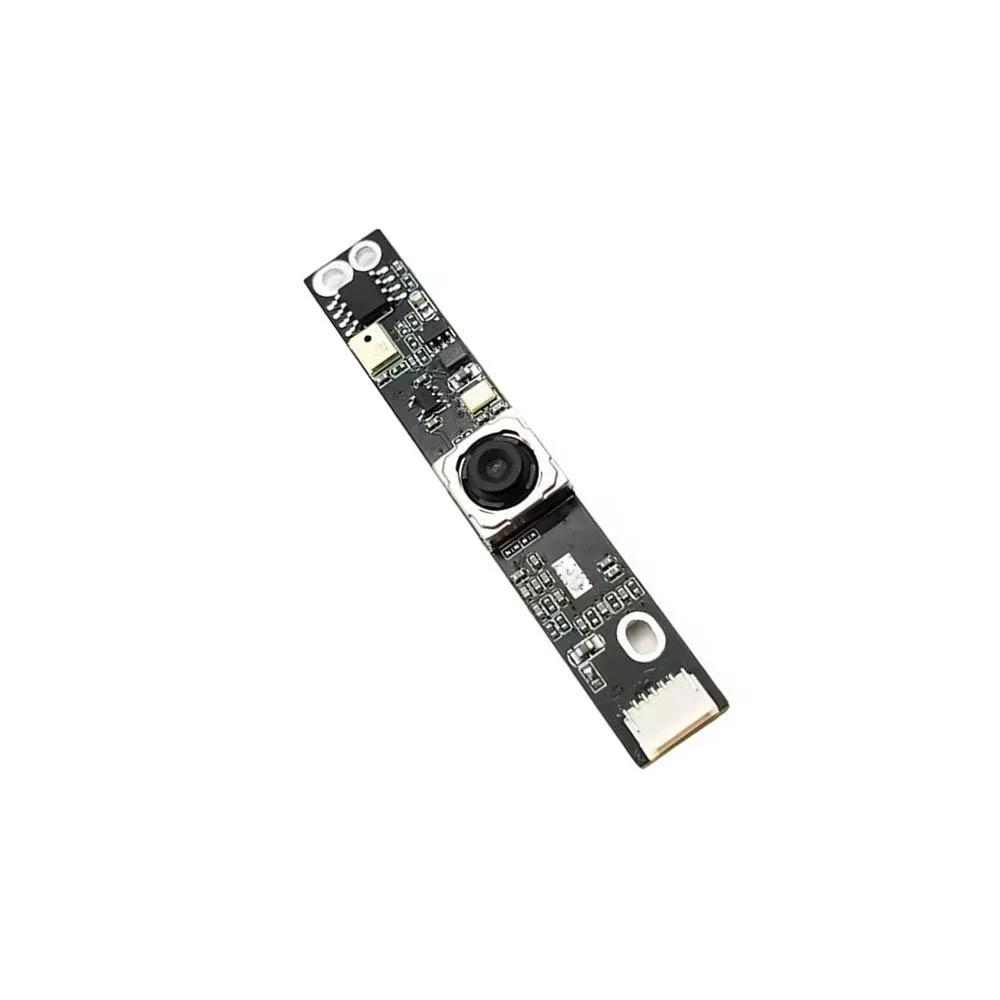

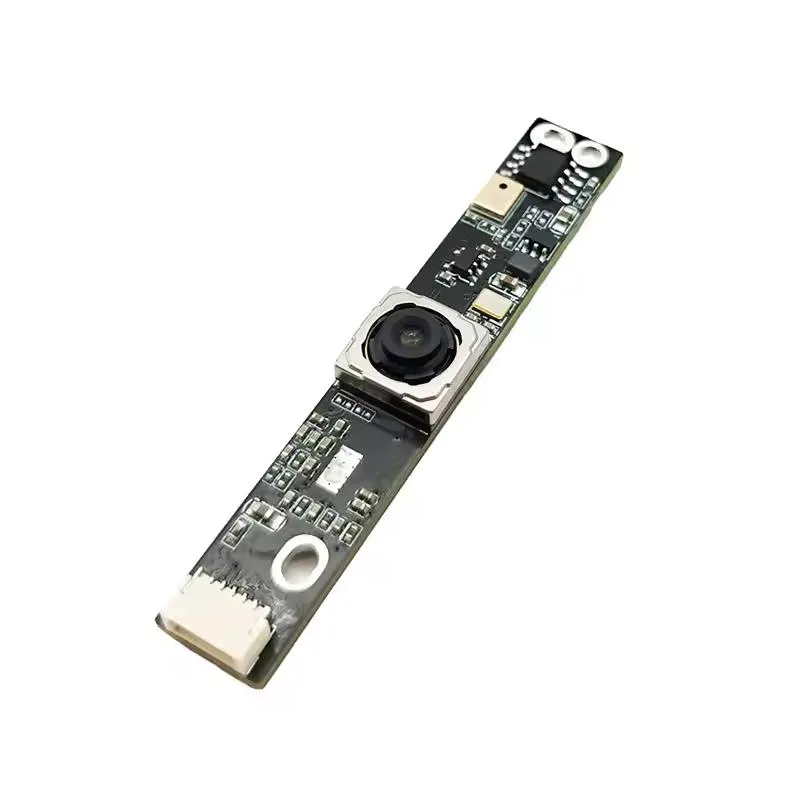

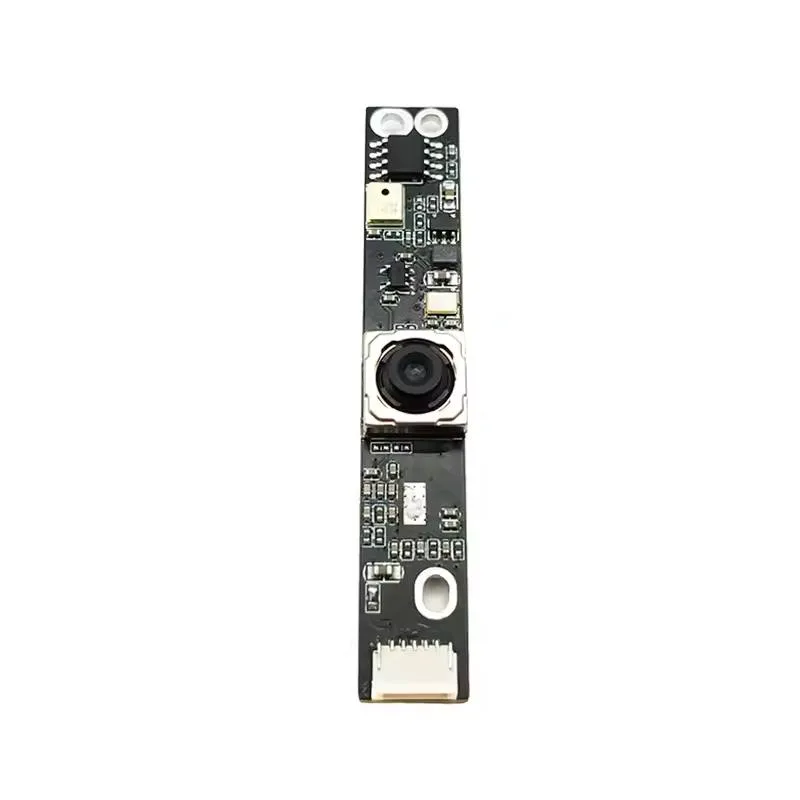

Small black rectangular camera module with lens and connector

Weinandianzi

Weinandianzi WN-L2403K389 12MP IMX362 PDAF USB2.0 Camera Module

SKU CH-YYVZ-9CCE9

A 12 MP IMX362 USB 2.0 camera module with PDAF autofocus, 81.6° field of view, MJPEG and YUY2 output up to 4K at 30 fps, UVC-compliant for plug-and-play use

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Compatibility/2.55-inch IMX362 CMOS
  • Features12MP HD IMX362 PDAF Speed USB2.0 Camera Module
  • Sharp 12MP photos from 1/2.55-inch IMX362 sensor
  • Fast PDAF autofocus locks on in milliseconds
  • Works instantly with UVC plug-and-play on laptops
  • Captures 4K video at 30FPS via USB2.0
  • Wide 81.6° field of view fits more in frame

12MP IMX362 PDAF Camera Module

The Weinandianzi WN-L2403K389 integrates a 1/2.55-inch IMX362 CMOS sensor with phase-detection autofocus. It connects via a high-speed USB2.0 interface using a 5PIN 1.0mm connector. The module is UVC-compliant for plug-and-play operation on laptops and other hosts. A digital microphone is built in for audio capture.

4000x3000 resolution with multiple frame-rate

Maximum still resolution reaches 4000 by 3000 pixels at 15 frames per second. Video formats include MJPEG at 3840 by 2160 and 1920 by 1080, both at 30 frames per second. YUY2 output is available at lower frame rates such as 1280 by 720 at 10 frames per second. The PDAF autofocus covers an 81.6-degree field of view with an F/1.8 lens.

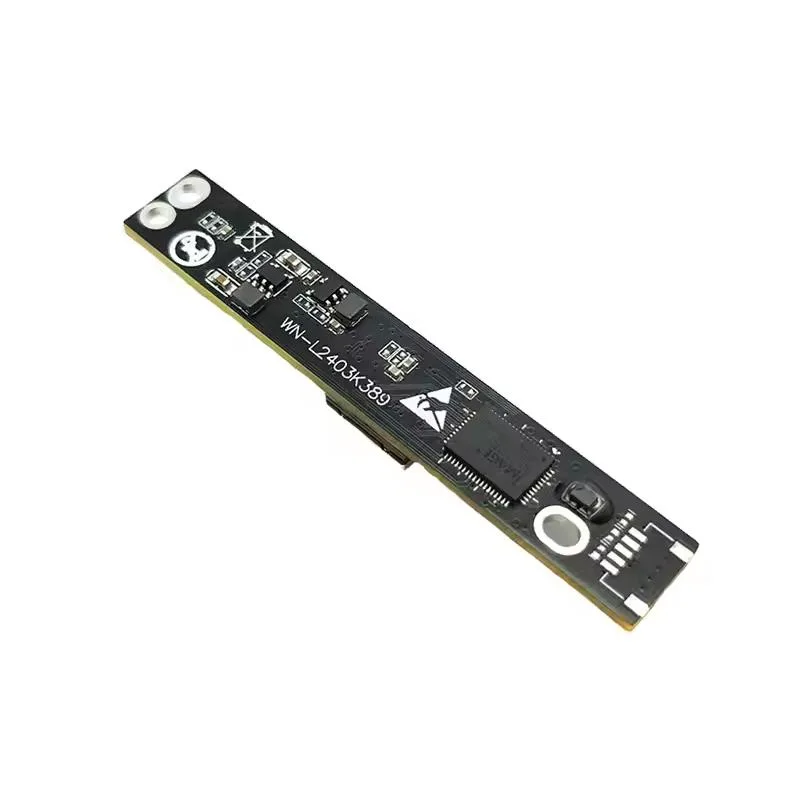

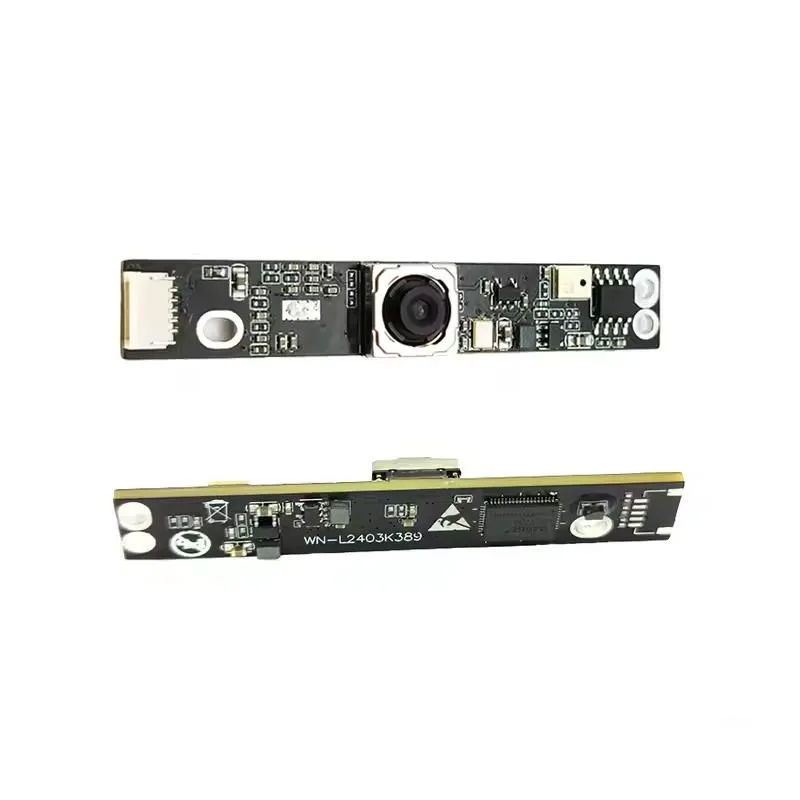

Compact 62 by 10mm board for embedded builds

The module measures 62 by 10 millimeters and operates from a 5-volt supply drawing 270 milliamps. It requires a mating 5PIN 1.0mm connector (SM05B-SRSS-TB) on the host board. Operating temperature spans minus 20 to 60 degrees Celsius. The small footprint and USB2.0 interface simplify integration into space-constrained devices.

Highlights

  • Sharp 12MP photos from 1/2.55-inch IMX362 sensor
  • Fast PDAF autofocus locks on in milliseconds
  • Works instantly with UVC plug-and-play on laptops
  • Captures 4K video at 30FPS via USB2.0
  • Wide 81.6° field of view fits more in frame

Specifications

BrandWeinandainzi
ModelWN-L2403K389
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Compatibility/2.55-inch IMX362 CMOS
Features12MP HD IMX362 PDAF Speed USB2.0 Camera Module

Questions about this item

Will this 12MP IMX362 module work on a laptop that only has USB2.0 ports?

Yes, it uses a High Speed USB2.0 interface and is UVC-compliant for plug-and-play operation on standard laptop ports.

How can I confirm the autofocus and 81.6° field of view are functioning after I connect it?

Open any UVC-compatible preview tool; the PDAF autofocus should lock quickly and the live image will show the wide 81.6° angle.

Does the package include a cable for the 5PIN 1.0mm connector or must I source one separately?

The module ships with the 5PIN 1.0mm connector (SM05B-SRSS-TB) attached; a matching host-side cable or adapter is not included.
