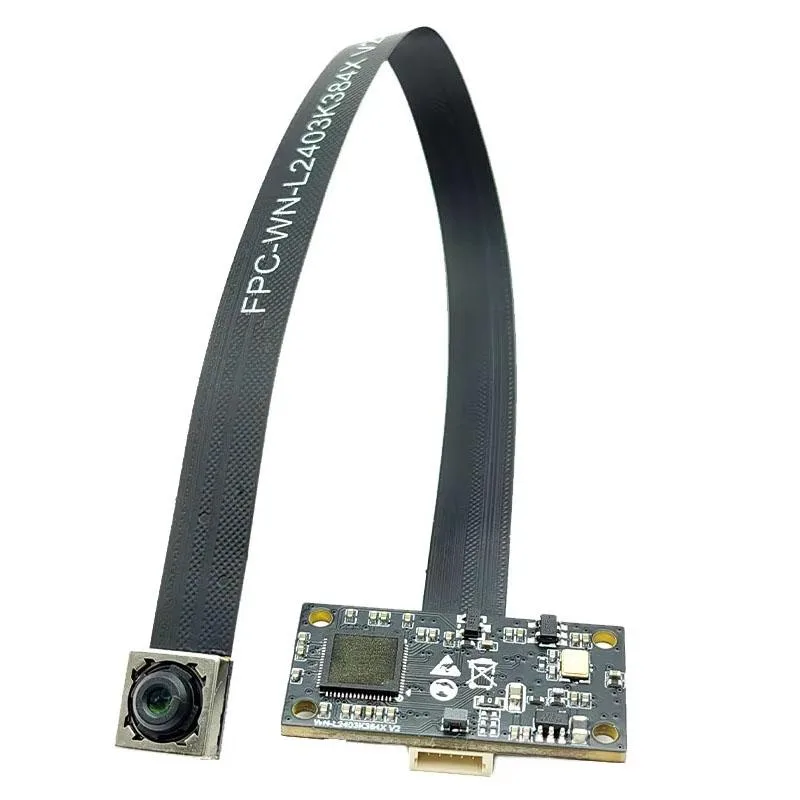

Small black rectangular camera module with USB cable attached

Weinandianzi

Weinandianzi WN-L2403K384X FT16MP FF 16MP IMX298 USB Camera Module

SKU CH-FWAA-3HN15

A 16MP IMX298 USB camera module delivering 4624x3468 stills at 10fps and 1080p video at 30fps with a fixed-focus 78.4° lens and driver-free UVC support across Windows, Android, Linux and macOS

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Compatibility1/2.8inch IMX298
  • Features16MP HD IMX298 USB Camera Module
  • 16 MP IMX298 sensor captures 4624×3468 stills at 10 fps
  • Fixed-focus 78.4° field of view suits wide-angle monitoring
  • UVC no-driver protocol works on Windows, Android, wince and MacOS
  • MJPEG and YUV2 output formats at multiple frame rates up to 30 fps
  • Operating range from −10 °C to 60 °C for industrial environments

16MP IMX298 USB Camera Module

The Weinandianzi WN-L2403K384X is a 16MP USB camera module built around a 1/2.8inch IMX298 sensor. It delivers a maximum resolution of 4624x3468 at 10fps and supports multiple lower resolutions up to 30fps. The fixed-focus lens provides a 78.4° field of view. The module uses a UVC no-driver protocol with MJPEG and YUY2 output formats. A 1.0 metre USB cable is included.

Upgrade from lower resolution fixed-focus modules

This module replaces basic VGA or 720p fixed-focus cameras when higher still-image detail is required. The jump is worth it for applications needing 16MP captures or 4K video at 25fps. It also supersedes older rolling-shutter sensors that lack MJPEG and YUY2 support. Developers moving from autofocus units that hunt in low light will appreciate the predictable fixed focus.

Check USB bandwidth and mounting clearance

Verify the host can sustain the required USB throughput for 4624x3468 MJPEG at 10fps or 3840x2160 at 25fps. Confirm the 105.59x30x5.69mm PCB and FPC split design fits the enclosure and that the 1.0 metre cable reaches the port. Ensure the operating temperature range of -10°C to 60°C covers the deployment environment. No driver installation is needed on Windows, Android, Linux, Wince or Mac OS.

Highlights

  • 16 MP IMX298 sensor captures 4624×3468 stills at 10 fps
  • Fixed-focus 78.4° field of view suits wide-angle monitoring
  • UVC no-driver protocol works on Windows, Android, wince and MacOS
  • MJPEG and YUV2 output formats at multiple frame rates up to 30 fps
  • Operating range from −10 °C to 60 °C for industrial environments

Specifications

BrandWeinandianzi
ModelWN-L2403K384X FT16MP FF
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Compatibility1/2.8inch IMX298
Features16MP HD IMX298 USB Camera Module

Questions about this item

What are the exact PCB dimensions I need to clear for the 105.59*30*5.69mm module?

The board measures 105.59mm long, 30mm wide and 5.69mm thick, so allow at least that footprint plus the 1.0 metre USB cable bend radius.

Which step do builders miss when plugging the UVC module into a Linux board?

Select the correct pixel format — MJPEG for 4624x3468 at 10 fps or YUY2 for 1920x1080 at 5 fps — otherwise the stream defaults to a lower resolution.

How often should I clean the fixed-focus lens on the IMX298 sensor?

Wipe the 78.4° lens with a microfibre cloth whenever dust appears; the module has no moving focus parts to lubricate or replace.
