Small black rectangular USB camera module with integrated lens and one metre cable

Weinandianzi

Weinandianzi WN-L2403K384X 16MP USB Camera Module 1/2.8 IMX298

SKU CH-6FTH-0JX9M

16 MP USB camera module with 1/2.8-inch IMX298 CMOS sensor, autofocus, 78.4° field of view and UVC plug-and-play for Windows, Android, Linux and Mac OS

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module Plug and Play for Linux Android
  • Compatibility1/2.8-Inch IMX298 CMOS
  • UVC-compliant plug-and-play works instantly on Windows, Android, Linux, Mac OS
  • 16 MP IMX298 sensor captures 4624×3268 resolution stills
  • Autofocus with 78.4° field of view keeps subjects sharp across wide scenes
  • MJPEG output at 3840×2160 reaches 25 fps for smooth video
  • 0 m USB cable and 38×38 mm module fit tight integration spaces

Weinandianzi WN-L2403K384X 16MP USB Camera Module

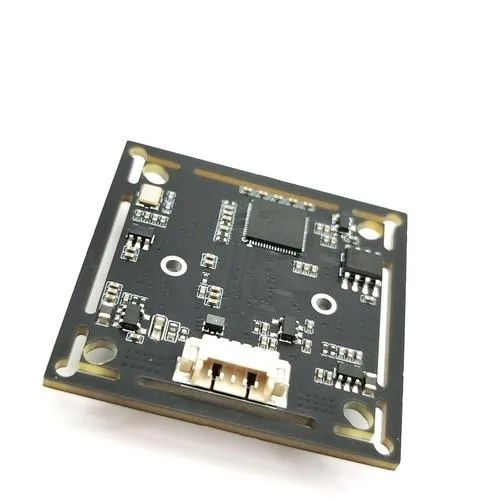

The Weinandianzi WN-L2403K384X is a 16MP USB camera module built around a 1/2.8-inch IMX298 CMOS sensor. It connects via a 1.0 metre USB cable and operates as a UVC-compliant plug-and-play device on Windows, Android, Linux and Mac OS. The compact 38x38mm board suits embedded vision projects, kiosks and portable inspection rigs that need a ready-to-use imaging block without driver development.

4624x3468 resolution at 10fps

Maximum still resolution reaches 4624x3468 pixels at 10fps in MJPEG format, while 3840x2160 video runs at 25fps for smoother motion capture. Lower resolutions such as 3264x2448 and 2592x1944 also operate at 10fps. The 78.4° autofocus lens and 1.12µm pixels deliver usable detail in good light, but the rolling shutter and 10fps ceiling at full resolution limit high-speed or low-light applications.

Upgrades fixed-focus or lower-resolution USB

This module replaces fixed-focus or sub-16MP USB cameras where autofocus and higher pixel count are required for document capture, barcode reading or face recognition. The jump is worthwhile when the host system can consume MJPEG streams over USB 2.0 and the 38x38mm footprint fits the enclosure. It does not suit designs needing global shutter, higher frame rates at maximum resolution or raw Bayer output.

Highlights

  • UVC-compliant plug-and-play works instantly on Windows, Android, Linux, Mac OS
  • 16 MP IMX298 sensor captures 4624×3268 resolution stills
  • Autofocus with 78.4° field of view keeps subjects sharp across wide scenes
  • MJPEG output at 3840×2160 reaches 25 fps for smooth video
  • 0 m USB cable and 38×38 mm module fit tight integration spaces

Specifications

BrandWeinandianzi
ModelWN-L2403K384X
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module Plug and Play for Linux Android
Compatibility1/2.8-Inch IMX298 CMOS
Features16MP HD USB Camera Module with 1/2.8-Inch IMX298 CMOS

Questions about this item

Will this 1/2.8-inch IMX298 module work with my older Linux single-board computer that only has USB 2.0 ports?

Yes, it is UVC-compliant and plug-and-play on Linux, so the module will enumerate and stream video over a USB 2.0 connection without extra drivers.

How can I confirm the autofocus and 78.4° field of view are operating correctly after I plug it in?

Open any UVC viewer, point the camera at a detailed scene, and verify the lens hunts and locks focus while the live preview shows the wide 78.4° angle at 3840×2160 25 fps.

The box shows a 1.0 metre USB cable; do I need to buy a longer cable or a separate power adapter for desktop use?

The 1.0 metre cable is included and carries both data and power, so no extra power supply is needed; purchase a USB extension only if you need more reach.
