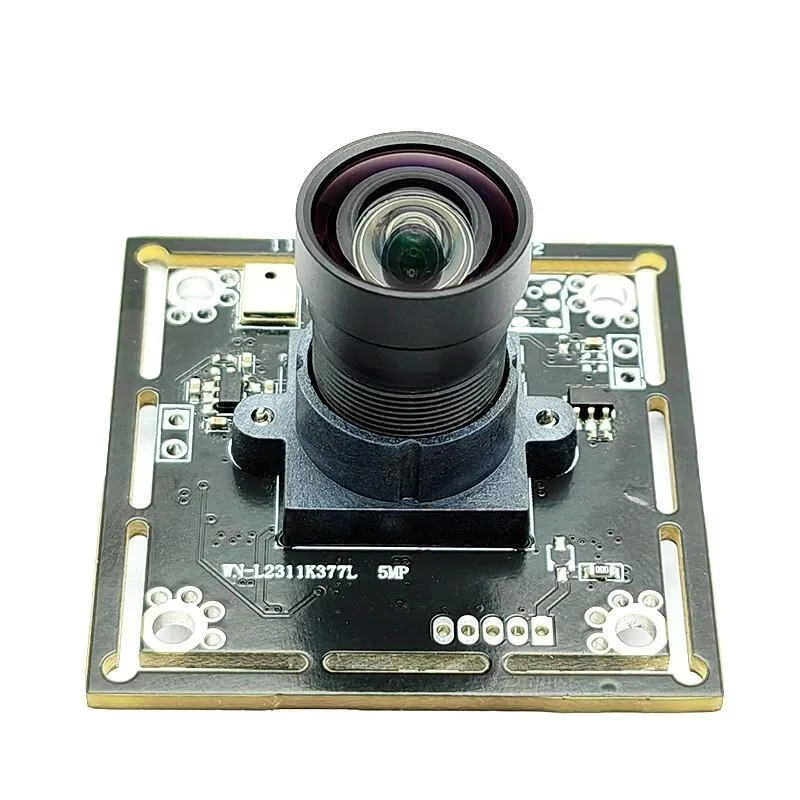

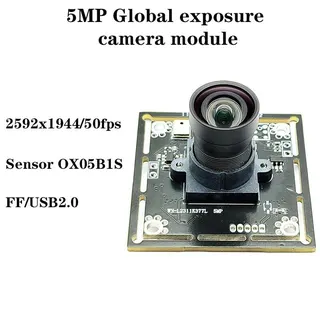

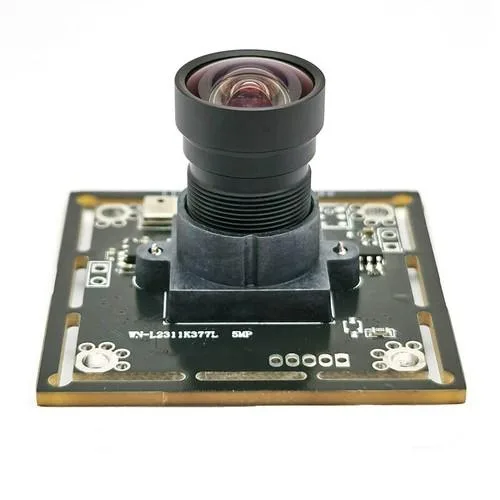

Small black rectangular USB camera module with 1.0m cable

Weinandianzi

Weinandianzi WN-L2311K377L 5MP USB Camera Module 95° 50fps Global Shutter 1.0m Cable

SKU CH-89YR-7569C

A 5 MP USB camera module with a 95° field of view, global shutter and 50 fps capture via a 1.0 m cable

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module FF 95° Global Exposure UVC protocol 50fps
  • Compatibility1/2.53-Inch OX05B1S CMOS
  • 5MP resolution at 2592×1944 pixels for detailed imaging
  • Global shutter eliminates motion blur at 50fps
  • 95° wide field of view covers large scenes
  • UVC plug-and-play works on Windows, Android, Linux, Mac
  • 0m USB 2.0 cable provides flexible placement

Product Identity

The Weinandianzi WN-L2311K377L is a 5MP USB camera module built around a 1/2.53-inch OX05B1S CMOS sensor. It delivers 2592H by 1944V resolution at up to 50fps with a 95° field of view and global shutter exposure. The module measures 38 by 38mm and includes a 1.0m USB 2.0 cable. It is suited for developers and integrators adding compact vision to embedded or PC-based systems.

Setup Checks

Verify that your host provides a USB 2.0 high-speed port and can supply sufficient bus power for the module. Confirm the operating system supports UVC plug-and-play; Windows, Android, Linux and Mac OS are listed as compatible. The module uses a fixed-focus lens with an EFL of 3.24mm and F/2.7 aperture, so the working distance must suit a 95° view without focus adjustment. Ensure the 5-pin 1.25mm socket matches your carrier board or adapter.

Upgrade Context

This module replaces rolling-shutter cameras where motion artefacts or timing skew are unacceptable. The global shutter captures the full frame simultaneously, making it suitable for fast-moving subjects or synchronised multi-camera rigs. The jump is worth it when your application demands distortion-free frames at 50fps and a wide 95° angle in a 38mm square form factor. It does not serve buyers who need autofocus, higher resolution, or a longer cable than the supplied 1.0m.

Highlights

  • 5MP resolution at 2592×1944 pixels for detailed imaging
  • Global shutter eliminates motion blur at 50fps
  • 95° wide field of view covers large scenes
  • UVC plug-and-play works on Windows, Android, Linux, Mac
  • 0m USB 2.0 cable provides flexible placement

Specifications

BrandWeinandianzi
ModelWN-L2311K377L 5MP
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module FF 95° Global Exposure UVC protocol 50fps RGB Colorful Vision High-resolution
Compatibility1/2.53-Inch OX05B1S CMOS
Features1/2.53-Inch OX05B1S CMOS 5MP HD USB Camera Module FF 95° Global Exposure UVC protocol 50fps RGB Colorful Vision High-resolution

Questions about this item

Does the module come with a cable or must I buy one separately?

The module ships with a 1.0 metre USB cable already attached.

Which resolution and frame-rate combination does the 5MP sensor deliver?

It outputs a maximum of 2592H by 1944V at 50 frames per second.

What does the 95° field of view mean when the camera is mounted in a machine?

A 95° diagonal angle captures a wide scene without distortion, suited for robotics or inspection rigs.
