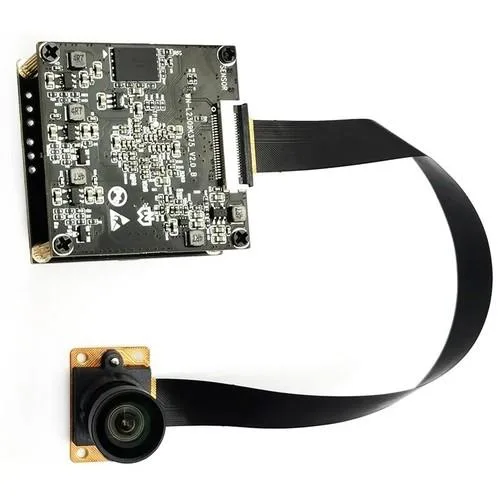

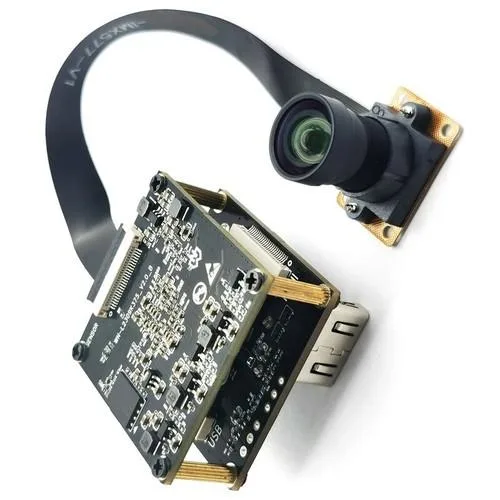

Black square camera module with 38mm board, USB3 cable, fixed-focus lens

Weinandianzi

Weinandianzi WN-L2309K357-V2.0-577-FT 4K 12MP IMX577 USB3.0 Camera Module

SKU CH-DVSY-J34EG

A 12MP IMX577 sensor captures 4000×3000 video at 25fps through a 100° fixed-focus lens with USB3.0 UVC plug-and-play

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Specifications4K 12MP IMX577 USB3.0 Camera Module
  • Compatibility1/2.3-inch IMX577 CMOS
  • 4K 12MP resolution captures fine detail with the IMX577 sensor
  • USB 3.0 interface delivers high-speed data transfer for smooth video
  • 100° diagonal field of view covers wide scenes in one frame
  • UVC compliant plug-and-play works on Windows Android Linux and Mac OS
  • Fixed focus with electronic rolling shutter simplifies integration for embedded use

12MP IMX577 USB3.0 Camera Module

This 12MP camera module uses a 1/2.3-inch IMX577 CMOS sensor to capture 4000*3000 resolution images at 25fps. It connects via High Speed USB3.0 and supports MJPEG, YUV2, NV12, H264 and H265 output formats. The fixed-focus lens provides a 100° diagonal field of view in a compact 38*38mm board.

Check host USB3.0 port and OS compatibility

Verify your system has a USB3.0 port able to supply 5V at 450mA for stable operation. The module is UVC-compliant for plug-and-play use on Windows, Android, Linux and Mac OS without extra drivers. A 1.5m USB cable is included; ensure the cable length suits your mounting position.

Thermals noise and power in normal use

The module draws 450mA from the USB 5V supply and operates between -20°C and 60°C. With no moving parts or fan, it runs silently during capture. Storage temperature range extends to 85°C and humidity tolerance is rated at 80-85% for reliable deployment in varied environments.

Highlights

  • 4K 12MP resolution captures fine detail with the IMX577 sensor
  • USB 3.0 interface delivers high-speed data transfer for smooth video
  • 100° diagonal field of view covers wide scenes in one frame
  • UVC compliant plug-and-play works on Windows Android Linux and Mac OS
  • Fixed focus with electronic rolling shutter simplifies integration for embedded use

Specifications

BrandWeinandianzi
ModelWN-L2309K357-V2.0-577-FT
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Specifications4K 12MP IMX577 USB3.0 Camera Module
Compatibility1/2.3-inch IMX577 CMOS
Features4K 12MP IMX577 USB3.0 Camera Module High Definition

Questions about this item

What comes in the box and what must I buy separately?

The module includes a 1.5 metre USB 3.0 cable and uses a fixed-focus lens with a 100° diagonal field of view; no additional optics or cables are required for basic operation.

Which version or capacity should I choose?

The part number WN-L2309K357-V2.0-577-FT identifies a single 12 MP IMX577 configuration; there are no alternative sensor or resolution options listed for this model.

What does the 4000×3000 resolution mean in practice?

It delivers 12 megapixel still frames at 25 fps over USB 3.0 with MJPEG, YUV2, NV12, H.264 or H.265 encoding, suitable for 4K capture on Windows, Android, Linux or macOS.
