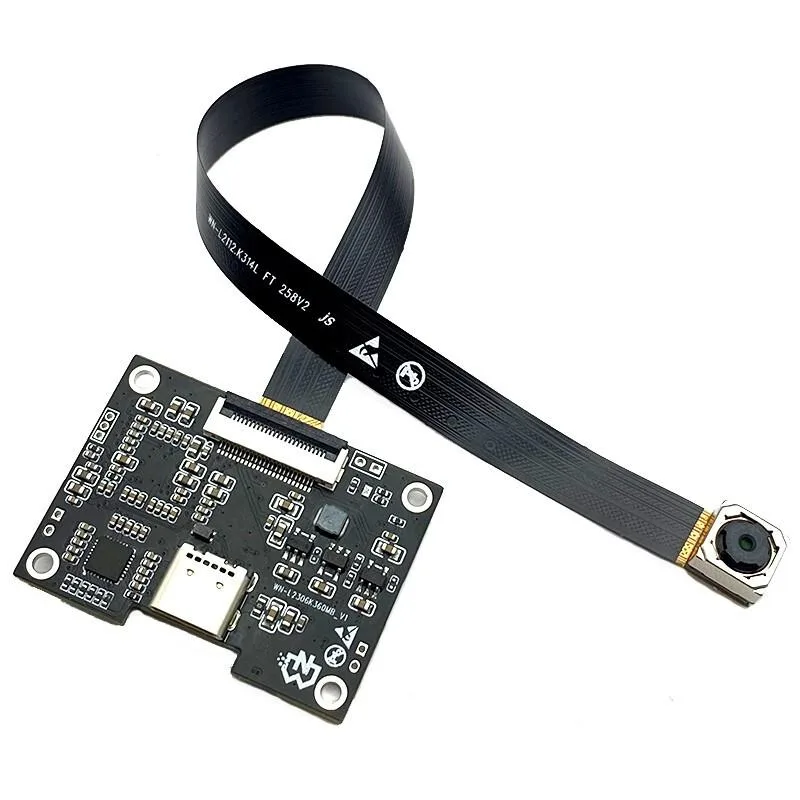

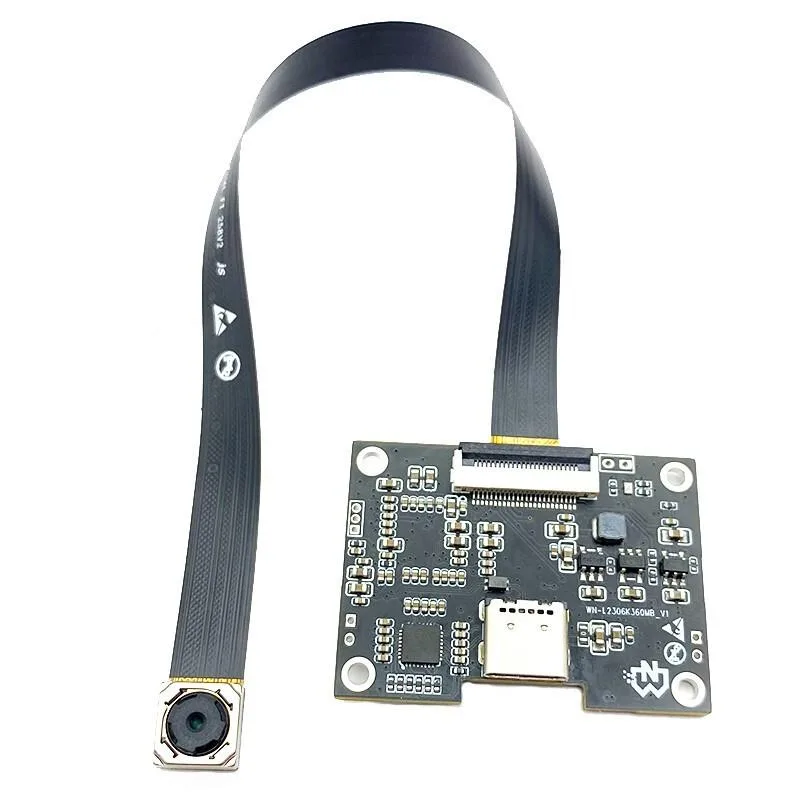

Compact black USB3.0 Type-C camera module with 1.5m cable and autofocus lens

Weinandianzi

Weinandianzi WN-L2306K360MB-25813M 13MP USB3.0 Type-C camera accessory

SKU CH-5QBH-XP7KP MPN WN-L2306K360MB-25813M

13MP USB3.0 Type-C camera module with IMX258 sensor, 4208x3120 resolution, 79° autofocus lens, H.264 output and UVC plug-and-play across Windows, Android, Linux and Mac

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • Specifications4K 13MP HD IMX258 USB3.0 Camera Module
  • Compatibility1/3.06-inch IMX258 CMOS
  • 13 MP IMX258 sensor captures detailed 4K video at 4208 x 3120
  • USB 3.0 Type-C delivers 15 FPS at full 13 MP resolution over a single cable
  • 79 ° autofocus lens keeps subjects sharp across a wide field of view
  • UVC plug-and-play works on Windows, Android, Linux and Mac without extra drivers
  • H.264 hardware encoding streams 1080p at 30 FPS while reducing host CPU load

13MP USB3.0 camera module for machine vision

The Weinandianzi WN-L2306K360MB-25813M uses a 1/3.06-inch IMX258 CMOS sensor to capture 13MP stills and 4K video at 3840x2160. Autofocus with a 79° field of view suits product inspection, barcode reading and similar vision tasks. UVC compliance means it works on Windows, Android, Linux and Mac OS without extra drivers.

Type-C plug-and-play with 1.5 m cable

A single USB3.0 Type-C connector carries both data and power, so no separate supply is needed. The 1.5 metre cable gives enough reach for bench mounting or integration into an enclosure. Controllable parameters include brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight contrast and exposure.

MJPEG, YUY2 and H.264 output up to 30FPS

At 4208x3210 the module delivers 15FPS in MJPEG and 8FPS in YUY2; 4K at 3840x2160 reaches 30FPS in MJPEG and 15FPS in YUY2. H.264 is available at 1920x1080 and 30FPS for efficient streaming. Electronic rolling shutter and 1.12µm pixels keep power draw low during continuous operation.

Highlights

  • 13 MP IMX258 sensor captures detailed 4K video at 4208 x 3120
  • USB 3.0 Type-C delivers 15 FPS at full 13 MP resolution over a single cable
  • 79 ° autofocus lens keeps subjects sharp across a wide field of view
  • UVC plug-and-play works on Windows, Android, Linux and Mac without extra drivers
  • H.264 hardware encoding streams 1080p at 30 FPS while reducing host CPU load

Specifications

BrandWeinandianzi
ModelWN-L2306K360MB-258KU3
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
Specifications4K 13MP HD IMX258 USB3.0 Camera Module
Compatibility1/3.06-inch IMX258 CMOS
Features4K 13MP HD IMX258 USB3.0 Camera Module 4208x3120

Questions about this item

What frame rates does the USB3.0 Type-C interface sustain at 4K and full 13MP resolution?

The USB3.0 Type-C link delivers 3840x2160 at 30 FPS in MJPEG or H.264, while the full 4208x3120 13MP frame runs at 15 FPS in MJPEG and 8 FPS in YUY2.

What are the PCB and flex-cable dimensions that determine whether the module fits inside my enclosure?

The rigid PCB measures 40x29 mm and the attached FPC extends 162.44 mm, so allow at least that length behind the lens for routing.

Does the 1.5 m Type-C cable carry both data and power, or do I need a separate supply?

The single 1.5 m USB3.0 Type-C cable provides both 5 V power and high-speed data; no external power adapter is required.
