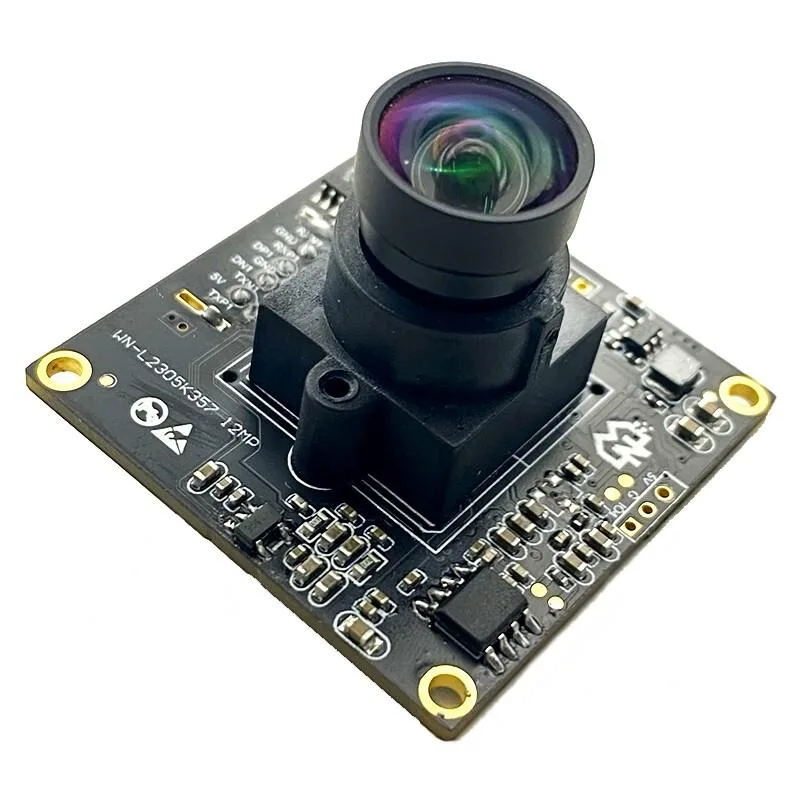

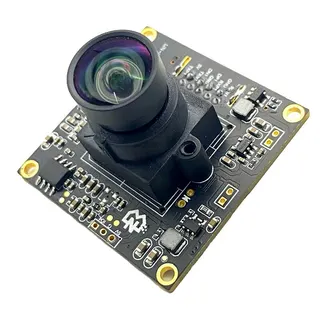

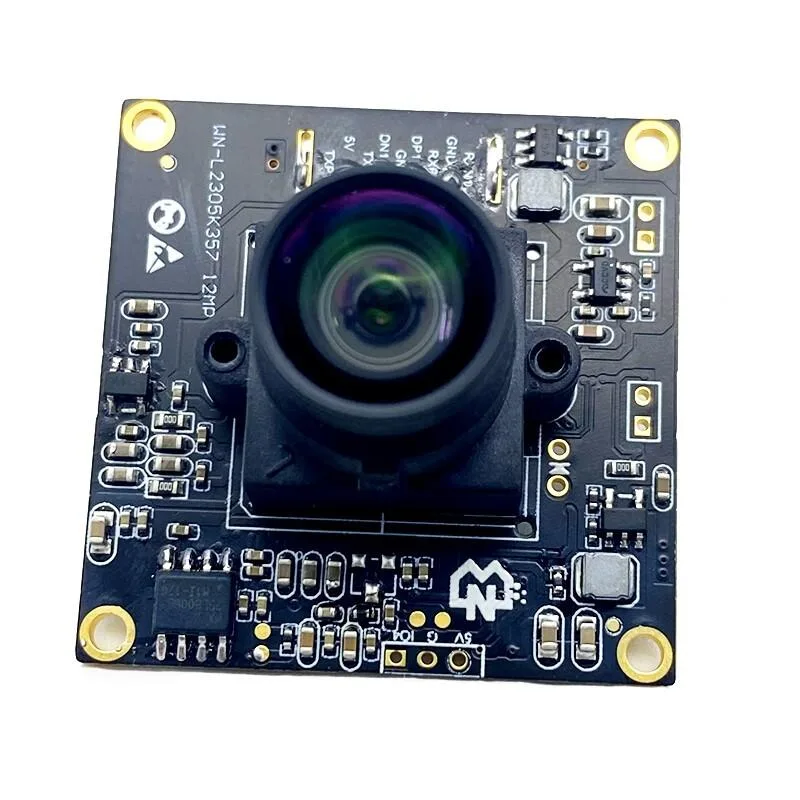

Black rectangular USB3.0 camera module with 100° lens, 38mm square board, 12MP IMX577 sensor

Weinandianzi

Weinandianzi WN-L2305K357-FF 12MP USB3.0 Camera Module 4000x3000 100°

SKU CH-J32K-D010K

A 12 MP USB 3.0 camera module with a 1/2.3-inch IMX577 sensor, 100° field of view and driver-free plug-and-play operation

  • TypeOther
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB3.0 Camera Module MJPEG, YUV2, H.264 100 degree lens Driv
  • Compatibility1/2.3 Inch CMOS IMX577 O
  • Features4000x3000 4K 12MP HD IMX577 USB3.0 Camera Module
  • 12 MP stills at 4000 × 3000 with the IMX577 sensor
  • 18 fps 4K MJPEG video over USB 3.0 bandwidth
  • 100 ° field of view from the 3.24 mm fixed-focus lens
  • Plug-and-play operation with no driver installation required
  • MJPEG, YUY2 and H.264 output formats for flexible integration

Purpose-built imaging module

The Weinandianzi WN-L2305K357-FF is a 12MP USB3.0 camera module that delivers 4000x3000 resolution at 18FPS through a 1/2.3-inch IMX577 CMOS sensor. It outputs MJPEG, YUY2 and H.264 streams with a 100° field of view and fixed 3.24mm F/2.7 lens. The unit draws power and transfers data over a single USB3.0 female connector with driver-free operation on supported hosts.

Upgrade from lower-resolution USB2 boards

Developers replacing 720p or 1080p USB2.0 camera boards gain a 12MP pixel count, 4K-capable output and the higher throughput of USB3.0 without changing host software. The jump is worth it when an application needs 4000x3000 stills or 3840x2160 video at 18FPS and can accommodate the 38x38mm module footprint. Buyers who need 60FPS at 4K or global-shutter exposure should look elsewhere.

Drop-in integration with standard UVC stack

The module enumerates as a standard UVC device, so most Linux, Windows and Android hosts recognise it without vendor drivers. Mount the 38x38mm PCB, connect the USB3.0 cable and select the desired resolution and format in the capture software. Common issues include insufficient USB controller bandwidth when multiple high-resolution cameras share one host controller, and rolling-shutter distortion on fast-moving subjects. Ensure the host port supplies adequate current for the sensor and onboard ISP.

Highlights

  • 12 MP stills at 4000 × 3000 with the IMX577 sensor
  • 18 fps 4K MJPEG video over USB 3.0 bandwidth
  • 100 ° field of view from the 3.24 mm fixed-focus lens
  • Plug-and-play operation with no driver installation required
  • MJPEG, YUY2 and H.264 output formats for flexible integration

Specifications

BrandWeinandianzi
ModelWN-L2305K357 -FF
TypeOther
ColorBlack
Size13x9x9cm
SpecificationsUSB3.0 Camera Module MJPEG, YUV2, H.264 100 degree lens Drive free plug and play
Compatibility1/2.3 Inch CMOS IMX577 O
Features4000x3000 4K 12MP HD IMX577 USB3.0 Camera Module

Questions about this item

What are the module dimensions for mounting the WN-L2305K357-FF?

The module itself measures 38 by 38 mm, while the overall product size is 13 x 9 x 9 cm.

How is the camera installed and which step is often missed?

Connect the USB 3.0 female connector to a USB 3.0 port; the driver-free plug-and-play setup works automatically, but users often plug it into a USB 2.0 port and lose the 18 FPS at 4000 x 3000.

When will the lens or sensor need replacement on this module?

The fixed-focus lens with a 3.24 mm focal length and F/2.7 aperture has no moving parts, and the 1/2.3-inch IMX577 CMOS is rated for continuous operation, so no scheduled replacement is required.
