Black rectangular camera module with lens facing forward, compact circuit board visible, USB3.0 connector at rear

Weinandianzi

Weinandianzi WN-L2305K357 AF 12MP USB3.0 Camera Module 4000Hx3000V IMX577 100°

SKU CH-AR6T-DCMRQ

A 12 MP USB 3.0 camera module with a 1/2.3-inch IMX577 sensor, 100° field of view and autofocus for face-recognition applications

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB3.0 Camera Module 100 Degree AF MJPEG, YUY2, H.264 UVC-co
  • Compatibility1/2.3-inch CMOS IMX577
  • 12MP resolution at 4000H x 3000V for detailed imaging
  • 1/2.3-inch IMX577 sensor captures 0.1Lux low-light scenes
  • USB3.0 interface delivers high-speed MJPEG, YUY2, H.264 output
  • 100° field of view with 3.24mm F2.7 lens covers wide areas
  • UVC-compliant autofocus module enables plug-and-play face recognition

12MP USB3.0 Camera Module

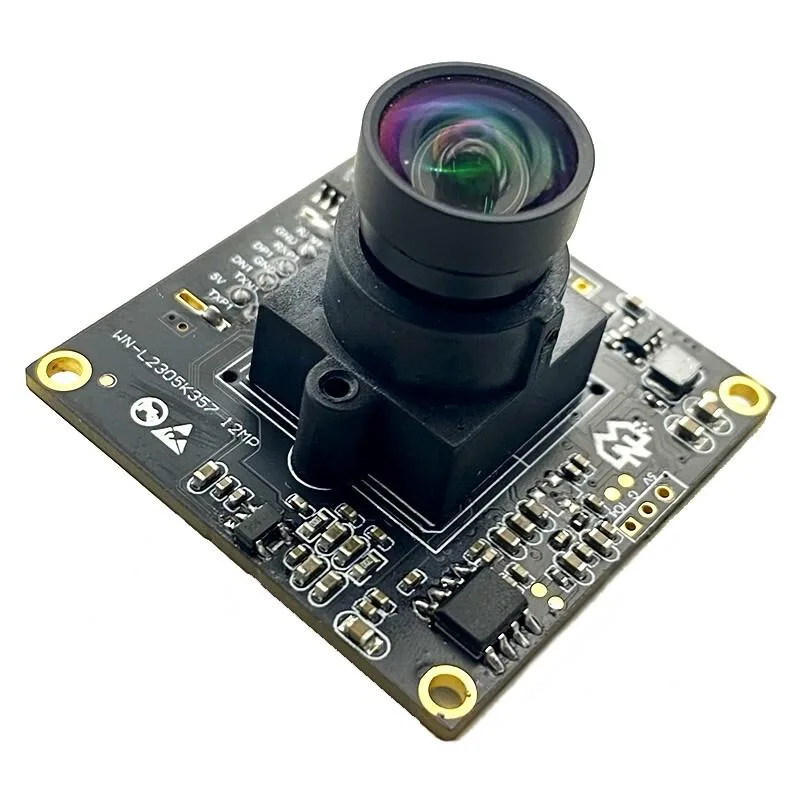

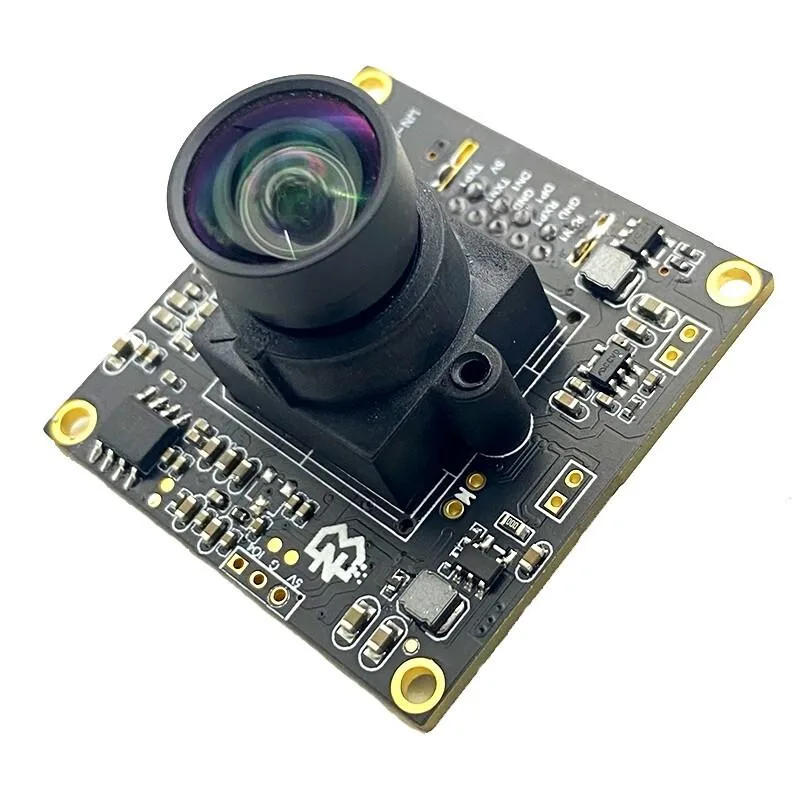

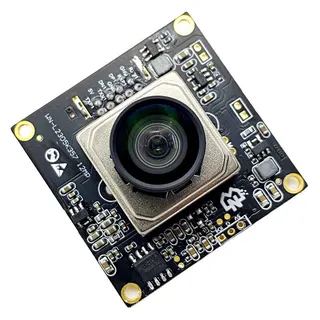

The Weinandianzi WN-L2305K357 AF is a 12-megapixel camera module built around a 1/2.3-inch CMOS IMX577 sensor. It delivers a maximum resolution of 4000H x 3000V pixels over a USB 3.0 connection. The module suits developers integrating computer-vision functions such as face recognition into embedded or industrial systems.

UVC-Compliant Output Formats

The module streams video in MJPEG, YUY2 or H.264 and presents itself as a standard UVC device, so it works without proprietary drivers on common operating systems. An on-board microphone input adds audio capture, while the autofocus lens with a 100-degree field of view keeps subjects sharp across a wide scene.

38mm Square Form Factor and Low-Light Headroom

The 38 x 38 mm board fits tight enclosures and draws power directly from the USB 3.0 bus. Sensitivity reaches 0.1 lux, providing usable images in dim conditions, though the rolling-shutter sensor and fixed 3.24 mm focal length limit high-speed motion capture and optical zoom flexibility.

Highlights

  • 12MP resolution at 4000H x 3000V for detailed imaging
  • 1/2.3-inch IMX577 sensor captures 0.1Lux low-light scenes
  • USB3.0 interface delivers high-speed MJPEG, YUY2, H.264 output
  • 100° field of view with 3.24mm F2.7 lens covers wide areas
  • UVC-compliant autofocus module enables plug-and-play face recognition

Specifications

BrandWeinandianzi
ModelWN-L2305K357 AF
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB3.0 Camera Module 100 Degree AF MJPEG, YUY2, H.264 UVC-compliant For Face Recognition
Compatibility1/2.3-inch CMOS IMX577
Features4000Hx3000V 4K 12MP HD IMX577 USB3.0 Camera Module

Questions about this item

How often will the autofocus mechanism on the WN-L2305K357 need servicing?

The module uses a solid-state electronic rolling shutter and autofocus system with no moving mirror or mechanical iris, so no periodic mechanical servicing is required.

What limits continuous recording time on the IMX577 sensor?

The 1/2.3-inch CMOS IMX577 sensor and USB 3.0 interface sustain full 4000H x 3000V resolution until thermal throttling or host storage bandwidth becomes the bottleneck.

How much heat and noise does the camera produce during all-day operation?

The compact 38 x 38 mm board draws power solely from the USB 3.0 bus, runs silently with no fan, and typical surface temperature stays warm but not hot during extended use.
