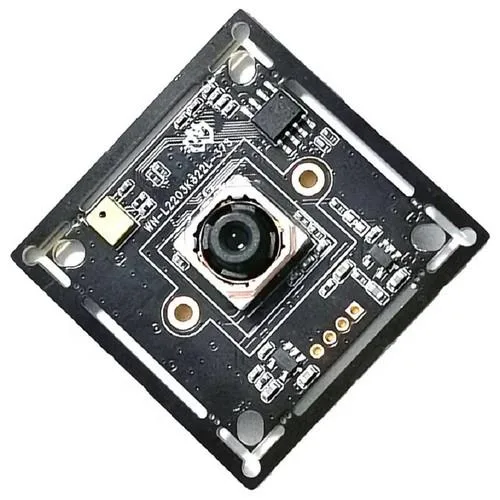

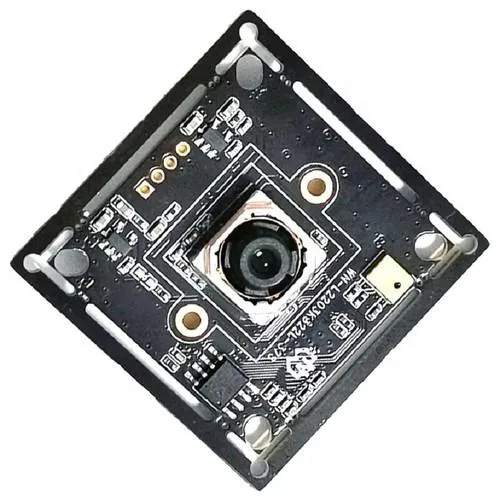

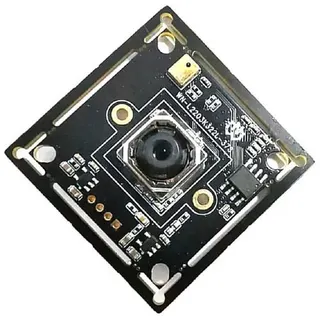

Small black rectangular USB camera module with integrated microphone and cable

Weinandianzi

Weinandianzi WN-L2203K322L 12MP 4K USB2.0 Camera Module IMX378

SKU CH-0M05-MMVVR

A 12 MP 4K USB 2.0 camera module with a 1/2.3-inch IMX378 sensor, autofocus, 79° field of view and a built-in microphone

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB2.0 Camera Module 3840x2160 30fps
  • Compatibility1/2.3-Inch CMOS IMX378
  • 4K 12 MP resolution delivers detailed images with 3840×2160 at 30 fps
  • 1/2.3-inch IMX378 sensor captures sharp 3264×2448 frames at 15 fps
  • Autofocus lens covers 79° field of view for wide coverage
  • UVC-compliant plug-and-play works on Windows Android Linux Mac without drivers
  • Built-in digital microphone adds audio capture to video streams

4K 12MP IMX378 USB2.0 Camera Module

The Weinandianzi WN-L2203K322L is a compact camera module built around a 1/2.3-inch Sony IMX378 CMOS sensor. It delivers still images up to 12 megapixels and 4K video at 3840 x 2160 resolution over a standard USB 2.0 connection. The module includes a built-in digital microphone and ships with a 1.0 metre USB cable. Autofocus and a 79° field of view suit fixed-mount installations such as kiosks, digital signage or machine-vision rigs where plug-and-play UVC compliance is required.

Embedded integrators needing UVC plug-and-play video

Developers building Windows, Android, Linux or macOS devices can integrate this module without writing custom drivers because it follows the UVC standard. The controllable parameter set covers brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation and exposure, allowing software tuning for lighting conditions. Buyers who need global-shutter capture for high-speed motion analysis or frame rates above 30 fps at 4K should look at alternative sensor designs.

Maximum 4K resolution at 30 fps over USB 2.0

The single specification that decides fit is the 3840 x 2160 at 30 frames per second output limit imposed by the USB 2.0 bandwidth. Higher resolutions such as 3840 x 2880 are listed at only 15 fps, and the rolling-shutter readout can distort fast-moving subjects. If your application demands sustained 4K 30 fps with autofocus and UVC simplicity, this module matches; if you need 60 fps or global shutter, it does not.

Highlights

  • 4K 12 MP resolution delivers detailed images with 3840×2160 at 30 fps
  • 1/2.3-inch IMX378 sensor captures sharp 3264×2448 frames at 15 fps
  • Autofocus lens covers 79° field of view for wide coverage
  • UVC-compliant plug-and-play works on Windows Android Linux Mac without drivers
  • Built-in digital microphone adds audio capture to video streams

Specifications

BrandWeinandianzi
ModelWN-L2203K322L
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB2.0 Camera Module 3840x2160 30fps
Compatibility1/2.3-Inch CMOS IMX378
Features4K 12MP HD IMX378 CMOS USB2.0 Camera Module

Questions about this item

Does the WN-L2203K322L ship with a USB cable, or do I need to buy one separately?

A 1.0 metre USB cable is included in the box, so no separate cable purchase is required for basic operation.

Should I choose the 12 MP 4K IMX378 module or the 0.3 MP VGA OV07251 global-shutter module?

The WN-L2203K322L uses a 1/2.3-inch 12 MP IMX378 sensor delivering up to 3840x2160 at 30 fps; the OV07251 variant is a different model with 0.3 MP VGA resolution and 100 fps global shutter.

What does the 30 fps at 3840x2160 spec mean when the camera is connected to a Windows PC?

At full 4K resolution the module streams 30 frames per second over USB 2.0 using MJPEG or YUY2 formats, with UVC plug-and-play support on Windows, Linux, Android and macOS.
