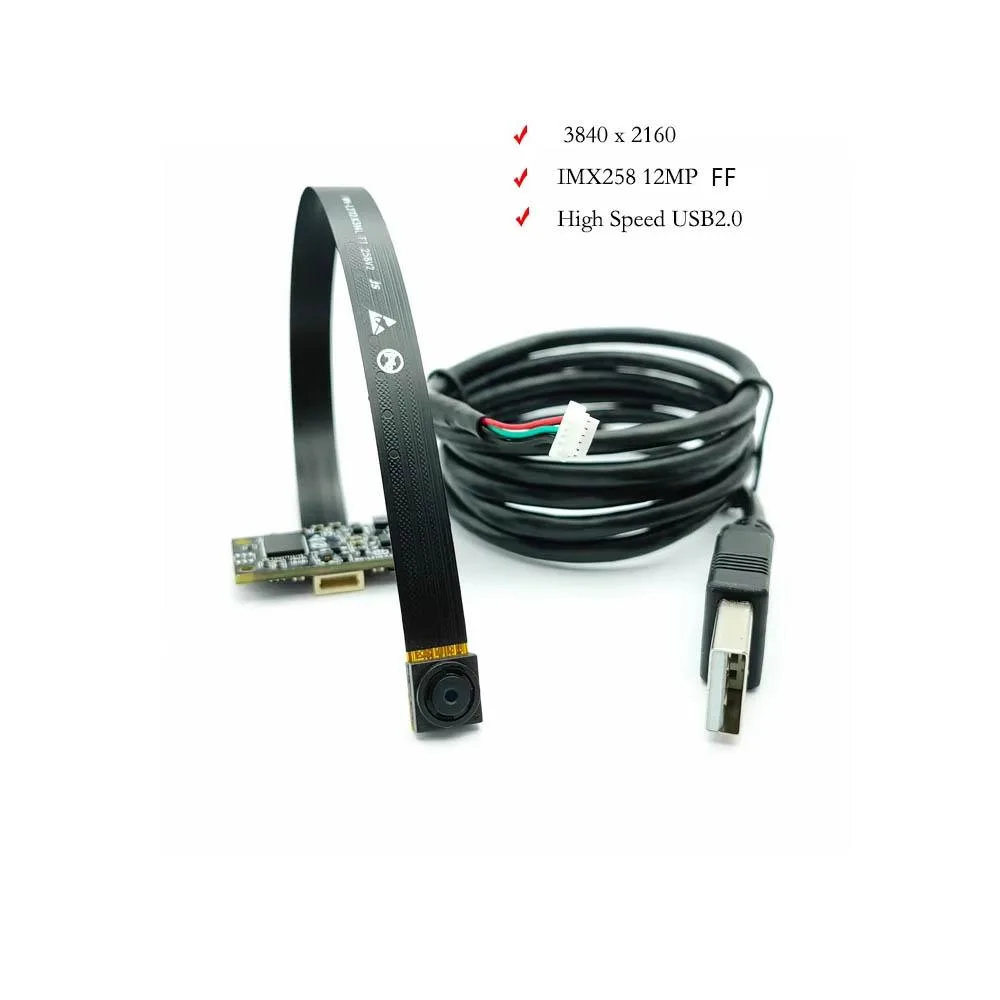

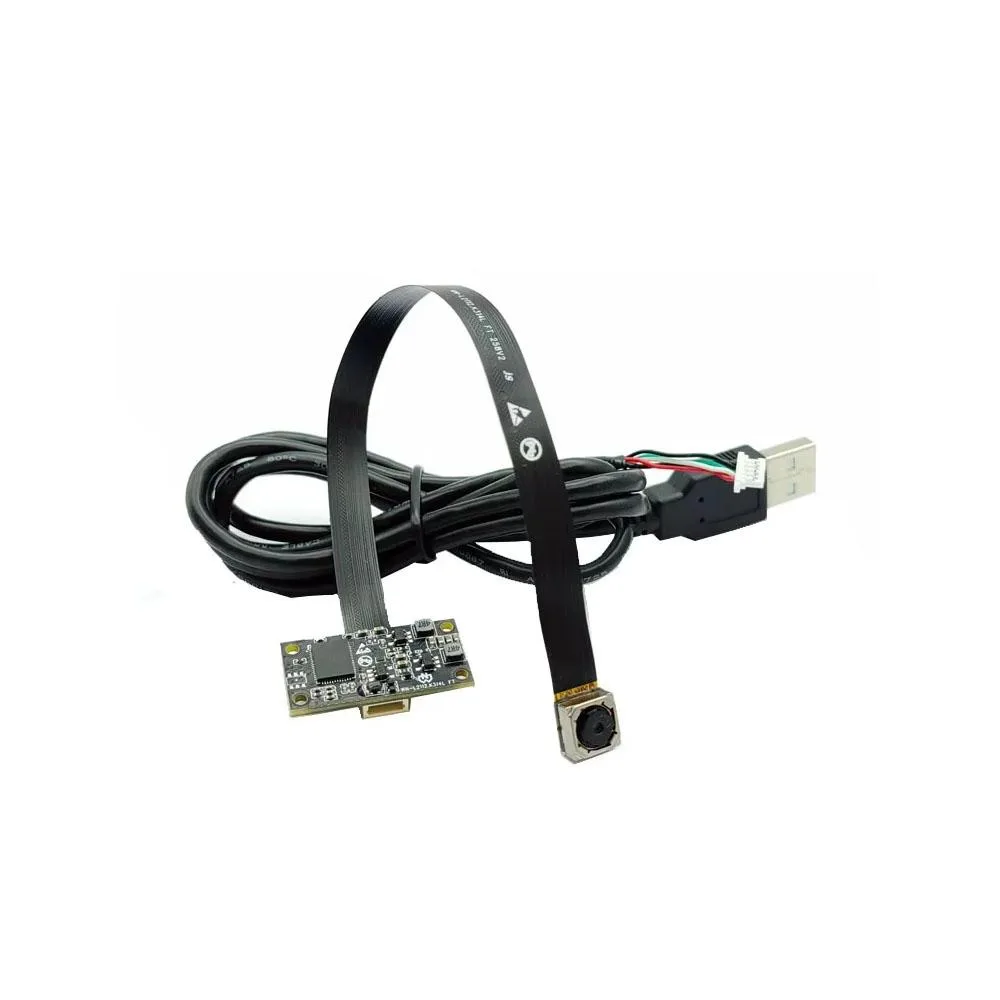

Small black rectangular camera module with short flex cable, USB connector visible

Weinandianzi

Weinandianzi WN-L2112.K314L-OV5693/IMX258 USB Camera Module

SKU CH-F3RJ-1ZXHP

Dual-sensor USB 2.0 camera module delivers 4K at 30 fps or 5 MP at 30 fps with autofocus, fixed-focus options and driver-free MJPEG or YUY2 output

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9
  • Sharp 4K capture at 30 fps with IMX258 sensor
  • Smooth 1080p video at 60 fps for fluid motion
  • Dual sensor option adds OV5693 5 MP module
  • Driver-free USB 2.0 connection simplifies machine-vision setup
  • Compact 44 mm modules fit tight vision systems

Product Identity

The Weinandianzi WN-L2112.K314L-OV5693/IMX258 is a USB 2.0 camera module offering dual sensor options for machine vision and product vision tasks. It suits engineers and developers integrating compact imaging into embedded systems or inspection rigs. Buyers needing built-in illumination or wireless connectivity will not find those features here.

Thermals Noise Power

The module draws power directly from a high-speed USB 2.0 connection without an external supply. Its small 44 by 30 mm or 44 by 21 mm form factor produces minimal heat during typical 30 FPS capture. No active cooling is required and acoustic noise is absent. Integrators with strict thermal envelopes should verify enclosure airflow.

Deciding Specification

The IMX258 variant delivers 4K resolution at 3840 by 2160 pixels and 30 frames per second over MJPEG. The OV5693 variant tops out at 2952 by 1944 pixels and 30 frames per second in MJPEG or 3 frames per second in YUY2 at full resolution. Choose the sensor that matches your required pixel count and frame-rate budget.

Highlights

  • Sharp 4K capture at 30 fps with IMX258 sensor
  • Smooth 1080p video at 60 fps for fluid motion
  • Dual sensor option adds OV5693 5 MP module
  • Driver-free USB 2.0 connection simplifies machine-vision setup
  • Compact 44 mm modules fit tight vision systems

Specifications

BrandWeinandianzi
ModelWN-L2112.K314L-OV5693/IMX258
Part NumberWN-L2112.K314L-IMX258/OV5693
TypeOther
Quantity1
ColorBlack
Size13x9x9

Questions about this item

How is the WN-L2112.K314L-OV5693/IMX258 module installed, and what step do people get wrong?

Plug the USB 2.0 connector into the host; the module is drive-free so no driver installation is required. The common mistake is forgetting that the OV5693 sensor only reaches 2952×1944 at 30 fps in MJPEG mode — YUY2 drops to 3 fps at that resolution.

What maintenance or replacement will the camera module need later?

The electronic rolling shutter and fixed-focus or autofocus optics have no user-serviceable parts. If the lens assembly or the IMX258/OV5693 sensor fails, the entire 44×30 mm or 44×21 mm module must be replaced.

What limit appears first when the IMX258 sensor runs at 4K 30 fps continuously?

The USB 2.0 bandwidth caps sustained throughput, so 3840×2160 at 30 fps MJPEG is the practical ceiling; higher frame rates at 4K are not supported by the interface.
