Small black rectangular USB camera module with fixed lens

Weinandianzi

Weinandianzi WN-L2109.K229L USB Camera Module 2MP 30fps 65° Fixed Focus

SKU CH-TWRY-1KZHH

A 2MP USB 2.0 camera module with a 1/5-inch CMOS sensor, fixed 65° field of view, and 30fps MJPEG or YUY2 output for embedded vision projects

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module Fixed Focus 65° 1600Hx1200V MJPEG, YUY2 US
  • Compatibility1/5.0-inch GC02M2 CMOS
  • 2 MP resolution at 30 fps delivers smooth video for streaming
  • 65° field of view captures wide scenes without distortion
  • Fixed focus optics keep subjects sharp from installation
  • UVC compliant USB 2.0 interface works instantly on PCs and embedded boards
  • Compact 60 × 8 mm module fits tight enclosures for dash cams or 3D printers

Weinandianzi WN-L2109.K229L USB Camera Module

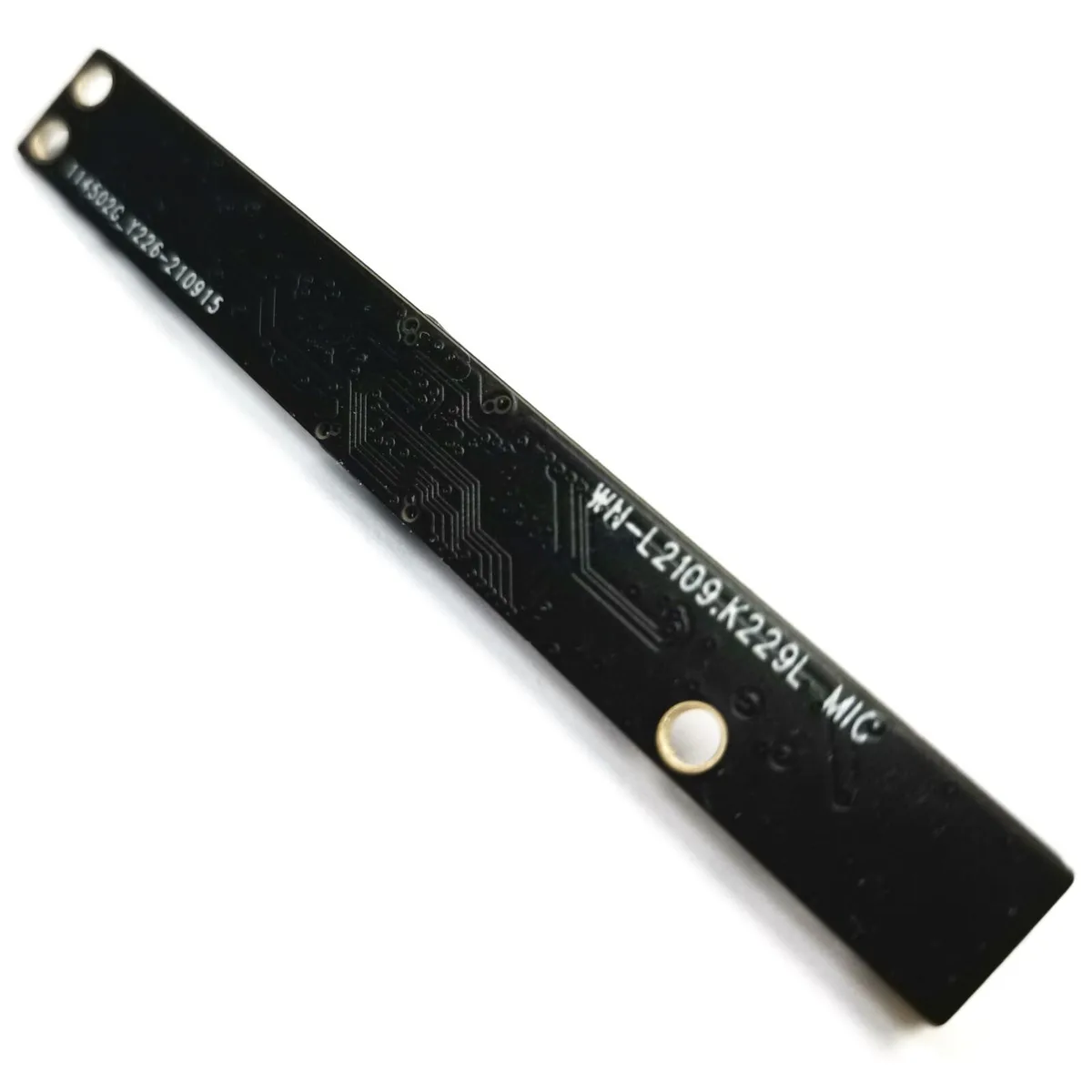

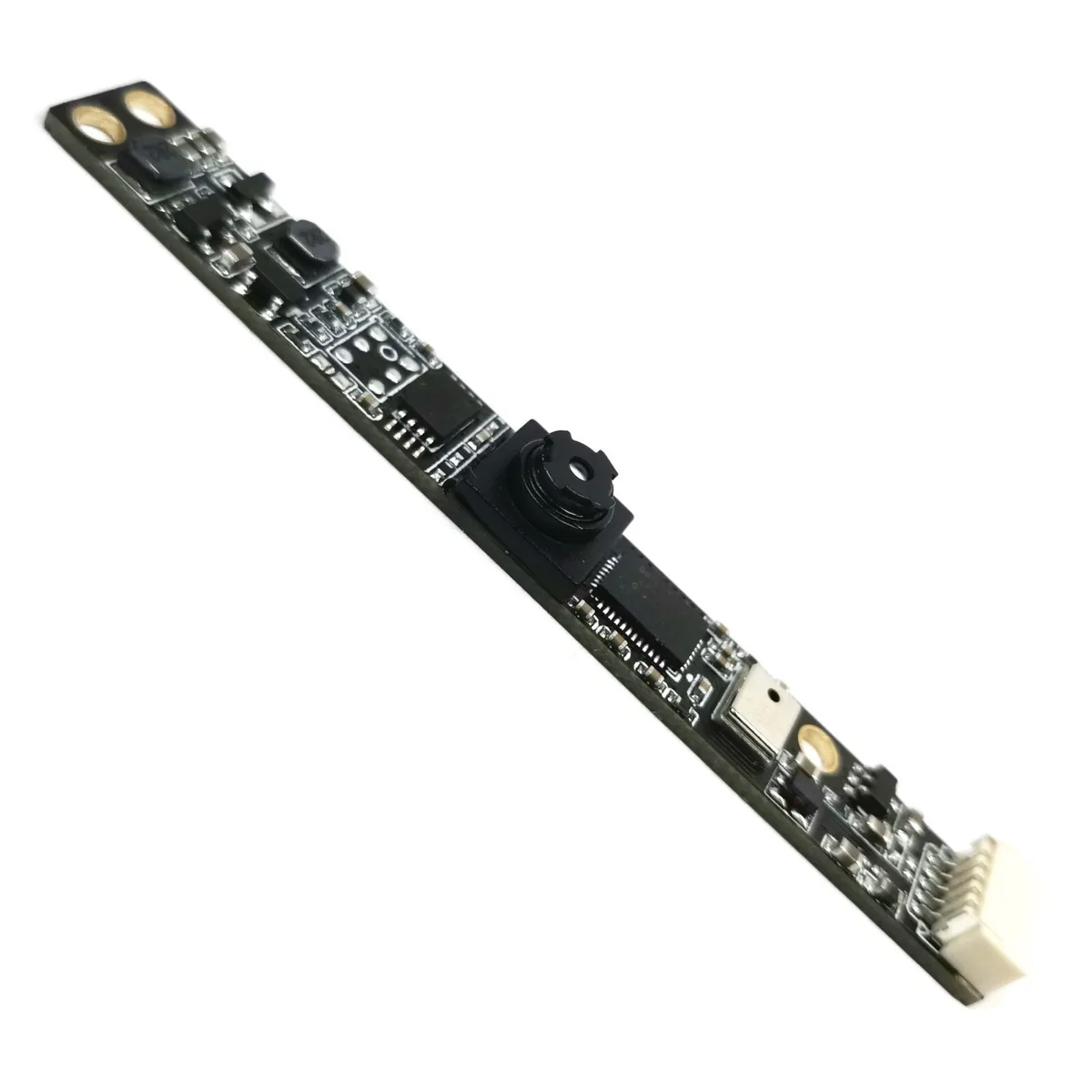

The Weinandianzi WN-L2109.K229L is a compact 2MP USB camera module built around a 1/5.0-inch GC02M2 CMOS sensor. It delivers 1600 by 1200 resolution at 30 frames per second with a fixed 65-degree field of view. The module measures 60 by 8 millimetres and connects via a 5-pin 1.00-millimetre socket over high-speed USB 2.0. It suits developers and integrators adding vision to embedded or PC-based projects.

UVC-compliant MJPEG and YUY2 output

The sensor streams in MJPEG and YUY2 formats without requiring proprietary drivers on Windows, Linux or macOS. A single controllable parameter adjusts brightness, while the electronic rolling shutter and digital one-way audio input are handled entirely over the USB link. Plug-and-play operation means the module appears as a standard video device on a Raspberry Pi, Jetson Nano, laptop or desktop immediately after connection.

2MP fixed-focus capacity for close-range tasks

At two megapixels and 30 fps the module comfortably handles monitoring, basic machine-vision and 3D-printer timelapse duties where the subject stays within the fixed-focus range. The 1.7-micrometre pixels and 65-degree view limit low-light sensitivity and wide-area coverage, so it is not suited to long-distance identification, high-detail inspection or scenes demanding autofocus or higher resolution.

Highlights

  • 2 MP resolution at 30 fps delivers smooth video for streaming
  • 65° field of view captures wide scenes without distortion
  • Fixed focus optics keep subjects sharp from installation
  • UVC compliant USB 2.0 interface works instantly on PCs and embedded boards
  • Compact 60 × 8 mm module fits tight enclosures for dash cams or 3D printers

Specifications

BrandWeinandianzi
ModelWN-L2109.K229L
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module Fixed Focus 65° 1600Hx1200V MJPEG, YUY2 USB Webcam UVC-compliant, Plug and Play
Compatibility1/5.0-inch GC02M2 CMOS
Features2MP 30fps 1/5.0-inch GC02M2 CMOS USB Camera Module Fixed Focus 65°

Questions about this item

Will the fixed-focus lens ever need adjustment or replacement?

The lens is fixed at 65° with no moving parts, so no focus adjustment is needed and there is no focus mechanism to wear out.

What limits continuous operation at 30 fps?

The USB 2.0 interface bandwidth and the rolling-shutter CMOS sensor define the maximum sustained frame rate of 30 fps at 1600×1200.

How much heat or power does the module draw when running all day?

It draws power directly from the USB 2.0 port (5 V) and the small 60×8 mm board stays cool during continuous use.
