Small black rectangular camera module with USB cable, 13 by 9 by 9 cm

Weinandianzi

Weinandianzi WN-L2108.K224S 16MP USB2.0 Camera Module AF 78.4° Digital Mic

SKU CH-DWZE-92FVF

A 16-megapixel USB 2.0 camera module with autofocus, a 78.4-degree field of view, and a built-in digital microphone for machine-vision applications

  • TypeOther
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB2.0 Camera Module AF 78.4° with Digital Mic UVC-compliant
  • Compatibility1/2.8Inch CMOS IMX298
  • Features4656x3496 16MP HD 1/2.8Inch CMOS IMX298 USB2.0 Camera Module
  • 16MP resolution captures fine detail with 4656 x 3496 pixel sensor
  • 1/2.8-inch IMX298 sensor provides 1.12 µm pixels for low-light sensitivity
  • Autofocus and 78.4° field of view suit machine vision tasks
  • Built-in digital microphone adds audio capture to video streams
  • UVC-compliant USB 2.0 interface enables plug-and-play on Windows, Android, Linux, Mac OS

Weinandianzi 16MP USB2.0 Camera Module

The Weinandianzi WN-L2108.K224S is a compact 16MP USB2.0 camera module built around a 1/2.8-inch IMX298 CMOS sensor. It delivers a maximum resolution of 4656 x 3496 pixels and includes a digital microphone for audio capture. The module is UVC-compliant for plug-and-play operation across Windows, Android, Linux, and Mac OS without requiring proprietary drivers. It targets developers and integrators building machine vision or embedded imaging systems.

4656 x 3496 resolution with 1.12µm pixels

The IMX298 sensor provides 16 megapixels at a 1.12µm pixel size, offering high detail for inspection or recognition tasks. Output is delivered as MJPEG over USB2.0, which limits sustained frame rates at full resolution compared to faster interfaces. The module supports both fixed focus and autofocus modes, with controllable parameters for brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight contrast, and exposure. An electronic rolling shutter handles exposure timing.

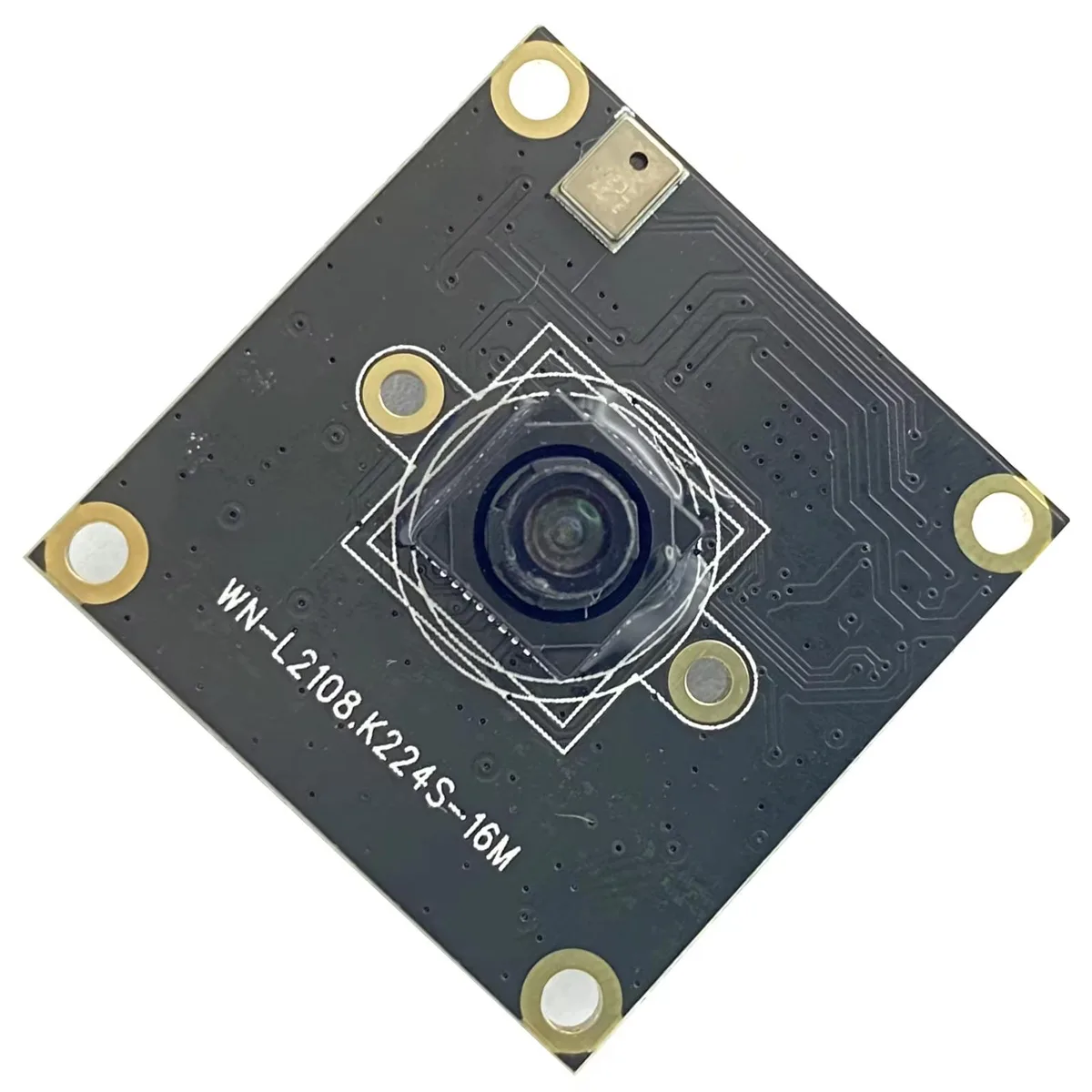

32x32mm board with 5PIN 1.25mm connector

The module measures 32 x 32mm and ships with a default 1.0 metre USB cable terminating in a 5PIN 1.25mm connector on the board side. This compact footprint suits tight enclosures, though the fine-pitch connector requires a matching header or adapter cable for integration. The 78.4° field of view (specified as 117°/75° in technical data) covers a wide angle for close-range monitoring. Buyers needing longer cable runs or higher bandwidth interfaces should verify compatibility before purchase.

Highlights

  • 16MP resolution captures fine detail with 4656 x 3496 pixel sensor
  • 1/2.8-inch IMX298 sensor provides 1.12 µm pixels for low-light sensitivity
  • Autofocus and 78.4° field of view suit machine vision tasks
  • Built-in digital microphone adds audio capture to video streams
  • UVC-compliant USB 2.0 interface enables plug-and-play on Windows, Android, Linux, Mac OS

Specifications

BrandWeinandianzi
ModelWN-L2108.K224S
TypeOther
ColorBlack
Size13x9x9cm
SpecificationsUSB2.0 Camera Module AF 78.4° with Digital Mic UVC-compliant, Plug and Play for Machine Machine Vision
Compatibility1/2.8Inch CMOS IMX298
Features4656x3496 16MP HD 1/2.8Inch CMOS IMX298 USB2.0 Camera Module

Questions about this item

Will the 16MP IMX298 sensor and 78.4° field of view work alongside an older USB 2.0 hub I already own?

Yes, the module is USB 2.0 UVC-compliant and plug-and-play, so it will operate on any standard USB 2.0 hub or port without extra drivers on Windows, Android, Linux or Mac OS.

How can I verify the autofocus and digital microphone are functioning correctly after plugging it in?

Open any UVC-compatible preview application, confirm the 4656x3496 resolution is selectable, watch the lens adjust when you move an object closer, and check the audio input meter responds to speech.

Does the box include the 1.0 metre USB cable and the 5-pin 1.25mm connector, or must I source them separately?

A 1.0 metre USB cable is supplied by default and the module has a 5-pin 1.25mm interface on board, so no separate cable or connector purchase is required.
