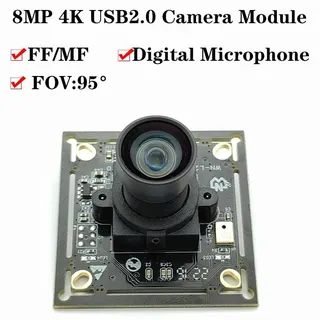

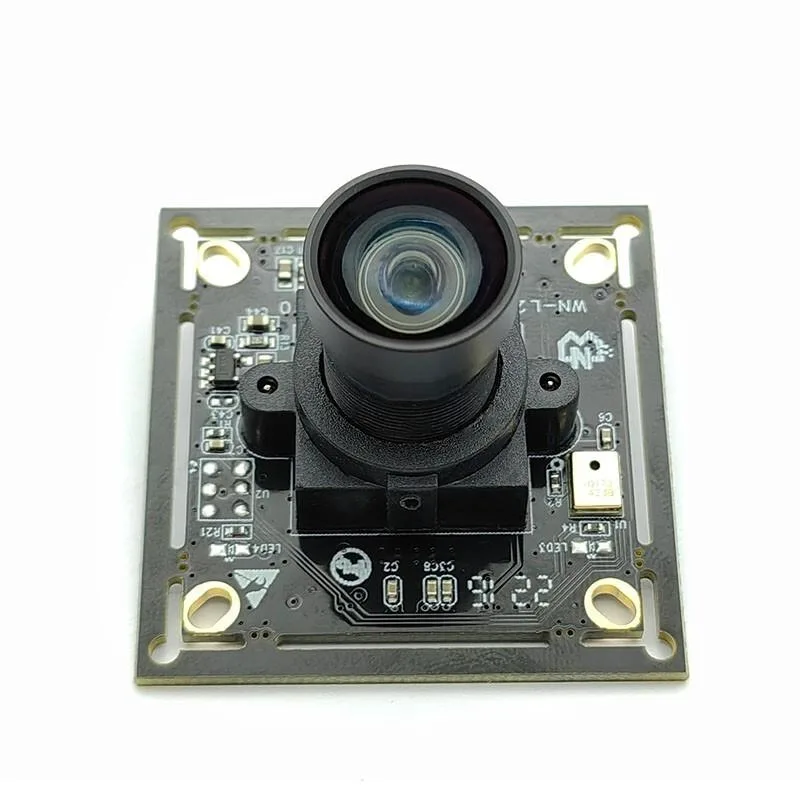

Small black rectangular camera board with integrated microphone and M12 lens visible

Weinandianzi

Weinandianzi WN-L2104.K215L 4K 8MP USB2.0 Camera Module with Microphone

SKU CH-XMBQ-YTHSH

8MP USB 2.0 camera module with IMX415 sensor captures 4K at 30 fps and includes a microphone

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module with Microphone Mini USB2.0 Webcam Board
  • Compatibility1/2.8-inch IMX415 CMOS
  • 4K 8MP resolution at 30 fps via MJPEG for smooth video
  • 1/2.8-inch IMX415 CMOS sensor captures detailed 3840x2160 images
  • 100 degree M12 lens with 94.5 degree HFOV gives wide, distortion-free view
  • UVC compliance enables driverless use on Windows, Linux and Android
  • Built-in microphone adds audio capture to the compact 38x38mm board

Weinandianzi WN-L2104.K215L 4K 8MP USB2.0 Camera

The Weinandianzi WN-L2104.K215L is a compact USB 2.0 camera module built around a 1/2.8-inch IMX415 CMOS sensor. It captures 8-megapixel 4K video at 3840 by 2160 resolution and includes an integrated microphone. UVC compliance allows plug-and-play operation on Windows, Linux, and Android systems without extra drivers. Developers and integrators needing a small, high-resolution USB vision block will find it a direct fit.

38mm square board with 100-degree M12 lens

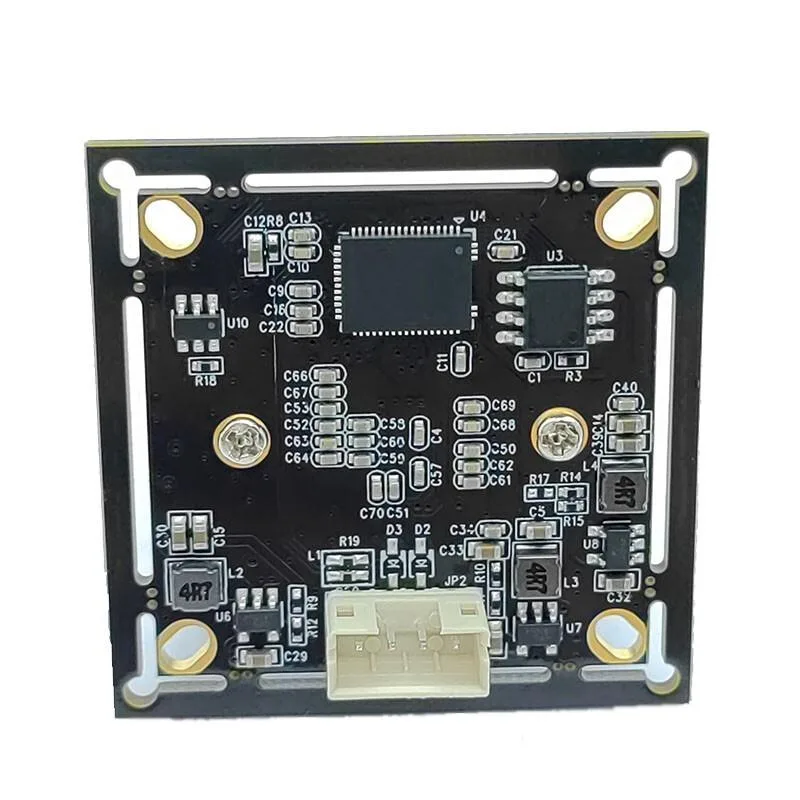

The module measures 38 by 38 millimetres and carries an HD M12 lens with a 100-degree field of view and roughly 94.5-degree horizontal coverage, specified as no-distortion. A single Mini USB 2.0 connector supplies both power and data, simplifying cabling in tight enclosures. Fixed-focus optics mean no moving parts to wear, while the black housing blends into industrial or embedded designs. The small footprint eases mounting behind panels or inside custom brackets.

Upgrades 1080p USB webcams for 4K capture

This unit replaces standard 1080p USB webcam modules when 4K resolution at 30 frames per second in MJPEG is required. The jump is worth it for applications that crop, zoom, or analyse fine detail in post-processing, such as automated inspection or digital signage analytics. Buyers who need higher frame rates at 4K in uncompressed formats, or who require hardware encoding offload, should look elsewhere because the USB 2.0 interface limits YUY2 4K output to 2 frames per second.

Highlights

  • 4K 8MP resolution at 30 fps via MJPEG for smooth video
  • 1/2.8-inch IMX415 CMOS sensor captures detailed 3840x2160 images
  • 100 degree M12 lens with 94.5 degree HFOV gives wide, distortion-free view
  • UVC compliance enables driverless use on Windows, Linux and Android
  • Built-in microphone adds audio capture to the compact 38x38mm board

Specifications

BrandWeinandianzi
ModelWN-L2104.K215L
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module with Microphone Mini USB2.0 Webcam Board
Compatibility1/2.8-inch IMX415 CMOS
Features4K 8MP HD 1/2.8-inch IMX415 CMOS USB Camera Module

Questions about this item

What maximum frame rate does the USB 2.0 interface actually allow at 3840x2160?

The module delivers 3840x2160 at 30 fps using MJPEG compression; YUY2 at the same resolution drops to 2 fps.

What are the board dimensions and lens thread for mounting?

The PCB measures 38 by 38 mm and uses an M12 lens with a 100 degree field of view and 94.5 degree horizontal coverage.

How is the camera connected and which driver step is commonly missed?

Plug the Mini USB 2.0 connector into a host port; the device is UVC compliant so Windows, Linux and Android recognise it without extra drivers.
