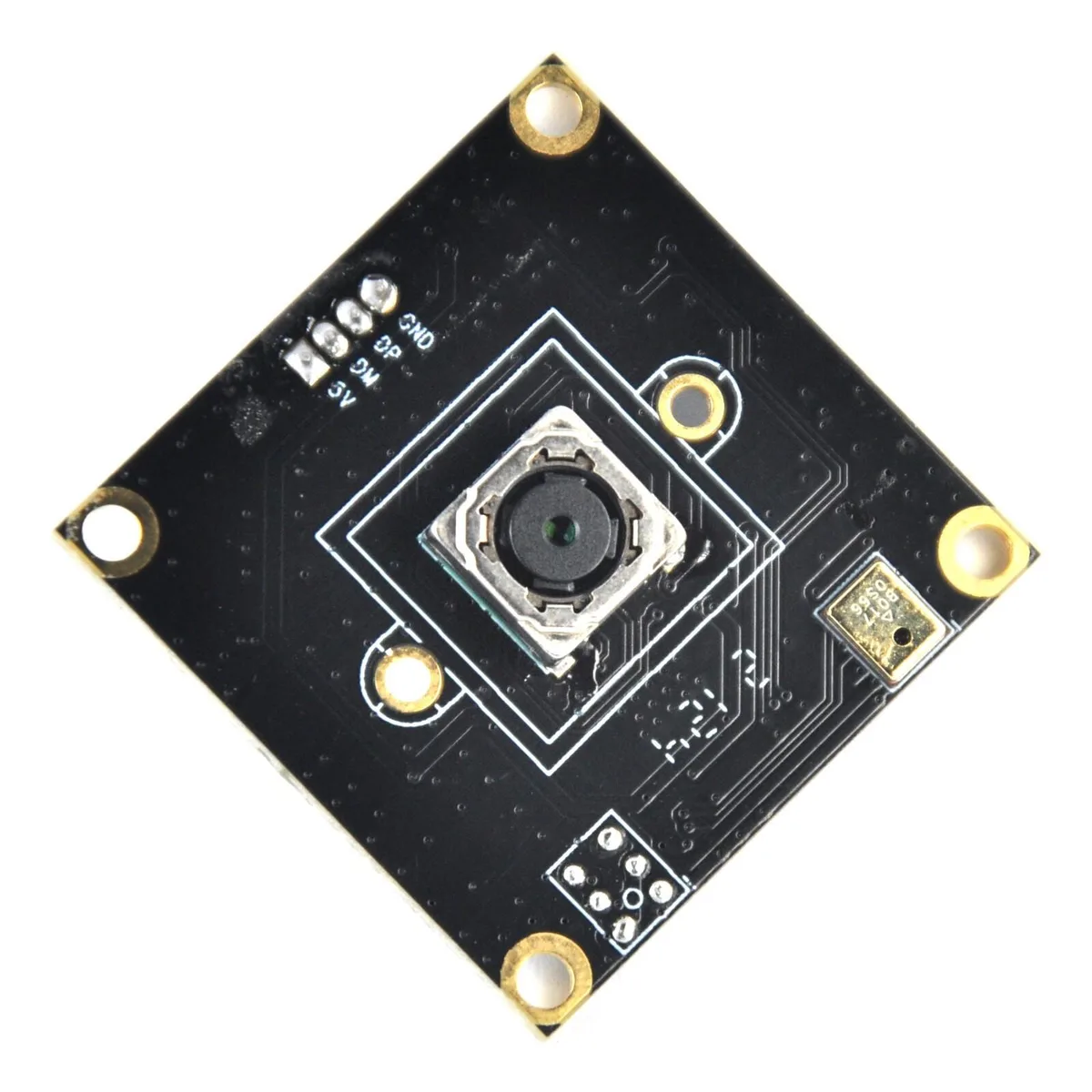

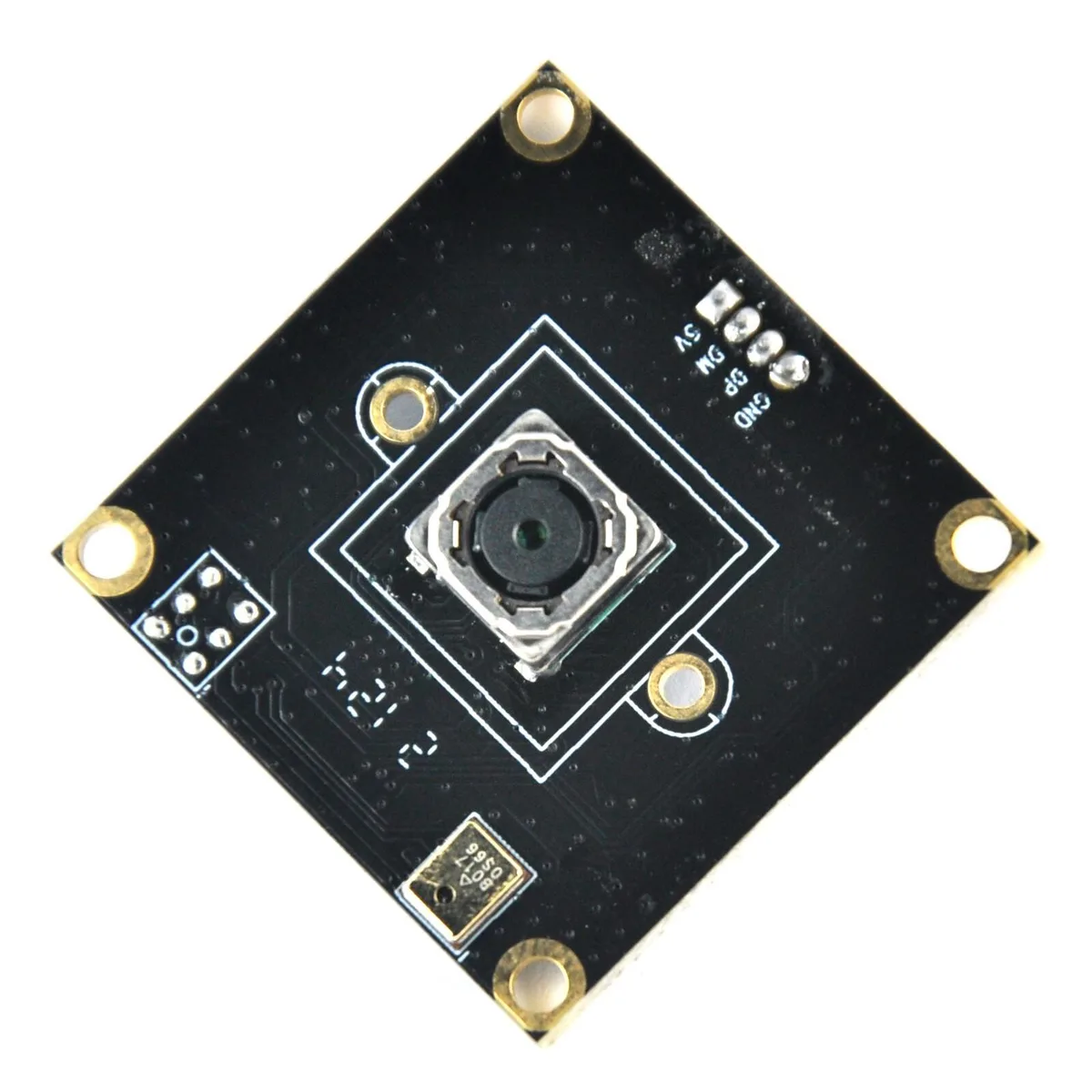

Small black rectangular camera module with integrated microphone

Weinandianzi

Weinandianzi WN-L2103.K209L 5MP USB Camera Module Autofocus Digital Microphone

SKU CH-2PFH-X65RR

A 5 megapixel USB camera module with a 1/4-inch OV5693 CMOS sensor, autofocus lens, and built-in digital microphone

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module Auto Focus with Digital Microphone Face Re
  • Compatibility1/4inchOV5693 CMOS
  • 5 MP resolution captures detailed images with the 1/4.0-inch OV5693 CMOS sensor
  • Autofocus lens with 75° field of view keeps subjects sharp across the frame
  • Built-in digital microphone records clear audio alongside video
  • USB 2.0 interface delivers MJPEG and YUY2 output for broad compatibility
  • Compact 32×32 mm module fits space-constrained designs

Weinandianzi WN-L2103.K209L 5MP USB Camera Module

The Weinandianzi WN-L2103.K209L is a compact 5MP USB 2.0 camera module built around a 1/4.0-inch OV5693 CMOS sensor. It delivers a maximum resolution of 2952 x 1944 pixels at 15 frames per second. The module includes autofocus with a 75° field of view and an integrated digital microphone for audio capture. It connects via a high-speed USB 2.0 interface and outputs video in MJPEG or YUY2 formats.

Developers adding vision to embedded devices

This module suits engineers integrating a small-form-factor camera into USB-host systems where 5MP still capture and basic video are sufficient. The fixed 32 x 32 mm board size and autofocus lens simplify mechanical design. Buyers who need higher frame rates at full resolution, lower-light sensitivity beyond 69 dB dynamic range, or a different lens focal length should evaluate alternative sensors.

2952 x 1944 resolution at 15 fps over USB 2.0

The single specification that determines fit is the maximum output of 2952 x 1944 pixels at 15 fps through a USB 2.0 connection. This throughput caps the usable resolution and frame-rate combination for any host application. If your design requires sustained full-resolution video at a higher frame rate, this module will not meet that requirement.

Highlights

  • 5 MP resolution captures detailed images with the 1/4.0-inch OV5693 CMOS sensor
  • Autofocus lens with 75° field of view keeps subjects sharp across the frame
  • Built-in digital microphone records clear audio alongside video
  • USB 2.0 interface delivers MJPEG and YUY2 output for broad compatibility
  • Compact 32×32 mm module fits space-constrained designs

Specifications

BrandWeinandianzi
ModelWN-L2103.K209L
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module Auto Focus with Digital Microphone Face Recognition
Compatibility1/4inchOV5693 CMOS
Features5MP OV5693 USB Camera Module Auto Focus

Questions about this item

Is the 5 MP 2592×1944 module the right choice for a compact face-recognition build?

Yes — the 1/4-inch OV5693 sensor, 75° autofocus lens and on-board digital microphone are integrated on a 32×32 mm board, so the 5 MP version covers both imaging and audio in one small package.

What frame rate will I actually see at the full 2592×1944 resolution?

The sensor streams 2592×1944 at 15 fps over USB 2.0, so that is the practical ceiling for full-resolution MJPEG or YUY2 capture.

Does the USB 2.0 interface limit the 5 MP 15 fps video stream?

USB 2.0 high-speed carries the 2592×1944 15 fps MJPEG or YUY2 feed within its bandwidth envelope, so the interface does not throttle the module’s maximum output.
