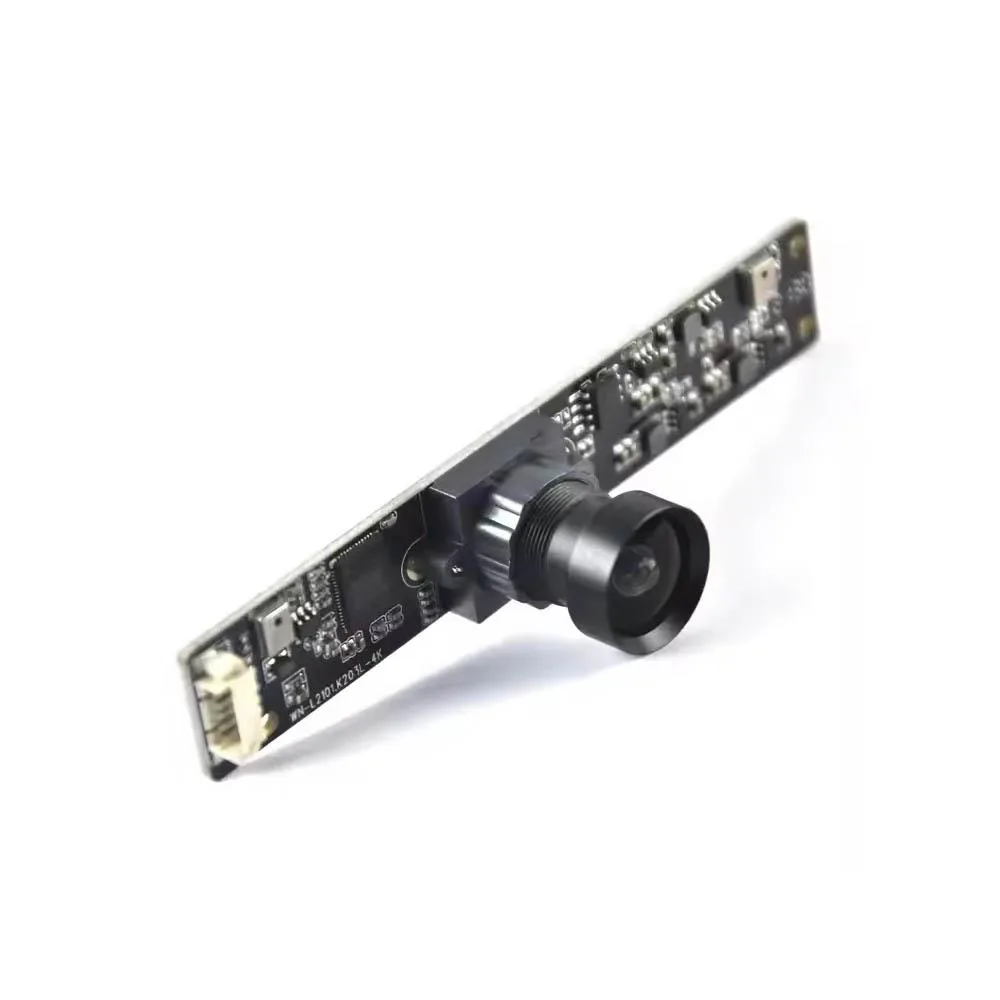

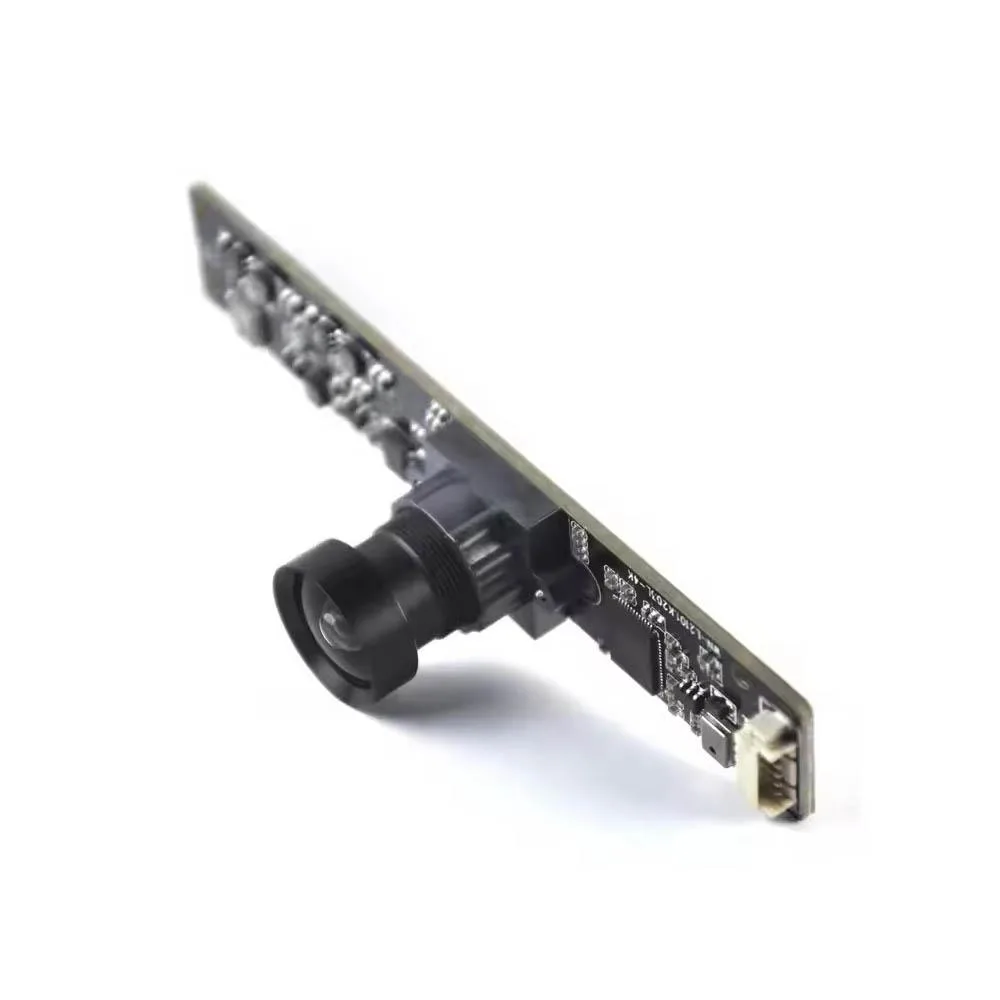

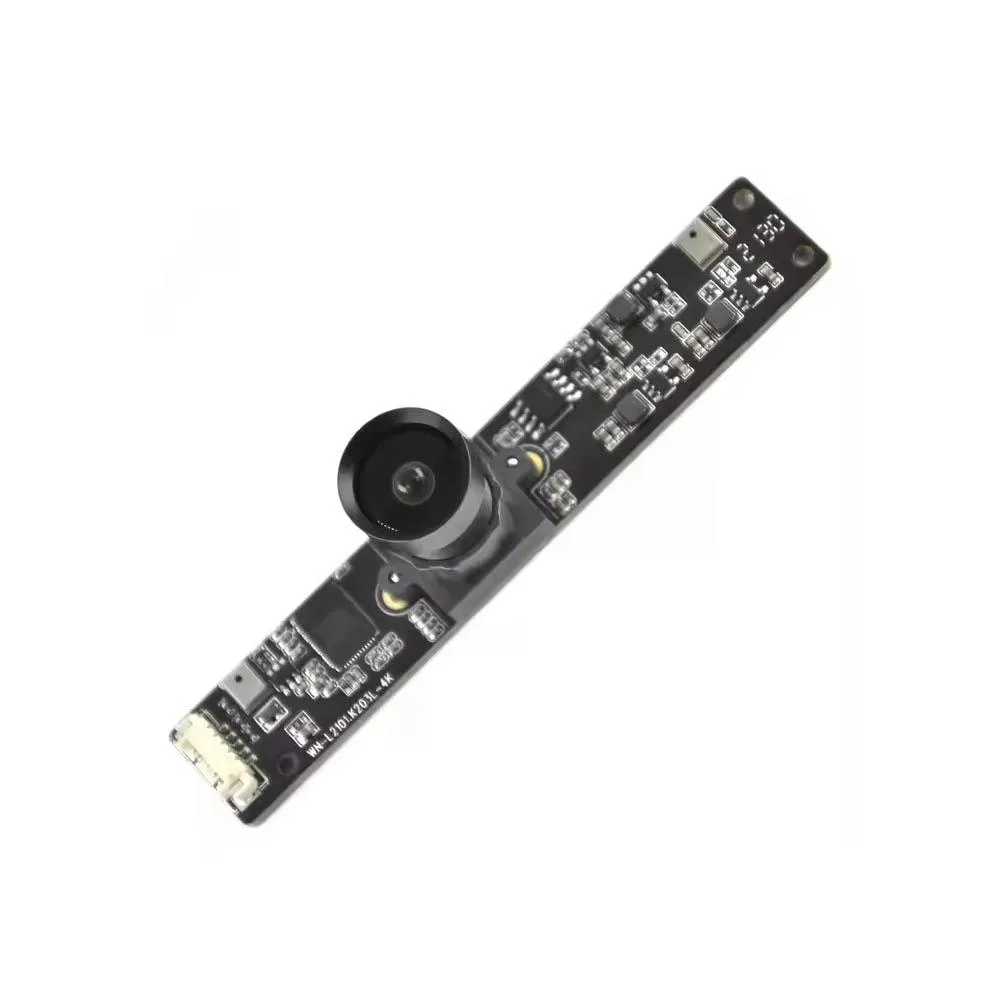

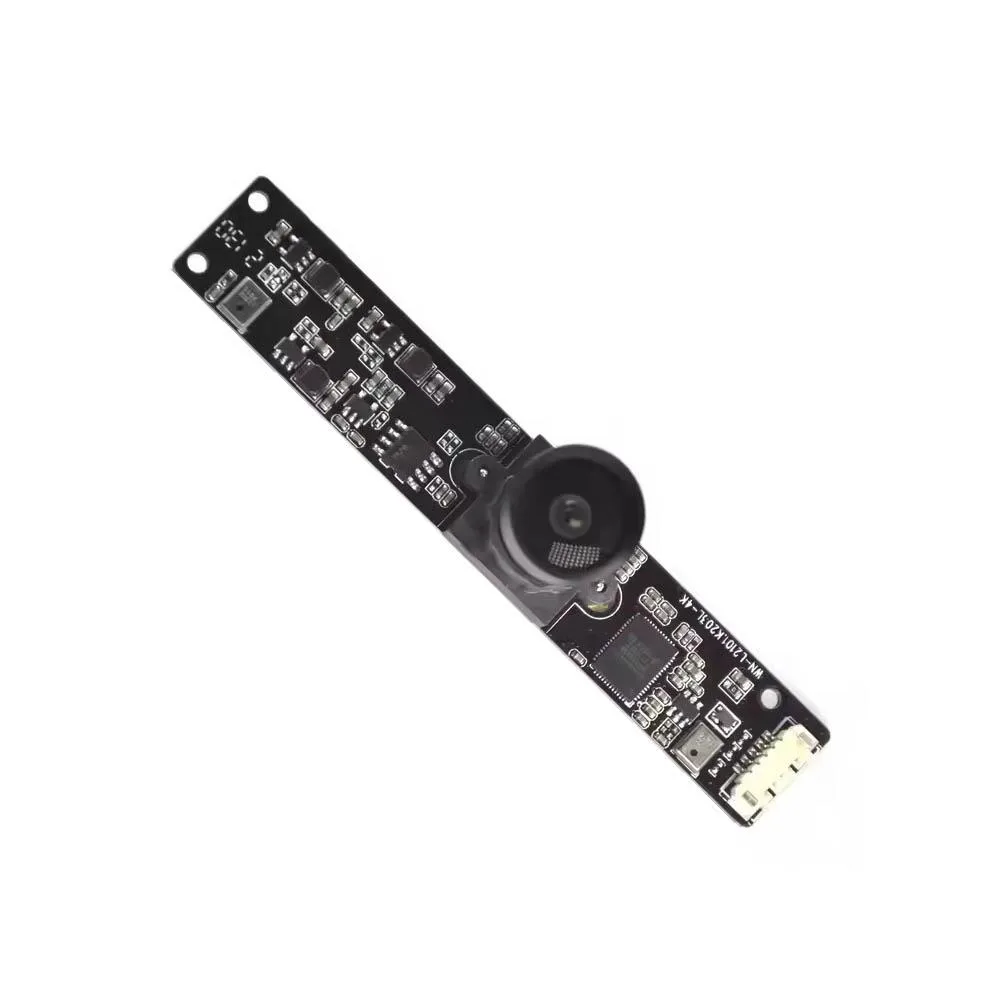

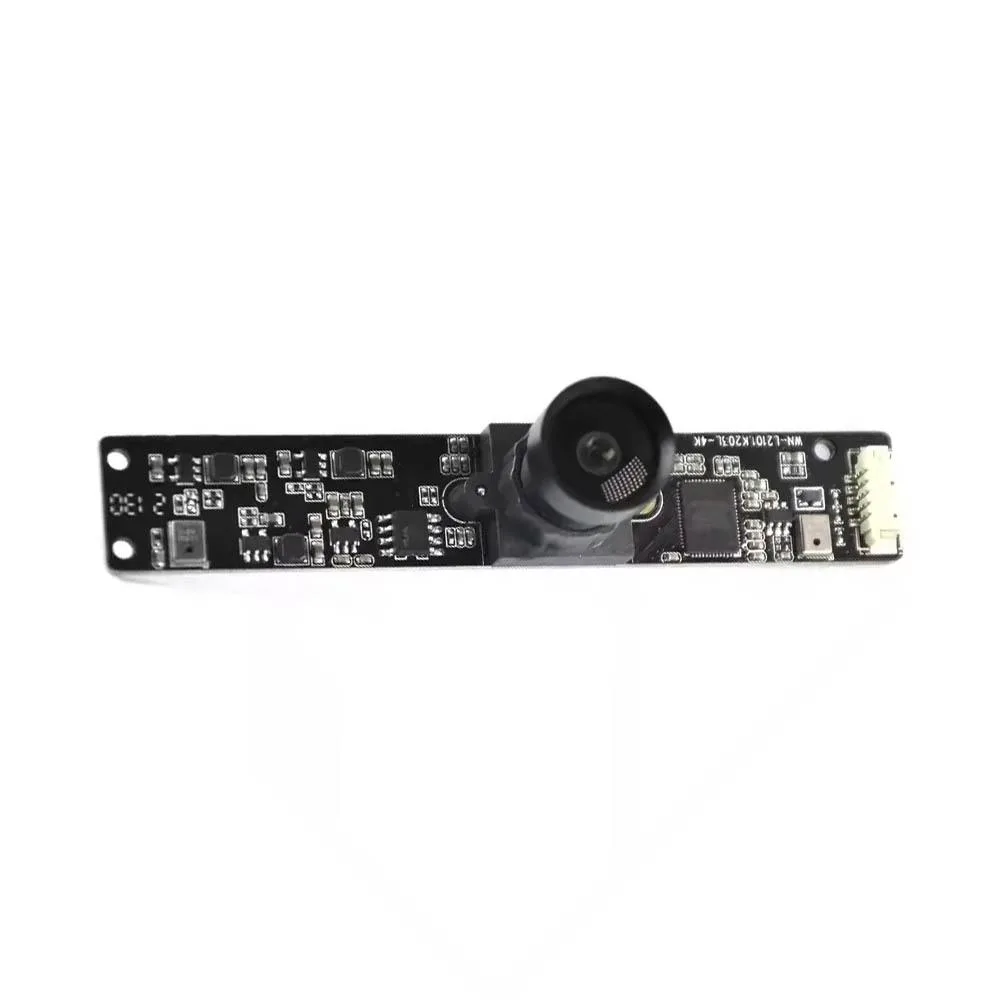

Black rectangular USB camera module with fixed lens and 1.0 metre cable

Weinandianzi

Weinandianzi WN-L2101.K203L-4K 8MP IMX415 USB Camera Module 120° FF

SKU CH-2ANR-RG2J2

A 4K 8 MP USB camera module with a 120° fixed-focus lens, IMX415 sensor, digital microphone and UVC plug-and-play operation

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB Camera Module with Digital Mic FF 120° UVC-compliant, Pl
  • Compatibility1/2.8 Inch CMOS IMX415
  • 4K 8MP IMX415 sensor delivers detailed 3840x2160 video at 30fps
  • 120° wide field of view captures broad scenes for machine vision
  • Fixed focus with 1.45µm pixels ensures sharp images without adjustment
  • UVC-compliant USB 2.0 interface enables driver-free plug-and-play setup
  • Built-in digital microphone adds two-way audio to video streams

8 MP USB camera module for machine vision

The Weinandianzi WN-L2101.K203L-4K uses a 1/2.8 inch CMOS IMX415 sensor to deliver 3840x2160 resolution at 30 fps in MJPEG. A built-in digital microphone adds two-way audio for communication tasks. UVC compliance makes it plug-and-play on standard hosts without extra drivers.

Fixed-focus 120° field of view

The lens is fixed focus with a 120° diagonal field of view, so everything from close objects to infinity stays sharp without adjustment. This wide angle suits machine vision stations that must monitor a broad area from a short working distance.

USB 2.0 powered with 1 m cable

Power and data run over a single USB 2.0 connection, drawing bus power with no external supply needed. The module measures 90 x 15 mm and ships with a 1.0 metre cable, keeping cabling simple for embedded installations.

Highlights

  • 4K 8MP IMX415 sensor delivers detailed 3840x2160 video at 30fps
  • 120° wide field of view captures broad scenes for machine vision
  • Fixed focus with 1.45µm pixels ensures sharp images without adjustment
  • UVC-compliant USB 2.0 interface enables driver-free plug-and-play setup
  • Built-in digital microphone adds two-way audio to video streams

Specifications

BrandWeinandianzi
ModelWN-L2101.K203L-4K 8MP IMX415
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB Camera Module with Digital Mic FF 120° UVC-compliant, Plug and Play
Compatibility1/2.8 Inch CMOS IMX415
Features3840x2160 4K 8MP HD IMX415 USB Camera Module

Questions about this item

What does the 3840x2160 4K resolution look like when the module is running inside a machine vision setup?

The 1/2.8 inch IMX415 sensor captures 8 megapixels at 3840x2160, delivering 30 frames per second in MJPEG mode for detailed inspection or monitoring tasks.

How does the USB 2.0 interface limit the frame rates I can actually use?

USB 2.0 bandwidth caps YUY2 output at 2 fps for 4K, 5 fps for 1080p, and 10 fps for 720p, while MJPEG sustains 30 fps across all listed resolutions up to 4K.

What physical space and mounting points does the 90x15 mm board need?

The module measures 90 by 15 mm with a fixed-focus 120° lens, ships with a 1.0 metre USB cable, and requires only a standard USB 2.0 port for power and data.
