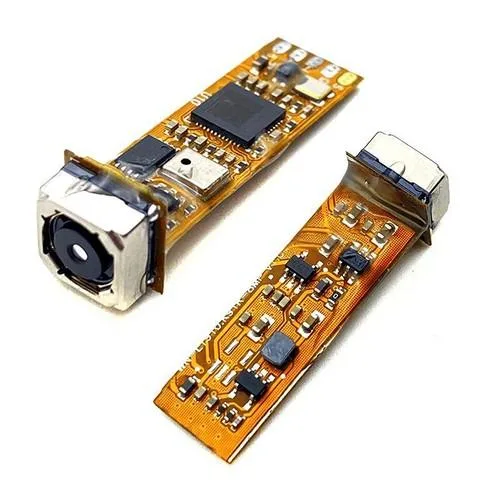

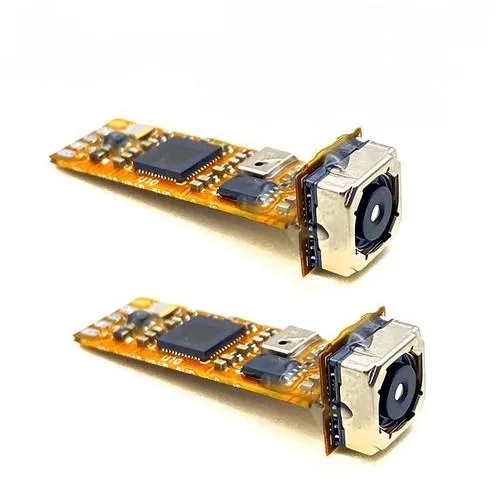

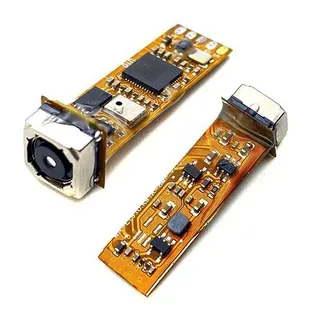

Compact rectangular camera module with silver lens housing and circuit board visible

Weinandianzi

Weinandianzi WN-L1910.K91R 8MP USB2.0 Camera Module with Digital Mic

SKU CH-Z0F6-88KZA

An 8-megapixel USB 2.0 camera module with a 1/3.2-inch IMX179 CMOS sensor, autofocus, 75-degree field of view and a built-in digital microphone for industrial inspection and medical devices

  • TypeOther
  • Size13x9x9cm
  • SpecificationsUSB Camera Module with Digital Mic for Industrial Inspection
  • Compatibility1/3.2-inch IMX179 CMOS
  • Features4K 8MP HD 1/3.2-inch IMX179 CMOS Autofocus Endoscope USB Cam
  • 8MP resolution captures fine detail with the 1/3.2-inch IMX179 CMOS sensor
  • Autofocus keeps subjects sharp across a 75° field of view
  • Digital microphone adds synchronised audio for inspection records
  • USB2.0 interface delivers video and power over a single cable
  • Compact 35.45 mm module fits tight spaces in medical or industrial devices

Industrial inspection camera

The Weinandianzi WN-L1910.K91R is an 8-megapixel USB 2.0 camera module built around a 1/3.2-inch IMX179 CMOS sensor. It delivers a maximum resolution of 3264 x 2448 pixels and outputs video in MJPEG or YUY2 formats. A digital microphone is integrated on the module for synchronised audio capture.

Suited for fixed-focus inspection

This module suits engineers integrating vision into industrial inspection or medical devices where a compact 35.45 x 10 mm form factor and autofocus are required. The 75-degree field of view and 3.79 mm focal length cover close-range examination tasks. Buyers needing a wider field of view or a different lens mount should consider other options.

USB 2.0 bandwidth limits frame rate

The High Speed USB 2.0 interface determines the maximum data throughput available for 8 MP video streaming. At full 3264 x 2448 resolution the bus bandwidth constrains the achievable frame rate. Systems requiring higher frame rates at this resolution need a faster interface such as USB 3.0.

Highlights

  • 8MP resolution captures fine detail with the 1/3.2-inch IMX179 CMOS sensor
  • Autofocus keeps subjects sharp across a 75° field of view
  • Digital microphone adds synchronised audio for inspection records
  • USB2.0 interface delivers video and power over a single cable
  • Compact 35.45 mm module fits tight spaces in medical or industrial devices

Specifications

BrandWeinandianzi
ModelWN-L1910.K91R
TypeOther
Size13x9x9cm
SpecificationsUSB Camera Module with Digital Mic for Industrial Inspection Medical Devices
Compatibility1/3.2-inch IMX179 CMOS
Features4K 8MP HD 1/3.2-inch IMX179 CMOS Autofocus Endoscope USB Camera Module with Digital Mic for Industrial Inspection Medical Devices

Questions about this item

How can I confirm the 8MP IMX179 sensor is delivering 3264 x 2448 resolution over USB2.0?

Open a UVC-compatible viewer, select the MJPEG or YUY2 format at 3264 x 2448, and verify the live preview shows a sharp 75° field of view with the autofocus hunting and locking on detail.

What ships with the WN-L1910.K91R module and what must I source separately?

The module itself with its 5-pin welding spots and integrated digital microphone is supplied; you must provide a USB2.0 host cable or header, mounting hardware, and any lens-protection window for the 3.79 mm F2.0 optic.

Which specification should I match when choosing between module variants for my inspection rig?

Select the variant whose 1/3.2-inch IMX179 sensor, 75° field of view, 3.79 mm EFL lens, and 5-pin welding-spot interface match your mechanical envelope and USB2.0 bandwidth budget.
