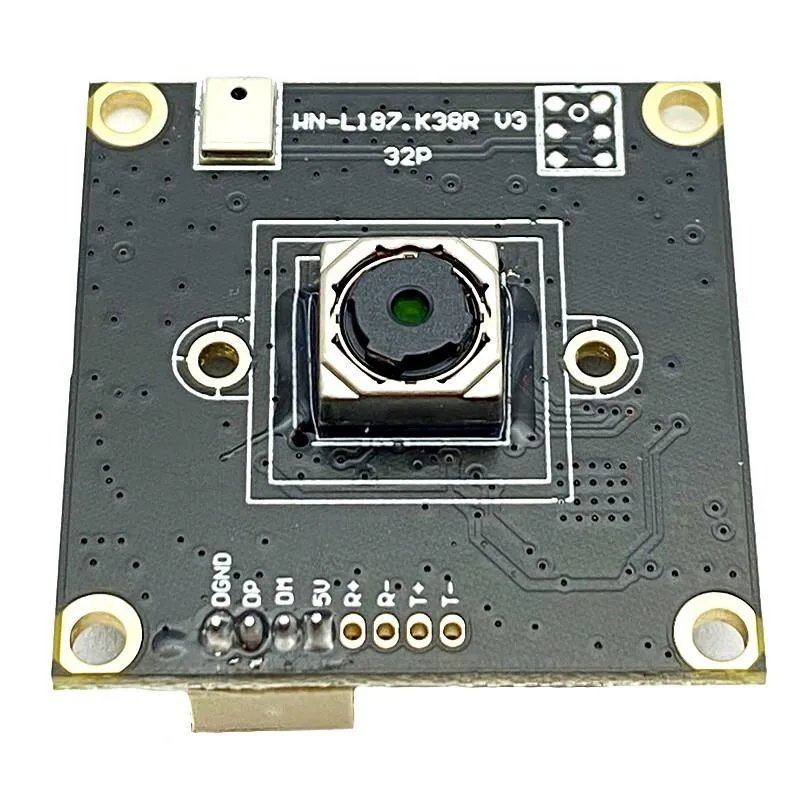

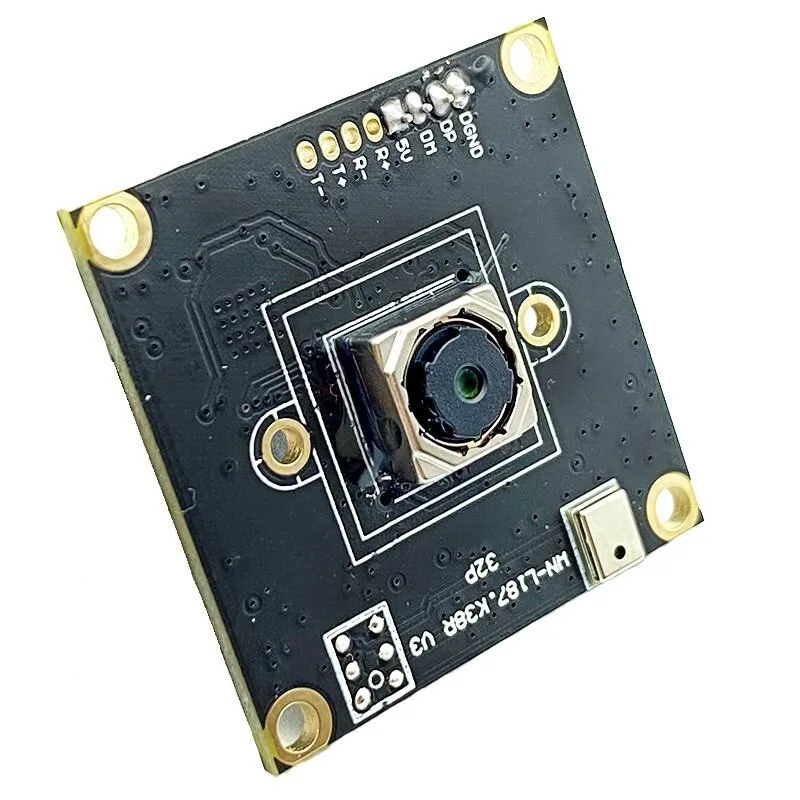

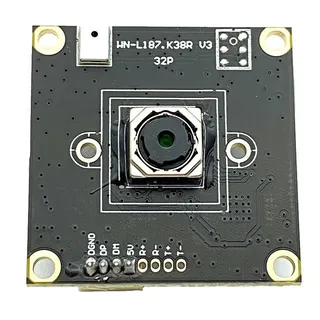

Small black rectangular camera module board with lens

Weinandianzi

Weinandianzi WN-L187.K38R 8MP USB2.0 Autofocus Camera Module 75°

SKU CH-QCQT-V3FNG

An 8-megapixel autofocus USB 2.0 camera module with a 75-degree field of view and UVC plug-and-play support for Windows and Android

  • TypeOther
  • Quantity1
  • ColorBlack
  • Size13x9x9cm
  • SpecificationsUSB2.0 Camera Module Autofocus 75 Degree UVC OTG Webcam Boar
  • Compatibility1/3.2-inch IMX179 CMOS
  • 8MP stills at 15 fps from the IMX179 sensor
  • Smooth 1080p video at 30 fps for clear streaming
  • Autofocus keeps subjects sharp across a 75° field of view
  • UVC plug-and-play works on Windows and Android without drivers
  • Compact 32×32 mm board fits tight enclosures and prototypes

Module overview

The Weinandianzi WN-L187.K38R is an 8MP USB2.0 camera module built around a 1/3.2-inch IMX179 CMOS sensor. It delivers 3264x2448 resolution at 15fps and 1920x1080 at 30fps with autofocus and a 75° field of view. The board measures 32x32mm and connects via a high-speed USB2.0 interface.

Fit for purpose

Developers adding UVC-compliant vision to Windows or Android devices will find plug-and-play operation without driver installation. The fixed 75° lens suits close-range monitoring or kiosk use. Buyers needing interchangeable optics, global shutter capture, or higher frame rates at maximum resolution should evaluate other sensor formats.

Sustained operation

Continuous streaming at 1080p 30fps keeps the USB2.0 link within its bandwidth envelope while the IMX179 maintains consistent exposure and autofocus tracking. At the full 8MP 15fps mode the data rate remains steady, avoiding thermal throttling during extended sessions. The module draws power directly from the host port, so cable length and hub quality determine voltage stability over long runs.

Highlights

  • 8MP stills at 15 fps from the IMX179 sensor
  • Smooth 1080p video at 30 fps for clear streaming
  • Autofocus keeps subjects sharp across a 75° field of view
  • UVC plug-and-play works on Windows and Android without drivers
  • Compact 32×32 mm board fits tight enclosures and prototypes

Specifications

BrandWeinandianzi
ModelWN-L187.K38R
TypeOther
Quantity1
ColorBlack
Size13x9x9cm
SpecificationsUSB2.0 Camera Module Autofocus 75 Degree UVC OTG Webcam Board For Windows Android
Compatibility1/3.2-inch IMX179 CMOS
Features1/3.2-inch IMX179 CMOS 8MP HD USB2.0 Camera Module

Questions about this item

What host connector does the WN-L187.K38R need to operate?

The module requires a USB 2.0 port that supports the UVC standard for plug-and-play operation on Windows or Android.

Will the 75° autofocus lens still focus correctly if I mount the 32×32 mm board inside a legacy enclosure?

Yes, the fixed 75° field of view and autofocus mechanism function independently of the enclosure as long as the lens has a clear line of sight.

How can I verify the IMX179 sensor is delivering 8 MP at 15 fps after installation?

Open a UVC-compatible viewer, select the 3264×2448 MJPEG or YUY2 format and confirm the reported frame rate settles at 15 fps.
